Training Curriculum Course

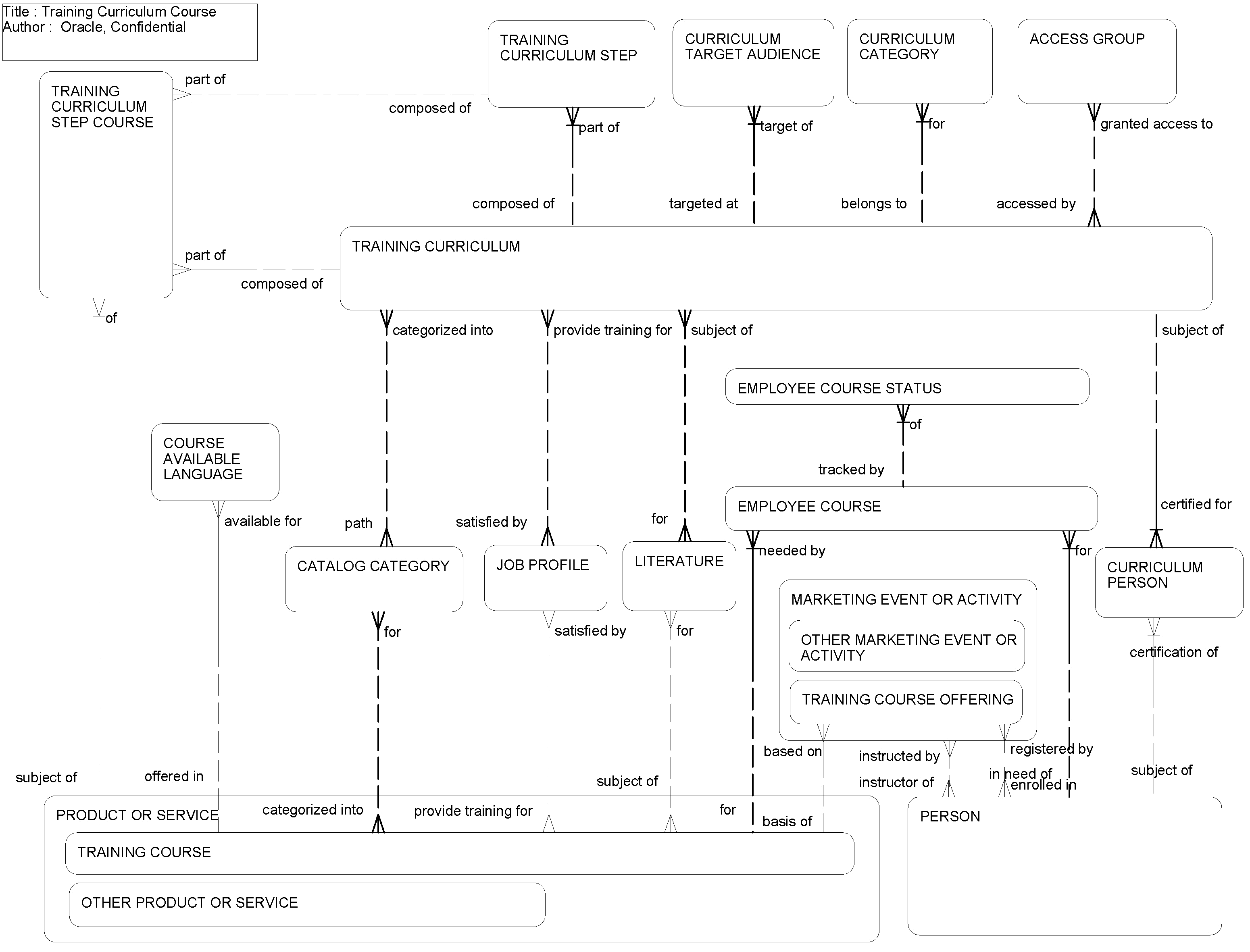

This ERD (see the following figure) illustrates the entities and relationships relevant to the training business function. A training curriculum is made up of one or more training courses, which are offered through one or more course offerings. Both courses and curriculums target one or more audience types and have literature associated with them. A person can be registered for one or more course offerings. Tests can be defined for one or more course offerings, including test questions and possible answers. Tests taken by an Individual contain the answer given by that person to each question and the score achieved by that person for each question.

The following table lists the entities in this ERD and their corresponding tables.

Entity	Table
Catalog Category	S_CTLG_CAT
Access Group	S_PARTY
Employee Course	S_EMP_CRSE
Employee Course Status	S_EMP_CRSE_STAT
