Training Test Engine

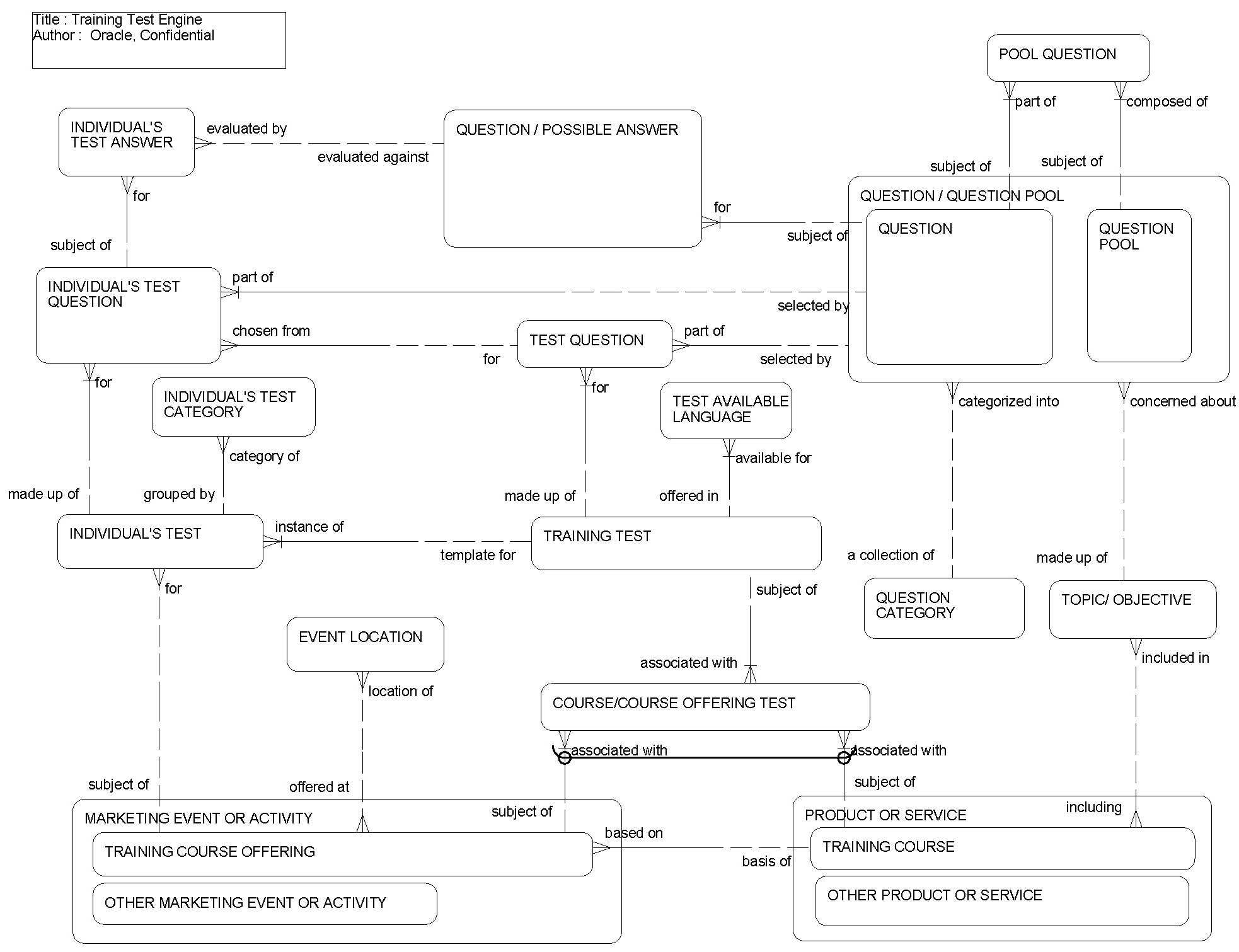

This ERD (see the following figure) illustrates the entities and relationships relevant to the training test engine business function. Tests can be defined for one or more course offerings, or for one or more courses, including test questions and possible answers, and can be available in one or more languages. Each test question can be either determined in advance or pulled from a question pool at run time. Tests taken by an individual contain the exact question presented to the individual, the individual's answer to each question, and the score achieved by that person for each question. It also keeps track of whether the individual has attempted to answer the question.
The following table lists the entities in this ERD and their corresponding tables.
| Entity | Table |
|---|---|
|
Course/Course Offering Test |
S_CRSE_OFFR_TST |
|
Event Location |
S_EVTLOC |
|
Individual’s Test |
S_CRSE_TSTRUN |
|
Individual’s Test Answer |
S_CRSE_TSTRUN_A |
|
Individual’s Test Category |
S_TSTRUN_CATSTS |
|
Individual’s Test Question |
S_CRSE_TSTRUN_Q |
|
Marketing Event or Activity |
S_SRC |
|
Pool Question |
S_POOL_QUES |
|
Product or Service |
S_PROD_INT |
|
Question/Possible Answer |
S_CRSE_TST_ANSR |
|
Question/Question Pool, Question Pool, Question |
S_TST_QUES |
|
Question Category |
LOV |
|
Test Available Language |
S_CRSE_TST_LANG |
|
Test Question |
S_CRSE_TST_QUES |
|
Topic/Objective |
S_CRSE_TOPIC |
|
Training Course |
S_PROD_INT_CRSE, S_PROD_INT |
|
Training Course Offering |
S_SRC_EVT, S_SRC |
|
Training Test |
S_CRSE_TST |
