Detailed, Image Bullet, List Template With Record Navigation Two

The DotCom Applet List Detailed ImgBullet RecNav2 template uses the DotComAppletListDetailedImgBulletRecNav2 web template. It displays a detailed description for each product in a list. It includes a product image, title, and buttons for each record.

The following image includes the generic layout that this template uses.

Generic Layout of the DotComAppletListDetailedImgBulletRecNav2 Template. This image is described in surrounding text.

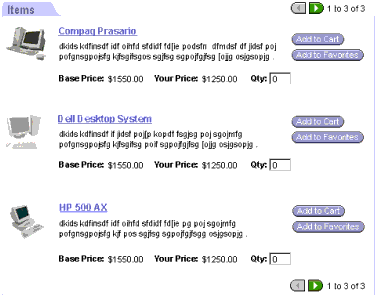

The following image includes an example of this template.

In this image, there is a tab at the beginning of the image with the label: Items. After Items, there is a list of product records. Each record has a product image, title, and buttons.

This template uses the following structure:

DotComAppletListDetailedImgBulletRecNav2
   CCApplet_Spacer
   dCCTitle_RecNav
      CCRecordNav
   CCTogglebar_drop
   dCCListBodyImgBulletDetailed2

The following table lists the items that Siebel CRM can map for this template. For more information, see About Mapping IDs to Placeholders.

ID	Placeholder
2	Small Image (30x30)
121	First
122	Previous
123	Next
124	Last
142 through 143	Control
145	Control
501	Small Image (30x30)
502 through 503	Item Name
504 through 505	Label or Field
506 through 508	Control
510 through 511	Label or Field
1100	Outside Applet Help Text
