Detailed, Image Bullet, List Template With Record Navigation

The DotCom Applet List Detailed ImgBullet RecNav template uses the DotComAppletListDetailedImgBulletRecNav web template. It displays detailed product descriptions in a list. It displays a product image, title description, and buttons for each record.

The following image includes the generic layout that this template uses.

Generic Layout of the DotComAppletListDetailedImgBulletRecNav Template. This image is described in surrounding text.

The following image includes an example of this template.

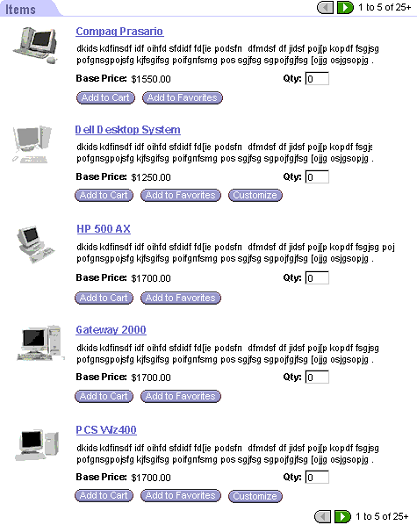

Example of the DotComAppletListDetailedImgBulletRecNav Template. In this image, there is a tab at the beginning labeled Items. After Items, there is a list of product records. Each product record has a product image (image of a computer, in this example), title description and buttons. Buttons are labeled Add to Cart, Add to Favorites and Customize. The Customize button does not appear for every record.

This template uses the following structure:

DotComAppletListDetailedImgBulletRecNav
   CCApplet_Spacer
   dCCTitle_RecNav
      CCRecordNav
   CCTogglebar_drop
   dCCListBodyImgBulletDetailed
   CCRecordNav

The following table lists the items that Siebel CRM can map for this template. For more information, see About Mapping IDs to Placeholders.

ID	Placeholder
2	Small Image (30x30)
121	First
122	Previous
123	Next
124	Last
142 through 143	Control
145 through 146	Control
157 through 158	Control
501	Small Image (30x30)
502 through 503	Item Name
504 through 505	Label or Field
510 through 512	Label or Field
1100	Outside Applet Help Text
