Detailed, Image Bullet, List Template

The DotCom Applet List Detailed ImgBullet template uses the DotComAppletListDetailedImgBullet web template. It displays detailed product descriptions in a list. It displays a product image, title description, and buttons for each record.

The following image includes the generic layout that this template uses.

Generic Layout of the DotComAppletListDetailedImgBullet Template. This image is described in surrounding text.

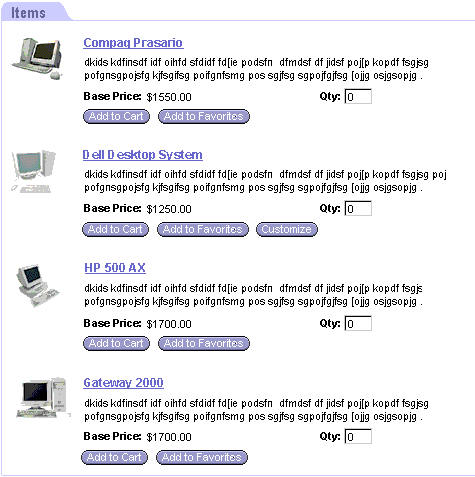

The following image includes an example of this template.

Example of the DotComAppletListDetailedImgBullet Template. At the beginning of this image, there is a tab labeled Items. After Items, there is a list of records. Each record has a product image (computers in this example), a title description, a description and buttons for each record.

This template uses the following structure:

DotComAppletListDetailedImgBullet
   CCApplet_Spacer
   dCCTitle_Mapped
      CCLayoutButtons
   CCTogglebar_drop
   dCCListBodyImgBulletDetailed

The following table lists the items that Siebel CRM can map for this template. For more information, see About Mapping IDs to Placeholders.

Id	Placeholder
2	Small Image (30x30)
90	Title: DrillDown title or Label
142 through 143	Control
145 through 146	Control
157	Control
158	Control
184	DrillDown Title
203	MinimizeApplet
204	MaximizeApplet
207	MoveAppletUp
208	MoveAppletDown
211	ShowApplet
212	HideApplet
501	Small Image (30x30)
502 through 503	Item Name
504 through 505	Label or Field
510 through 512	Label or Field
555	Label
