Horizontal List Template

The DotCom Applet List Horizontal template uses the DotComAppletListHorizontal web template. It can do the following:

Display a list of records horizontally.
Create a layout that allows the user to compare items.
Include a product image, title, and a brief description.
Support record navigation.

The following image includes the generic layout that this template uses.

Generic Layout of the DotComAppletListHorizontal Template. This image is described in surrounding text.

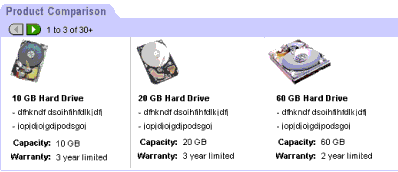

The following image includes an example of this template.

Example of the DotComAppletListHorizontal Template. In this image, there is a tab at the beginning of the image with the label: Product Comparison. After Product Comparison, there are three columns with product records. Each product record has an image, a product title, and a description.

This template uses the following structure:

DotComAppletListHorizontal
   CCApplet_NamedSpacer
   CCTitle_Named
      CCTitle
   CCTogglebar_drop
   dCCListButtonsTop
   dCCButtons_List
   CCRecordNav
   CCTogglebar_drop
   CCListButtonsTopRight
 dCCListBodyHorizontal

The following table lists the items that Siebel CRM can map for this template. For more information, see About Mapping IDs to Placeholders.

ID	Placeholder
2	Control
106	Query
107	Go (ExecuteQuery)
108	Cancel (Query)
109 through 111	Control
121	First
122	Previous
123	Next
124	Last
131	New
134	Reset
135	Cancel
136	Save
139 through 141	Control
142 through 143	Control
145	Control
150 through 151	Control
160 through 164	Control
161 through 164	Control
501	Small Image (30x30)
502	Item Name
503 through 505	Field
510 through 512	Label or Field
1100	Outside Applet Help Text
1500	Required or Legend
