List Template With Tabs

The DotCom Applet List Tabbed template uses the DotComAppletListTabbed web template. It can map up to twenty fields. For more information about how to configure this mapping, see Configuring How Siebel CRM Uses the Columns Displayed Feature.

The following image includes the generic layout that this template uses.

Generic Layout of the DotComAppletListTabbed Template. This image displays an applet with lines in a grid.

The following table includes an example of this template.

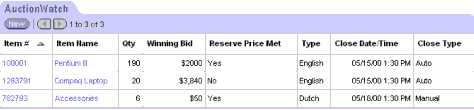

Example of the DotComAppletListTabbed Template. This image shows an applet with a tab titled AuctionWatch. After AuctionWatch, there is a list of products. There are seven columns with the following headings: Item #, Item Name, Qty Winning Bid, Reserve Price Met, Type, Close Date/Time, and Close Type.

This template uses the following structure:

DotComAppletListTabbed
   CCApplet_NamedSpacer
   CCTitle_Named
      CCTitled
   CCListButtonsTop
      dCCButtons_List
   CCRecordNav
   CCTogglebar_drop
   CCListButtonsTopRight
dCCListHeaderdCCListBodyNoRowHilite

The following table lists the items that Siebel CRM can map for this template. For more information, see About Mapping IDs to Placeholders.

ID	Placeholder
2	Control
106	Query
107	Go (ExecuteQuery)
108	Cancel (Query)
109 through 111	Control
121	First
122	Previous
123	Next
124	Last
131	New
132 through 133	Control
134	Reset
135	Cancel
136	Save
139 through 141	Control
142 through 143	Control
144	Selected Row
145	Control
146	Save
147	Pick Control
150 through 151	Control
160 through 164	Control
161 through 164	Control
501 through 520	Field
1100	Outside Applet Help Text
1500	Required or Legend
