Marketing Budget Request

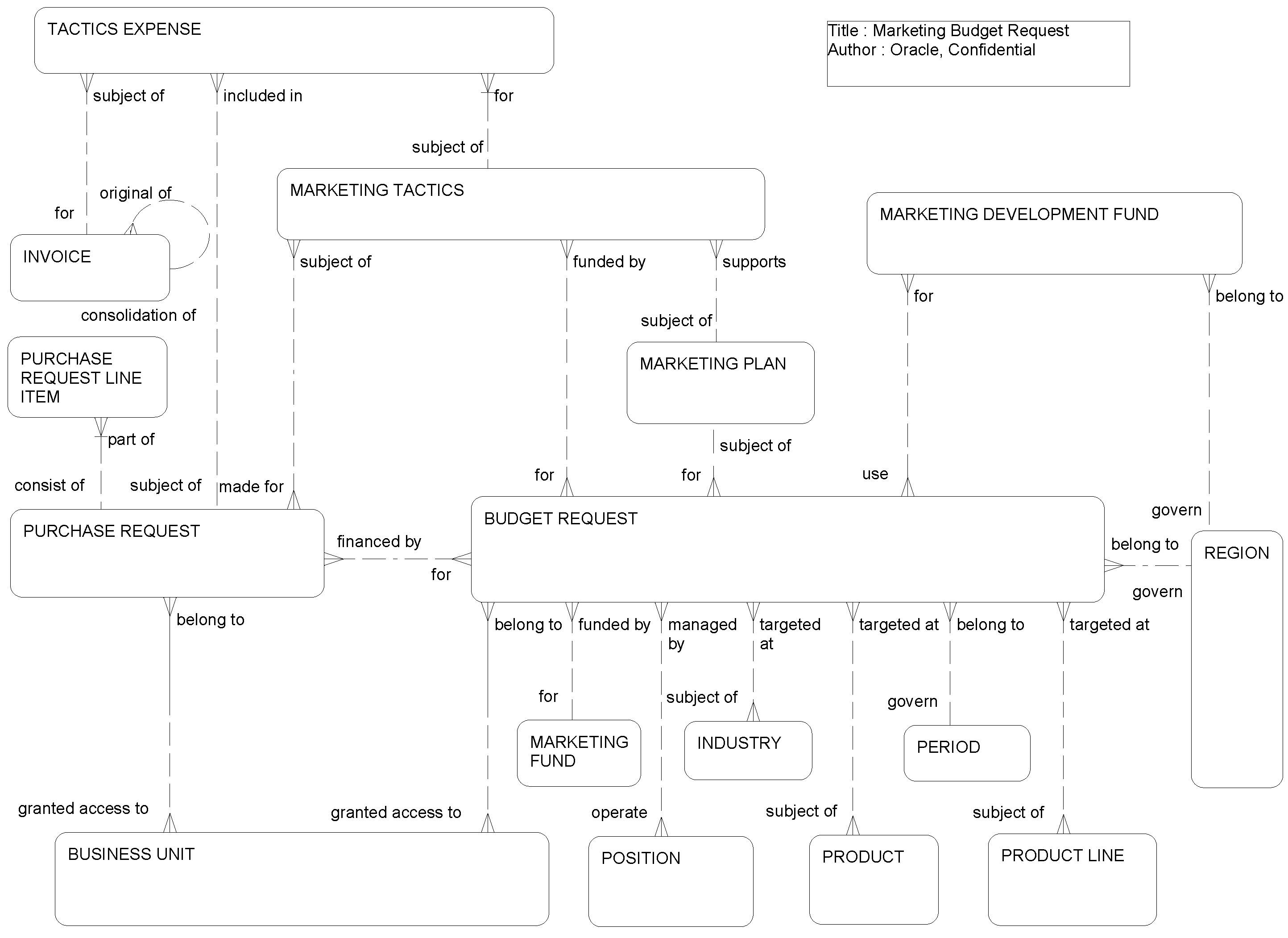

This ERD (see the following figure) covers the Marketing Resource Management: budget request process. It illustrates the relationships between budget requests and marketing tactics, marketing funds, and purchase orders. A budget request can be managed by a team and defined against a dedicated marketing fund for a period and a region. It can be associated with one or more industries, products, and product lines.

The following table lists the entities in this ERD and their corresponding tables.

Entity	Table(s)
Budget Request	S_MKTG_BDGT_REQ
Purchase Request	S_ORDER
Marketing Development Fund	S_MDF
Marketing Plan	S_SRC
Marketing Fund	S_MDF
Marketing Tactics	S_SRC
Tactics Expense	S_SRC_COST
Purchase Request Line Item	S_ORDER_ITEM
