Service Calendars and Work Shifts

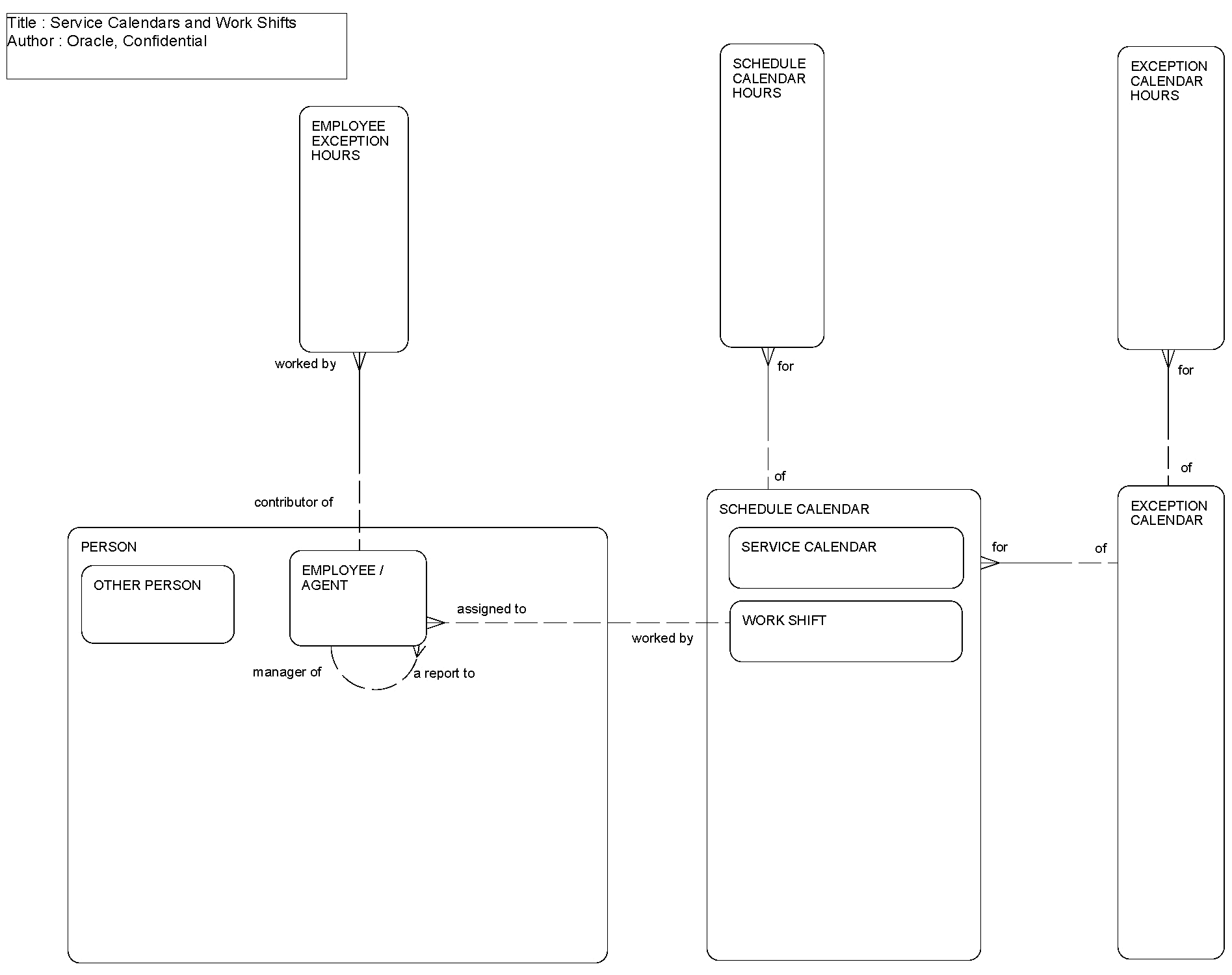

This ERD (see the following figure) illustrates the structure of service calendars and work shifts. Both are made up of a set of working hours for each day of the week with a single exception calendar defining planned holidays and other exceptional working days. An employee can be assigned to a work shift to define his or her normal working hours with exceptional working or non-working hours expressed as employee exception hours.

The following table lists the entities in this ERD and their corresponding tables.

Entity	Table
Employee	S_CONTACT, S_EMP_PER, S_PARTY
Employee Exception Hours	S_EXCPT_CAL_HRS
Exception Calendar	S_EXCPT_CAL
Exception Calendar Hours	S_EXCPT_CAL_HRS
Person	S_CONTACT, S_PARTY
Schedule Calendar	S_SCHED_CAL
Schedule Calendar Hours	S_SCHED_CAL_HRS
Service Calendar	S_SCHED_CAL
Work Shift	S_SCHED_CAL
