Use Siebel Tools to view base table mappings to EIM tables.
To search for an EIM table mapping
to a specific base table
Start Siebel Tools.
In the Object Explorer, click the Types tab.
Expand EIM Interface Table, and click EIM Table Mapping.
Execute a query for a base table mapping, entering the name
of the base table in the Destination Table field.
The query returns all EIM tables that include a mapping to the base
table. The EIM table to which the base table is mapped is shown in
the Parent EIM Interface Table field. Some base tables may be mapped
to more than one EIM table.

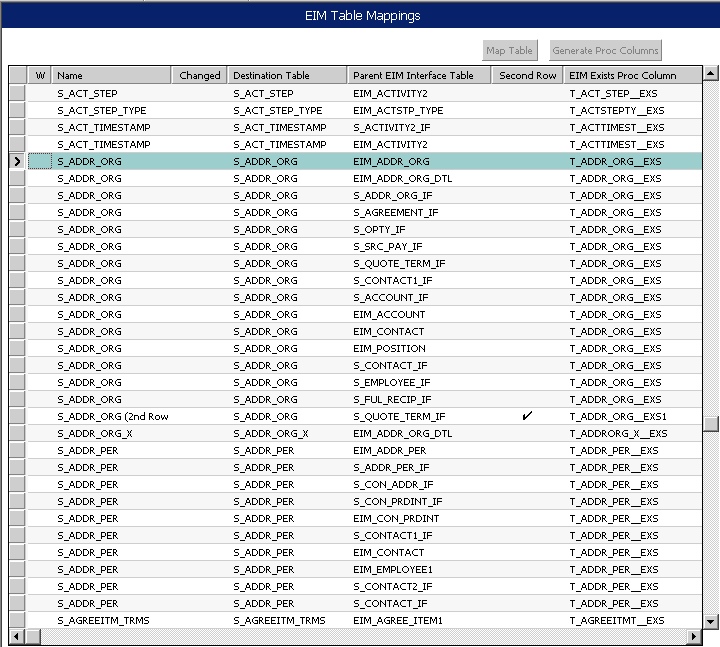

The following figure shows an example of viewing the EIM table mappings for the S_ADDR_ORG base
table. (This example is specific to horizontal Siebel CRM applications.) Note that the
S_ADDR_ORG base table maps to many EIM tables.
