Viewing Interface Column Mappings to Base Tables
Use Siebel Tools to view interface column mappings to base table columns.
To view interface column mappings to base tables
In the EIM Table Mappings window, select a base table.
In the Object Explorer, expand EIM Table Mapping.
Click Attribute Mapping.
The Attribute Mappings window displays column mappings for the selected base table.

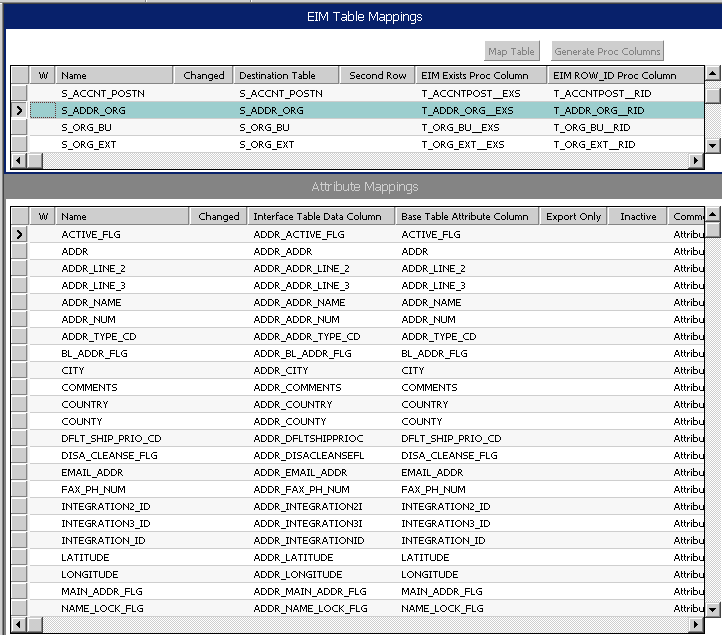

The following figure shows an example of viewing column mappings for the S_ADDR_ORG base table. (This example is specific to horizontal Siebel CRM applications.) In the Attribute Mappings list applet, for a selected base table mapping, you can find information about the mapping that has been defined between the EIM table column and the base table column. For example, the following figure shows that the S_ADDR_ORG.ADDR_NAME column has been mapped to the ADDR_ADDR_NAME (EIM_ACCOUNT) interface column.
