Limit Data Integration

Oracle FLEXCUBE Universal Banking is the master for limit data. The following illustrates the flow of limit data during the data integration process. The data integration methods used are online and batch synchronization.

As shown in this flow, limit data created or modified in Oracle FLEXCUBE Universal Banking is passed to Siebel CRM in batch mode using Oracle Data Integrator. Online inquiries to retrieve additional limit information for display in Siebel CRM are also supported.

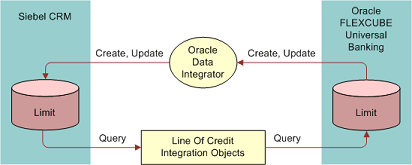

Limit Data Flow During Data Integration Process. In this image, Siebel CRM has Limit (data). Oracle Data Integrator is connected by one-way arrow (indicating Create and Update) to Siebel CRM Limit. Siebel CRM Limit is connected to Line Of Credit Integration Objects by a one-way arrow (indicating Query). Line of Credit Integration Objects is connected by one-way arrow (indicating Query) to Oracle FLEXCUBE Universal Banking Limit (data). Oracle FLEXCUBE Universal Banking Limit is connected to Oracle Data Integrator by one-way arrow (indicating Create, Update).

For additional information on the line of credit integration objects, see QueryLineOfCreditEBM.

The following integration point uses limit data: Inquiries from Siebel CRM.
