Topology Overview
Topology defines the infrastructure layout that will be created on Oracle Cloud by Cloud Manager. Essentially, a topology defines a set of nodes, which is an abstraction of a virtual machine. While defining a node, you can set the values for node attributes, such as operating system, VM shape, disk capacity, and PeopleSoft components to be installed.
The PeopleSoft administrators create topologies for PeopleSoft applications as per their organization requirements. By default, the Cloud Manager is delivered with the following topologies:
Lift and Shift
Lift and Shift - DBaaS
PUM Fulltier
Note: Users are not allowed to delete lift and shift topologies that are used for lift and shift process.
|
Page Name |
Definition Name |
Usage |
|---|---|---|
|
ECL_TOPOLOGY_FL (Content reference for the tile.) |
To access the Topology landing page. |
|
|
ECL_TOPO_COMP_FL |
To create new topologies, edit or clone existing topologies. |
|
|
ECL_TOPO_COMP_FL |
Create a new topology. |
Use the Topology tile to access the Topology landing page.
Navigation:
The Topology tile is delivered as part of the Cloud Manager home page.
This example illustrates the Topology Tile.
Use the Topology Definitions page (ECL_TOPOLOGY_FL) to perform the following:
Create a new topology
Edit an existing topology
Clone an existing topology
Delete an existing topology
Navigation:
Click the Topology tile on the delivered Cloud Manager home page. The Topology Definitions page is displayed.

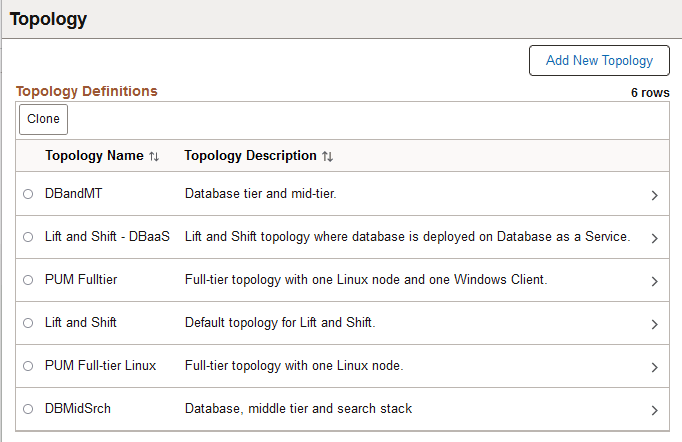

This example illustrates the fields and controls on the Topology Definitions page. You can find definitions for the fields and controls later on this page.
|
Field or Control |
Description |
|---|---|
|
Topology Name |
Name of the topology. |
|
Topology Description |
Description for the topology. Click the arrow on the right (>) to view and edit the definition. |
|
Add New Topology |
Click to define a new topology. |
|
Clone |
Select an existing topology and click this button to make a copy that you can then edit. |
