Review and Fix Errors in a Decision

Check each decision in your decision model for errors and warnings. Resolve all issues before testing and activating the model.

If a decision node contains errors, an error icon appears on the node.

To view and resolve the errors or warnings in a decision:

1. Double-click the node to access its logic editor. Alternatively, select the node, and click on the sidebar.
   In the editor, the total number of errors and warnings are displayed in the top-right corner.
2. To view all errors and warnings, click the error or warning icon. Additionally, for decision tables, you can see where the errors or warnings occur in the table.

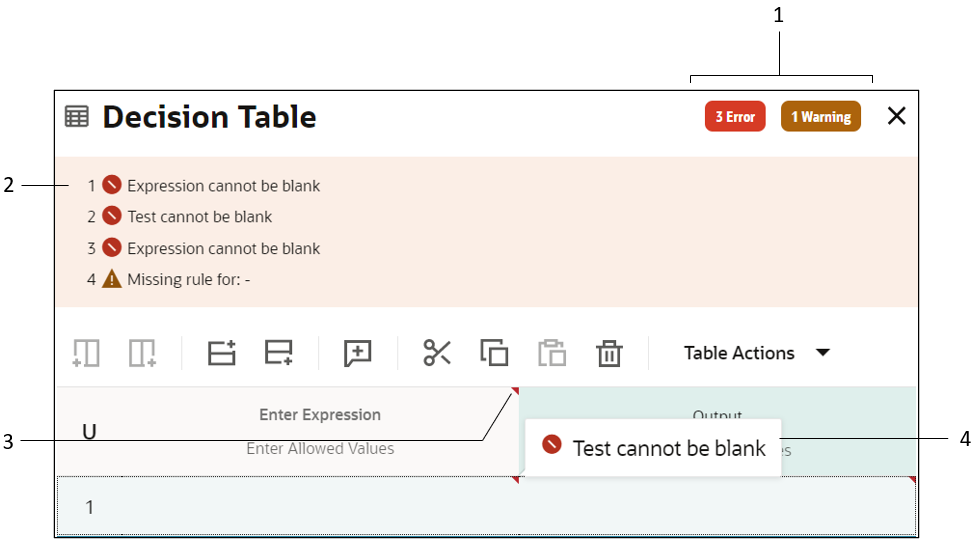

   Here's an image showing the errors and warnings for an empty decision table.



   Image annotation details:

   1: The error and warning icons, showing their respective counts.

   2: The list of errors and warnings that appears when you click the error or warning icon.

   3: The red marker that indicates an error in a specific cell of a decision table.

   4: The error information that appears when you mouse over the red marker.

3. Review and fix all errors in each decision of your model. Afterward, you can test and activate the model.
