This chapter describes the following topics:
The Enterprise Manager Plug-in builder is a JDeveloper extension that helps integrators to create plug-ins using JDeveloper editor. The intuitive GUI wizards available within the plug-in builder enable you to easily develop plug-ins that can be imported and deployed onto Enterprise Manager. Traditional way of creating a Metadata Plug-in using various XML editors has always been prone to semantic and syntactic errors. Therefore, Oracle recommends using this interactive development environment to take advantage of the various run time validation intelligence embedded in the extension.
To develop plug-ins, you need to download the plug-in builder tool that is shipped with Extensibility Development Kit (EDK). To download the EDK kit, from Cloud Control console, select Setup, then Extensibility, and Development Kit. Following are the key components required to develop metadata plug-ins:
Plugin.xml: A plugin.xml
file provides the metadata describing the plug-in, and is used for deploying plug-ins. It contains properties that identify the plug-in, such as name and version, and declares the set of target types that will be added to Enterprise Manager Cloud Control.
Plugin_registry.xml: A plugin_registry.xml
file provides the metadata required by the Management Agent to which the plug-in will be deployed. It is packaged in the /agent
directory within the plug-in archive and is deployed to the Management Agent that will monitor a target.
Target Type: A target type metadata file is an integral part of defining a new target type. The target type file describes a set of metrics that can be collected for a specific type of target. Essentially, it tells the Management Agent what data to retrieve and how to obtain that data for this particular target type. To add a new target type, provide the following details:
Instance properties defines what properties an administrator must specify in the Enterprise Manager Cloud Control console when adding a new target instance of this particular target type.
Credentials are required for a plug-in to authenticate with each target instance that it will collect data for, or run jobs against. Credential types and credential sets are needed to enable authentication.
Metrics are at the core of Cloud Control's target monitoring capabilities. Basically, Cloud Control's ability to monitor and manage various targets. This in-turn refers to its ability to collect, process, and display target metrics.
Default Collection: The default collection file defines the metric data to be collected from targets and written to the Management Repository along with information such as the collection frequency. The default collection metadata file for a target type defines the following:
The frequency of at which this metric data is collected.
Thresholds that, when exceeded, will cause a Metric Alert event to be raised.
An optional message to display when a threshold is exceeded.
Ensure that you have downloaded and installed the latest version of JDK 7 on your system.
For developing plug-ins using plug-in builder, Oracle recommends using Oracle JDeveloper 12.1.3.0.0 Studio Version. To install this JDeveloper version along with the plug-in, follow the steps listed in Installing Plug-in Builder and a New JDeveloper Instance.
Note:
If you select Oracle JDeveloper 12g 12.1.3.0.0 - Java Edition - Generic, then you must have an existing JDeveloper instance running. To install JDeveloper, see http://www.oracle.com/technetwork/developer-tools/jdev/documentation/index.html
. Following which, you can install plug-in builder using the steps listed in Installing Plug-in Builder into an Existing JDeveloper Instance.
Ensure that you have downloaded the latest EDK kit to your local system. To do so, follow the steps listed in Installing the Extensibility Development Kit (EDK).
This section contains the following topics:
Note:
After installing the Plug-in Builder, to verify if the Plug-in Builder extension has been properly deployed, follow these steps:
On the Oracle JDeveloper page, from help menu, select About.
In the About Oracle JDeveloper dialog box, select Extensions.
In the Extensions Tab, look for:
Name: EM Plug-in Builder
Identifier: oracle.em.edk.pluginbuilder
Version: 12.1.0.1.0
Status: Loaded
To install the JDeveloper studio version, and the plug-in builder components, follow these steps:
If you have an existing JDeveloper instance, then you must use JDeveloper update mechanism to install plug-in builder extension. To do so, follow these steps:
Set the following environmental variables:
On Unix: export JAVA_HOME=/usr/jdk7 On Windows: set JAVA_HOME=C:\Program Files\Java\jdk7
Run the command to start the existing JDeveloper instance.
On the Oracle JDeveloper page, from help menu, select Check for Updates. Check for Updates Wizard is displayed.
On the Welcome page, click Next.
On the Source Page, select Install from Local File. Click browse, or enter the path to the plug-in builder file:
On Linux
<EDK_INSTALL_DIR>/lib/empluginbuilder.zip
On Windows:
<EDK_INSTALL_DIR>\lib\empluginbuilder.zip
Where, EDK_INSTALL_DIR
is the directory where EDK is installed.
Click Next.
On the Summary page, upgraded extensions, and the new extensions are displayed. Click Finish.
You are then prompted to exit the JDeveloper wizard.
To update the JDeveloper reference to EDK, follow these steps:
Start the JDeveloper instance.
On the Oracle JDeveloper page, from Tools menu, select Preferences.
On the Preferences page, select EM Plug- in Builder, and update the location of the EDK.
Note:
If you miss updating the EDK home location, the plug-in project fails with set the EDK location
error.

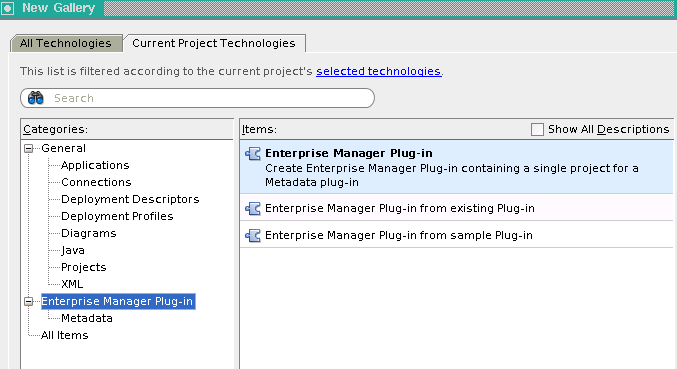

To create an Enterprise Manager project, follow these steps:

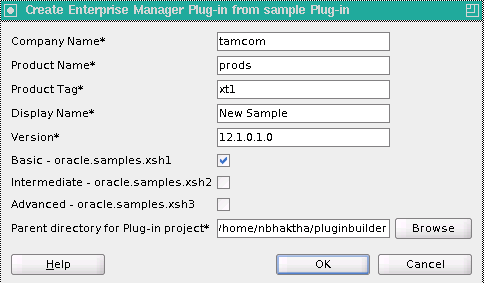

To create an Enterprise Manager plug-in project using sample plug-ins, follow these steps:

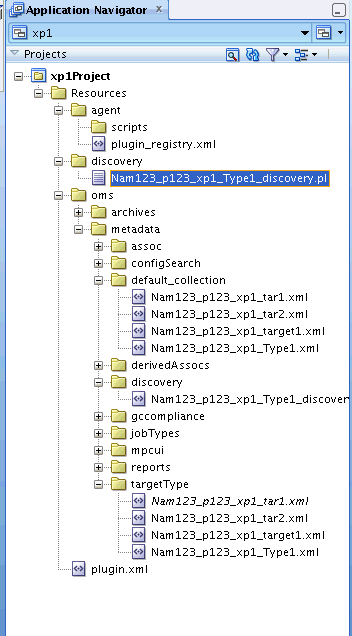

Starting with EDK 12.1.0.4.0, plug-in builder supports specifying discovery metadata and target specific discovery code. That means, whenever a new target type is created, the discovery metadata gets updated automatically to include the newly added target types. If you do not want to discover some target types, then you can manually delete that information from the discovery.xml
file available at: <project_name>/Resources/oms/metadata/discovery
. To access and view the details of this xml file, see Viewing Basic Discovery Information. The target specific discovery code is supported using a Perl script located under /Resources/discovery
folder. For any new target type added, the corresponding discovery code should be added in the Perl script. For an example on how to update the Perl script to discover targets, see Discovery Integration Example Requiring User Input.
See Also:
For more information about how discovery of targets can be accomplished in Enterprise Manager manually, see Defining Target Discovery.
If you have a plug-in that was created without the discovery metadata, then you can use the Plug-in Builder to manually add the discovery files to the correct folders. Follow these steps to enable discovery support for a pre-existing plug-in:
Before you deploy the plug-in archive file into Enterprise Manager, perform the following pre-requisite tasks:
Once the plug-in archive file (.opar) is ready, to deploy the plug-in archive file into Enterprise Manager, right-click the project name, and from the context menu, select Deploy Plug-in, and then click OK.
Note:
If you haven't created the Plug-in archive file, you will not be allowed to perform the deploy step.
After the plug-in has been successfully deployed, to access the plug-in, log into Cloud Control, and from the Setup menu, select Extensibility, then click Plug-ins. You must see the newly deployed plug-in on the Plug-ins page.
There are two approaches to add a new target type. They are:
Table 4-2 Adding A Target Type
Approach 1 | Approach 2 |
---|---|
On Oracle JDeveloper page, from File menu, select New. A New Gallery dialog box is displayed. |
Select the project name from the Application menu. |
In the Categories section, select Metadata, then select Target Type. |
Expand the oms folder present inside the project folder, and drill down to the targetType folder. |
Click OK. |
Right-click the targetType folder, and select New |
NA |
In the New Gallery window, select Metadata., then click Target Type. Click Ok. |
Note:
The newly added target type automatically becomes available for discovery. In order to discover the targets, you must ensure that the perl script available in /Resources/discovery
directory is manually updated to include all the target type information. For more information, see Discovering Targets.
For a new Target Type, you need to provide the following details:
Note:
The metric references are completely synchronized with the collection metadata, which means, if you delete or rename a metric for a target type, then the corresponding reference in the collection items are also updated accordingly.
To define what properties an administrator must specify in the Enterprise Manager Cloud Control console when adding a new target instance of this particular target type, follow these steps:
The values for dynamic instance properties are passed back by the Management Agent collecting data from the target instance. They are typically used within a QueryDescriptor to define properties passed to the fetchlet responsible for metric collection. To add dynamic instance properties, follow these steps:
Credential type is the type of authentication supported by a target type. To add a credential type, follow these steps:
target_type.xml
) to open with the Overview editor.For example, to create a host credential with two columns UserName and Password, you need to provide the following details:
In the Insert CredentialType dialog box, enter the following details: NAME: XP2HostCreds NLSID: CREDS_HOST_HOSTCREDS LABEL: XP2 Host Credentials In the AddCredentialType Column, enter the following details: NAME: XP2HostUserName NLSID: CREDS_HOST_USERNAME LABEL: XP2 Host UserName NAME: XP2HostPassword NLSID: CREDS_HOST_Password LABEL: XP2 Password
You can edit or delete the Credentials by selecting the respective option available in the CredentialType section.
To create an instance of a CredentialType, follow these steps:
target_type.xml
) to open with the Overview editor.For example, to create an instance of Host Credential type called Normal host credential with two columns Normal Username and Normal Password, you need to provide the following details:
In the Insert CredentialSet dialog box, enter the following details: NAME: HostCredsNormal CREDENTIALTYPE: XP2HostCreds USAGE: PREFERRED_CRED NLSID: CREDS_HOST_HOSTCREDS_NORMAL LABEL: Normal Host Credentials In the AddCredentialSet Column, enter the following details: SET_COLUMN: username TYPE_COLUMN: XP2HostUsername NLSID: CREDS_HOST_HOSTCREDS_NORMAL LABEL: Normal Username SET_COLUMN: password TYPE_COLUMN: XP2HostPassword NLSID: CREDS_HOST_HOSTCREDS_NORMAL LABEL: Normal Password
You can edit or delete the Credentials by selecting the respective option available in the CredentialType section.
To add a metric property, follow these steps:
target_type.xml
) to open with the Overview editor.For example, the following graphic describes how to create a metric group containing metrics that collect CPU performance data:
You can edit or delete the metric property by selecting the respective option available in the Metric section.
To add a ColumnDescriptor, follow these steps:
To add a QueryDescriptor, follow these steps:
To add an ExecutionDescriptor table, follow these steps:
To add an ExecutionDescriptor view, follow these steps:
In the Configure Collection tab, you can perform the following tasks:
Skip: Choose skip to bypass this step. Basically, no collection item is associated with this metric.
Add New: Choose Add New to configure a new collection item that will collect data for this metric. To add or edit the properties for a collection item, see Inserting or Updating Collection Item Properties.
Use Existing: Choose Use Existing, and select the collection item from the menu to associate an existing collection item to this metric for data collection.
There are two approaches to add new collection item for the target.
Table 4-3 Adding or Updating a Collection Item
Approach 1 | Approach 2 |
---|---|
Select the project name from the Application menu. |
|
Expand the oms folder for your project, then select Target Type. A list of target types is displayed. |
Open the plugin.xml file in an overview editor. |
Select the target type to associate collection item. |
Select Collection Items tab. A list of all the available collection items for the target is displayed. |
Select Metrics tab, then click Add icon. In the Insert Metric wizard, select Configure Collection, then click Add New. Note: To add or edit the properties for a collection item, see Inserting or Updating Collection Item Properties |
Select one collection item from the list, and do the following: In the General tab, the metadata version and target type information is displayed. In the Collection Items tab, the collection item name is displayed. Note: To add or edit the properties for a collection item, see Inserting or Updating Collection Item Properties |
To add or edit the properties of a collection item, follow these steps:
The following example represents the CollectionItem entry for the basic Response metric group, which includes the Status metric. It specifies that data for this metric should be collected every 5 minutes, which is the standard collection interval for this type of metric. A condition has been set on the Status metric.:
In the General tab, enter the following details: META_VER: 1.0 TYPE: test_demo_targetType In the CollectionItem tab, enter the following details: NAME: Response UPLOAD: 6 INTERVAL: 5 TIME_UNIT: Min In the Add Condition Dialog box, enter the following details: COLUMN_NAME: Status CRITICAL: 0 OPERATOR: EQ CLEAR_MESSAGE_NLSID: Response_Status_clearalertmessage MESSAGE: Failed to connect to database instance: %oraerr%.
This section contains the following topics:
Structure view shows the element structure of the XML file and can be used to navigate to specific elements whose attributes will then be displayed in the Property Inspector section.
Instead of using the Overview section, you can choose to use the plug-in builder specific labels and elements available in the property inspector section to modify the source XML code of the plug-in. This section provides all the plug-in specific attributes that make the editing experience user-friendly
Note:
For a complete list of DTD elements and their usage, see Enterprise Manager DTD.
The following is a typical example for a plug-in project. This example describes four targets, and their corresponding collection items. The collection items are essentially meant to collect data from these target types. There are four Collection Items, one for each target. A Perl script is available in the discovery folder. The primary function of this script is to automatically discover all the targets added as a part of this project when the plug-in archive is imported and deployed to Enterprise Manager.
