Oracle® Enterprise Manager Ops Center

Discover and Manage a Power Distribution Unit

12c Release 3 (12.3.0.0.0)

E60004-01

June 2015

This guide provides an end-to-end example for how to use Oracle Enterprise Manager Ops Center.

Introduction

Asset management is the process through which Oracle Enterprise Manager Ops Center begins to manage and monitor your assets, which includes server hardware, chassis, racks, network equipment, operating systems, virtualization software, and clustering software. Discovering and managing your assets is a prerequisite for almost every action in the software. The discovery feature makes adding assets quick and easy. You can discover assets using a discovery profile, which specifies the discovery targets and the protocols, and credentials for accessing and managing them. You can also run a discovery to find all assets equipped with Service Tags, and then supply credentials to manage them.

In this document, you learn how to discover a Power Distribution Unit (PDU) using a discovery profile.

See Related Articles and Resources for links to related information and articles about discovering and managing other assets.

What You Will Need

You will need the following:

  • A configured Enterprise Controller.

  • A working Power Distribution Unit that a Proxy Controller can reach.

  • Access to Oracle Enterprise Manager Ops Center using Ops Center Admin role (to discover assets) and Ops Center Security Admin role (to create credentials).

  • The specific IP address of the Power Distribution Unit or the range of IP addresses.

Discover a Power Distribution Unit Using a Discovery Profile

A discovery profile is a combination of an asset type, a set of host names or IP addresses, and a set of credentials. You can use discovery profiles to locate specific systems and to specify how the discovered assets should be managed – with or without an Agent Controller.

The tasks that are covered in this section are as follows:

Create Credentials

Assets are managed using a set of credentials. You can create or use existing credentials to discover and connect with assets.

Create HTTP Credentials

To create HTTP credentials, perform the following steps:

  1. In the Navigation pane, click Plan Management, then click Credentials.

  2. In the Actions pane, click Create Credentials. The Create Credentials wizard opens.

  3. In the Protocol field, select HTTP from the drop-down list.

    Description of create_cred_http.gif follows
    Description of the illustration create_cred_http.gif

  4. In the Name field, enter a name for the discovery credentials.

  5. (Optional) In the Description field, enter a description.

  6. In the Login User field, enter a http login user name.

  7. In the Password field, type a password. Retype the same password in the Confirm Password field.

  8. Click Create. The HTTP credential is created.

Create SNMP Credentials

To create SNMP credentials, perform the following steps:

  1. In the Navigation pane, click Plan Management, then click Credentials.

  2. In the Actions pane, click Create Credentials. The Create Credentials wizard opens.

  3. In the Protocol field, select SNMP from the drop-down list.

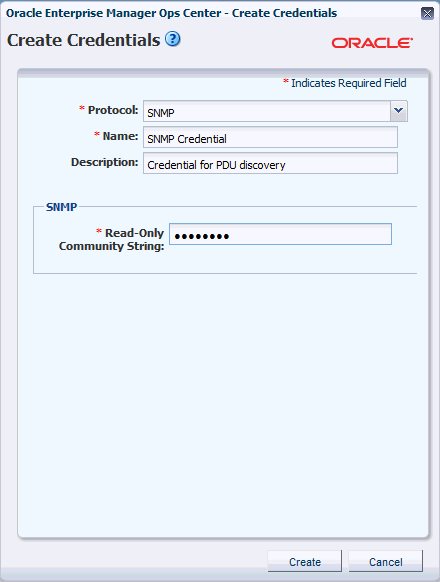

    Description of create_cred_snmp.gif follows
    Description of the illustration create_cred_snmp.gif

  4. In the Name field, enter a name for the discovery credentials.

  5. (Optional) In the Description field, enter a description.

  6. In the Read-Only Community String field, enter a password for the SNMP credential.

  7. Click Create. The SNMP credential is created.

Create a Discovery Profile

You can create a discovery profile and then run a discovery using the profile. You can provide discovery information, such as the discovery credentials during profile creation or when the profile is run.

You can add tags to assets during or after discovery. A Tag is a set of information attached to an asset. Each tag consists of a tag name, which is drawn from a list of values appropriate for each asset, and a tag value, which can be any text string. You can also create your own tag name. For example, an asset could have a tag with a tag name of oracle.cloud.resource.creation.time and a value of 12 June. Tags can be used to associate information with assets, and to group assets based on tags or tag values.

Perform the following steps to create a discovery profile:

  1. In the Navigation pane, click Plan Management.

  2. Under Profiles and Policies, click Discovery.

  3. In the Actions pane, click Create Profile.

  4. Enter a name and description for the discovery profile.

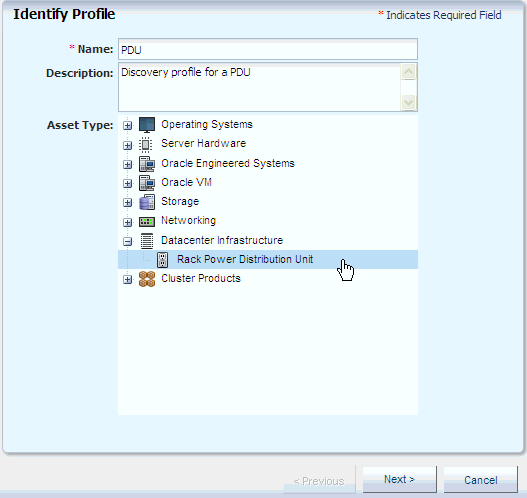

    Description of identity_profile.gif follows
    Description of the illustration identity_profile.gif

  5. In the Asset Type, under Datacenter Infrastructure, select Rack Power Distribution Unit. Click Next.

  6. (Optional) Click the Add icon (highlighted in red in the following figure) to add tags to the PDU. Select a tag name and enter a value for the tag.

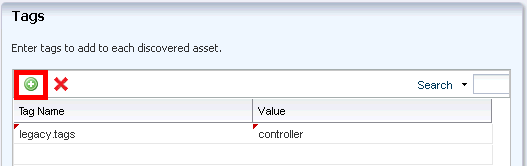

    Description of tags.gif follows
    Description of the illustration tags.gif

  7. Click Next.

  8. Enter the IP Ranges.

    1. Click the Add icon (highlighted in red in the following figure) to add IP Ranges.

      Description of ip_ranges.gif follows
      Description of the illustration ip_ranges.gif

    2. Enter values in the respective fields and click Add, then click Next.

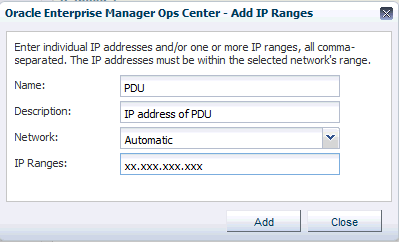

      Description of add_ip_ranges.gif follows
      Description of the illustration add_ip_ranges.gif

      • Name - A name for the IP range.

      • Description - A description for the IP range, so that it can be identified and reused.

      • Network - The managed network with which the host names or IP addresses are associated. This is used to route the discovery to the correct Proxy Controller. When a Proxy Controller cannot reach the assets' network, the discovery will fail. Select Automatic to route the job to the most appropriate Proxy Controller.

      • IP Ranges - The IP range to be targeted or IP address of the PDU.

  9. In the Discovery Credentials wizard, click Select to choose the HTTP and SNMP credentials that you have created, then click Next.

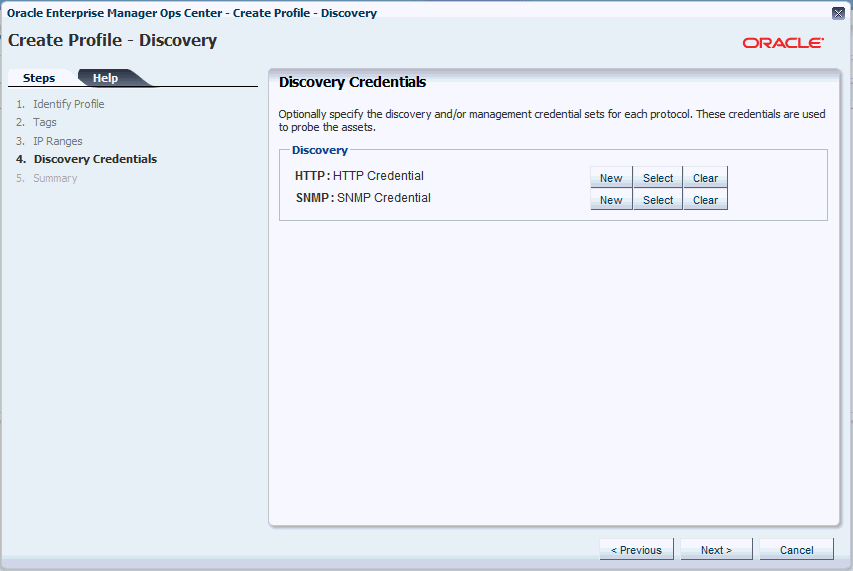

    Description of discovery_credentials.gif follows
    Description of the illustration discovery_credentials.gif

  10. Review the summary information, then click Finish to create a Discovery Profile.

Add a PDU Using the Discovery Profile

After you have created a discovery profile, you can run it to discover and manage the PDU.

This procedure assumes that you have already created a discovery profile with an IP range, a specified network, and discovery and management information.

  1. In the Navigation pane, click All Assets.

  2. In the Actions pane, click Add Assets.

  3. Select Add and Manage Various Types of Assets via Discovery Probes, then click Next.

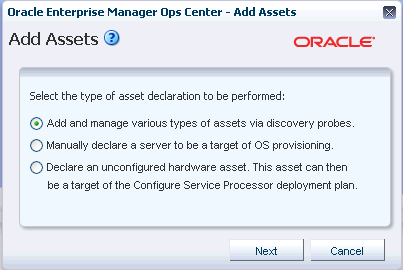

    Description of add_assets.gif follows
    Description of the illustration add_assets.gif

  4. Select the newly-created discovery profile, then click Add Now to launch the discovery.

    Description of sel_disc_profile.gif follows
    Description of the illustration sel_disc_profile.gif

    1. In the Hostnames/IP Addresses field, enter the IP address of the PDU that you want to discover.

    2. Click Add Now to run the discovery. The discovery job is launched. This might take a few minutes to complete.

What Next?

When the discovery job completes successfully, the PDU is discovered and visible in the All Assets section of the user interface as shown in the following figure.

Description of pdu_added.gif follows
Description of the illustration pdu_added.gif

Related Articles and Resources

See the following for more information:

For end-to-end examples, see the workflows and how to documentation in the library. For deployment tasks, go to http://docs.oracle.com/cd/E59957_01/nav/deploy.htm and for operate tasks go to http://docs.oracle.com/cd/E59957_01/nav/operate.htm.
