REST Web Services

Overview of In-Memory Cost Management Cloud Service REST Web Services

Representational State Transfer, or REST web services, provide interoperability between computer systems and the web. REST web services enable requesting systems to access and manipulate resources. There are five sets of REST web services used in In-Memory Cost Management Cloud Service including:

Simulations
GPA Plan Interface
Planned Costs
Supply/Demand Interface
Price List Interface

The following table shows the web services included in each set and their available actions:


Set of Web Services	Web Service Name	Action Grants
Simulations	Simulations	Describe Get
GPA Plan Interface	GPAPlanInterface	Describe Get Create Update Delete
GPA Plan Interface	GPAPlanInterfaceErrors	Describe Get
Planned Costs	PlannedCosts	Describe Get
Supply/Demand Interface	SupplyDemandInterface	Describe Get Create Update Delete
Supply/Demand Interface	SupplyDemandInterfaceErrors	Describe Get
Supply/Demand Interface	SupplyDemand	Describe Get
Price List Interface	PriceListInterface	Describe Get Create Update Delete
Price List Interface	PriceListInterfaceErrors	Describe Get
Price List Interface	PriceList	Describe Get

Simulations

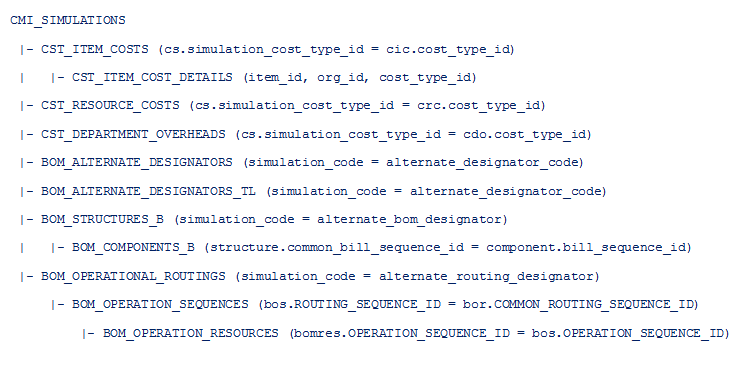

The Simulations web service set provides you with view-only (through http GET) simulation data. The simulation data includes all the data generated or related to one or more simulations. In particular, the response from this web service retrieves data in the following tables and organizes it in the hierarchy shown here:

the picture is described in the document text

GPA Plan Interface

The GPA Plan Interface, set provides you with a tool to populate (http POST), modify (http PUT or PATCH), delete (http DELETE), and query (http GET) data in the cmi_planned_interface interface table used in the profitability analysis module. You can also query the cmi_planned_iface_errors table to help find and correct any issues in the data loaded into the interface table.

Planned Costs

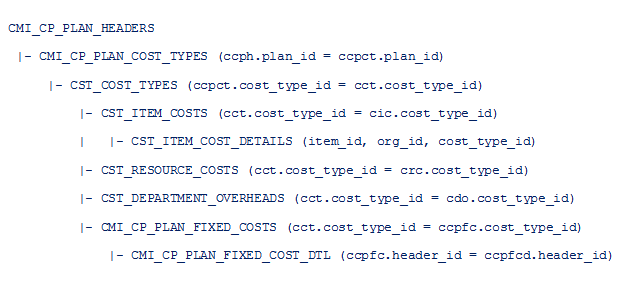

The Planned Costs web service provides you with view only plan cost data. The plan cost data includes all the data generated and related to one or more cost plans. In particular, the response from this web service retrieves data in the following tables and organizes it in the hierarchy shown here:

the picture is described in the document text

Supply/Demand Interface

The Supply/Demand Interface web services provides you with a tool to populate, modify, delete, and query data in the supply/demand interface table used in the cost planning module. You can also query the interface errors table to help find and correct any issues in the data loaded into the interface table. After importing the data in the supply/demand interface, you can use the third web service Supply/Demand in this set, to query the data imported.

Price List Interface

The Price List Interface web services provides you with a tool to populate, modify, delete, and query data in the price list interface table used in the cost planning module. You can also query the interface errors table to help find and correct any issues in the data loaded into the interface table. After importing the data in the price list interface, you can use the third web service PriceList in this set, to query the data imported.

Related Topics

Consuming the REST Web Services

There are many ways to consume these web services. For example, you can install a REST client extension in the web browser (such as “postman web client” in the Chrome browser, and so forth). You can create and send the http requests in the REST client to consume the listed web services:

The following are the web service URLs which perform these functions:

Returns a list of available versions of web services:
```
<host>:<port>/IMCMCSREST/rest
```
Returns the information related to version v1:
```
<host>:<port>/IMCMCSREST/rest/v1
```
Returns a list of available web services of version v1:
```
<host>:<port>/IMCMCSREST/rest/v1/describe
```
For example, you will find the URL of the root resource of web service “Simulations” as:
```
<host>:<port>/IMCMCSREST/rest/v1/IMCMCSREST/rest/v1/Simulations
```
You will find the URL of the child resources, grandchild resources, and so forth such as:
```
<host>:<port>/IMCMCSREST/rest/v1/Simulations/{id}/child/BomOperationalRoutingsView/{id}/child/BomOperationSequencesView/{id}/child/BomOperationResourcesView
```

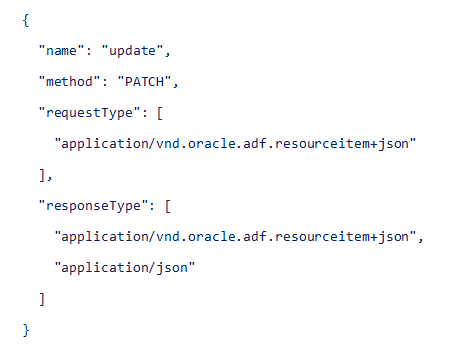

Describe also returns available actions and their request/response type. For example, the following JSON node associated with the resource URL following shows that this resource accepts http PATCH requests with the mentioned content-type:
```
http://slce201cn14:7002/IMCMCSREST/rest/v1/GPAPlanInterface/{id}
```
The acceptable http request content-type is:
```
application/vnd.oracle.adf.resourceitem+json, instead of application/json
```
- You can add query criteria and/or other conditions to the URL. For example, to query simulation_code Atest3 of the root resource of web service “Simulations”, use:
```
<host>:<port>/IMCMCSREST/rest/v1/IMCMCSREST/rest/v1/Simulations/Atest3
```
The simulation_code is the primary key of this resource. To filter by a non-primary-key attribute, e.g., RollupId, use:
```
<host>:<port>/IMCMCSREST/rest/v1/IMCMCSREST/rest/v1/Simulations/Atest3?q=RollupId=1002
```
This filtering feature does not support multi-attribute queries.

By default, the response of the web service returns 5 rows. To specify the number of rows to return, use:
```
<host>:<port>/IMCMCSREST/rest/v1/IMCMCSREST/rest/v1/Simulations/Atest3?limit=<number_of_rows>
```
- You can also combine the two, for example., RollupId, and number of rows, as follows:
```
<host>:<port>/IMCMCSREST/rest/v1/IMCMCSREST/rest/v1/Simulations/Atest3?=RollupId=1002&limit=<number_of_rows>
```
- If both the data from parent resource and child resources are needed, use the following to include a particular child resource:
```
<host>:<port>/IMCMCSREST/rest/v1/IMCMCSREST/rest/v1/Simulations/Atest3?expand=<child_resource_name>
```
To include all child resources use:
```
<host>:<port>/IMCMCSREST/rest/v1/IMCMCSREST/rest/v1/Simulations/Atest3?expand=all
```
Note: Expand includes the child resources only. It does not include grandchild resources etc..

The POST, PUT, PATCH requests must use content-type:

application/vnd.oracle.adf.resourceitem+json

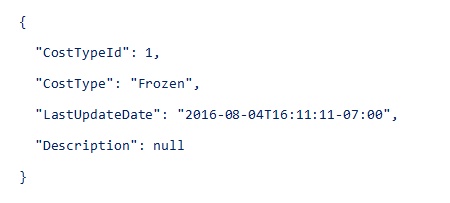

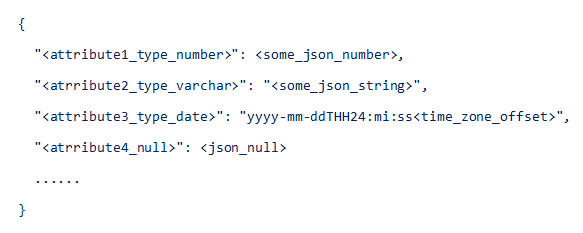

The request body should be in the following format:

the picture is described in the document text

For example:

the picture is described in the document text

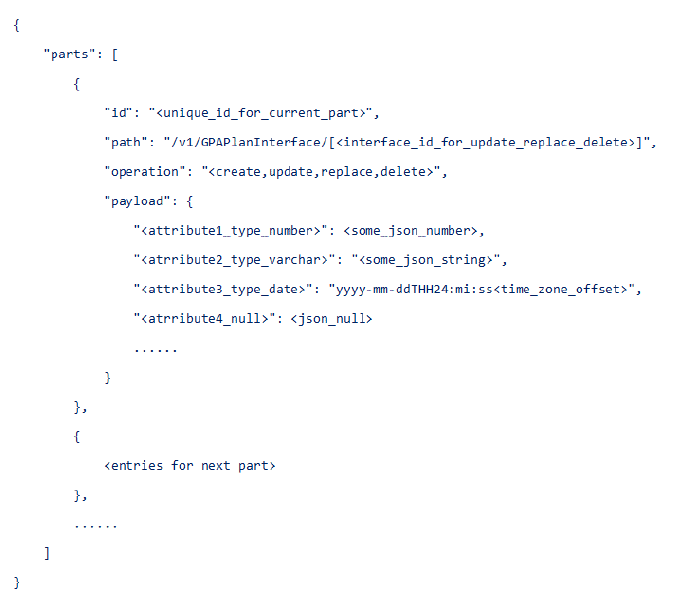

IMCMCS REST Web Service also supports batch requests. To submit a batch request, use the following:
- URL
```
<host>:<port>/IMCMCSREST/rest/
```
- HTTP Method
```
POST
```
- Content-Type
```
application/vnd.oracle.adf.batch+json
```
- Payload

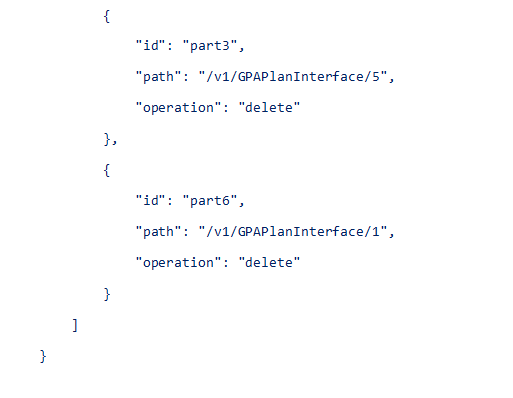

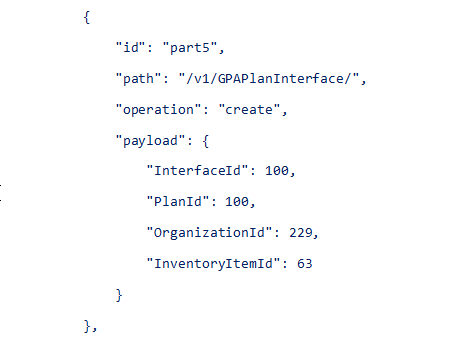

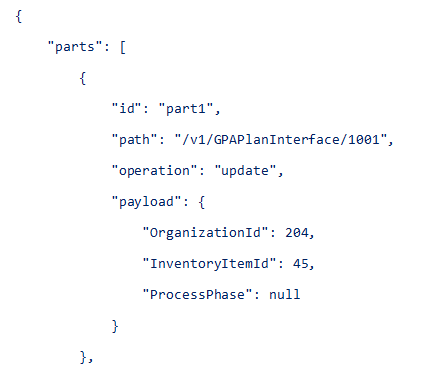

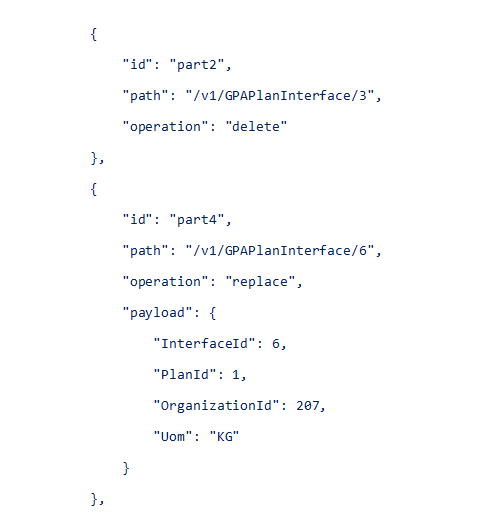

  For example:
