22504 - DSR Application Ingress Message Rate
- Alarm Group:
- APPL
- Description:
- The ingress message rate for the DSR application is exceeding its engineered traffic handling capacity.
- Severity:
- Minor, Major, Critical
- Instance:
- <Metric ID>, <DSR
Application Name>
Note:
The value for metric ID for this alarm varies (RxPdraMsgRate, RxCpaMsgRate, for example) depending on which DSR application generates the alarm (CPA, FABR, Policy DRA, RBAR, etc.). Use the ID that corresponds to the specific DSR application in use.Note:
The value for DSR Application Name varies depending on the DSR application generating the alarm (CPA, PCA, FABR, Policy DRA, RBAR, etc.). Use the name that corresponds to the specific DSR application in use. - HA Score:
- Normal
- Auto Clear Seconds:
- 0 (zero)
- OID:
- eagleXgDiameterDsrApplicationIngressMsgRateNotify
- Cause:
- The alarm #22504 raises when the ingress message rate for the DSR Application is approaching or exceeding its engineered traffic handling capacity.
- Diagnostic Information:
- For further information regarding this alarm:

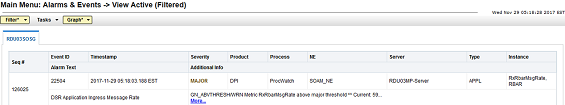

- Examine the alarm
log from
Main
Menu > Alarms & Events on Active Overseer Server.
- Average Ingress Message rate utilization on a MP Server of the DSR Application is exceeding or approaching engineering traffic handling capacity.
- Examine the alarm
log from
Main
Menu > Alarms & Events on Active Overseer Server.
Recovery:
- Application routing may be mis-configured and is sending too much traffic to the DSR application. Verify the configuration by selecting in the SO GUI.
- There may be an insufficient number of MPs configured to handle the network load. Monitor the ingress traffic rate of each MP by selecting .
- If MPs are in a congestion state, then the offered load to the server site is exceeding its capacity.
- If the problem persists, it is recommended to contact My Oracle Support.
