5013 - Throttling Traffic

Alarm Group:
IPFE
Description:

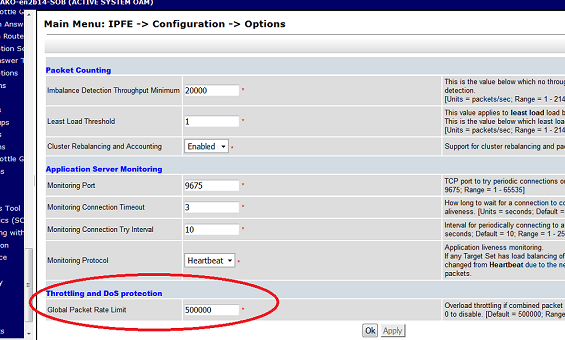

IPFE has seen traffic in excess of Global Packet Rate Limit and is dropping packets to throttle the traffic. To protect the DSR, IPFE defines a Global Packet Rate Limit set as a ingress signaling traffic rate throttle. The packet rate is accounted for on a per-local-port bases, thus each separate DSR listening port can receive each the default of 500,000 packets/second. When the IPFE is processing traffic in excess of this rate, the IPFE throttles the traffic by smoothly dropping packets in the manner of an overloaded border router. The default value of this rate throttle is 500,000 packets/second.

When traffic is approaching or exceeding its overload capacity, the alarm 5100 is raised and does not drop the packets. But when the traffic reaches this throttle, IPFE drops the packets

Severity:
Critical
Instance:
The number of packets that have been throttled
HA Score:
Degraded
Auto Clear Seconds:
N/A
OID:
ipfeIpfeThrottlingTrafficNotify
Cause:

When traffic is approaching or exceeding its overload capacity, the alarm 5100 is raised and does not drop the packets. But when the traffic reaches this throttle, IPFE drops the packets.

Diagnostic Information:

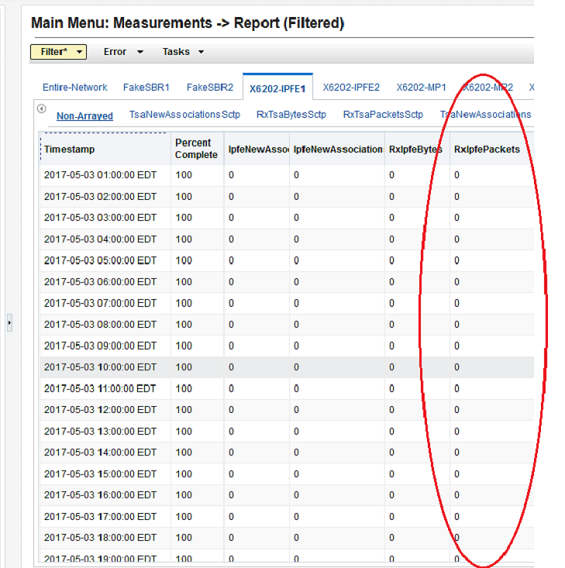

Refer to the IPFE and connection performance to make further investigation.

Recovery:

  1. If no packets have been dropped for five seconds, the alarm clears.
  2. It is recommended to contact My Oracle Support if further assistance is needed.
