You can exchange XML data using Oracle Streams Advanced Queuing (AQ), which provides database-integrated message-queuing. AQ enables and manages asynchronous communication between applications, using messages. It supports point-to-point and publish/subscribe communication models.
Integration of message queuing with Oracle Database brings the integrity, reliability, recoverability, scalability, performance, and security features of Oracle Database to message queuing. It also facilitates the extraction of intelligence from message flows.
Oracle Streams Advanced Queuing (AQ) supports native XML messages. AQ operations can be defined using the XML-based Internet-Data-Access-Presentation (iDAP) format. iDAP is an extensible message invocation protocol. It is built on Internet standards, using HTTP(S) and e-mail protocols as the transport mechanism. XML is the data representation language for iDAP.
XML messages can be passed asynchronously among applications using Oracle Streams Advanced Queuing (AQ).
Figure 38-1 shows an Oracle database using AQ to communicate with three applications. The message payload is XML data. The general tasks performed by AQ in this scenario are:
Message flow using subscription rules
Extraction of business intelligence from messages
Use cases of passing XML messages asynchronously among applications using AQ:
Intra-business. Typical examples include sales order fulfillment and supply-chain management.
Inter-business. Multiple integration hubs can communicate over the Internet. Examples include travel reservations, coordination between manufacturers and suppliers, transfer of funds between banks, and insurance claims settlements.
Oracle uses this approach in its enterprise application integration products. XML messages are sent from applications to an Oracle AQ hub. The hub serves as a message server for any application that wants the message. Through this hub-and-spoke architecture, XML messages can be communicated asynchronously to multiple loosely coupled applications.
Figure 38-1 shows XML payload messages transported using AQ in the following ways:
A Web-based application uses an AQ operation over an HTTP(S) connection using iDAP
An application uses AQ to propagate an XML message over a Net* connection
An application uses AQ to propagate an Internet or XML message directly to the database using HTTP(S) or SMTP
Figure 38-1 also shows that AQ clients can access data using OCI, Java, or PL/SQL.
Figure 38-1 Oracle Streams Advanced Queuing and XML Message Payloads
Oracle Streams Advanced Queuing (AQ) provides flexibility in configuring communication between applications. It makes an integrated solution easy to manage, easy to configure, and easy to modify, to meet changing business needs. It enables applications to cooperate, coordinate, and synchronize, to carry out complex business transactions.
Message management provided by AQ manages the flow of messages between different applications. AQ can also retain messages for auditing and tracking purposes, and for extracting business intelligence.
AQ provides SQL views to access messages. You can use these views to analyze trends.
Oracle Streams lets you share data and events in a stream. A stream can propagate information within a database or from one database to another, routing information to specified destinations. It provides functionality and flexibility for capturing and managing events, and for sharing events with other databases and applications.
Oracle Streams lets you break the cycle of trading off one solution for another. You can build and operate distributed enterprises and applications, data warehouses, and high availability solutions.
You can use Oracle Streams to do all of the following:
Capture changes at a database. You can configure a background capture process to capture changes made to tables, database schemas, or the entire database. A capture process captures changes from the redo log and formats each captured change into a logical change record (LCR). The database where changes are generated in the redo log is called the source database.
Enqueue events into a queue. Two types of events may be staged in a Streams queue: LCRs and user messages. A capture process enqueues LCR events into a queue that you specify. The queue can then share the LCR events within the same database or with other databases. You can also enqueue user events explicitly with a user application. These explicitly enqueued events can be LCRs or user messages.
Propagate events from one queue to another. These queues may be in the same database or in different databases.
Dequeue events. A background apply process can dequeue events. You can also dequeue events explicitly with a user application.
Apply events at a database. You can configure an apply process to apply all of the events in a queue or only the events that you specify. You can also configure an apply process to call your own PL/SQL subprograms to process events.
The database where LCR events are applied and other types of events are processed is called the destination database. In some configurations, the source database and the destination database may be the same.
Oracle Streams lets your applications enqueue, propagate, and dequeue messages.
Oracle Streams stages messages of type
SYS.AnyData. Messages of almost any type can be wrapped in a
SYS.AnyData wrapper and staged in
SYS.AnyData queues. Oracle Streams Advanced Queuing (AQ) supports all of the standard features of message queuing systems, including multiconsumer queues, publishing and subscribing, content-based routing, internet propagation, transformations, and gateways to other messaging subsystems.
Oracle Streams Concepts and Administration, and its Appendix A, "XML Schema for LCRs".
You can create queues that use Oracle object types containing
XMLType attributes. These queues can be used to transmit and store messages that are XML documents.
XMLType, you can do the following:
Store any type of message in a queue
Store documents internally as
more than one type of payload in a queue
XMLType columns using SQL/XML functions such as
Specify the operators in subscriber rules or dequeue selectors
You can access Oracle Streams Advanced Queuing (AQ) over the Internet using Simple Object Access Protocol (SOAP). Internet Data Access Presentation (iDAP) is the SOAP specification for AQ operations. iDAP defines XML message structure for a SOAP request body.
An iDAP-structured message is transmitted over the Internet using transport protocols such as HTTP(S) and SMTP.
iDAP uses the
text/xml content type to specify the body of the SOAP request. XML provides the presentation for iDAP request and response messages, as follows:
All request and response tags are scoped in the SOAP namespace.
AQ operations are scoped in the iDAP namespace.
The sender includes namespaces in iDAP elements and attributes in the SOAP body.
The receiver processes iDAP messages that have correct namespaces. For the requests with incorrect namespaces, the receiver returns an invalid request error.
The SOAP namespace has this value:
The iDAP namespace has this value:
Oracle Streams Advanced Queuing operations that use HTTP(S) require an iDAP HTTP client, a Web server, and an Oracle server.
Figure 38-2 shows the relationships among these components.
A client program sends XML messages that conform to iDAP format, to the AQ Servlet. This can be any HTTP client, such as a Web browser.
The Web server or
ServletRunner hosts the AQ servlet that can interpret the incoming XML messages, for example, Apache/Jserv or Tomcat.
Oracle Streams AQ servlet connects to Oracle Database to perform queue operations.

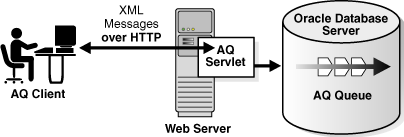

Figure 38-2 iDAP Architecture for Performing AQ Operations Using HTTP(S)
You can create queues with payloads that contain
XMLType attributes. These can be used for transmitting and storing messages that contain XML documents.
By defining Oracle objects with
XMLType attributes, you can do the following:
Store more than one type of XML document in the same queue. The documents are stored internally as
Selectively dequeue messages with
XMLType attributes using SQL/XML functions such as
Define transformations to convert Oracle objects to
Define rule-based subscribers that query message content using SQL/XML functions such as
In the application sketched in the examples here, assume that an overseas shipping site represents an order using
SYS.XMLType. An order-entry site represents an order as an Oracle object,
Example 38-1 creates the queue table and queue for overseas shipping.
Because the representation of orders at the overseas shipping site is different from the representation of orders at the order-entry site, messages need to be transformed before sending them from the order-entry site to the overseas shipping site. Example 38-2 creates the transformation, and Example 38-3 applies it.
For more information about defining transformations that convert the type used by the order entry application to the type used by overseas shipping, see Oracle Database Advanced Queuing User's Guide.
Example 38-4 shows how an application that processes orders for customers in another country, in this case Canada, can dequeue messages.
Example 38-1 Creating a Queue Table and Queue
BEGIN DBMS_AQADM.create_queue_table( queue_table => 'OS_orders_pr_mqtab', comment => 'Overseas Shipping MultiConsumer Orders queue table', multiple_consumers => TRUE, queue_payload_type => 'SYS.XMLtype', compatible => '8.1'); END; / BEGIN DBMS_AQADM.create_queue(queue_name => 'OS_bookedorders_que', queue_table => 'OS_orders_pr_mqtab'); END; /
Example 38-2 Creating a Transformation to Convert Message Data to XML
CREATE OR REPLACE FUNCTION convert_to_order_xml(input_order ORDER_TYP) RETURN XMLType AS new_order XMLType; BEGIN SELECT XMLElement("Row", input_order) INTO new_order FROM DUAL; RETURN new_order; END convert_to_order_xml; / BEGIN SYS.DBMS_TRANSFORM.create_transformation( schema => 'OE', name => 'OE2XML', from_schema => 'OE', from_type => 'ORDER_TYP', to_schema => 'SYS', to_type => 'XMLTYPE', transformation => 'convert_to_order_xml(source.user_data)'); END; /
Example 38-3 Applying a Transformation before Sending Messages Overseas
-- Add a rule-based subscriber for overseas shipping to the booked-orders -- queues with transformation. DECLARE subscriber SYS.AQ$_AGENT; BEGIN subscriber := SYS.AQ$_AGENT('Overseas_Shipping', 'OS.OS_bookedorders_que', NULL); DBMS_AQADM.add_subscriber( queue_name => 'OS_bookedorders_que', subscriber => subscriber, rule => 'XMLSerialize(CONTENT XMLQuery(''//orderregion''' || 'PASSING tab.user_data RETURNING CONTENT)' || ' AS VARCHAR2(1000)) = ''INTERNATIONAL''', transformation => 'OE.OE2XML'); END; /
Example 38-4 XMLType and AQ: Dequeuing Messages
-- Create procedure to enqueue into single-consumer queues. CREATE OR REPLACE PROCEDURE get_canada_orders AS deq_msgid RAW(16); dopt DBMS_AQ.dequeue_options_t; mprop DBMS_AQ.message_properties_t; deq_order_data SYS.XMLType; deq_order_data_text CLOB; no_messages EXCEPTION; PRAGMA EXCEPTION_INIT (no_messages, -25228); new_orders BOOLEAN := TRUE; BEGIN dopt.wait := 1; -- Specify dequeue condition to select orders for Canada. dopt.deq_condition := 'XMLSerialize(CONTENT ' || 'XMLQuery(''/ORDER_TYP/CUSTOMER/COUNTRY/text()''' || ' PASSING tab.user_data RETURNING CONTENT)' || ' AS VARCHAR2(1000))=''CANADA'''; dopt.consumer_name := 'Overseas_Shipping'; WHILE (new_orders) LOOP BEGIN DBMS_AQ.dequeue(queue_name => 'OS.OS_bookedorders_que', dequeue_options => dopt, message_properties => mprop, payload => deq_order_data, msgid => deq_msgid); COMMIT; SELECT XMLSerialize(DOCUMENT deq_order_data AS CLOB) INTO deq_order_data_text FROM DUAL; DBMS_OUTPUT.put_line('Order for Canada - Order: ' || deq_order_data_text); EXCEPTION WHEN no_messages THEN DBMS_OUTPUT.put_line (' ---- NO MORE ORDERS ---- '); new_orders := FALSE; END; END LOOP; END; /
Guidelines are presented for using XML data with Oracle Streams Advanced Queuing.
You can exchange XML documents between businesses using Oracle Streams Advanced Queuing (AQ), where each message includes an XML header, an XML attachment (XML data stream), DTDs, and PDF files. The data can be stored in a database table, such as a queue table.
You can enqueue the messages into Oracle queue tables as one record or piece. Or you can enqueue the messages as multiple records, for example, one record for XML data streams as
CLOB type, one record for PDF files as
RAW type, and so on. You can also then dequeue the messages.
You can achieve this in the following ways:
By defining an object type with (
RAW,...) attributes, and storing it as a single message.
By using the AQ message grouping feature and storing it in multiple messages. Here the message properties are associated with a group. To use the message grouping feature, all messages must be the same payload type.
To specify the payload, first create an object type, for example:
CREATE TYPE mypayload_type as OBJECT (xmlDataStream CLOB, dtd CLOB, pdf BLOB);
Then store it as a single message.
You can use a queue table to support message assignments.
For example, when other businesses send messages to a specific company, they do not know who should be assigned to process the messages, but they know the messages are for department Human Resources (HR). Hence all messages go to the HR supervisor. At this point, the message is enqueued in the queue table. The HR supervisor is the only recipient of this message, and the entire HR staff have been predefined as subscribers for this queue.
You cannot change the recipient list after a message is enqueued. If you do not specify a recipient list then subscribers can subscribe to the queue and dequeue the message. Here, new recipients must be subscribers to the queue. Otherwise, you must dequeue the message and enqueue it again with new recipients.
Oracle Streams AQ supports enqueuing and dequeuing objects. The objects can have an attribute of type
XMLType that contains an XML document, in addition to having metadata attributes.
Refer to Oracle Database Advanced Queuing User's Guide for specific details and more examples.
You can parse messages with XML content from an Oracle Streams Advanced Queuing (AQ) queue and then update tables and fields in an Operational Data Store (ODS).
You can use Oracle XML Parser for Java and Java Stored Procedures together with Oracle Streams AQ to obtain metadata such as AQ enqueue or dequeue times and JMS header information, based on queries that target certain XML data. You can combine this with using Oracle Text XML search.
After receiving a message, you can submit a job using PL/SQL package
DBMS_JOB. The job is invoked asynchronously in a different database session. This can prevent messages accumulating in the queue because the listener must wait until a received XML message is processed.
When receiving XML messages from clients you might need to process them as soon as they arrive. But each XML document might take several seconds to process. For PL/SQL, one procedure starts the listener, dequeues the message, and calls another procedure to process the XML document. The listener could be held up until the XML document is processed, and messages would accumulate in the queue.
After receiving a message, you can instead submit a job using PL/SQL package
DBMS_JOB. The job is invoked asynchronously in a different database session.
You can register a PL/SQL callback, which is invoked asynchronously when a message shows up in a queue. PL/SQL callbacks are part of the Oracle Streams AQ notification framework.
You can use Oracle Streams Advanced Queuing (AQ) Internet access to send XML messages to suppliers using HTTPS and receive a response. You can enqueue and dequeue XML messages over HTTP(S) securely and transactionally.
You can store XML data in Oracle Streams Advanced Queuing (AQ) message payloads natively other than having an ADT as the payload with
SYS.XMLType as part of the ADT. You can create queues with payloads and attributes as
iDAP is the SOAP specification for Oracle Streams Advanced Queuing (AQ) operations. SOAP defines a generic mechanism to invoke a service. iDAP defines these mechanisms to perform AQ operations.
iDAP has the following key properties not defined by SOAP:
Transactional behavior. You can perform AQ operations in a transactional manner. A transaction can span multiple iDAP requests.
Security. iDAP operations can be carried out only by authorized and authenticated users.
