Protect Autonomous AI Database (Serverless)

Customer-Managed Keys on Oracle AI Database@AWS with OCI Vault

Using customer-managed encryption keys on Oracle AI Database@AWS with Oracle Cloud Infrastructure (OCI) Vault service involves creating a master key in your OCI Vault and configuring your Oracle AI Database@AWS to use encryption keys in the OCI Vault.

Complete the following steps to use customer-managed keys on Oracle AI Database with OCI Vault:

1. Create an Oracle Cloud Infrastructure Vault (OCI Vault)

   For more information, see Create an Oracle Cloud Infrastructure Vault.

2. Create a Master Encryption Key in the Vault

   For more information, see Create a Master Encryption Key in the Vault.

3. Configure a Service Gateway, Route Rule, and Egress Security Rule

   For more information, see Configure a Service Gateway, Route Rule, and Egress Security Rule.

4. Create an OCI Dynamic Group
   1. From the OCI console, select Oracle AI Database, and then select Autonomous AI Database.
   2. Select the name field of your Autonomous AI Database.

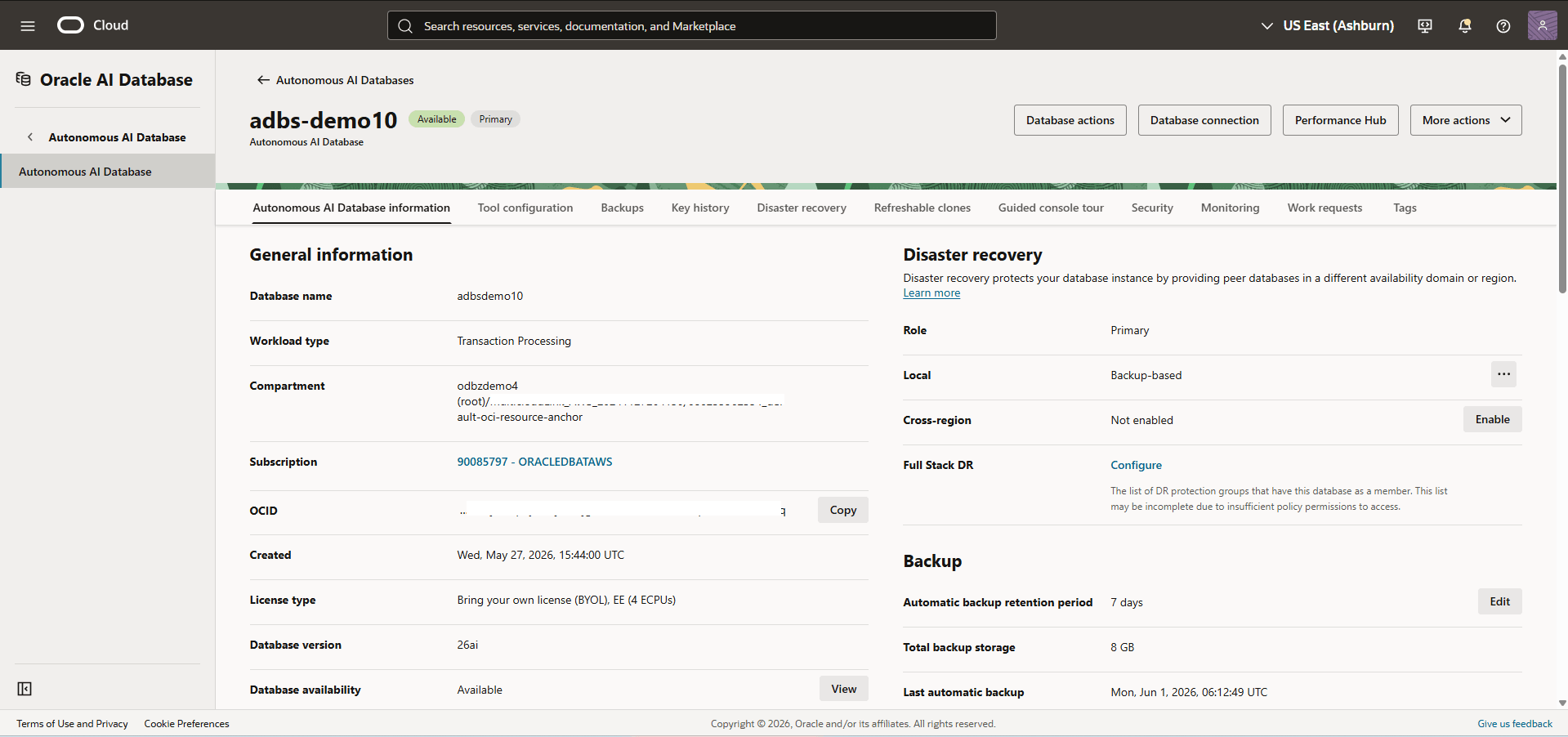

   3. Select the General information tab, scroll down to the General information section. Take a note of your Autonomous AI Database Compartment information.
   4. From the navigation menu , select Identity & Security, and then select Compartments.

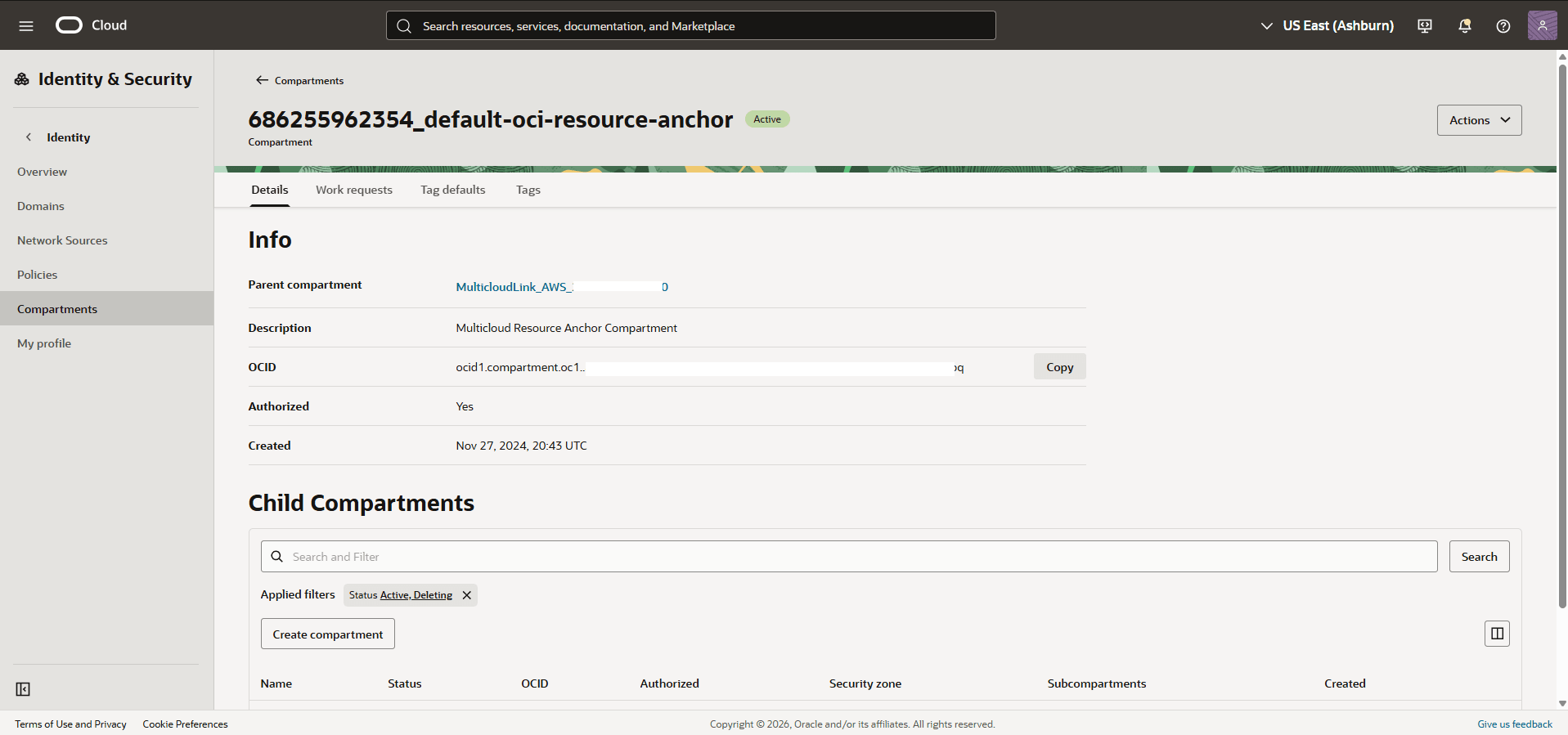

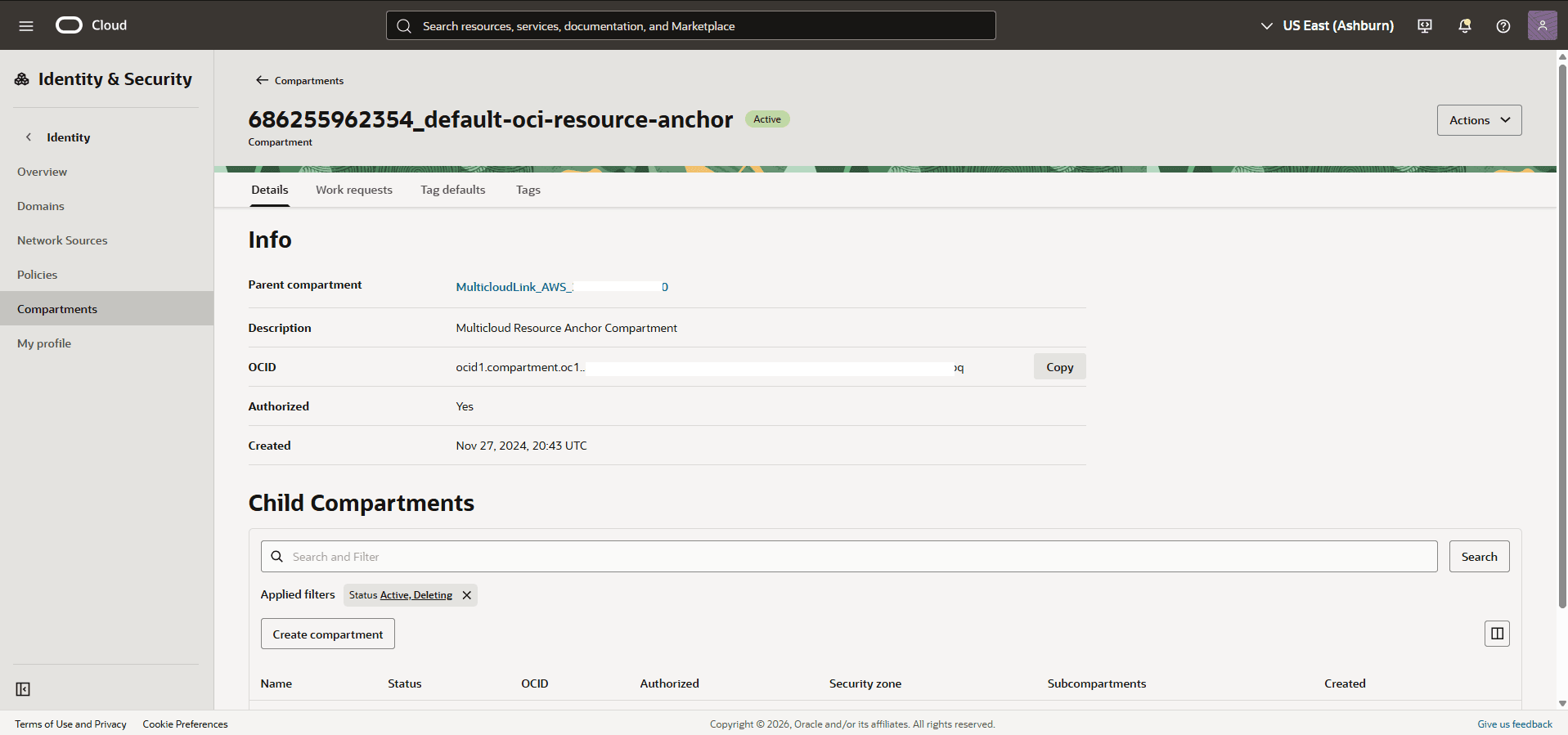

   5. Locate the Compartment that you previously noted, and then take a note of the compartment OCID.

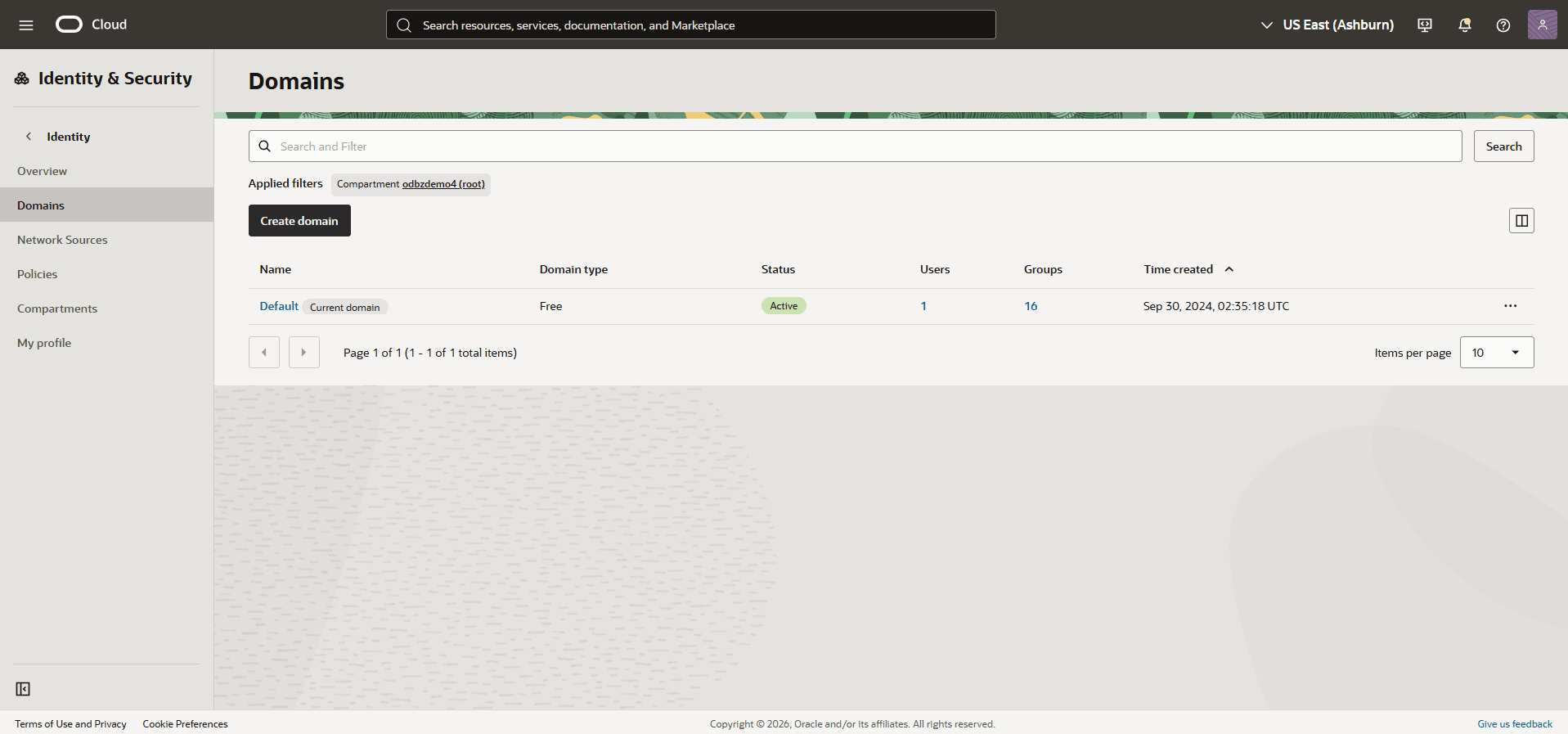

   6. From the navigation menu , select Identity & Security, and then select Domains.
   7. From the Applied filters section, select the Root Compartment and then choose the name of you domain.

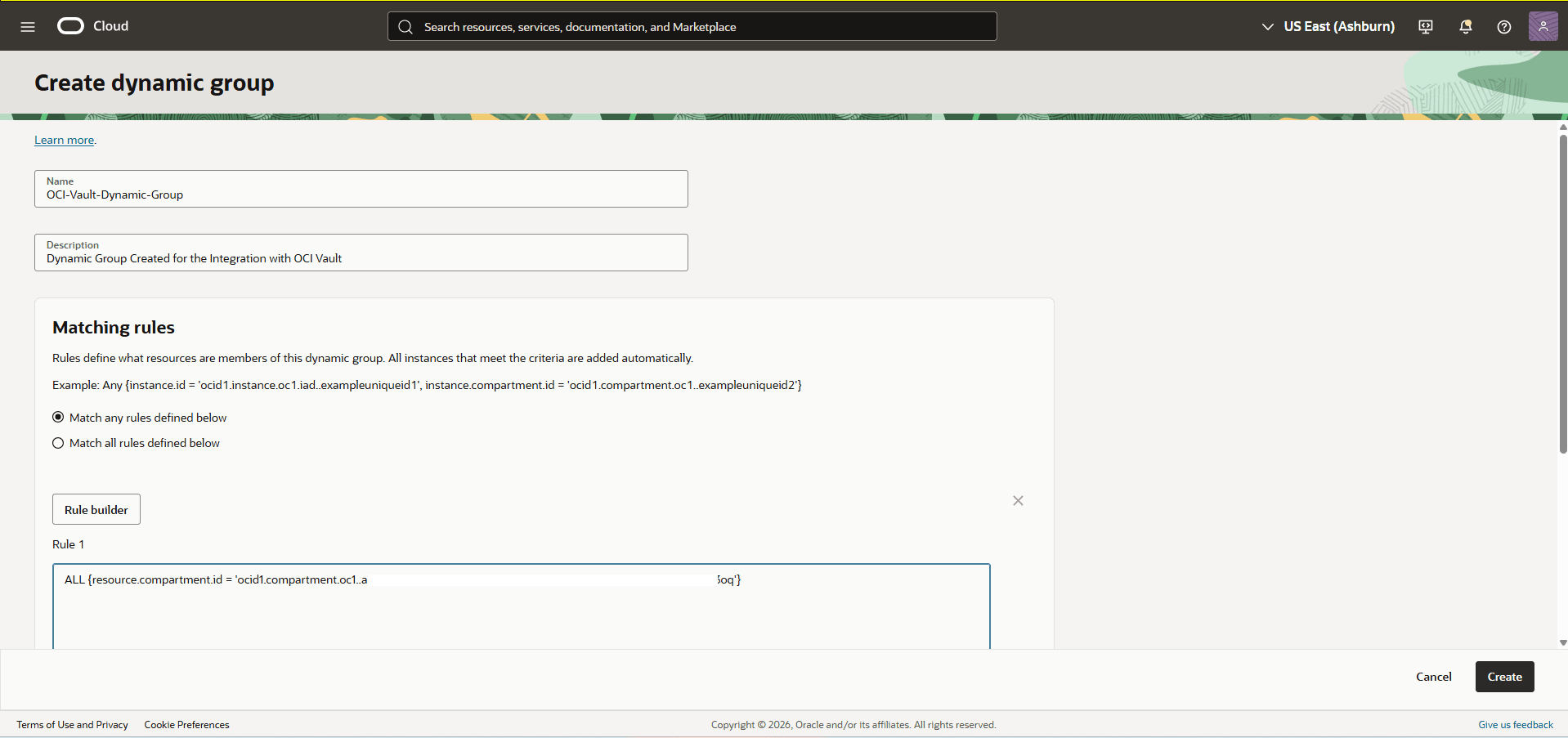

   8. Select the Dynamic groups tab, and then select the Create dynamic group button.
      1. Name: Enter a descriptive name for the group.
      2. Description: Provide a brief description of the dynamic group’s purpose.
      3. Matching Rules: Enter the following statement, replacing <your_Compartment_OCID> with the compartment OCID you noted in the previous step:

         ALL {resource.compartment.id = '<your_Compartment_OCID>'}

      4. Review your information, and then select the Create button.

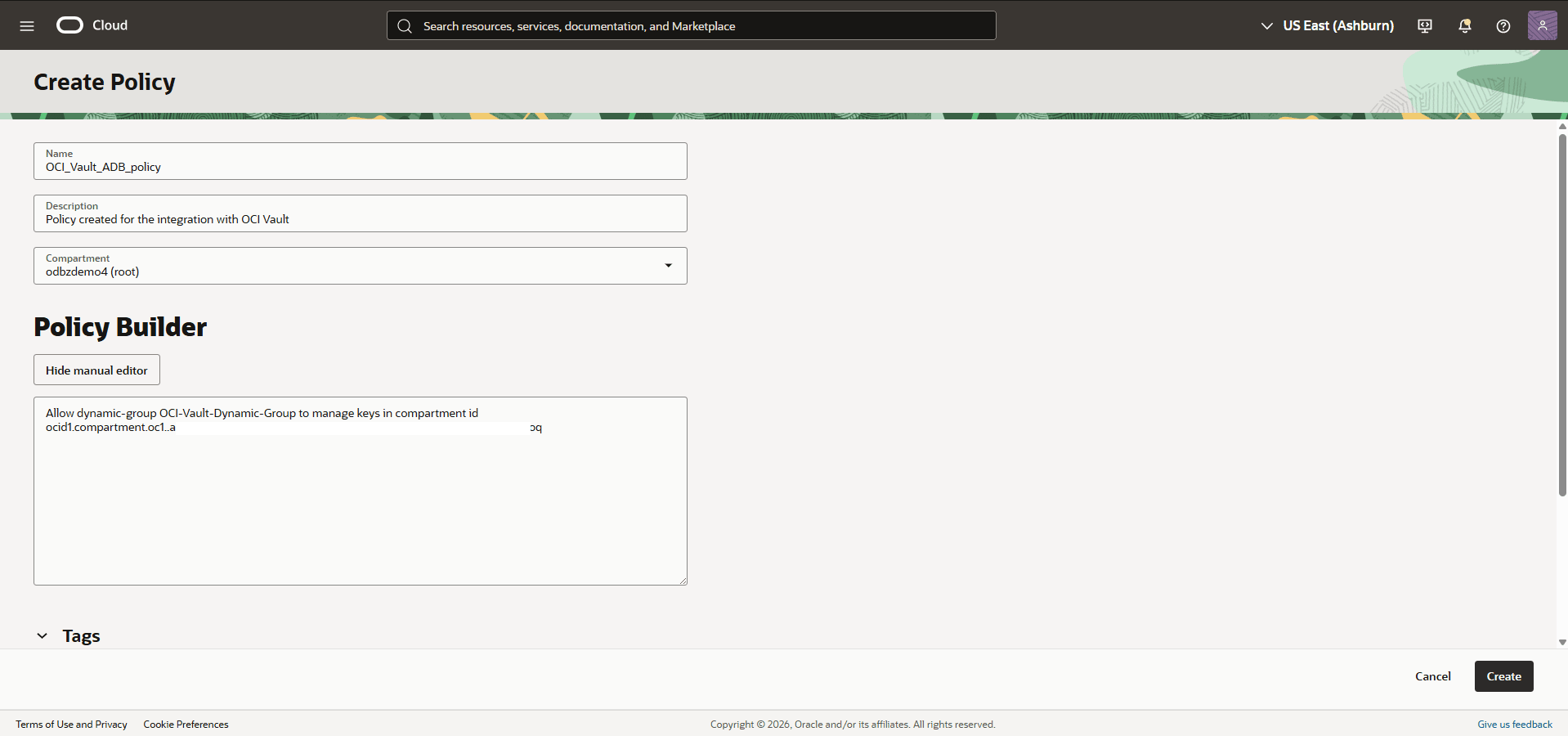

5. Create an OCI Policy
   1. From the navigation menu , select Identity & Security, and then select Policies.
   2. In the Applied Filter section, select the Root Compartment, and then select the Create Policy button.
      1. Name: Enter a descriptive name for the group.
      2. Description: Provide a brief description of the dynamic group’s purpose.
      3. Enable the Show manual editor button, and then enter the following statements. Replace <dynamic-group-name> with the name of the dynamic group created in the previous step, and <your_Compartment_OCID> with your specific compartment OCID:


         Allow dynamic-group <dynamic-group-name> to manage keys in compartment id <your_Compartment_OCID>


         Note

         To use customer-managed keys with Autonomous Data Guard and a remote standby database, the following policy is also required:

         Allow dynamic-group <dynamic-group-name> to read vaults in compartment id <your_Compartment_OCID>

      4. Review your information, and then select the Create button.
6. Modify an Autonomous AI Database to Use OCI Vault as the Key Management Solution
   1. From the OCI console, select Oracle AI Database, and then select Autonomous AI Database.
   2. Select the name field of your Autonomous AI Database.

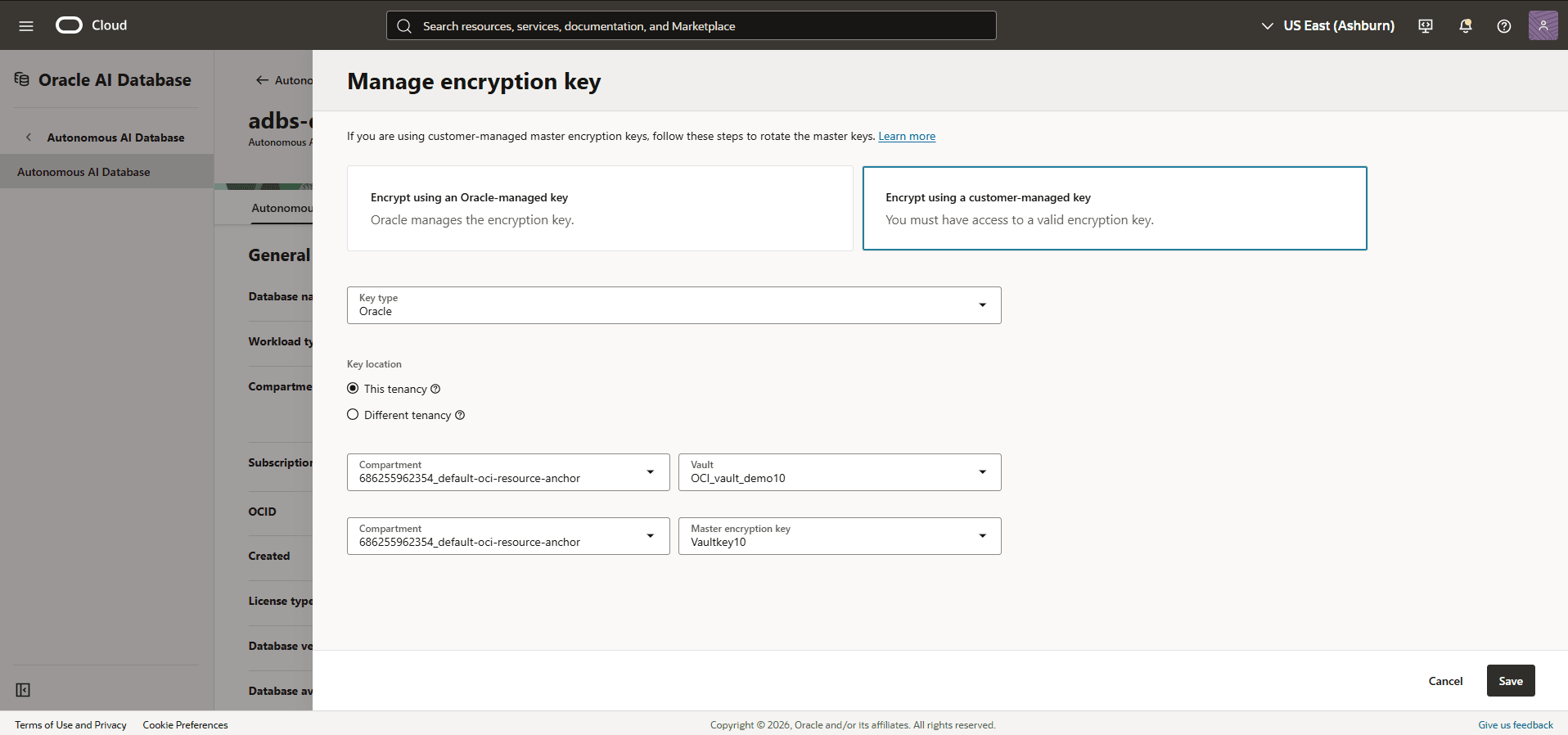

   3. Select the More actions button and then select the Manage encryption key option.
      1. Choose the Encrypt using a customer-managed key option.
      2. From the Key type dropdown list, select Oracle.
      3. As your Key location, select either the This tenancy or Different tenancy option based on your specific vault configuration.
      4. Select the Compartment where you created the OCI Vault, then select the Vault from the dropdown list.
      5. Select the Compartment where you created the OCI key, then select the Master encryption key from the dropdown list.
      6. Select the Save button to save your configuration settings.

7. 1. Verify the Database Encryption Method from the OCI Console
      1. From the OCI console, select Oracle AI Database, and then select Autonomous AI Database.
      2. Select the name field of your Autonomous AI Database.

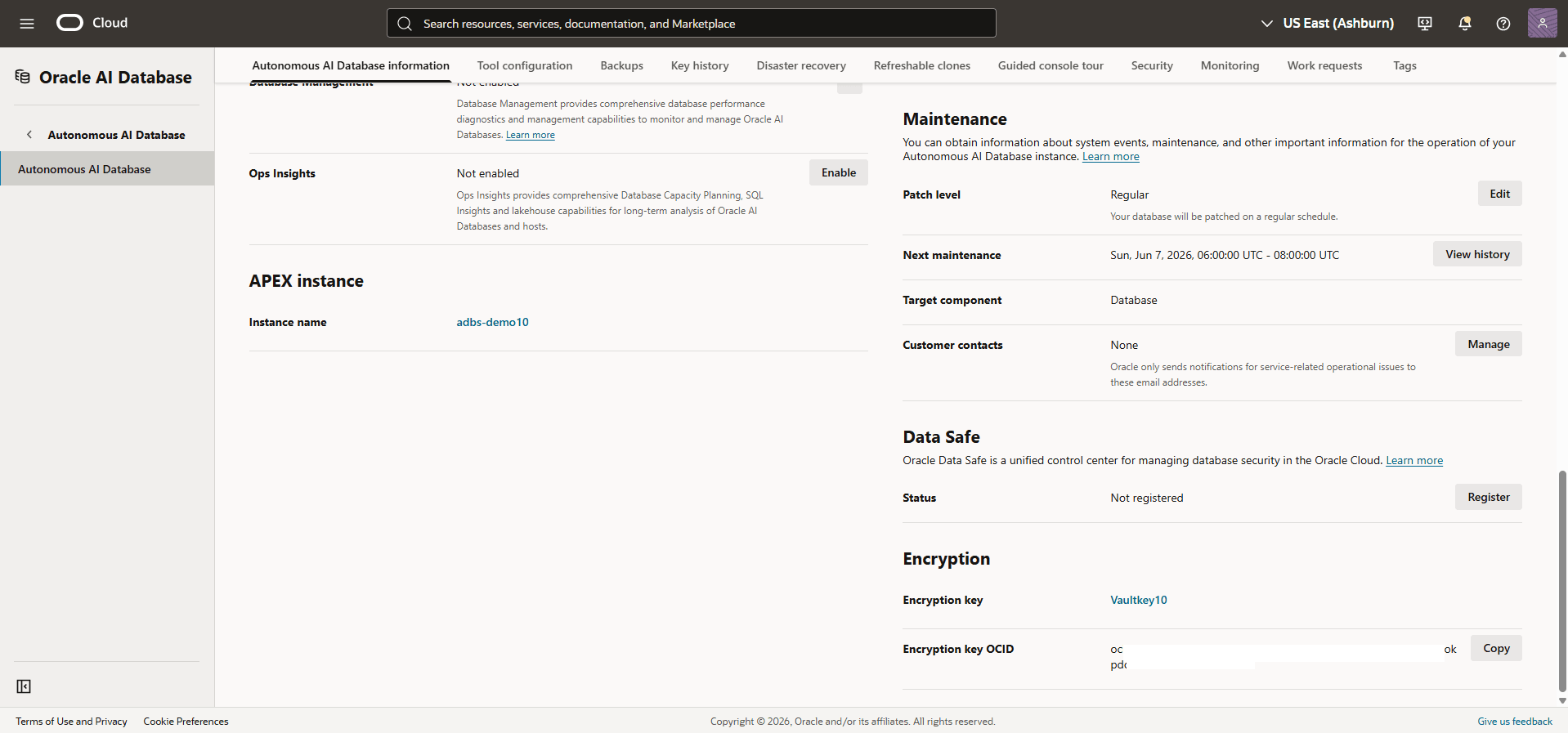

      3. Scroll down to Encryption section. You can verify that the Encryption Key is used to protect your Autonomous AI Database with the Encryption key OCID.

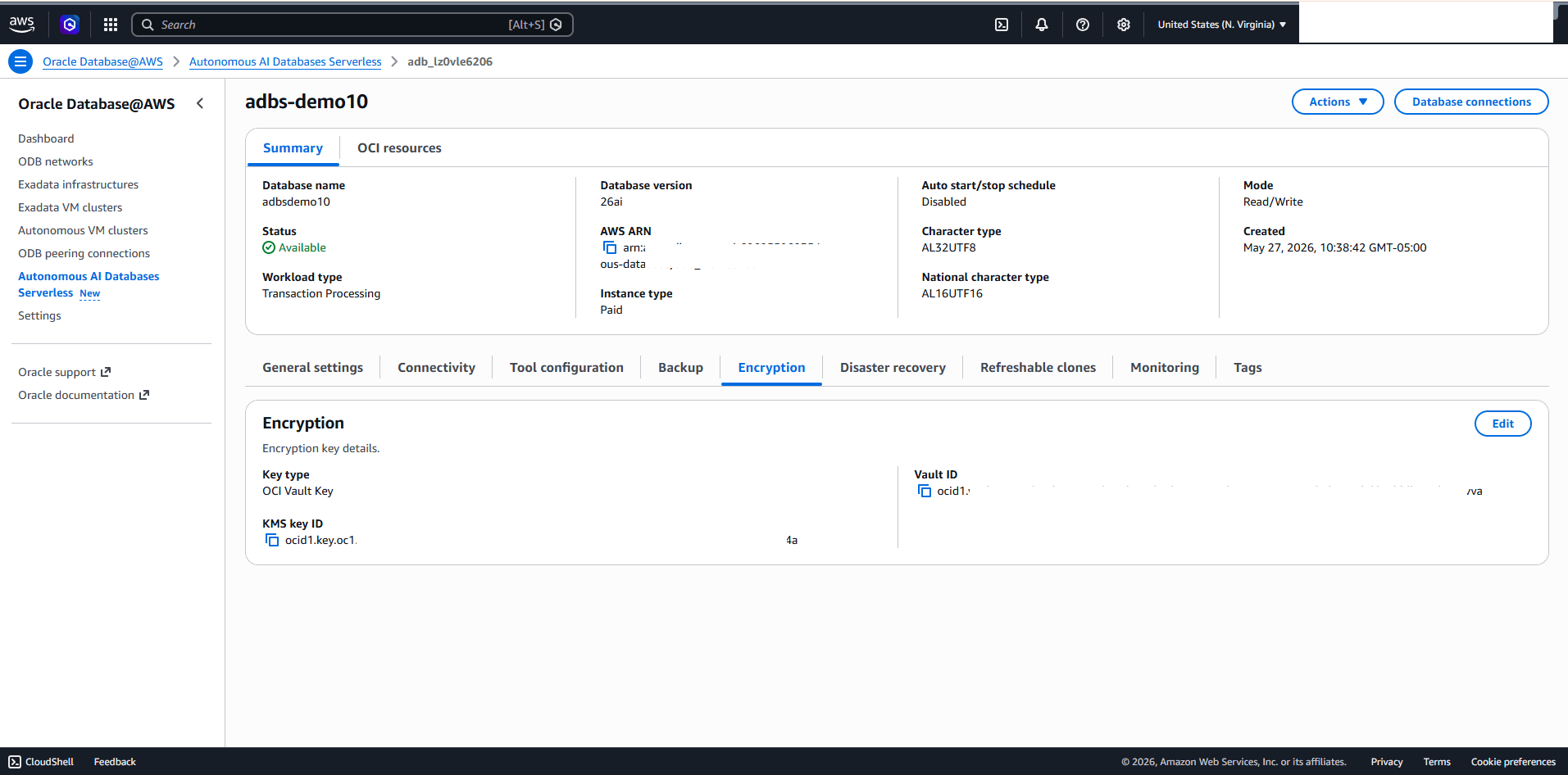

   2. Verify the Database Encryption Method from the AWS Console
      1. From Oracle AI Database@AWS dashboard, select Autonomous AI Databases Serverless, and then select name field of the Autonomous AI Database that you want to verify.

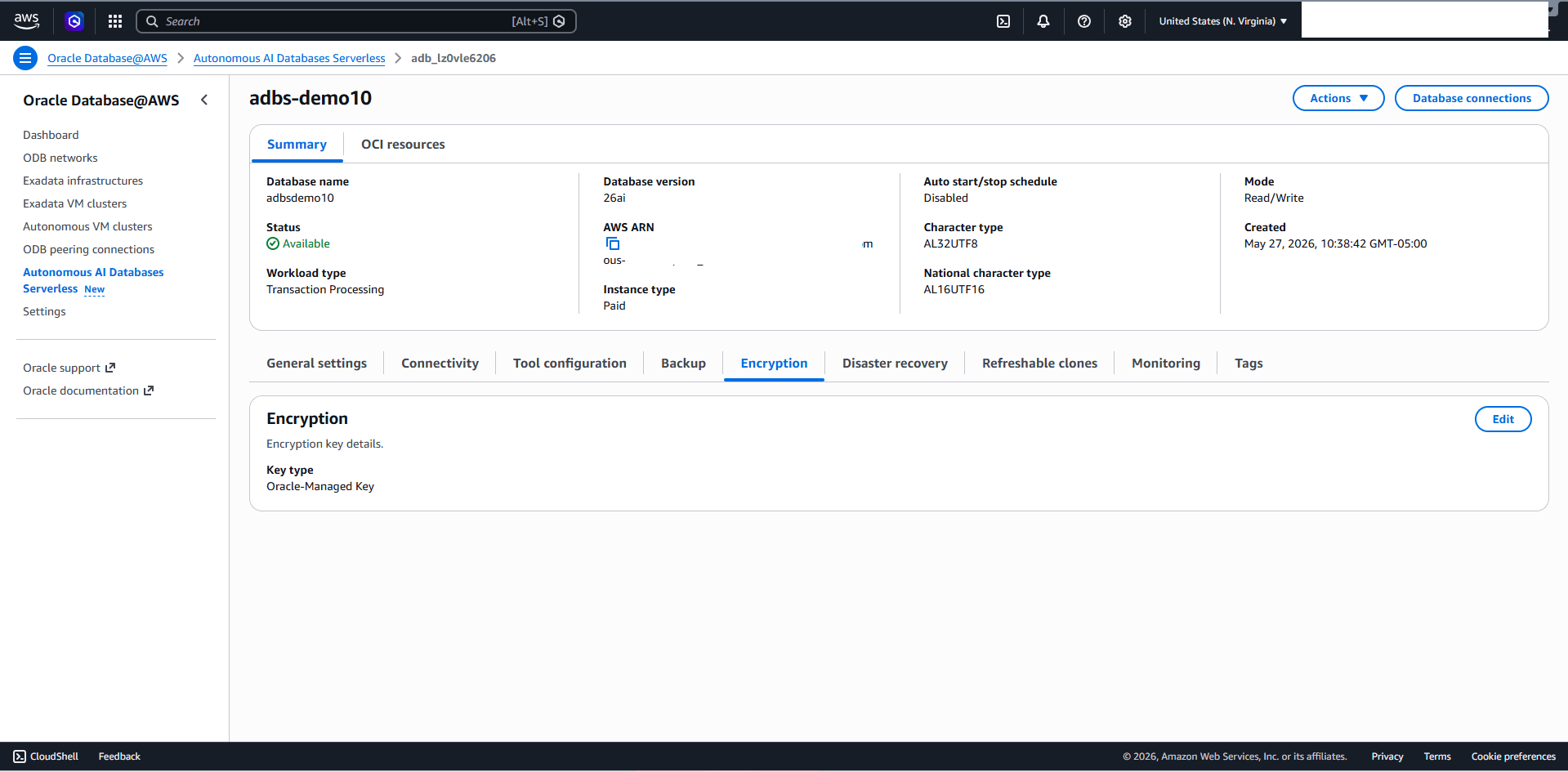

      2. From the central bar, select the Encryption tab and review the following information:
         1. Key type: If the value displayed is OCI Vault Key, your Autonomous AI Database is using OCI Vault as its encryption method.


Rotate Customer-Managed Encryption Keys for an Autonomous AI Database with OCI Vault

There is currently no content for this page. The Oracle AI Database@AWS team intends to add content here, and this placeholder text is provided until that text is added.

The Oracle AI Database@AWS team is excited about future new features, enhancements, and fixes to this product and this accompanying documentation. We strongly recommend you watch this page for those updates.

Oracle Autonomous AI Database Serverless Service on Oracle AI Database@AWS supports integration with AWS Key Management Service (KMS). This capability allows users to manage Transparent Data Encryption (TDE) master encryption keys (MEKs) using AWS customer managed keys.

To configure AWS KMS to encrypt your database, complete the following steps:

1. Enable Security Token Service and AWS KMS in ODB Network
2. Obtain OCI Trusted Service Account Role ARN
3. Create an IAM Policy
4. Create an IAM Role
5. Create a Customer Managed Key
6. Grant Permissions to an IAM Role
7. Enable AWS KMS for Autonomous AI Database Serverless
8. Rotate an AWS KMS Key

1. Enable Security Token Service and AWS KMS in ODB Network

   To use AWS KMS for data-at-rest encryption, the ODB network must have both Security Token Service (STS) and AWS KMS integrations enabled. For more information, follow the Create ODB Network or Modify ODB Network steps.

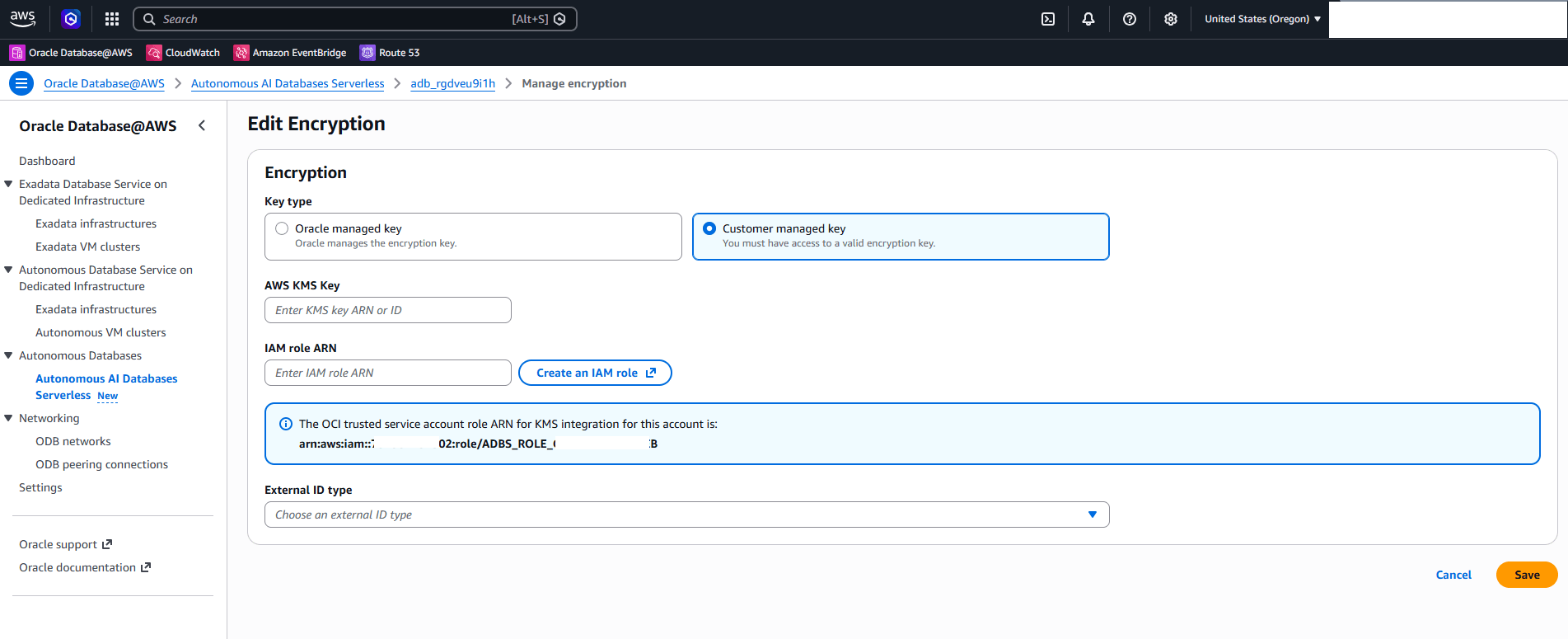

2. Obtain the OCI Trusted Service Account Role ARN
   1. Select Autonomous AI Database Serverless.
      1. From the AWS Console, select Oracle AI Database@AWS, and then select Autonomous AI Databases Serverless.
      2. Select your Autonomous AI Database Serverless that you want to encrypt.
      3. Select the Encryption tab. The Key type is set to Oracle-Managed Key.
      4. Select the Encryption tab. The Key type is set to Oracle-Managed Key.
      5. Select the Edit button.
      6. From the Edit Encryption page, choose the Customer managed key option, and then copy the OCI trusted service account role ARN information.

   2. Select Autonomous AI Database Serverless, OCI tenancy and Compartment OCID.
      1. From the OCI Console, select Oracle AI Database, and then select Autonomous AI Database.
      2. Select your compartment, and then select your Autonomous AI Database that you are using.

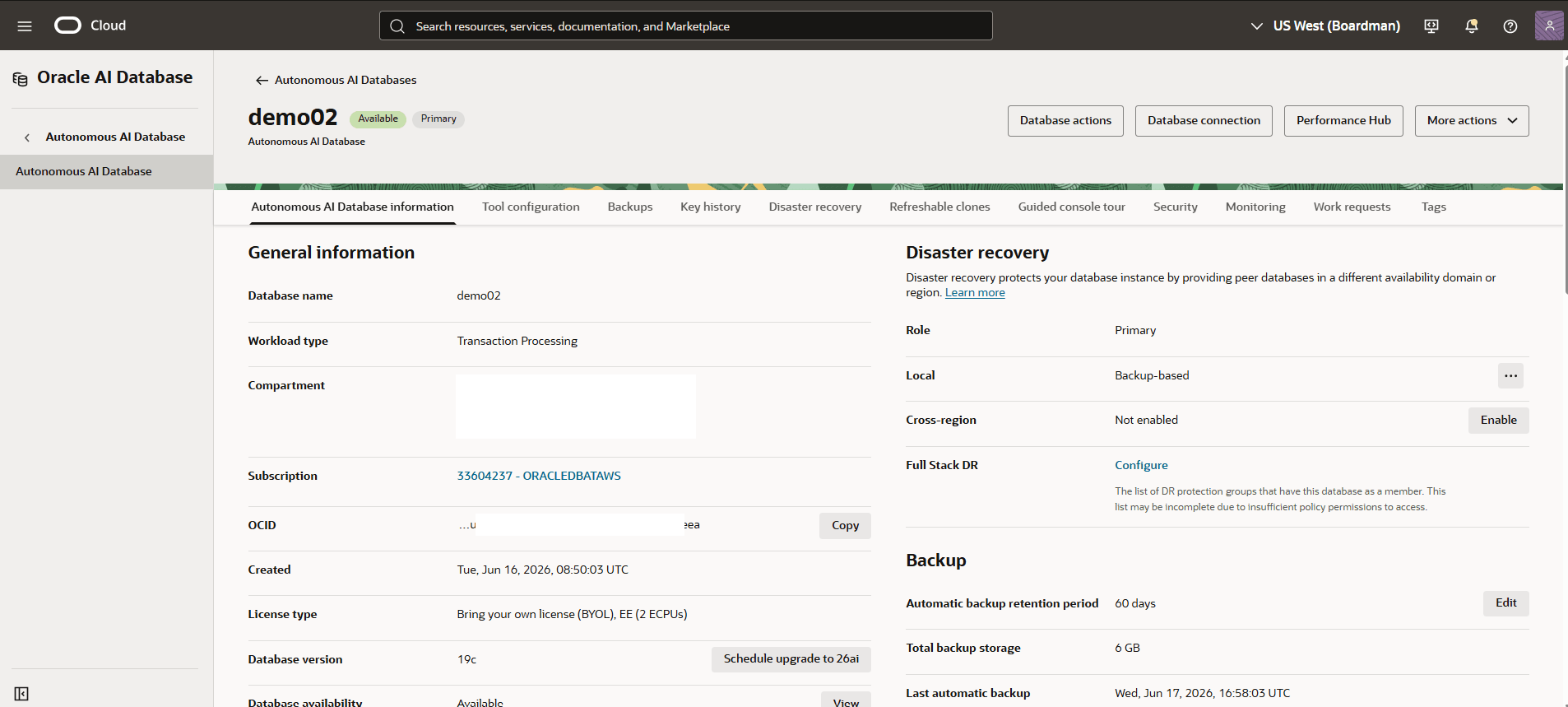

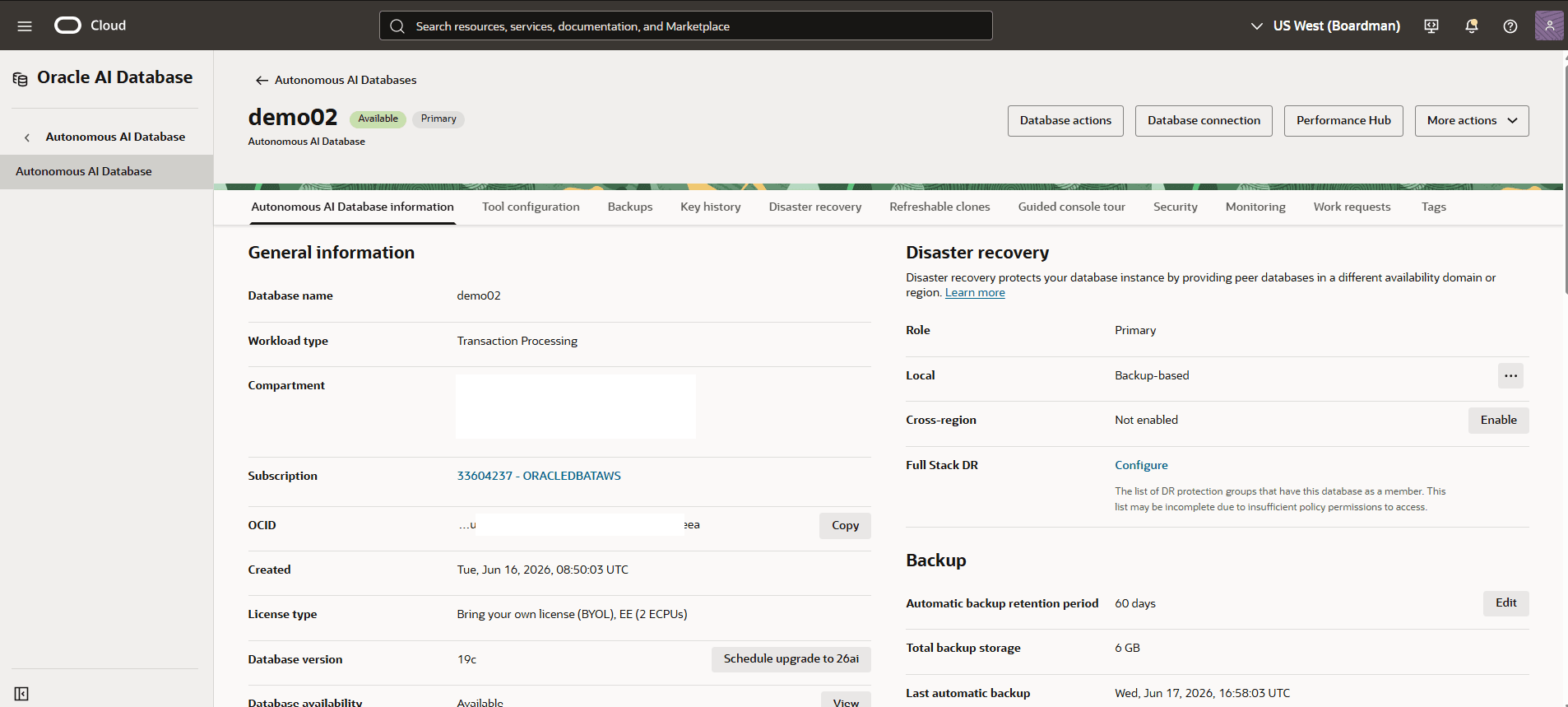

      3. From the Autonomous AI Database information tab, copy the OCID information. This is required if you need to configure the DATABASE_OCID as the externalId in the role trust relationship.

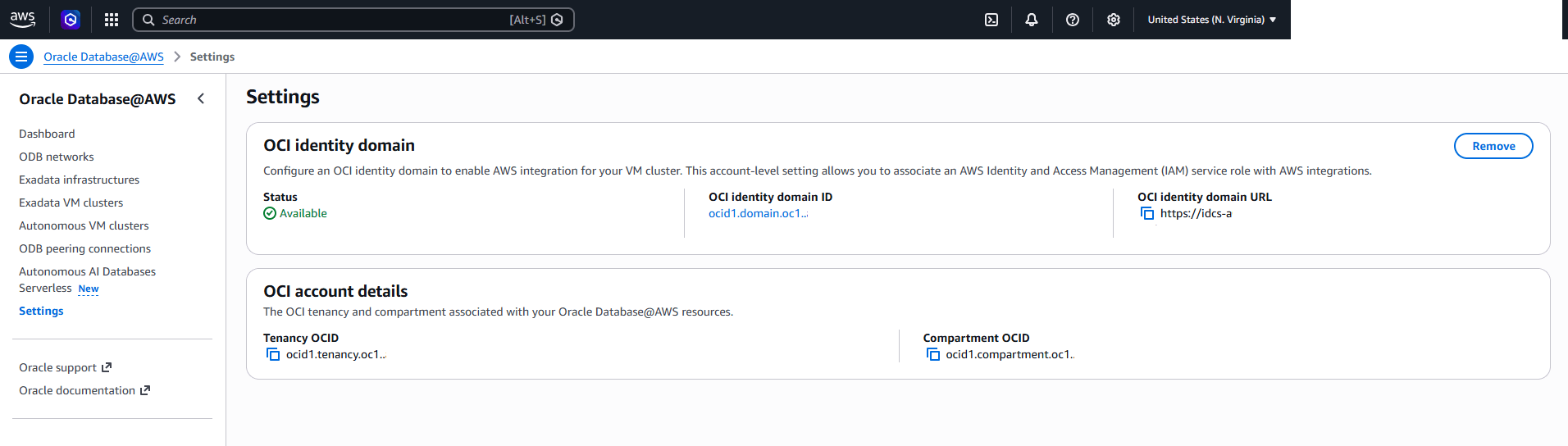

   3. From the AWS Console, select Oracle AI Database@AWS, and then select Settings to copy the Tenancy OCID and Compartment OCID information. This is required if you need to configure the TENANT_OCID or COMPARTMENT_OCID as the externalId in the role trust relationship.
3. Create an IAM Policy
   Complete the following steps to create a policy to grant permission to list keys.

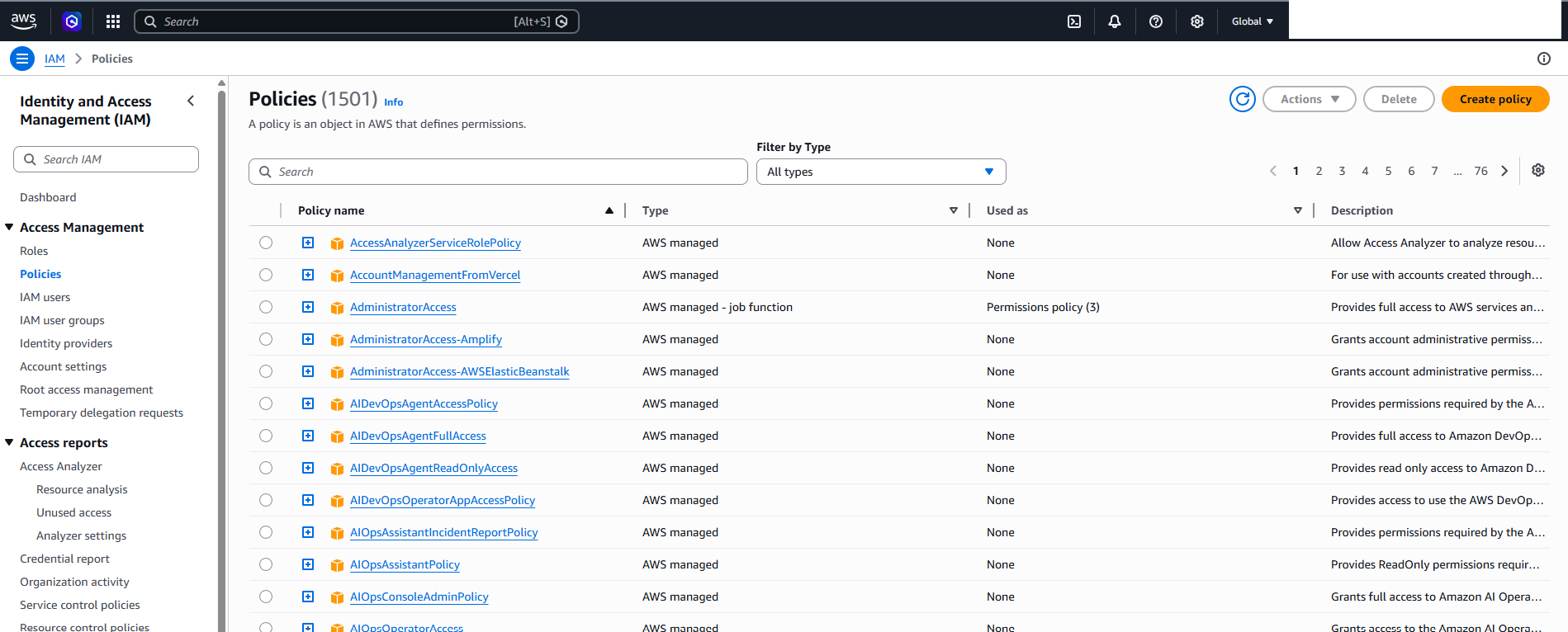

   1. From the AWS Console, navigate to IAM.
   2. Expand the Access Management section, and then select the Policies.
   3. Select the Create policy button.

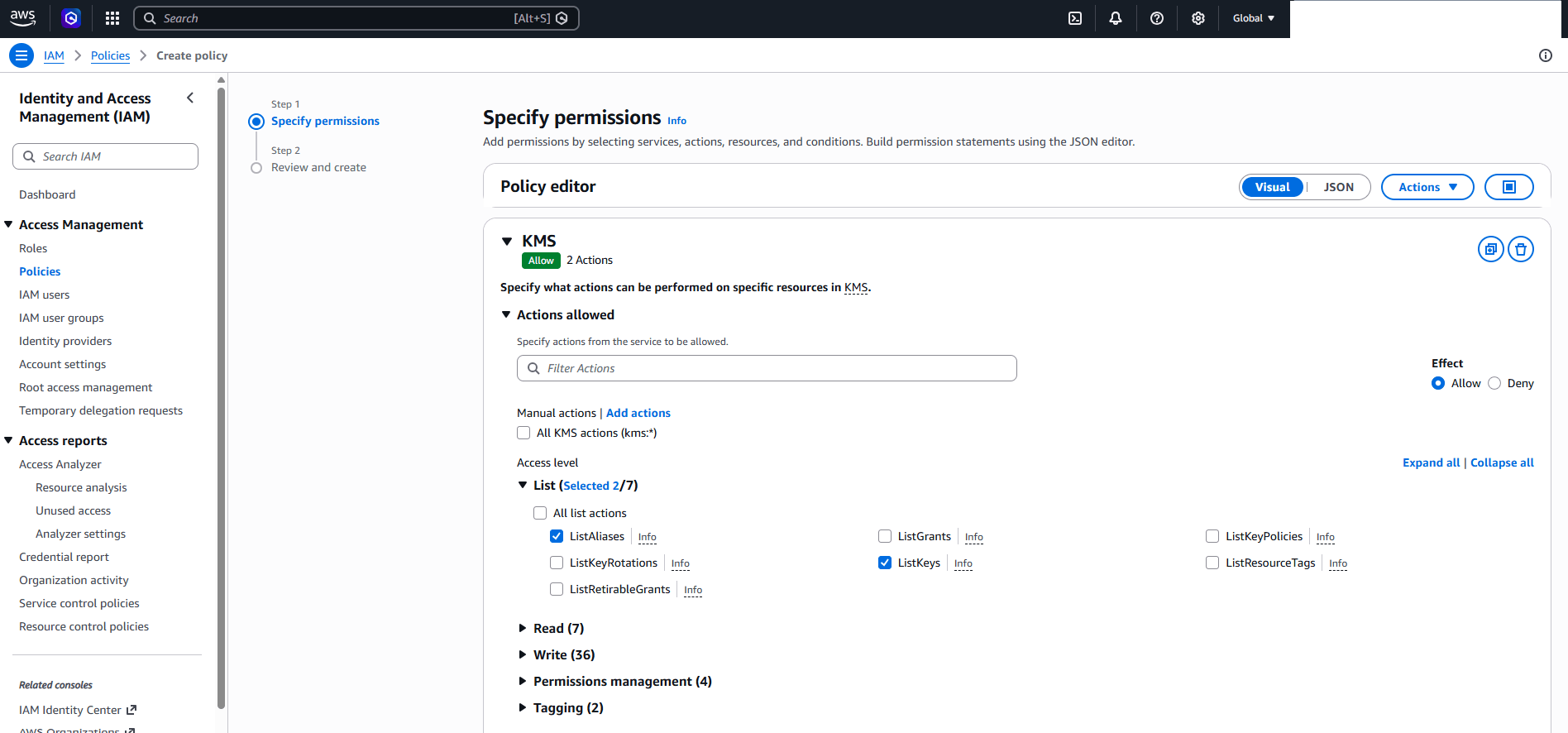

   4. In the Specify permissions step, complete the following steps:
      1. Select the Visual as the Policy editor. The Visual editor lets you choose permissions using checkbox instead of writing the IAM policy manually in JSON.
      2. From the Select a service section, select the KMS service.
      3. Expand Actions allowed if it is not already open.
      4. On the right side of the Actions allowed section, locate Effect. Choose the Allow option.
      5. Expand the List section, and then select the ListAliases and ListKeys actions.
      6. Review the Resources and Request conditions - optional sections.
      7. Select the Next button.

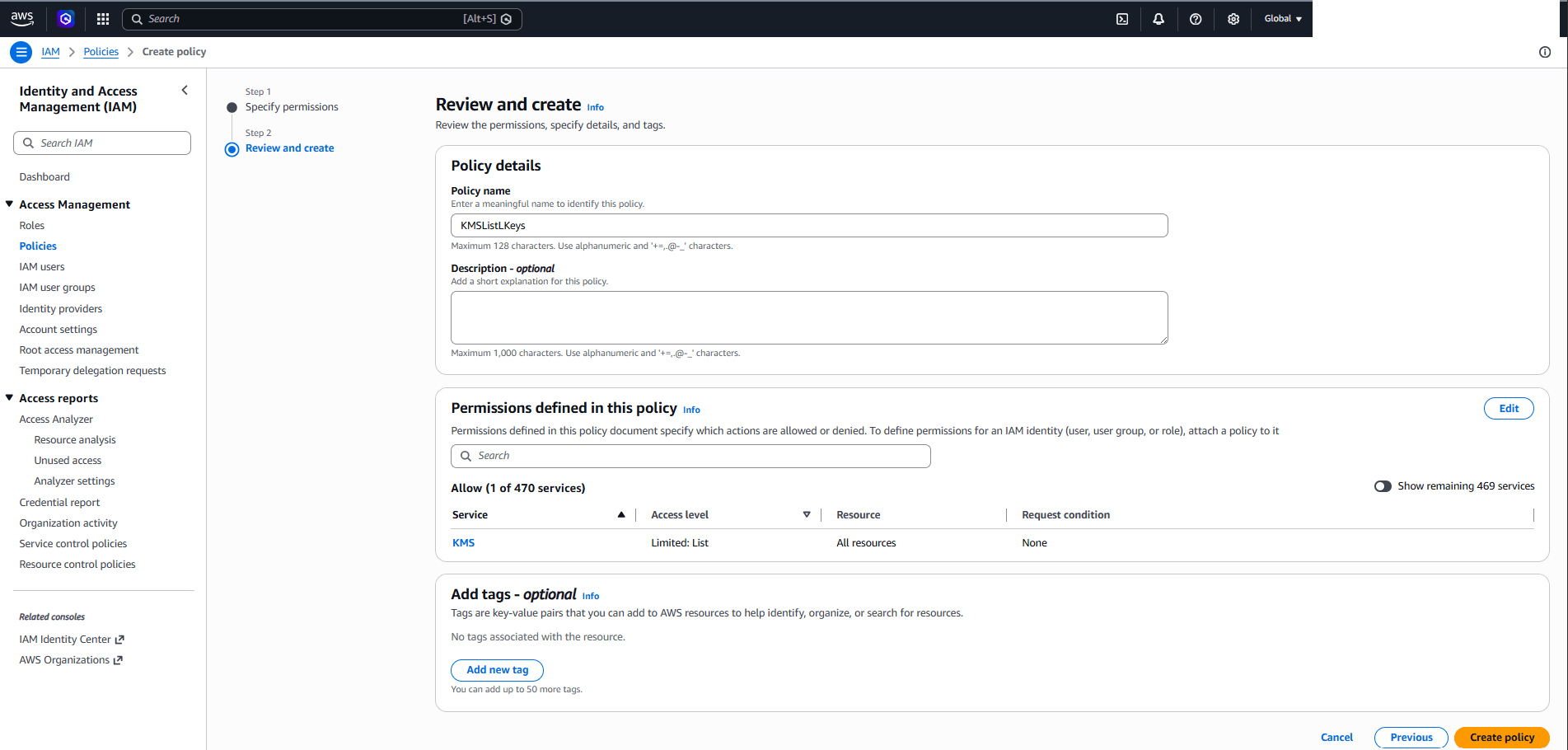

   5. In the Review and create step, complete the following steps:
      1. Enter a descriptive policy name in the Policy name field. The policy name can contain up to 128 characters. Use alphanumeric characters and the following special characters: plus sign (+), equals sign (=), comma (,) , period (.), at sign (@), underscore (_), and hyphen (-).
      2. Enter a short explanation in the Description field. Your description can contain up to 1000 characters. Use alphanumeric characters and the following special characters: plus sign (+), equals sign (=), comma (,) , period (.), at sign (@), underscore (_), and hyphen (-).
      3. Review the Permissions defined in this policy section. If any changes are required, select the Edit button.
      4. The Add tags section is optional. If you want to add a new tag, select the Add new tag button and then enter Key and Value information.
      5. After reviewing all details, select the Create policy button.

   6. Once it is created, you can review your policy from the Policies list.
4. Create an IAM Role
   Complete the following steps to create an IAM role for allowing access to AWS KMS.

   1. From the AWS Console, navigate to IAM.

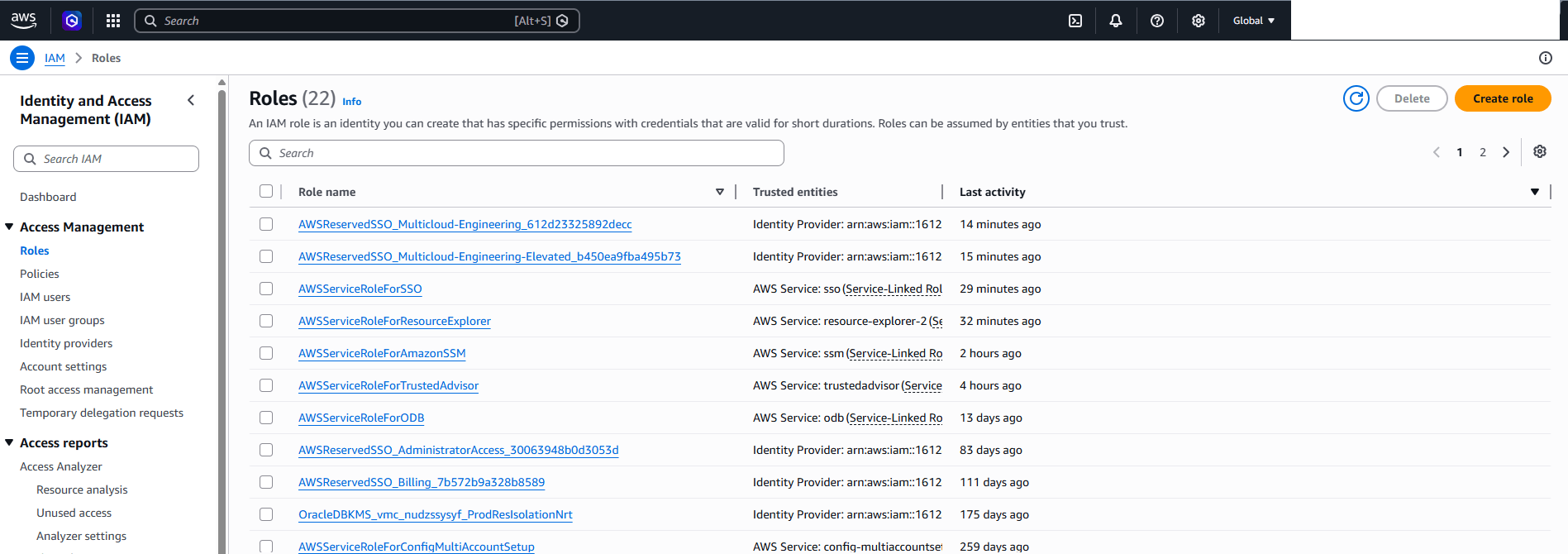

   2. Expand the Access Management section, and then select the Roles.
   3. Select the Create role button.

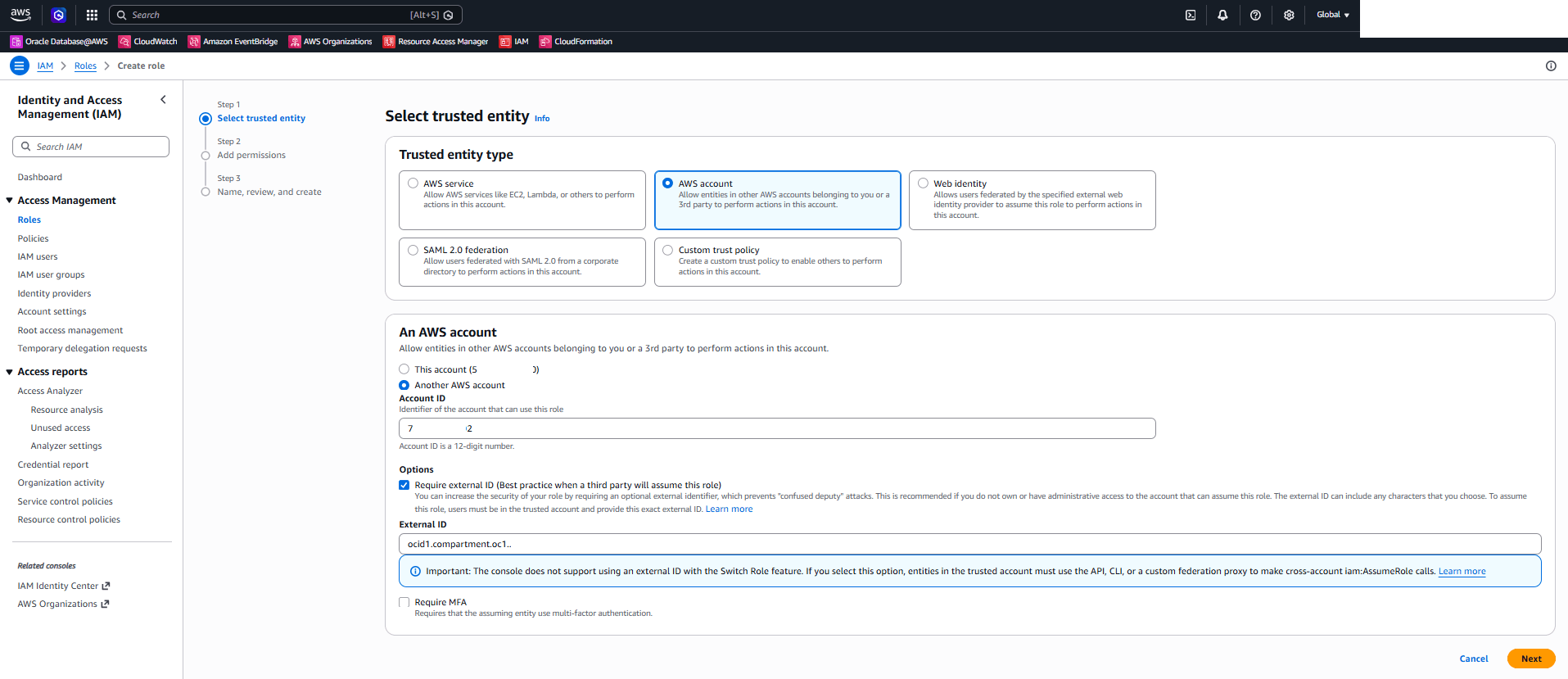

   4. In the Select trusted entity step, complete the following steps:
      1. Choose the AWS account option from the Trusted entity type section.
      2. Choose the Another AWS account option as the role is in the another AWS account.
      3. Enter the Account ID information. The AWS account ID is part of the OCI trusted service account role ARN that you copied in step 2. For example, in arn:aws:iam::754XXXXXX502:role/ADBS_ROLE_G5XXXXXXXXXX196, 754XXXXXX502 is AWS account ID.
      4. Select the Require external ID option to require an external ID when a third party assumes the role. This configuration helps improve security. This is optional.
      5. Enter your External ID. This ID can be Compartment OCID or Tenancy OCID information that you copied in the step 2c.
      6. Select the Next button.

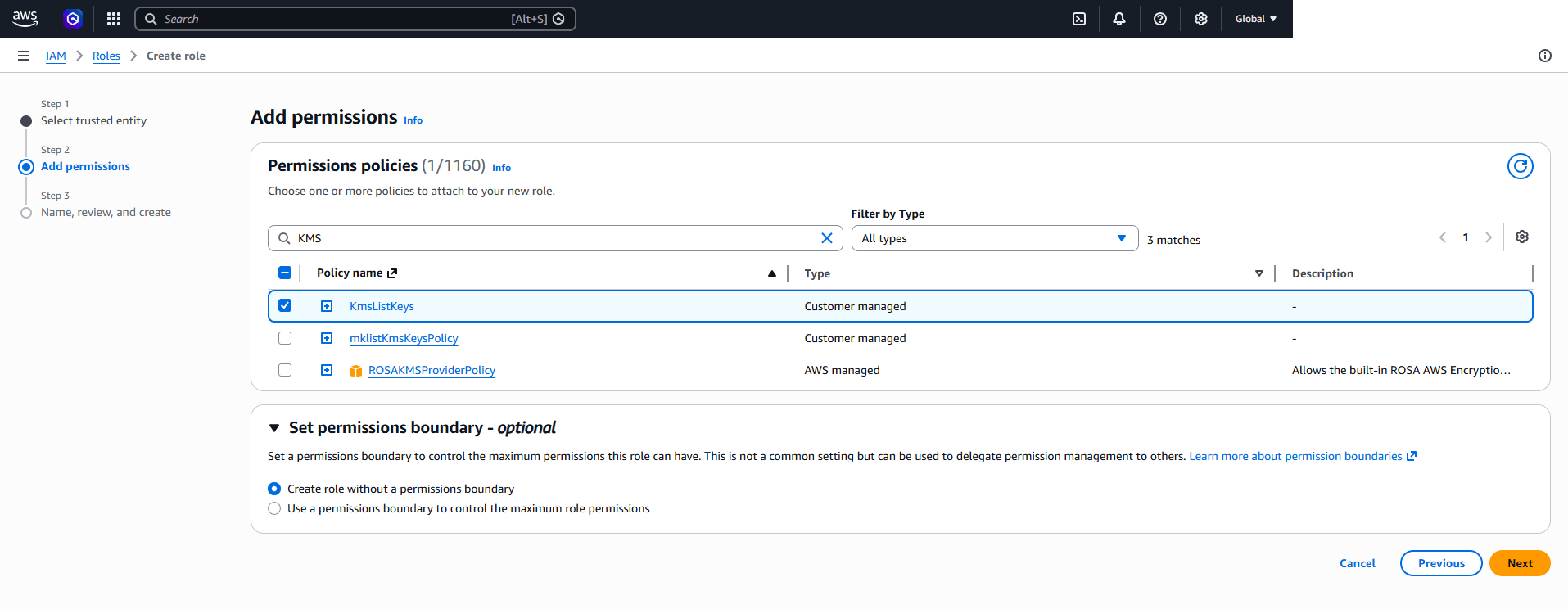

   5. In the Add permissions step, complete the following steps:
      1. From the Permissions policies section, select the policy that you previously created in the step 3.
      2. The Set permissions boundary section is optional. This option allows you to set a permissions boundary to control the maximum permissions this role can have.
      3. Select the Next button.

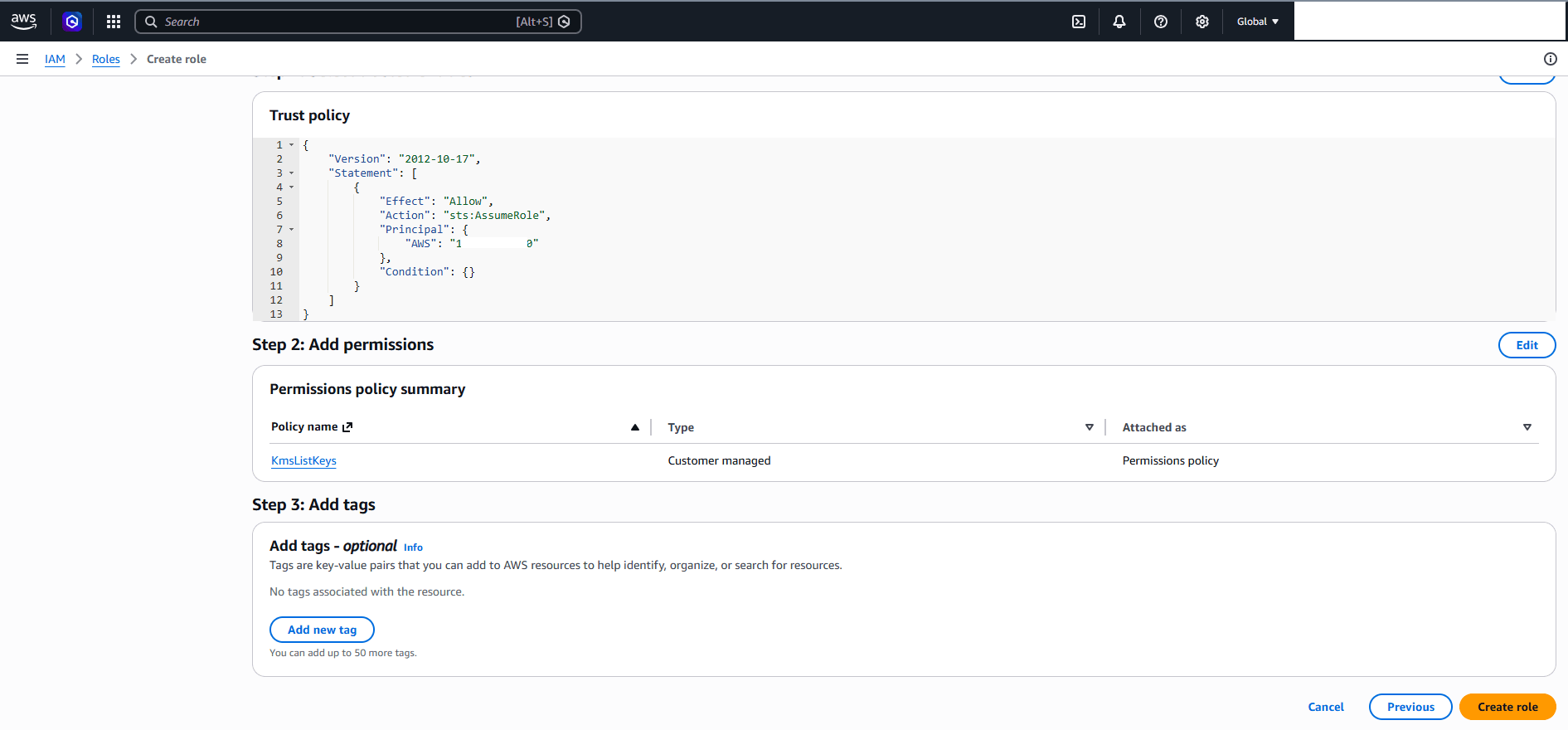

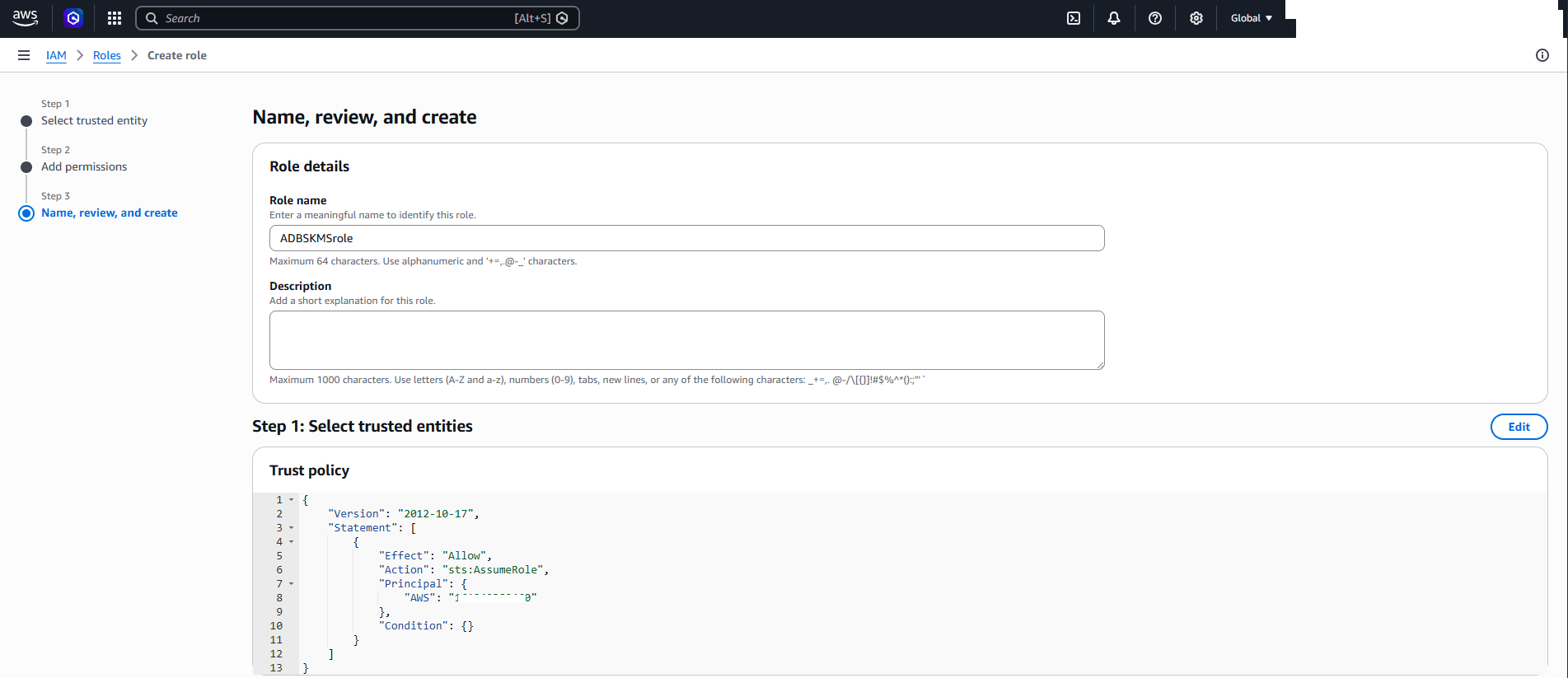

   6. In the Name, review, and create step, complete the following steps:
      1. Enter a descriptive role name. The role name can contain up to 64 characters. Use alphanumeric characters and the following special characters: plus sign (+), equals sign (=), comma (,) , period (.), at sign (@), underscore (_), and hyphen (-).
      2. Enter a short explanation in the Description field. Your description can contain up to 1000 characters. Use letters (A-Z and a-z), numbers (0-9), tabs, new lines, or any of the following characters: _+=,. @-/\[{}]!#$%^*():;"'`
      3. The Add tags section is optional.
      4. After reviewing all details, select the Create role button.

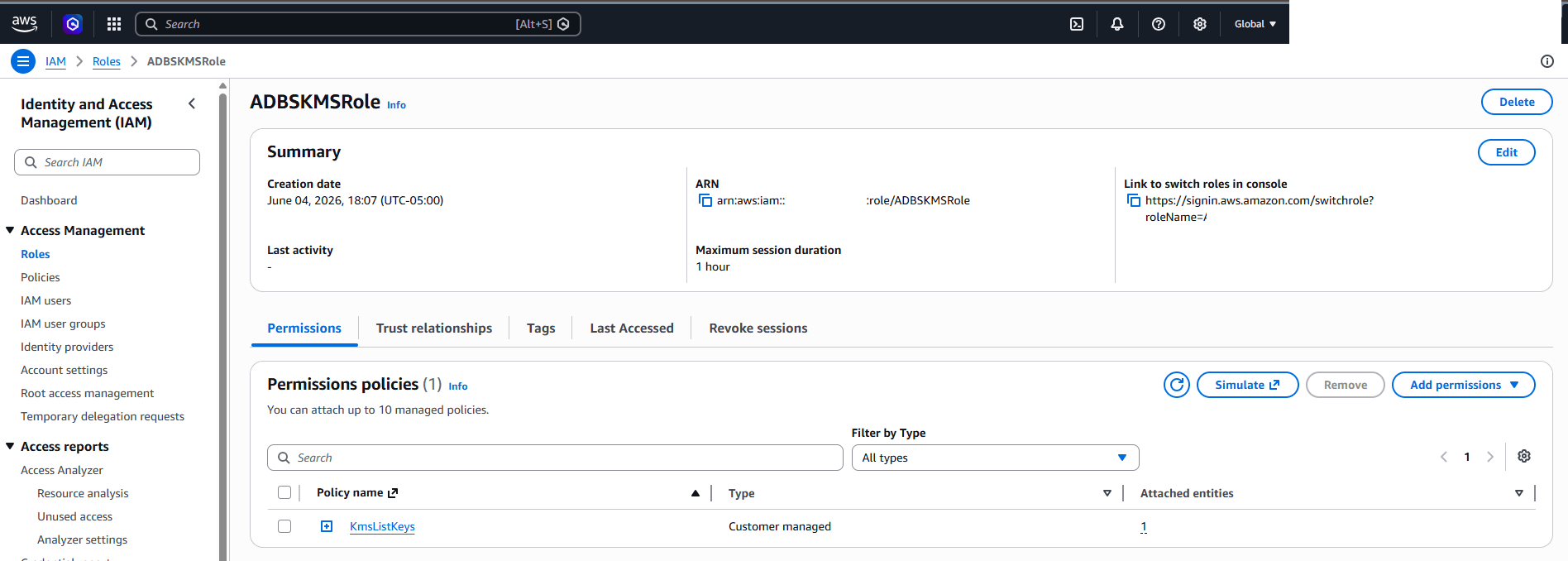

   7. Once it is created, you can review the role details from the Summary section. Take a note of the ARN information.
   8. Optionally, you can add trust relationship to allow only the service role that you copied in step 2a.
      1. Select the Edit button to edit the trust policy.
      2. Add "ArnLike": { "aws:PrincipalArn": "<roleARN> that copied in step 2a.
5. Create a Customer Managed Key
   1. From the AWS Console, select Key Management Service (KMS).
   2. From the left menu, select Customer managed keys, and then select the Create key button.
   3. In the Configure key section, enter the following information.
      1. Choose the Symmetric option as the Key type.
      2. Choose the Encrypt and decrypt option as the Key usage.
      3. Expand the Advanced options section. Both AWS KMS and AWS CloudHSM are supported.
         1. If you want to use KMS, choose the KMS - recommended option as Key material origin, and then choose either the Single-Region key or the Multi-Region key option from the Regionality section.
            Note

            Restoring databases to a different region are currently not supported for databases that use AWS customer managed keys for key management.
         2. If you want to use AWS CloudHSM , choose the AWS CloudHSM key store option as Key material origin.
      4. Select the Next button to continue the creation process.

   4. In the Add labels section, enter the following information.
      1. Enter a descriptive display name in the Alias field. Maximum 256 characters. Use alphanumeric and '_-/' characters.
         Note



         • The alias name cannot begin with aws/. The aws/ prefix is reserved by AWS to represent AWS managed keys in your account.
         • An alias is a display name that you can use to identify the KMS key. We recommend that you choose an alias that indicates the type of data you plan to protect or the application you plan to use with the KMSkey
         • Aliases are required when you create a KMS key in the AWS Console.
      2. The Description field is optional. You can enter a brief description of the key.
      3. The Tags section is optional. You can use tags to categorize and identify your KMS keys and help you track your AWS costs.
      4. Select the Next button to continue the creation process.

   5. In the Define key administrative permissions section, complete the following substeps.
      1. Search the role that you previously created, and then select the checkbox. Select the IAM users and roles that can administer the KMS key.
      2. From the Key deletion section, the Allow key administrators to delete this key checkbox is selected by default. To prevent the selected IAM users and roles from deleting the KMS key, you can deselect the checkbox.
      3. Select the Next button to continue the creation process.

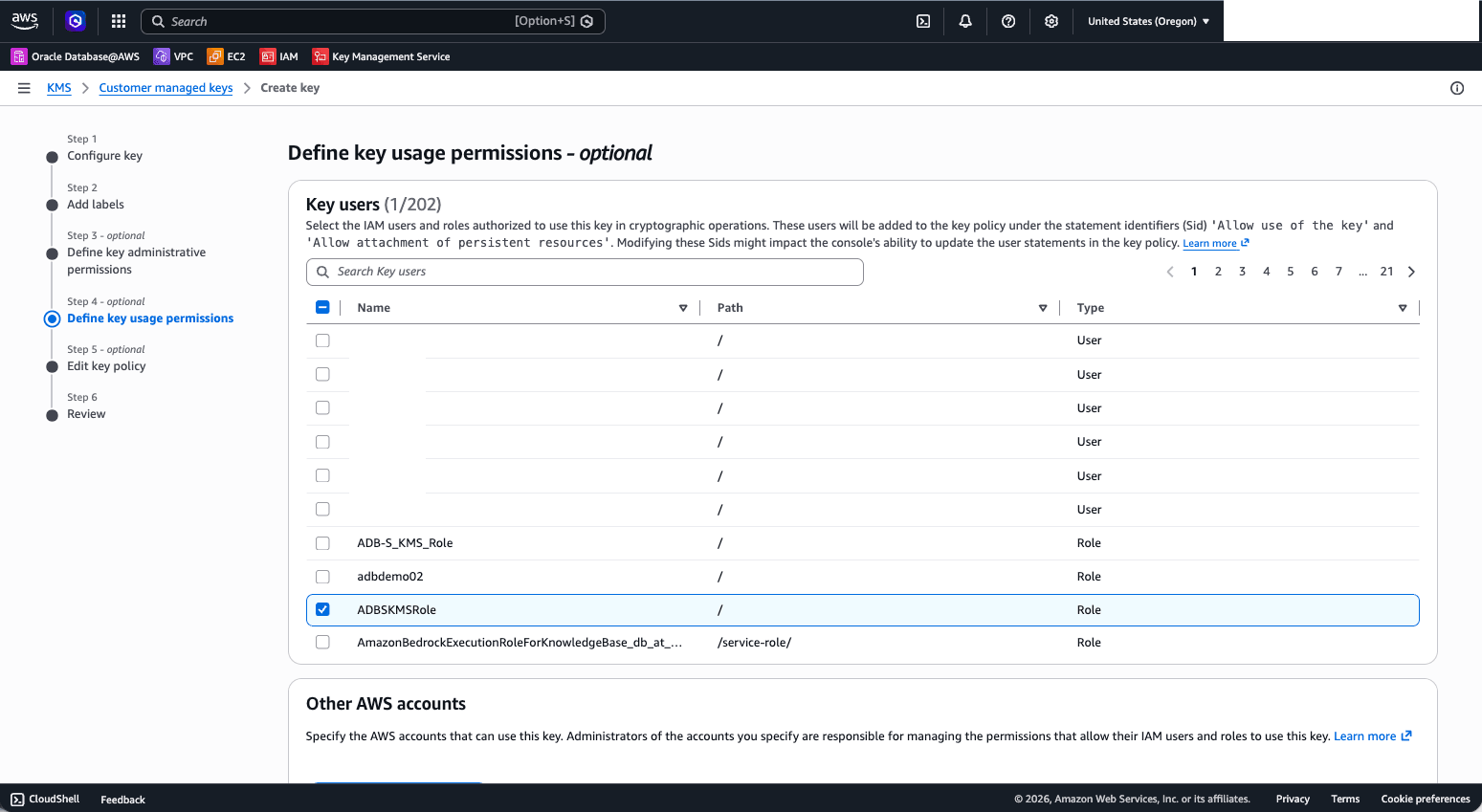

   6. In the Define key usage permissions section, complete the following substeps.
      1. Search the role that you previously created, and then select the checkbox.
      2. Select the Next button to continue the creation process.

   7. In the Edit key policy section, complete the following substeps.
      1. From the Preview section, you can review the key policy. If you want to make a change, select the Edit tab.
      2. Select the Next button to continue the creation process.
   8. In the Review section, review your information, and then select the Finish button.
   9. Once it is created, you can review the customer managed key details from the General configuration section. Take a note of the ARN information as it is required in the following step.
6. Grant Role Access to an Existing AWS KMS Key

   Complete the following steps to grant permissions to the role for accessing an existing AWS KMS key that will be used as Master Encryption Key for the Autonomous AI Database Serverless instance.

   1. From the AWS Console, navigate to Key Management Service (KMS), and then select Customer managed keys.
   2. Select the customer managed key from the list.

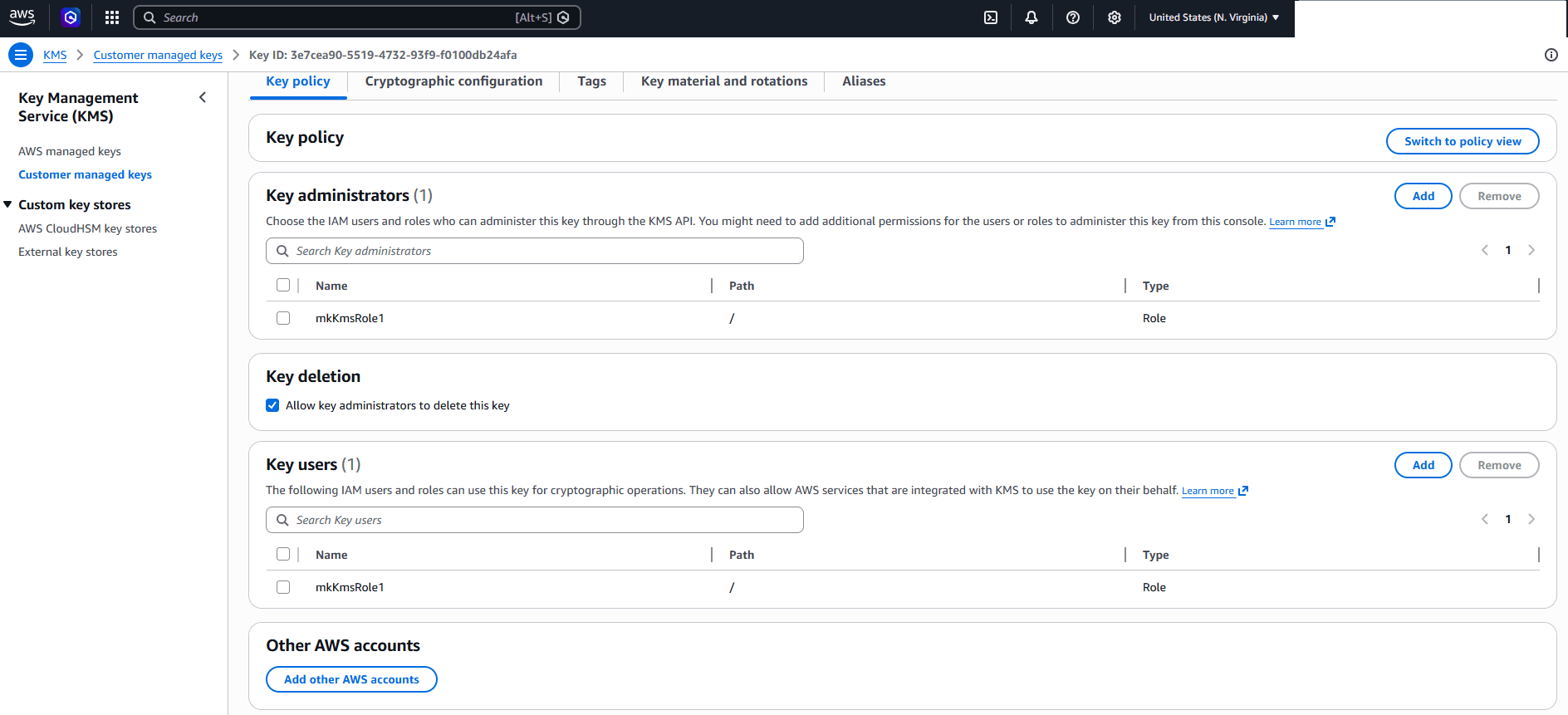

   3. Select the Key policy tab, and then scroll down to the Key users section.
   4. Select the Add button.

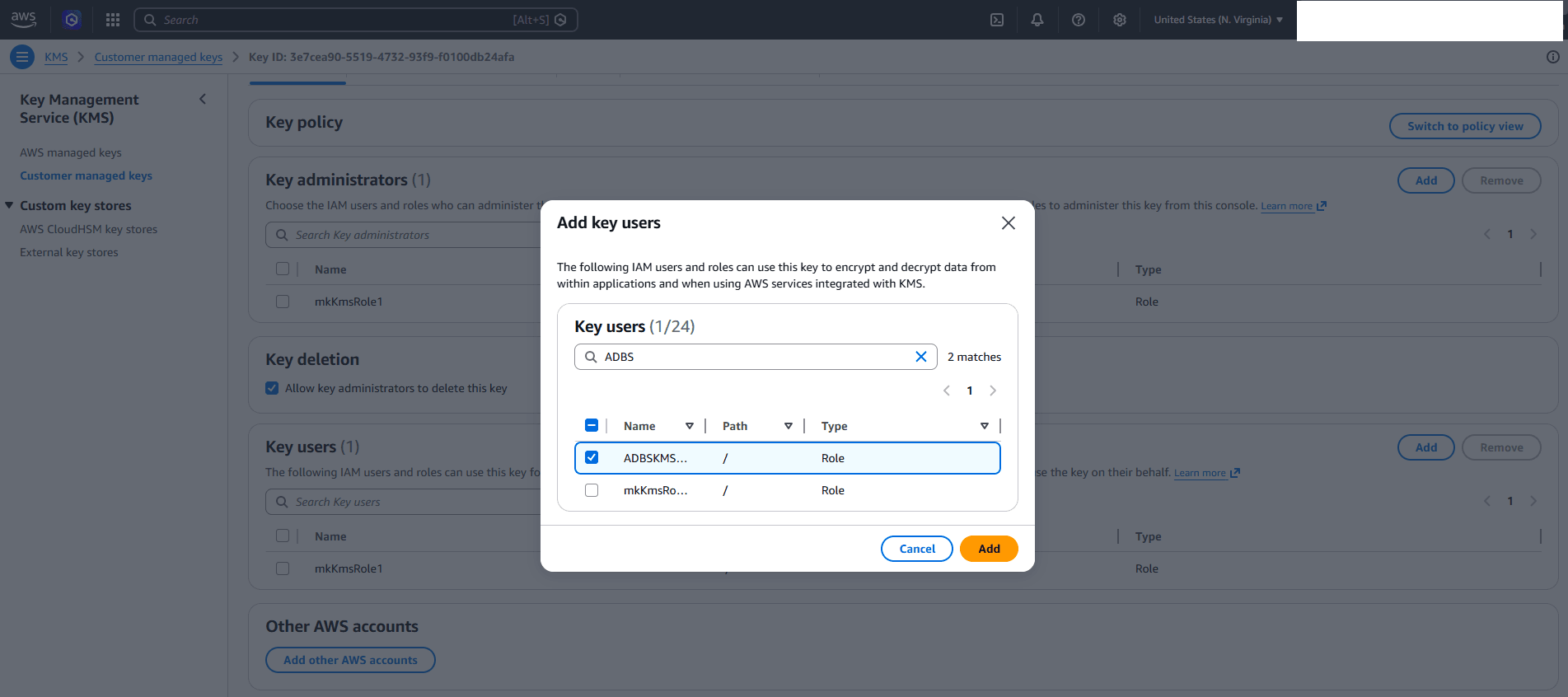

   5. From the Add key users page, enter the following information.
      1. Select the role that you previously created in the step 4.
      2. Select the Add button to save your changes.

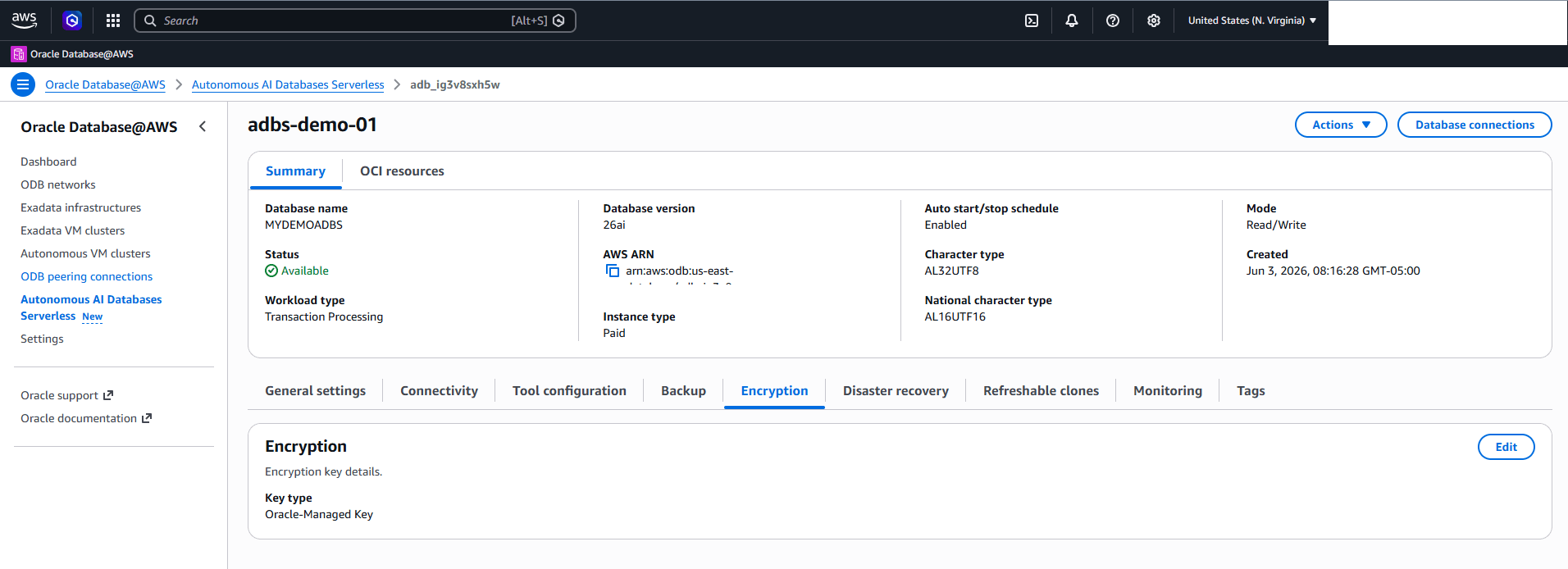

7. Enable AWS KMS for Autonomous AI Database Serverless
   1. From the AWS Console, select Oracle AI Database@AWS, and then select Autonomous AI Databases Serverless.
   2. Select your Autonomous AI Database Serverless that you want to encrypt.

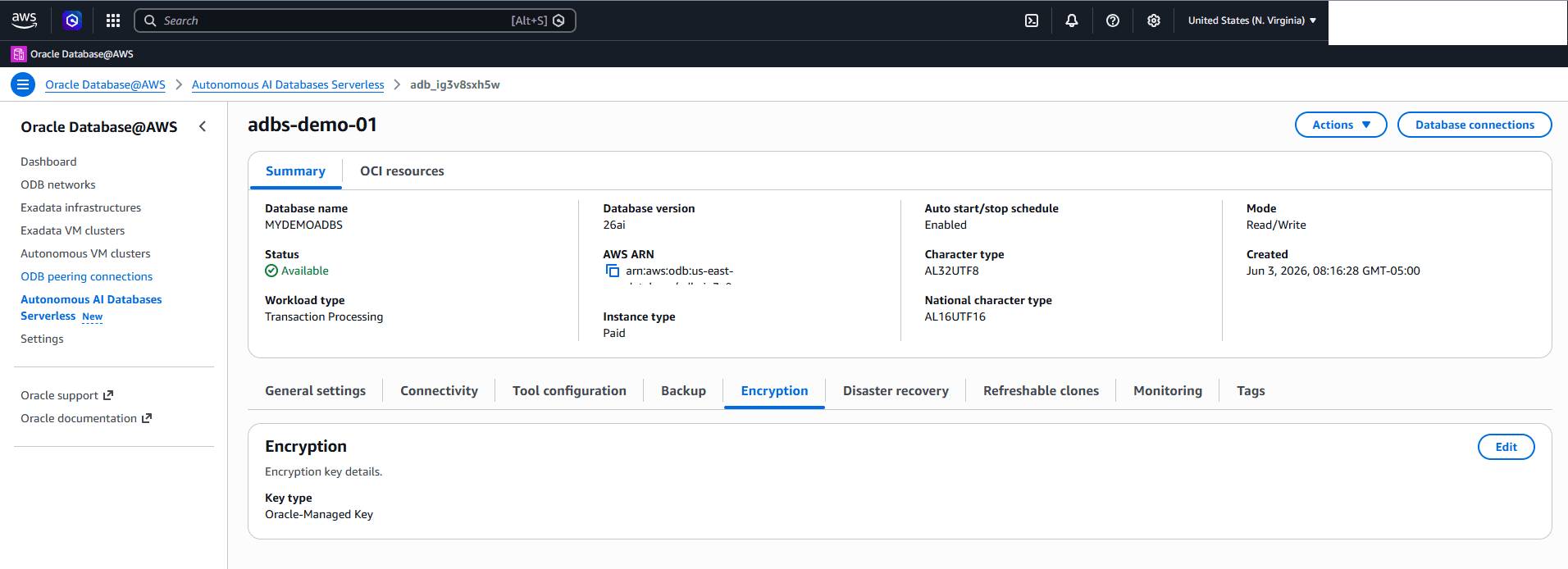

   3. Select the Encryption tab. The Key type is set to Oracle-Managed Key.
   4. Select the Edit button.

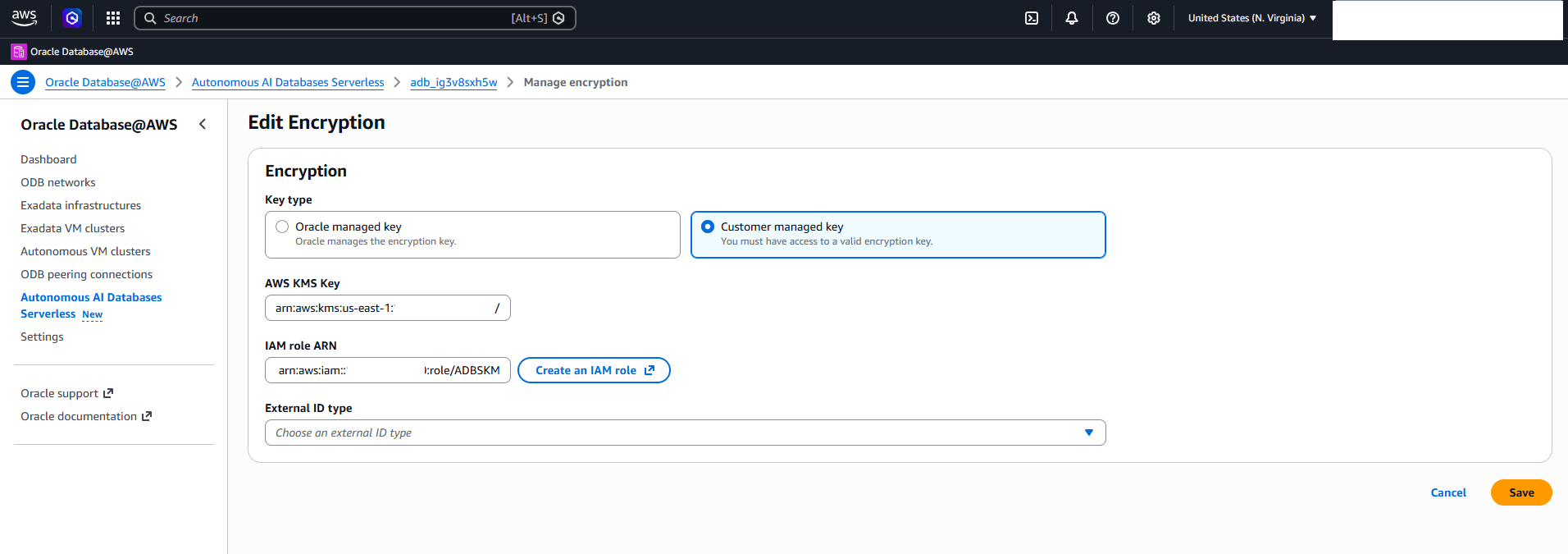

   5. From the Edit Encryption page, enter the following information.
      1. Choose the Customer managed key option.
      2. Enter your AWS KMS Key ARN or ID in the AWS KMS Key field that you previously copied in the step 5i.
      3. Enter your IAM role ARN that you previously copied in the step 4g.
      4. From the dropdown list, select TENANCY_OCID as your External ID type.
         1. The options include DATABASE_OCID, COMPARTMENT_OCID and TENANCY_OCID.
      5. Select the Save button to save your changes.

   6. Once it is complete, you can review that the Key type is set to AWS KMS Key.
   Note

   After you enable AWS KMS for Autonomous AI Database Serverless, the change may take 30 minutes or longer to be reflected in the AWS Console.

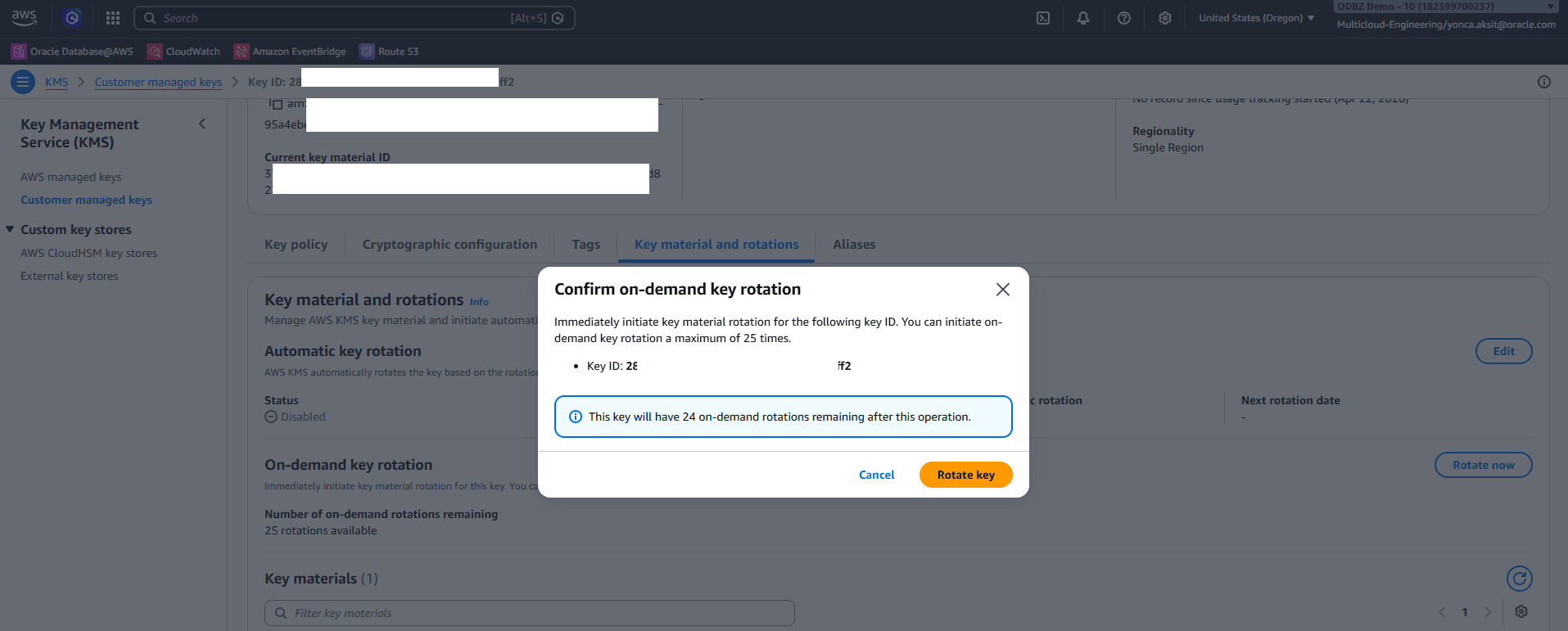

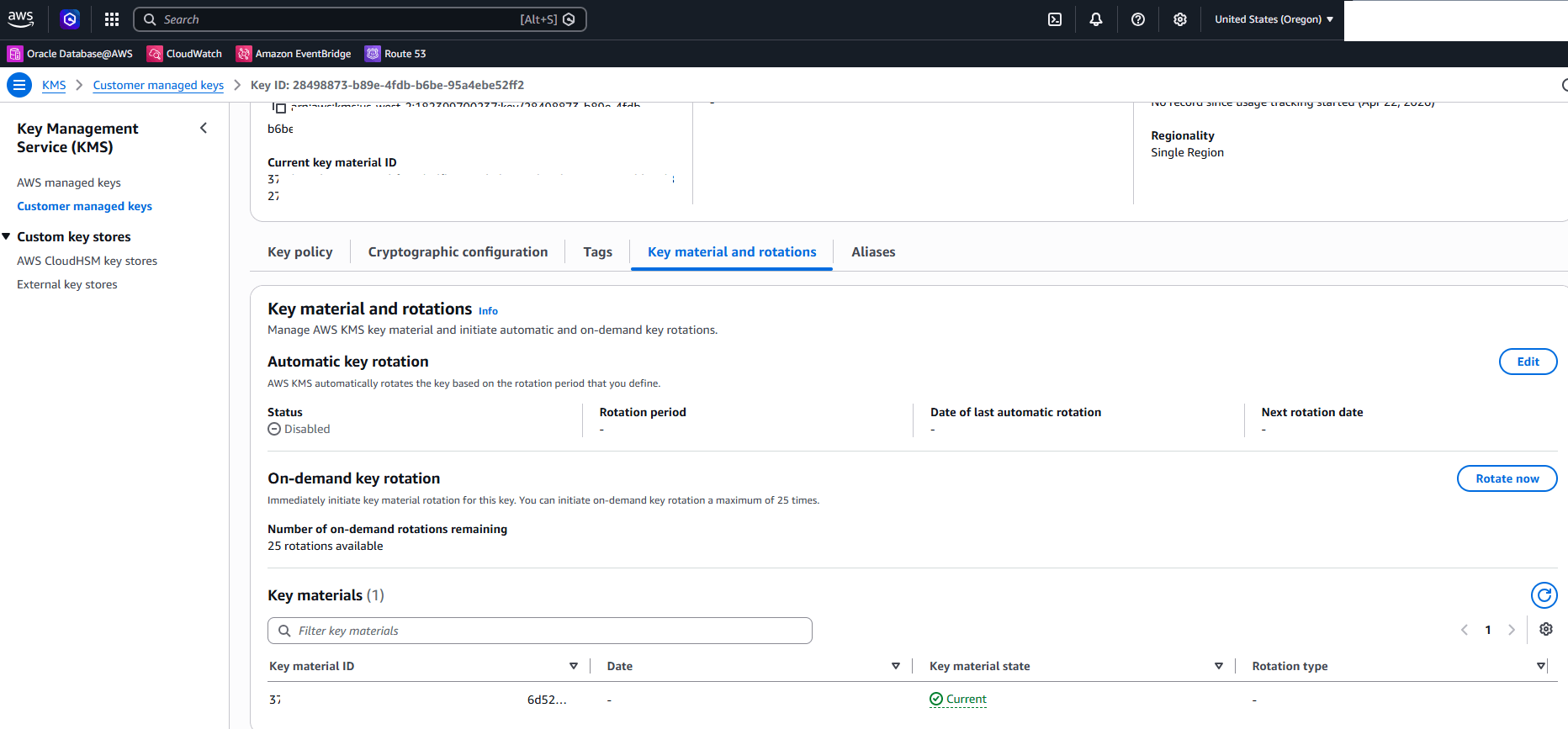

8. Rotate an AWS KMS Key
   1. From the AWS Console, navigate to Key Management Service (KMS), and then select Customer managed keys.
   2. Select the customer managed key from the list.
   3. Select the Key material and rotations tab.
   4. Scroll down to the On-demand key rotation section, and then select the Rotate now button.
   5. From the Confirm on-demand key rotation page, select the Rotate key button.
      Note

      This action immediately initiates key material rotation for the following key ID. You can initiate on-demand key rotation a maximum of 25 times.
