Reference for GoldenGate
This guide lists the predefined objects in Resource Analytics for GoldenGate. You can find information about views, entity relationships, subject areas, and sample queries.
Views
This section provides information about views within Resource Analytics GoldenGate and their columns, data types, keys, and the referred view and column names. The following views are available:
| Name | Description |
|---|---|
| GOLDEN_GATE_CONNECTION_ASSIGNMENT_DIM_V | This view stores information on connection assignments. |
| GOLDEN_GATE_DEPLOYMENT_BACKUP_DIM_V | This view stores information on deployment backups. |
| GOLDEN_GATE_DEPLOYMENT_UPGRADE_DIM_V | This view stores information on deployment upgrades. |
| GOLDEN_GATE_DEPLOYMENT_DIM_V | This view stores information on GoldenGate deployments. |
| GOLDEN_GATE_INSTANCE_DIM_V | This view consolidates overlapping attributes from GoldenGate Deployments and Zero ETL Pipelines. |
| GOLDEN_GATE_ZERO_ETL_PIPELINE_DIM_V | This view stores information on Zero ETL pipelines. |
| GOLDEN_GATE_REPLICATION_FACT_V | This view stores information on GoldenGate replication facts. |
The suffixes in the view names specify the view type:
- FACT_V: Fact
- DIM_V: Dimension
Relationship Diagram
This section provides diagrams that define the logical relationship of a fact table with different dimension tables.
The contents of each view and their relationships are listed in the following file: GoldenGate views.

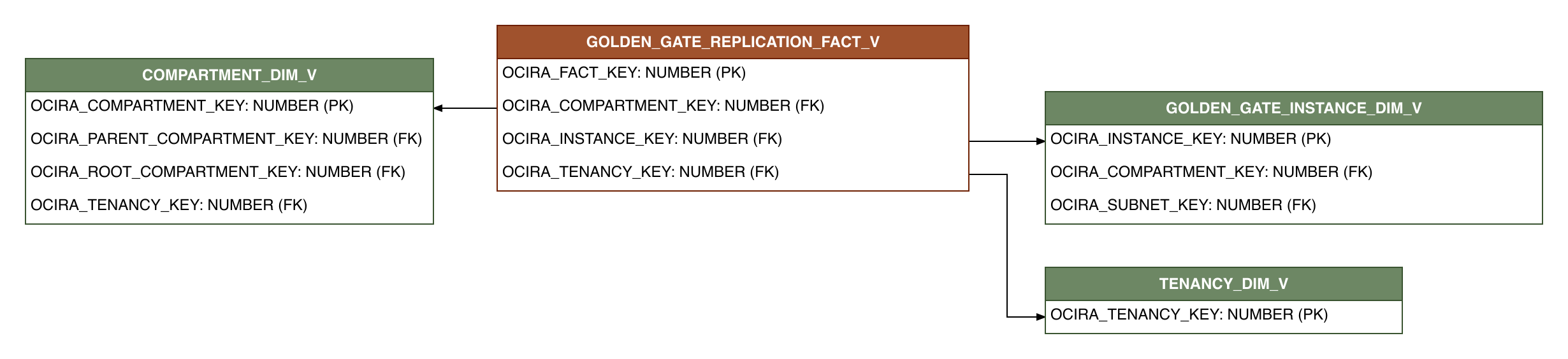

This diagram shows the relationship of the GoldenGate fact view with different dimension views.

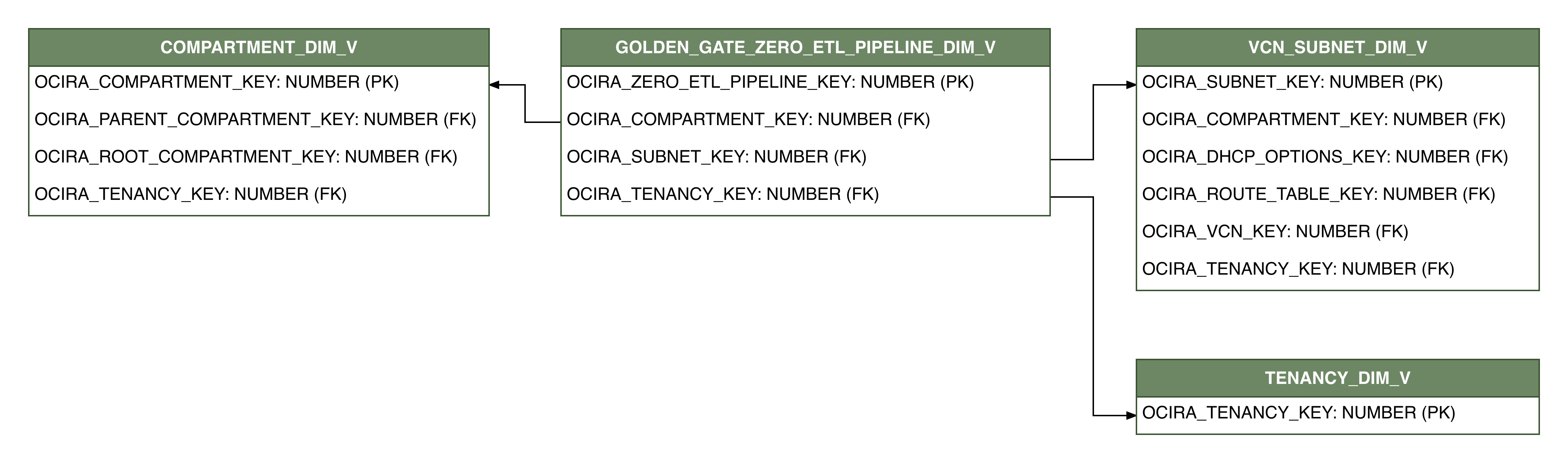

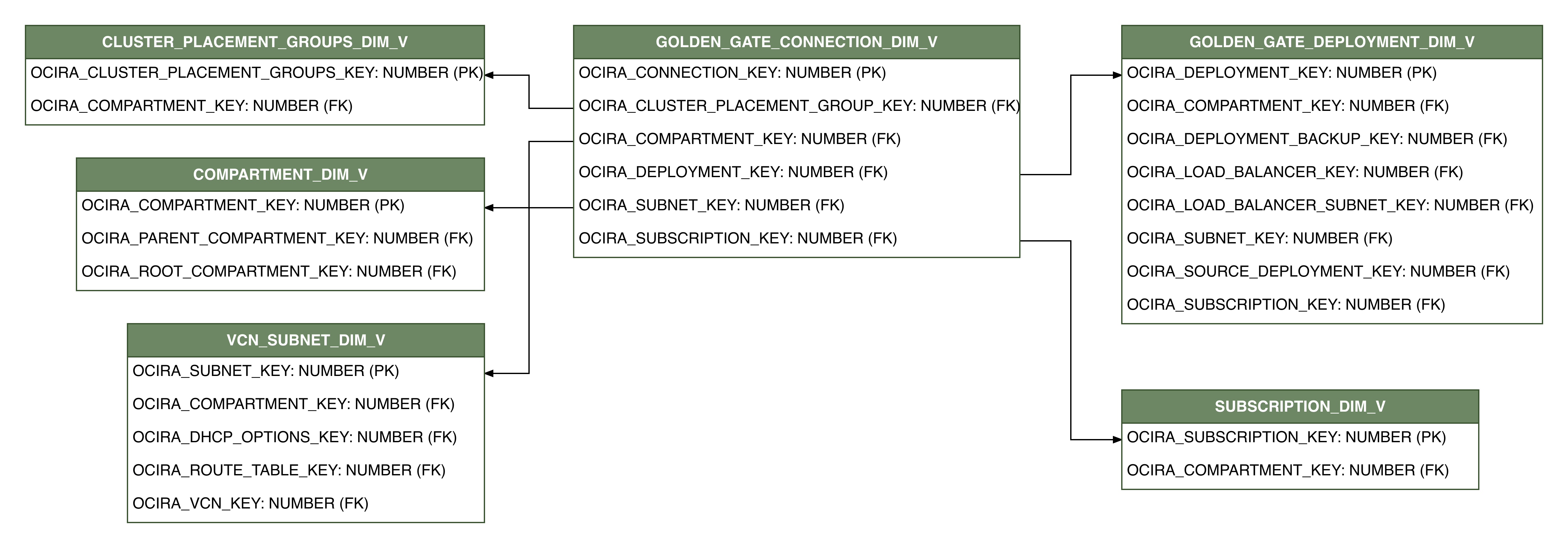

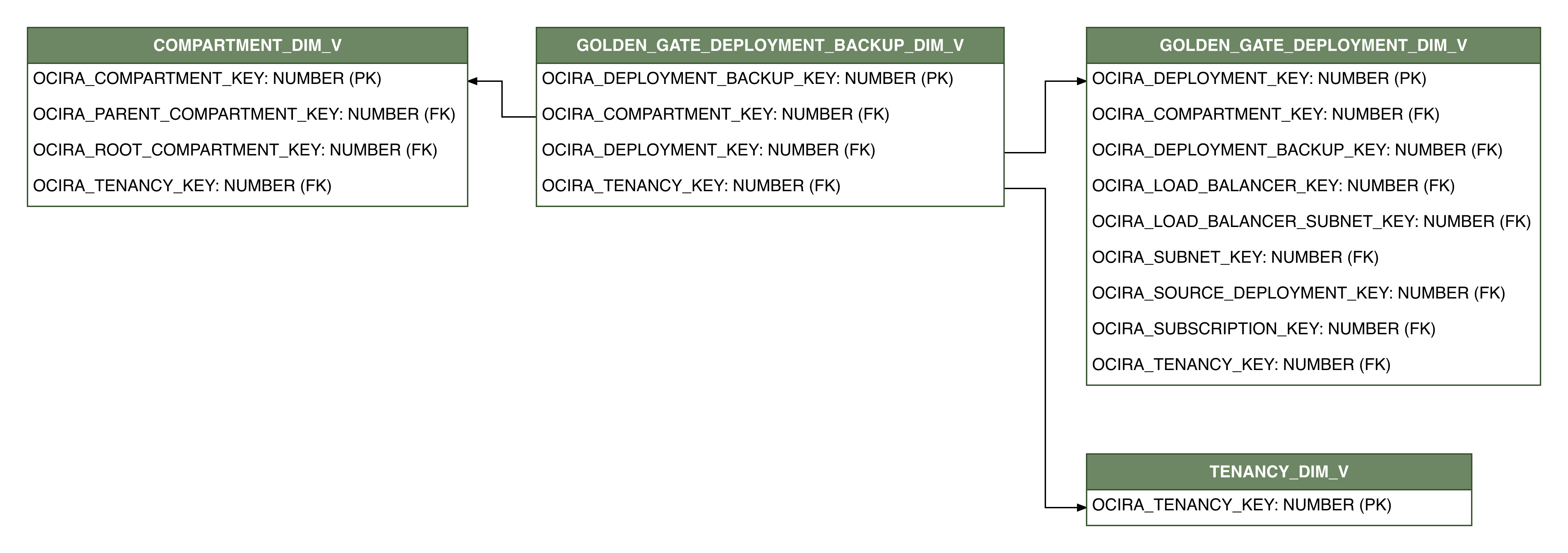

Relationships exist among dimensions. Dimensions can be joined directly to each other. These diagrams show the relationship between dimension views.
Sample Queries
Sample queries for GoldenGate.
SELECT
F.INSTANCE_ID,
F.CPU_CORE_COUNT,
F.LIFECYCLE_STATE,
F.STORAGE_UTILIZATION_IN_BYTES,
F.TIME_UPDATED,
I.SUBNET_ID
FROM
OCIRA.GOLDEN_GATE_FACT_V F
JOIN
OCIRA.GOLDEN_GATE_INSTANCE_DIM_V I
ON
F.OCIRA_INSTANCE_KEY = I.OCIRA_INSTANCE_KEY
WHERE
F.LIFECYCLE_STATE = 'ACTIVE'
AND I.SUBNET_ID = '<YOUR_SUBNET_OCID>' -- replace with the target subnet OCID
;Data Lineage
The Customer Experience Semantic Model Lineage spreadsheet and Metric Calculation Logic spreadsheet for GoldenGate provides an end-to-end data lineage summary report for physical and logical relationships in your data.
For more information, see Data Lineage.
Subject Areas
This section provides information on the subject areas with data you maintain in GoldenGate. These subject areas, with their corresponding data, are available for you to use when creating and editing analyses and reports. The information for each subject area includes:
Description of the subject area.
Business questions that can be answered by data in the subject area, with a link to more detailed information about each business question.
Job-specific groups and duty roles that can be used to secure access to the subject area, with a link to more detailed information about each job role and duty role.
Primary navigation to the work area that's represented by the subject area.
Time reporting considerations in using the subject area, such as whether the subject area reports historical data or only the current data. Historical reporting refers to reporting on historical transactional data in a subject area. With a few exceptions, all dimensional data are current as of the primary transaction dates or system date.
The lowest grain of transactional data in a subject area. The lowest transactional data grain decides how data are joined in a report.
Special considerations, tips, and things to look out for in using the subject area to create analyses and reports.
