Customize the Alarm Body

You can write alarm body in the alarm definition by using those dynamic variables from the metric data which triggered the alarm.

For details and steps to customize the alarm body, see the step Alarm Summary in Creating a Basic Alarm.

Typically, in this flow, you would pass the label name. Additionally, in the following example, we will also pass the entity (mtgt).

• Detection Rule Definition:

  Consider the ingest-time detection rule which has the following configuration:

  • Detection rule name: http errors
  • The detection rule triggers when it finds at least one log record in a one-minute period that has been assigned the label HTTP Error. The assignment of this label is done in the enrichment configuration automatically when the data is ingested.
  • When there is at least 1 matching log record in a one-minute period, a metric http_errors in the namespace logging_analytics_test gets a new value.
  • The dimensions are added based on parsed log fields Entity and Host IP Address (Client).
  • Additionally, the dimensions are automatically added for the label (HTTP Error in this case), and the detection rule OCID. Those are implicit dimensions.

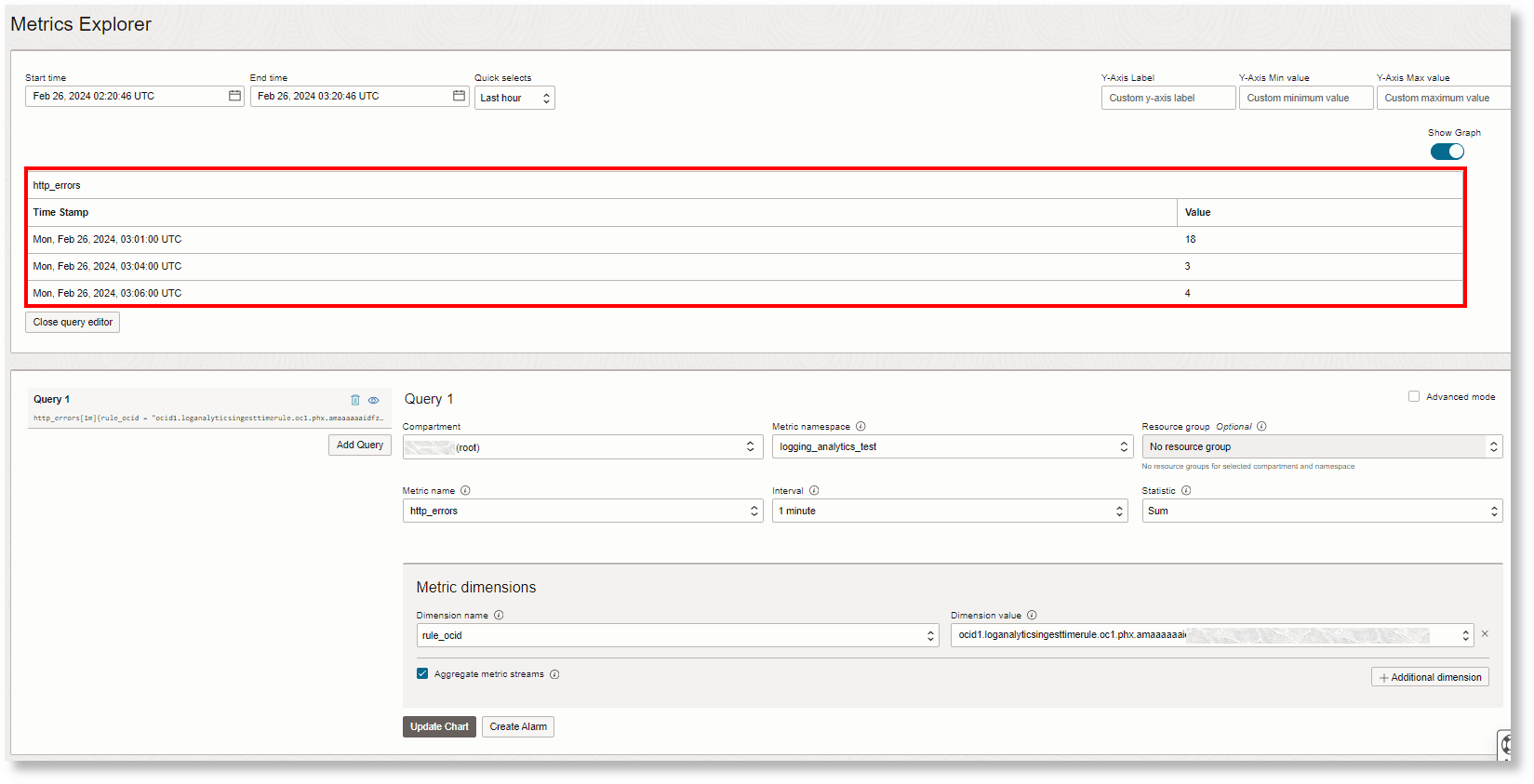

• View the metrics generated by detection rule in the Metrics Explorer:





  When looking at the metrics explorer for the http errors metric, the following information can be noted:

  Coinciding with the Log Explorer, three data points with 18, 3, and 4 log records match this label.

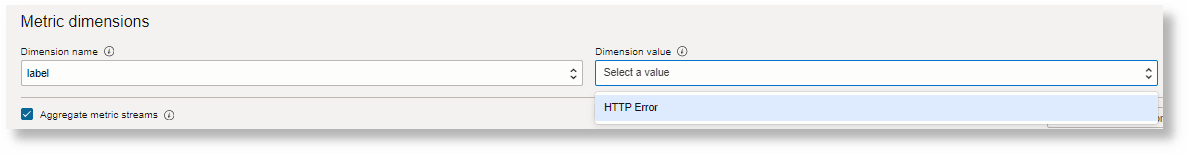

  The following dimensions are displayed. Note that Host IP Address (Client) is not displayed because the log records triggering the alarms didn't have a value for that field.






• Customize alarm body:

  For the log records that triggered the alarm, here are the values of the dimensions:







  Running the following query takes you back to the Log Explorer in context; for example, when the alarm is triggered on 18 matching log records (the first data point in the Metric Explorer):

  Label = 'HTTP Error' and Entity='mushop-ZKjW' | where Time > dateAdd(1708916460000, minute, -1) and Time < dateAdd(1708916460000, minute, 1) | timestats count as logrecords

  Here the values HTTP Error, mushop-ZKjW, and 1708916460000 come from the alarm variables. In the query, we look for the time one minute before and after the alarm time. You can adjust this in the query.

  Here is an example alarm body content that gives you a link in your email to get back to this view:

  This alarm indicates that one or more HTTP Errors have occurred. You can see the original log records here:
  https://cloud.oracle.com/loganalytics/explorer?region=us-phoenix-1&timeNum=1&timeUnit=week&filters=label__:__{{Dimensions.Label}}__;__entity__:__{{Dimensions.mtgt}}&query=* | where time > dateadd({{timestampEpochMillis}}, minute, -1) and time < dateadd{{timestampEpochMillis}}, minute, 1) | timestats count as logrecords

  Before the alarm notification is generated, the variables in {{}} are replaced by the Monitoring service by giving a resulting alarm body text:

  This alarm indicates that one or more HTTP Errors have occurred. You can see the original log records here:
  https://cloud.oracle.com/loganalytics/explorer?region=us-phoenix-1&timeNum=1&timeUnit=week&filters=label__:__HTTP Error__;__entity__:__mushop-ZKjW&query=* | where time > dateadd(1708916460000 , minute, -1) and time < dateadd(1708916460000, minute, 1) | timestats count as logrecords

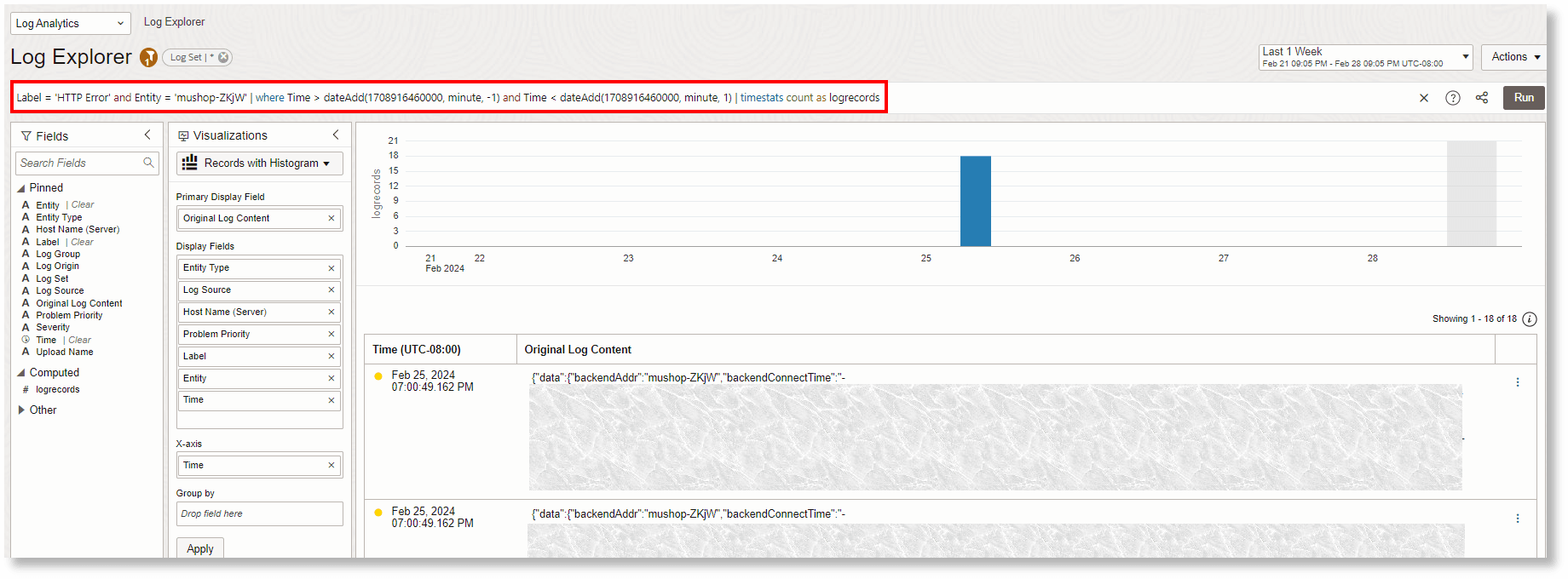

• View result in the Log Explorer:

  When you click the link in your email, and after you log into your tenancy, the following is displayed:
