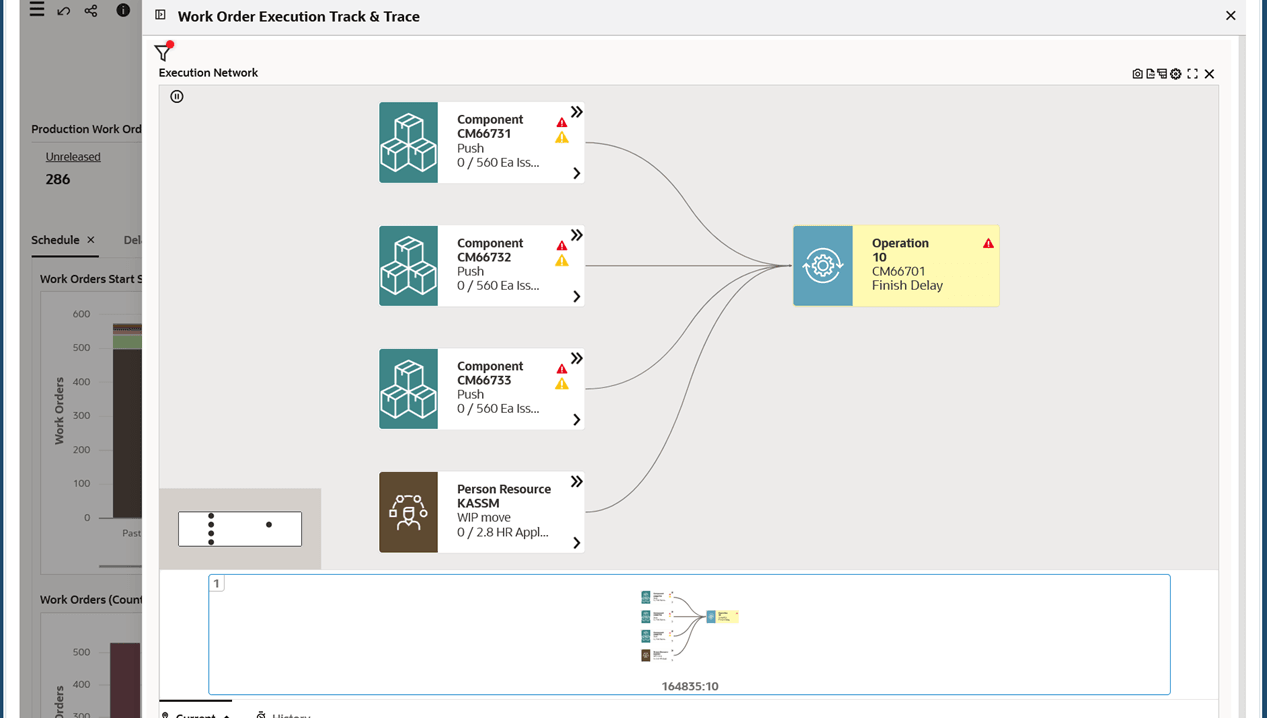

View Component Nodes for Given Supply Types in Work Order Execution Track and Trace Network Diagram

Oracle Discrete Manufacturing Command Center's Work Order Execution Track and Trace diagram is enhanced to display only Push supply type components.

You can open the Work Order Execution Track and Trace network diagram to view Push supply type components from the Work Orders and Operations results tables of the Work Order Status, Production Quality, and Outside Processing dashboards.

Steps to enable and configure

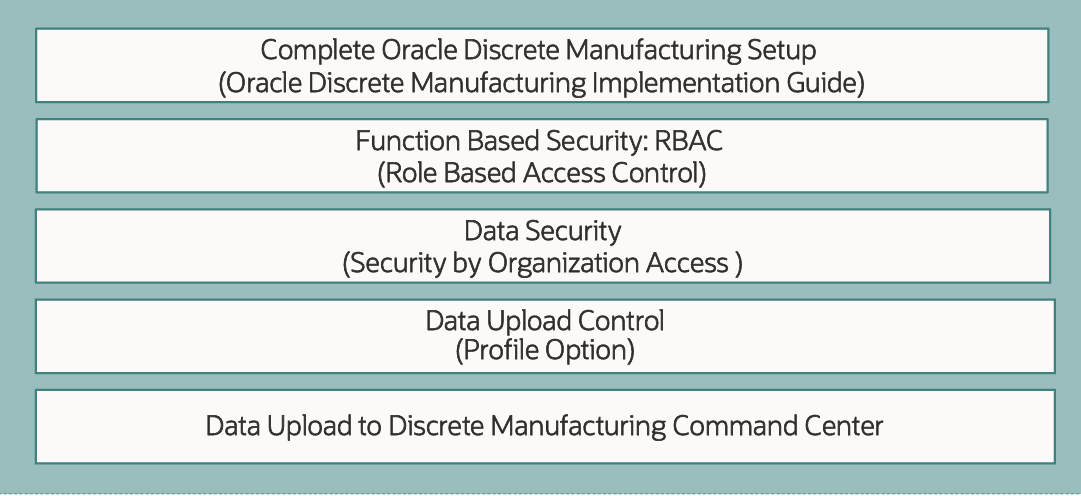

Ensure Oracle Enterprise Command Center Framework Release 12.2 V11 or later is available for this functionality and complete the setups to enable the Discrete Manufacturing Command Center.

Key resources

• Oracle Work in Process User's Guide:
  • Chapter: Oracle Discrete Manufacturing Command Center
    • Topic: Work Order Status Dashboard
    • Topic: Production Quality Dashboard
    • Topic: Outside Processing Dashboard
  • Chapter: Discrete Manufacturing Command Center Setup
    • Topic: Setting Up Quality Command Center
