View Quality Nonconformance and Disposition Events in Operation Timeline

You can now view quality nonconformance and disposition events in the Operation timeline in the Work Order Status, Production Quality and Outside Processing dashboard pages.

Prior to this release, the quality nonconformance and disposition events were only displayed on the Work Order timeline.

To view the Operation timeline, select the Operations results tab in the Work Order Status, Production Quality and Outside Processing dashboard results tables, select an operation, and then select the View Timeline action link :

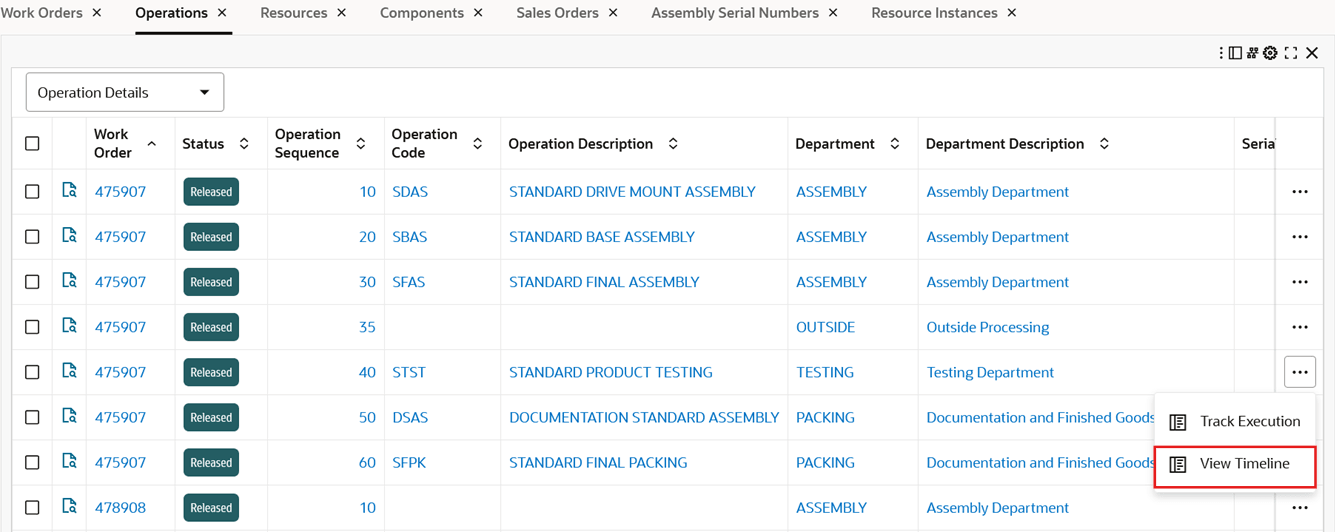

Operation results table
View the quality nonconformance and disposition events in the Operation timeline that opens from the Operations results tab

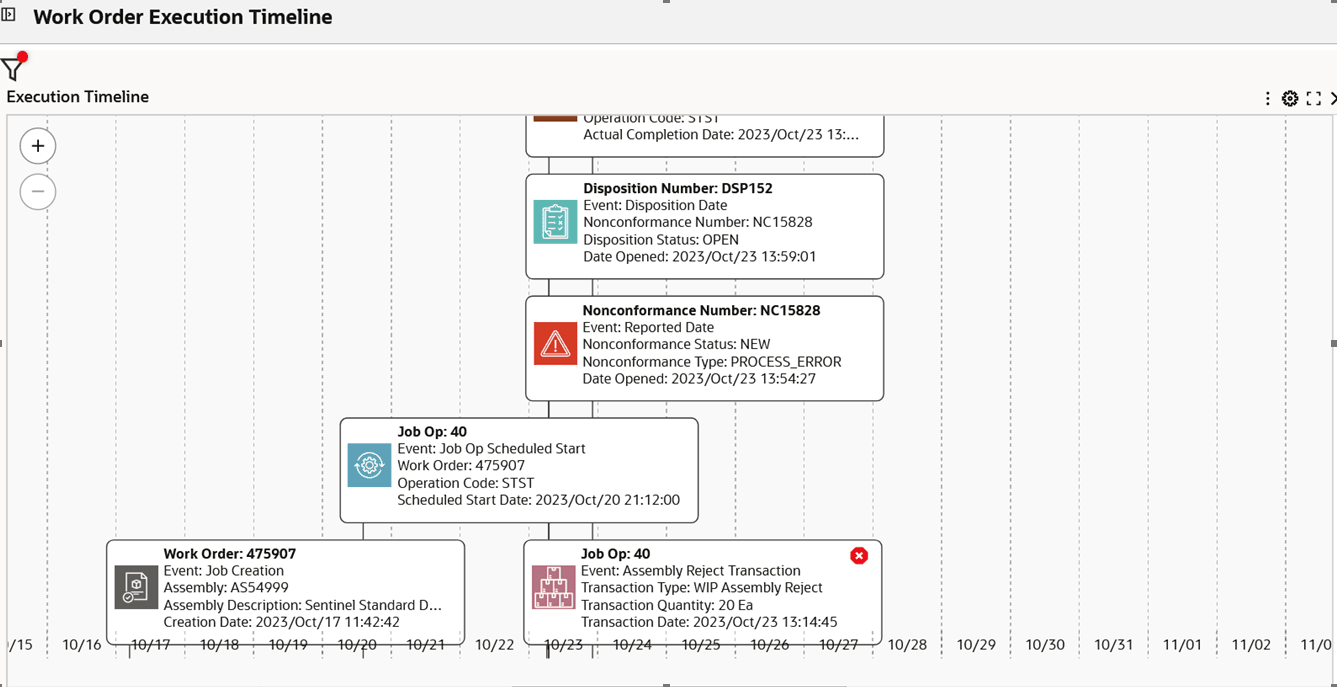

Quality nonconformance and disposition events in the Operations tab

To view the Operation timeline for an operation sequence in the Work Order Execution Track & Trace network diagram, select an Operation Mode and then select the View Timeline action link:

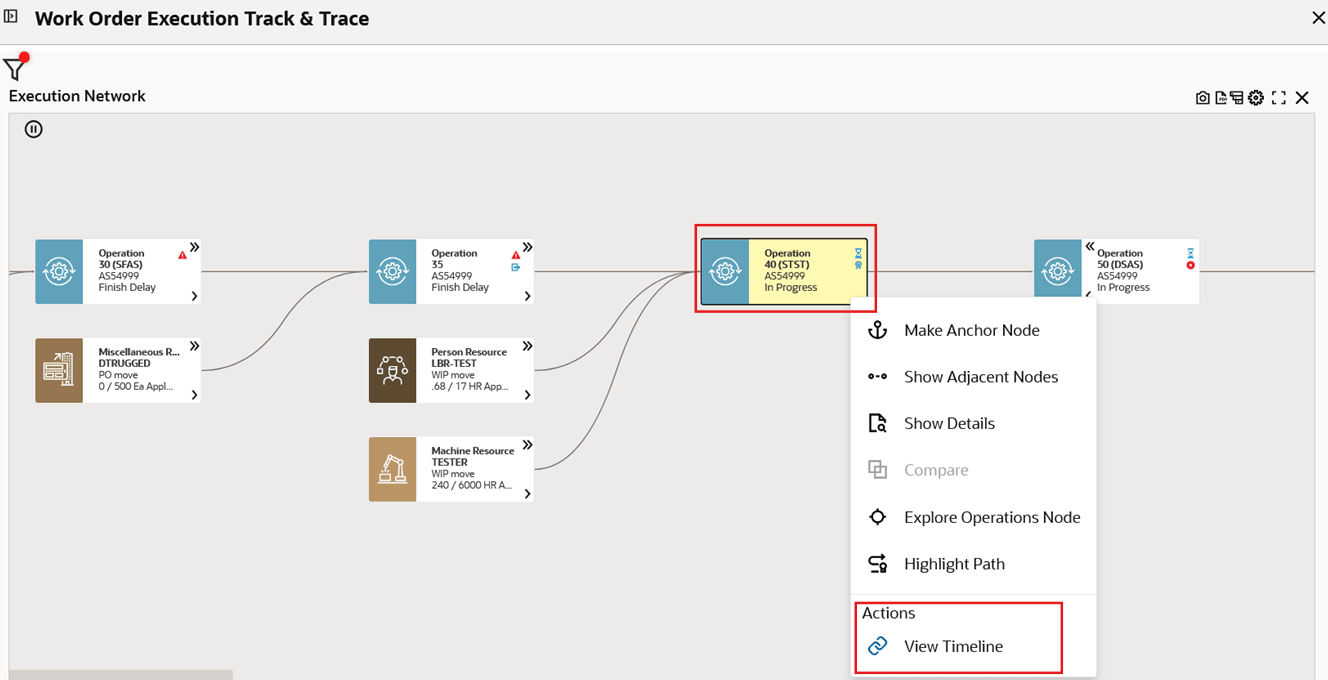

Operation timeline from the Operations node
View the quality nonconformance and disposition events in the Operation timeline that opens from the Operations node:

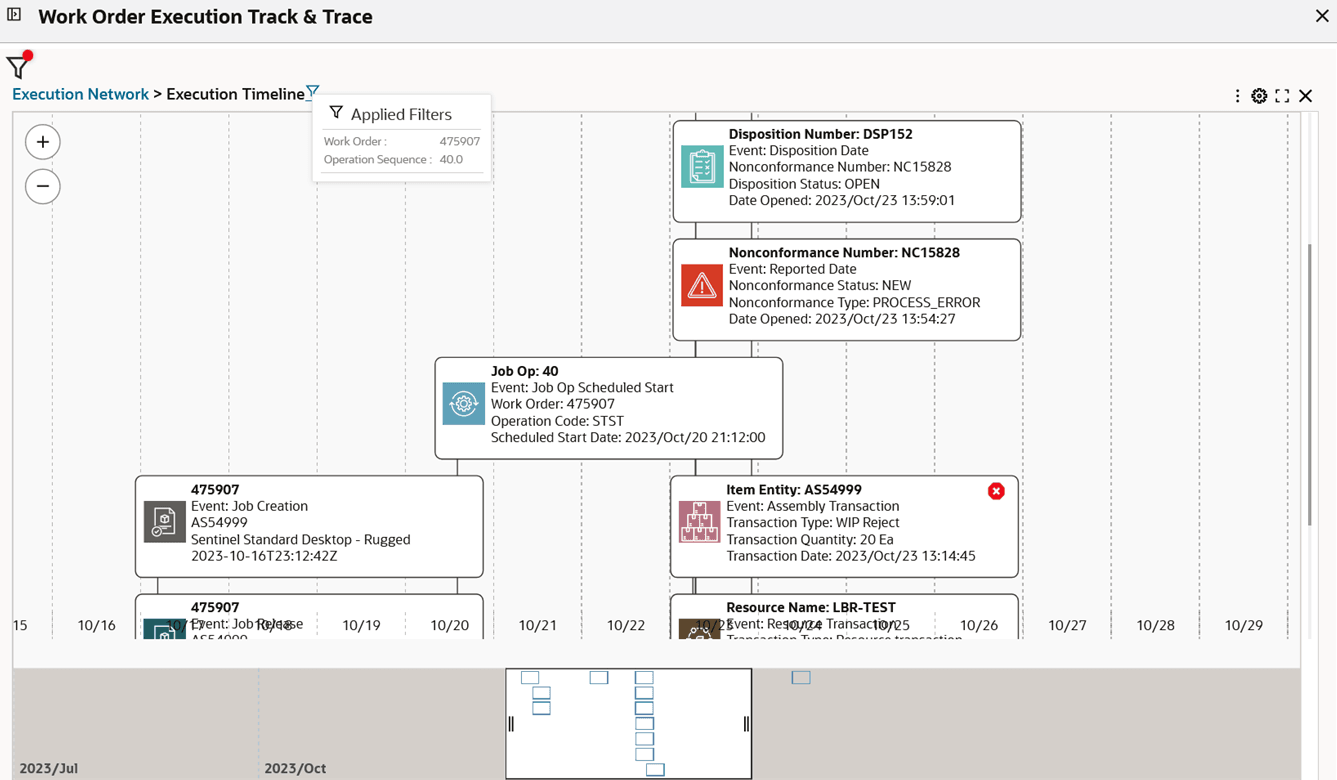

Work Order Execution Track & Trace

Steps to enable and configure

Ensure Oracle Enterprise Command Center Framework Release 12.2 V12 or later is available for this functionality and complete the setups to enable the Discrete Manufacturing Command Center.

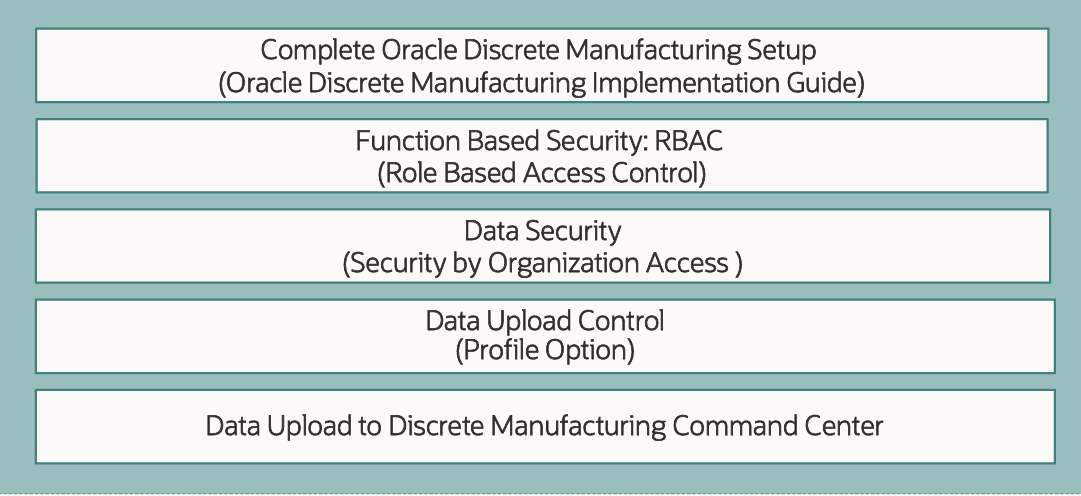

Discrete Manufacturing Command Center Setup

Key resources
