Accessing Server Manager from Cloud Control

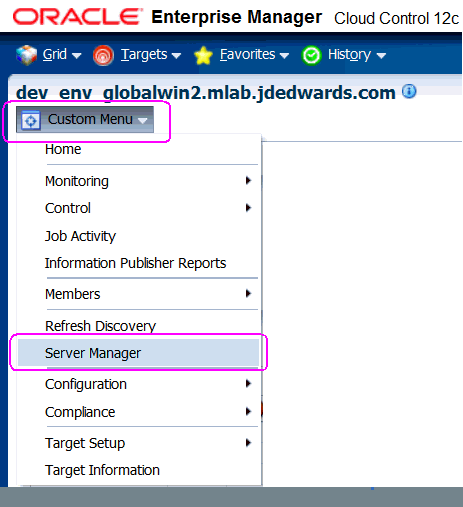

You can directly access the JD Edwards EnterpriseOne Server Manager used in this installation of Enterprise Manager. On the JD Edwards EnterpriseOne Domain Home Page, navigate Custom Menu > Server Manager.

This image is described in surrounding text.

You will be redirected to the Server Manager login page with this URL syntax:

http://SM_Host:SM Port/manage/home

where SM_Host and SM_Port are retrieved from the monitoring configuration. For example, the URL might be:

http://globalwin2.mlab.jdedwards.com:8999/manage/home

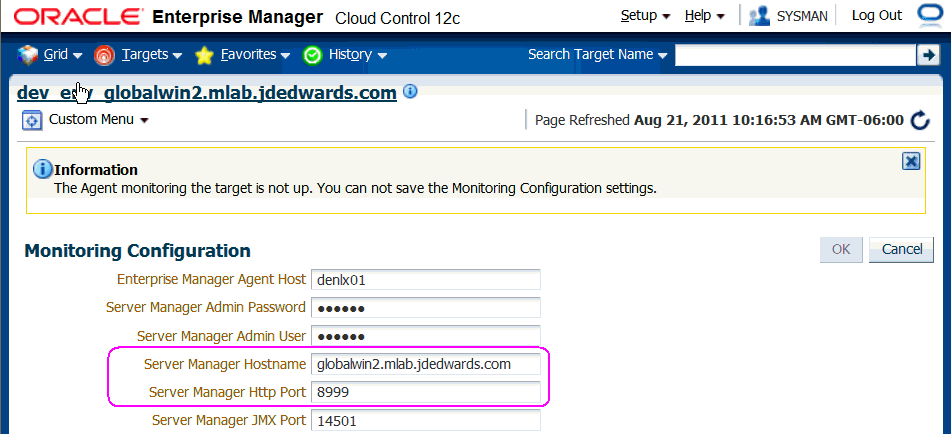

The Server Manager target machine is derived from the values in these fields on Monitoring Configuration:

Server Manager Hostname
Server Manager HTTP Port

For example:

Below is the Server Manager login page that is displayed when you are redirected.

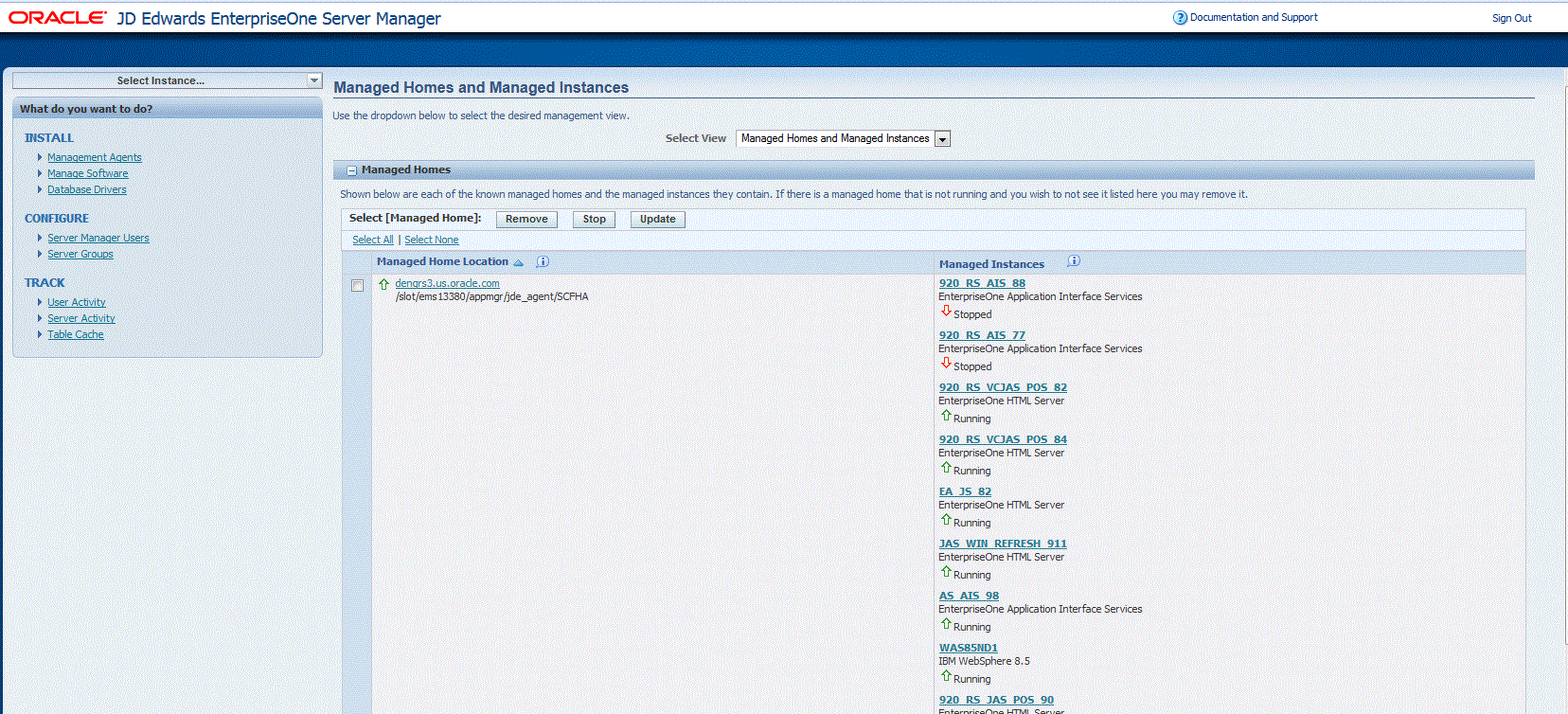

After you enter valid credentials for this Server Manager, the Server Manager Home page is displayed as shown in the following example:
