All Metrics for JD Edwards EnterpriseOne HTML Server

Use this procedure to view all metrics for the JD Edwards EnterpriseOne HTML Server.

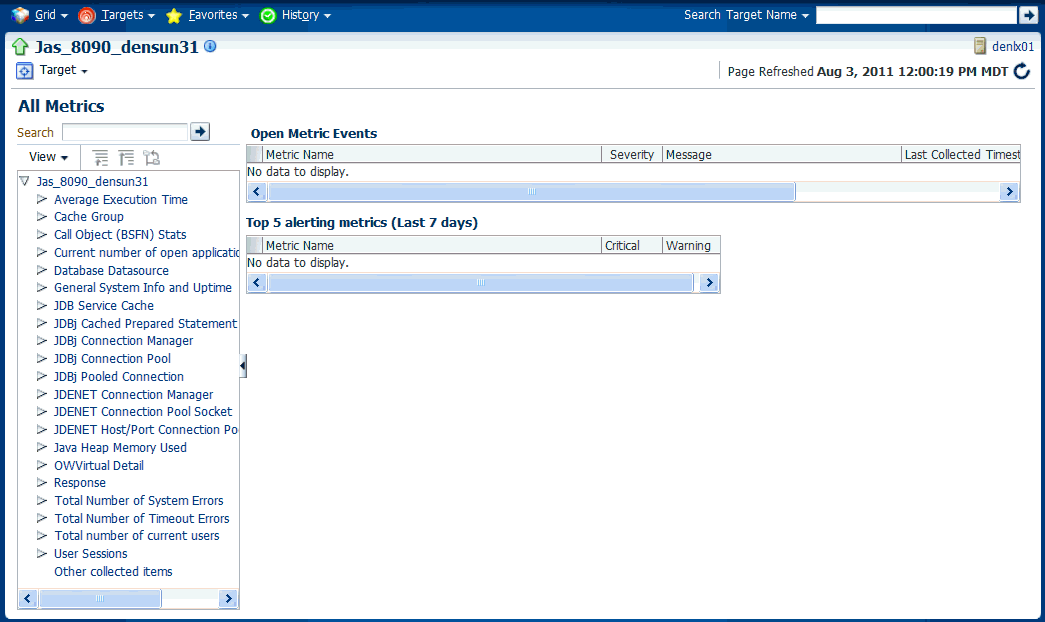

1. On Members for JDE EnterpriseOne Domain, click the link for the Name for the EnterpriseOne HTML Server.



2. With the JDE EnterpriseOne target displayed in Cloud Control, navigate Target > Monitoring > All Metrics.



3. On All Metrics, you can view any of the metrics that are available for the JD Edwards EnterpriseOne Enterprise Server. These metrics include:

   • Average Execution Time

   • Cache Group

   • Call Object (BSFN) Stats

   • Current number of open applications (All Users)

   • Database Datasource

   • General System Info and Uptime

   • JDB Service Cache

   • JDBj Cache Prepared Statement

   • JDBj Connection Manager

   • JDBj Pooled Connection

   • JDENET Connection Manager

   • JDENET Connection Pool Socket

   • Java Heap Memory Used

   • Response

   • Total Number of System Errors

   • Total Number of Timeout Errors

   • Total number of current users

   • Other collected items

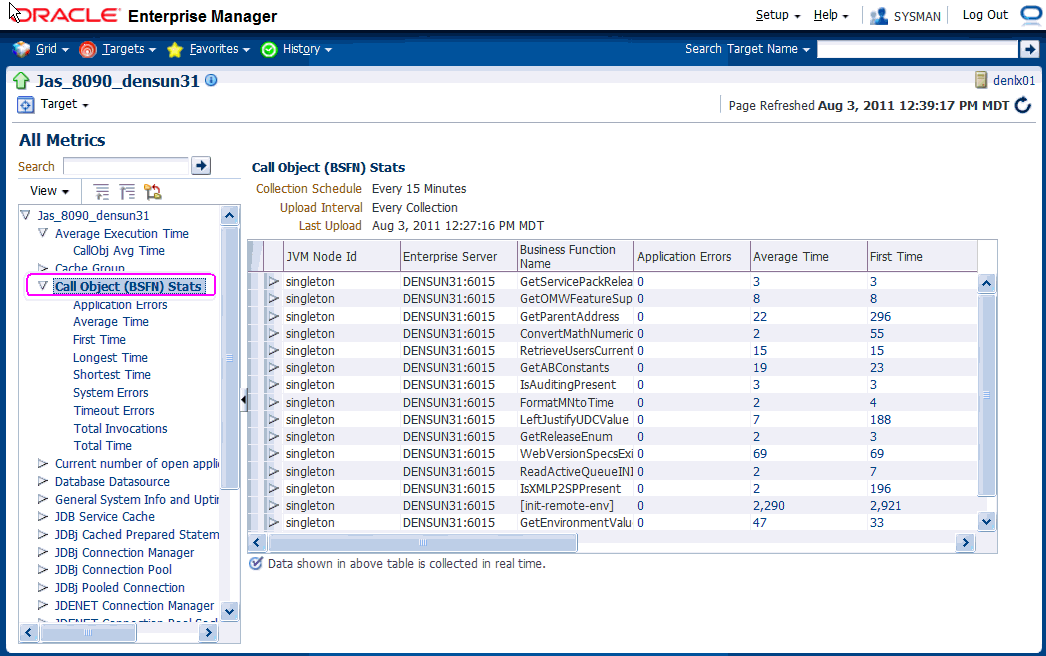

   • You can expand a metric node to view subnodes. The following screen is a sample of the metrics when you click on the Call Object (BSFN) Stats node.

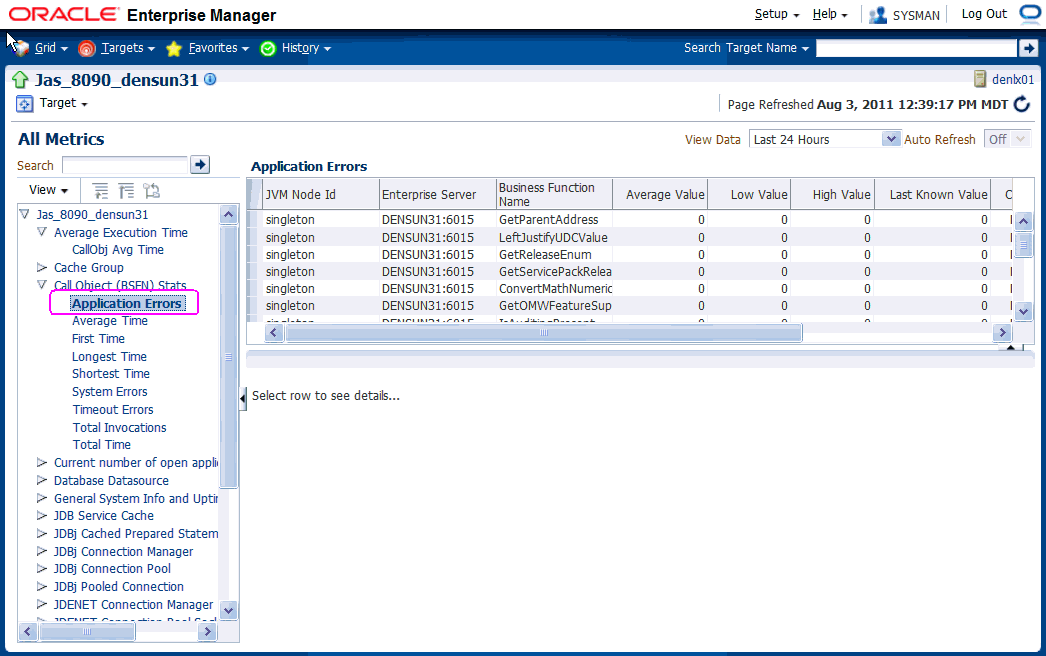

   • You can also click on subnodes to display additional information. The following screen is a sample of the metrics shown when you click on the Application Errors subnode of the Call Object (BSFN) Stats node.
