All Metrics for JD Edwards EnterpriseOne Enterprise Server
Use this procedure to view all metrics for the JD Edwards EnterpriseOne Enterprise Server

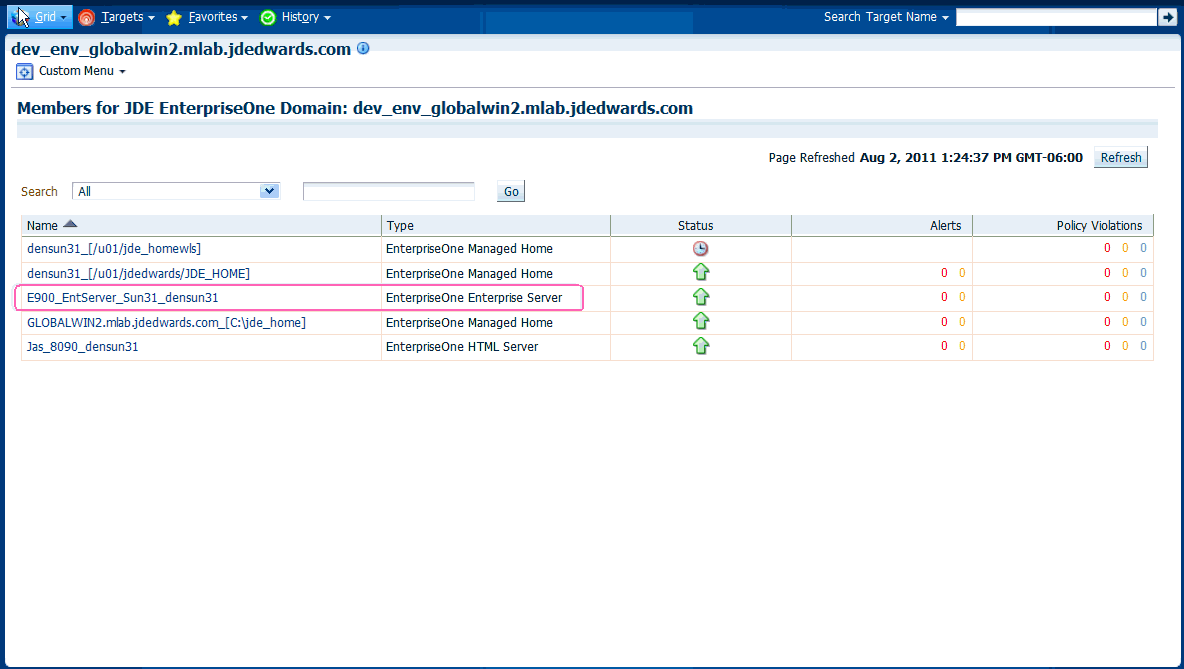

On Members for JDE EnterpriseOne Domain (or also from the Dashboard for the JDE EnterpriseOne Domain), click the link for the Name for the EnterpriseOne Enterprise Server.

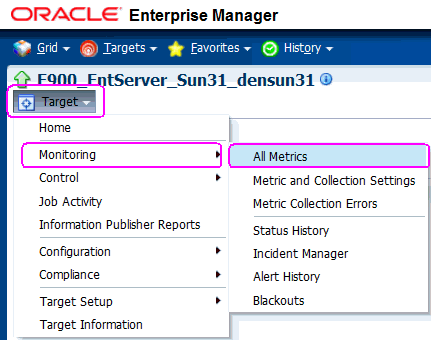

With the JDE EnterpriseOne target displayed in Cloud Control, navigate Target > Monitoring > All Metrics.

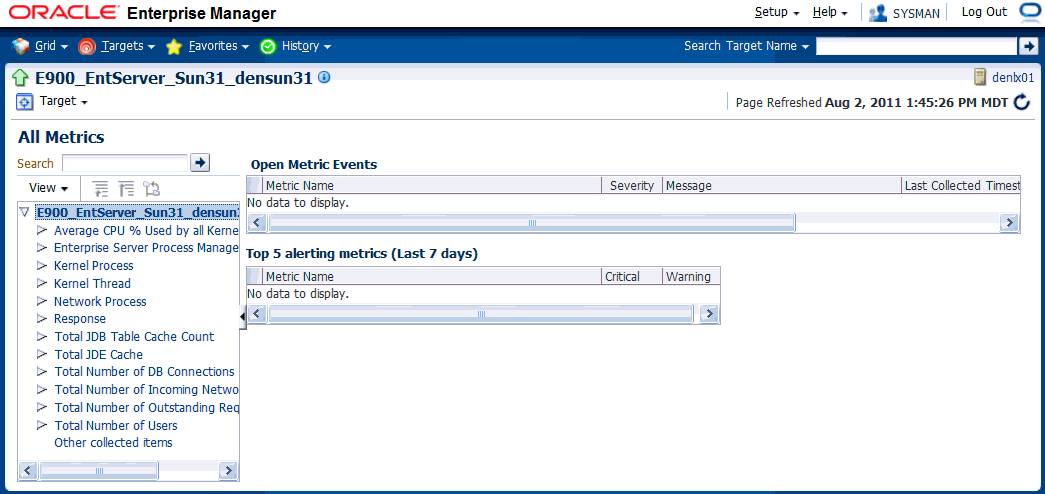

On All Metrics, you can view any of the metrics that are available for the JD Edwards EnterpriseOne Enterprise Server. These metrics include:
Average CPU % Used by All Kernels
Enterprise Server Process Manager
Kernel Process
Kernel Thread
Network Process
Response
Total JDB Table Cache Count
Total JDE Cache
Total Number of DB Connections
Total Number of Incoming Network Connections
Total Number of Outstanding Requests
Total Number of Users
Other collected items

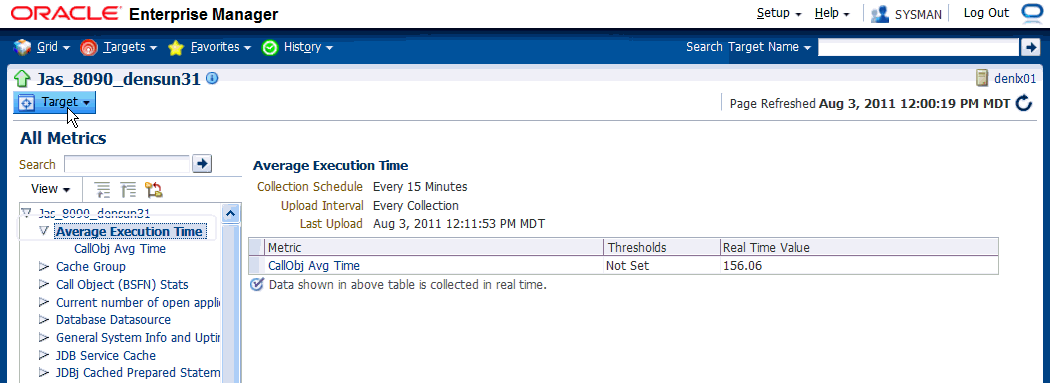

You can expand a metric node to view subnodes. The following screen is a sample of the metrics when you click on the Average Execution Time node.

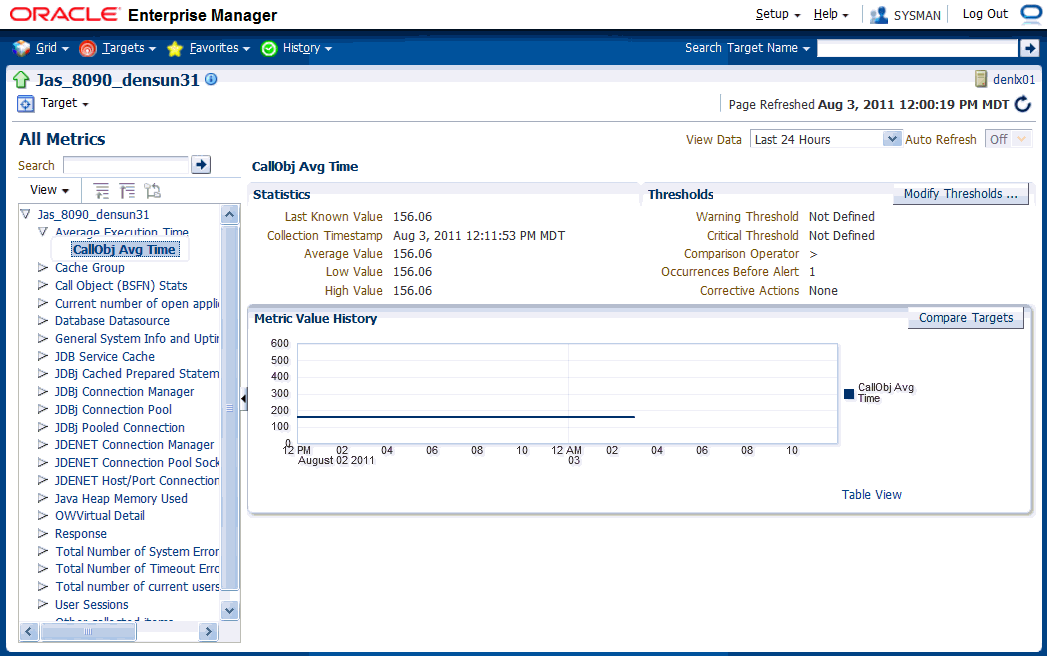

You can also click on subnodes to display additional information. The following screen is a sample of the metrics shown when you click on the CallObj Avg Time subnode of the Average Execution Time node.
