Creating an Enterprise Process Model for Warehouse Outbound Picking

A Process Designer or Business Analyst can use the Warehouse Outbound Picking process model template in the Enterprise Process Manager.

To create an enterprise process:

  1. Access the JD Edwards EnterpriseOne application.
  2. From the user drop-down list, click Manage Content, and select Processes. The system displays the Create Process window.
    Note: The Create Process window is only displayed when you are creating an enterprise process for the first time. After creating a process, when you click Processes again, the system displays the previously created process layout along with the template used for its creation and the Enterprise Process Manager options.

    If you want to create a new process, in the Enterprise Process Manager window, click the Name drop-down list and select Create.

  3. From the Import Process Template drop-down list, select JDE TMPL Warehouse Outbound template.
  4. Click OK.
  5. The Order Type, Line Type and Process Definition ID fields, along with their default values, are displayed in the Create Process window. You can edit the values or accept the default values.
    Note: You must set up the Process Definition ID for processes that do not use order activity rules. For more information, see Setting Up a Process Definition Record in the JD Edwards EnterpriseOne Tools Enterprise Process Modeler Guide.
  6. For the Order to Cash with Warehouse process, select the Color Theme and Start Status from their respective drop-down lists. The system populates the drop-down list with available nodes for the Order to Cash with Warehouse template. The selected value in this field serves as the first (start) node in the automatically generated process model. By default, the Start Status is set to Request Created (200).

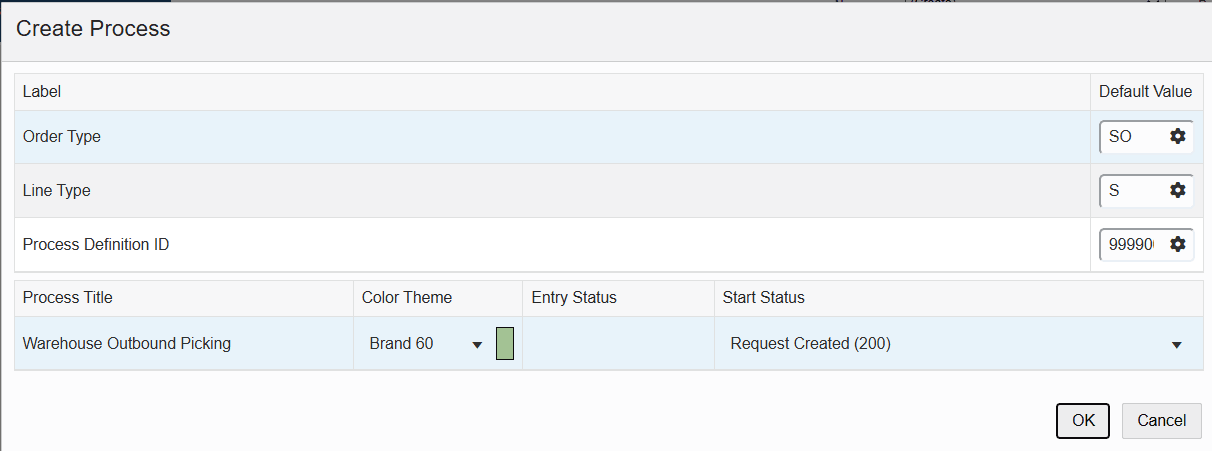

    create_warehouse_outbound
  7. Click OK. The Main Module tab is displayed in the Enterprise Process Manager window, where you can see the automatically generated enterprise process diagram based on the values defined in the Create Process window and the Process Definition that you set in P00201.

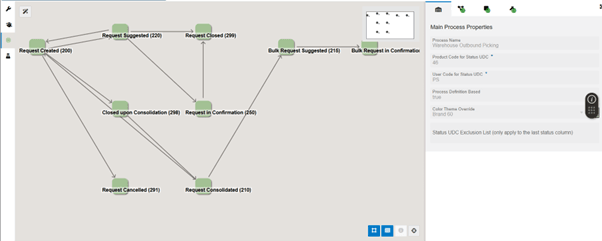

    model_o2c_warehouse_outbound

    The enterprise process diagram displays nodes and the links between the nodes. The nodes represent the tasks in the process template and the links represent the connection between the nodes.

  8. Click the Open Process Definition icon (next to Design Option) to review the settings in the read-only tab with Basic Configuration, Filter Configuration, and Status Configuration details.

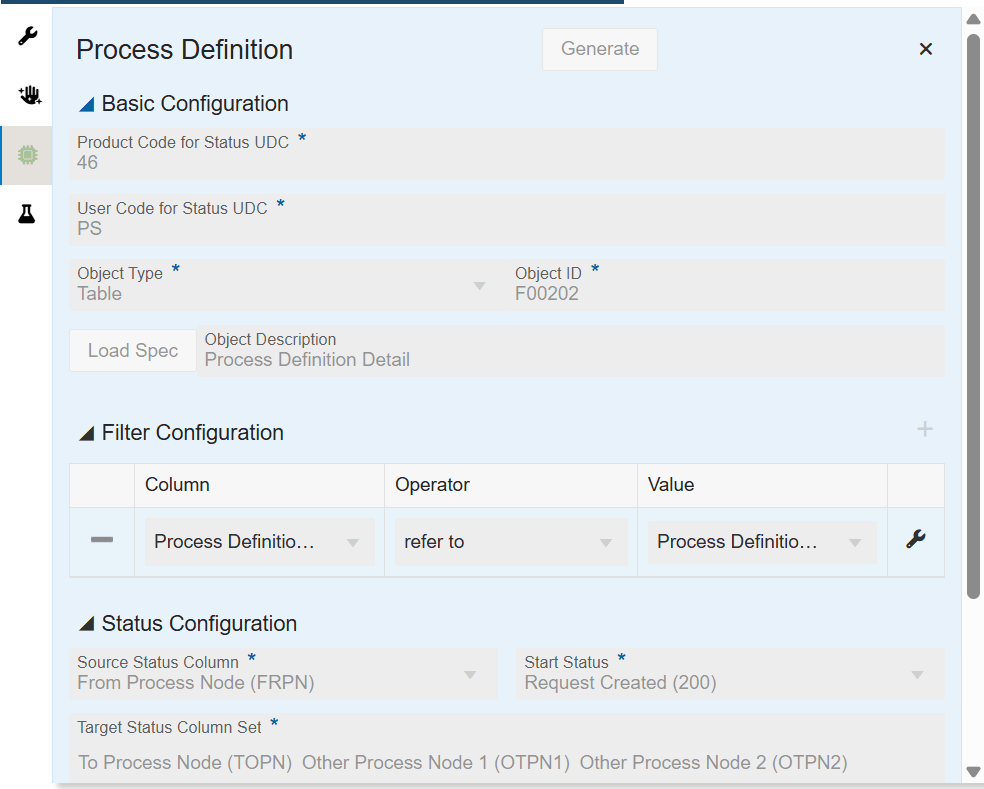

    processdef_outbound
    The Process Definition window opens. You can view the Basic Configuration, Filter Configuration, and Status Configuration details based on the values defined in the Create Process window and the order activity rules that you have set. These configurations are used to build the nodes and links and to automatically generate the process model.
    • The Basic Configuration section displays the UDC - Warehouse Management/Request Status (46/PS) and the table that the system uses to generate the template - Process Definition Detail table (F00202).
    • The Filter Configuration section displays the columns based on which the data is filtered. The system filters the data based on Order Type and Line Type values for the Warehouse Outbound process template.
    • The Status Configuration section displays the Source Status Column, Start Status, and Target Status Column Set.
