Process Metrics

Process Metrics tab displays details such as Filter Criteria, Return Fields, Context Analytics, and so on for the related tables and business views of the selected enterprise process template. The Process Metrics is used to analyze and measure the overall performance of the process.

Click the Process Metrics icon. You can review the settings in the read-only mode.

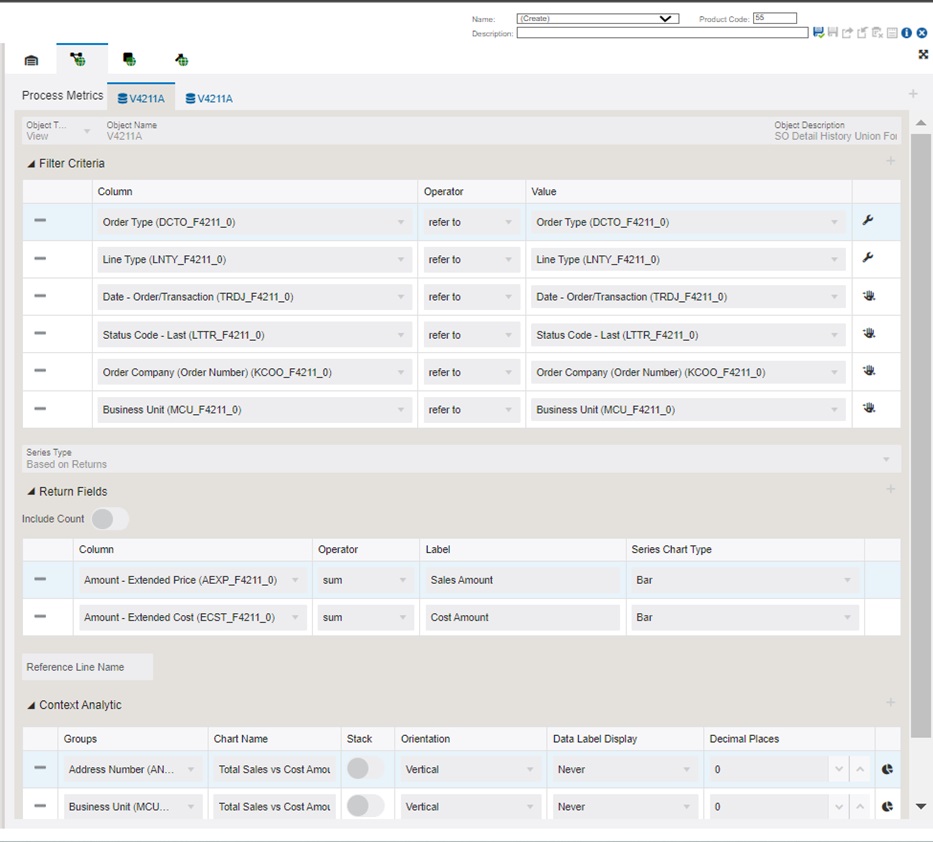

For the Order to Cash process model, the process metrics displays the following information.

By default the V4211A tab is displayed.

Object Type: View
Object Name: V4211A
Object Description: SO Detail History Union Form
The Filter Criteria displays the list of columns that are considered for filtering and the value each column is referring to. These filter options are displayed when you click the Show Filter Options icon to analyze the enterprise process. See "Using the Show Filter Options".
The Series Type selected is Based on Returns. This criteria returns standard aggregated values from View to display the values on charts in preview mode.
The Return Fields section lists the column that returns values. In the Order to Cash process model, the sum of Extended Price and Extended Cost are returned as values.
The system uses the data in Context Analytic section to generate charts. For every row in this section, a unique chart is generated.

Charts

Based on the details in the Context Analytic section, the data is grouped by Address Number , Business Unit, and Sales Catalog in the Process Metrics tab. In Enterprise Process Modeler, four charts are generated for Business Unit, Address Number, Sales Catalog, and Item Number with the chart names Total Sales vs Cost Amount By Customer, Total Sales vs Cost Amount By Business Unit, Total Sales vs Cost Amount By Sales Catalog Section, and Total Ordered Quantities By Items.

This table lists and describes the charts that are available on the Process Metrics tab:

Component Title	Description
Total Sales vs Cost Amount By Customer	Use this chart to compare the total sales amount and cost amount, grouped by customer.
Total Sales vs Cost Amount By Business Unit	Use this chart to compare the total sales amount and cost amount, grouped by business unit.
Total Sales vs Cost Amount By Sales Catalog Section	Use this chart to compare the total sales amount and cost amount, grouped by sales catalog section.
Total Ordered Quantities By Items	Use this chart to view the total ordered quantities by items, grouped by item number.
