Node Metrics

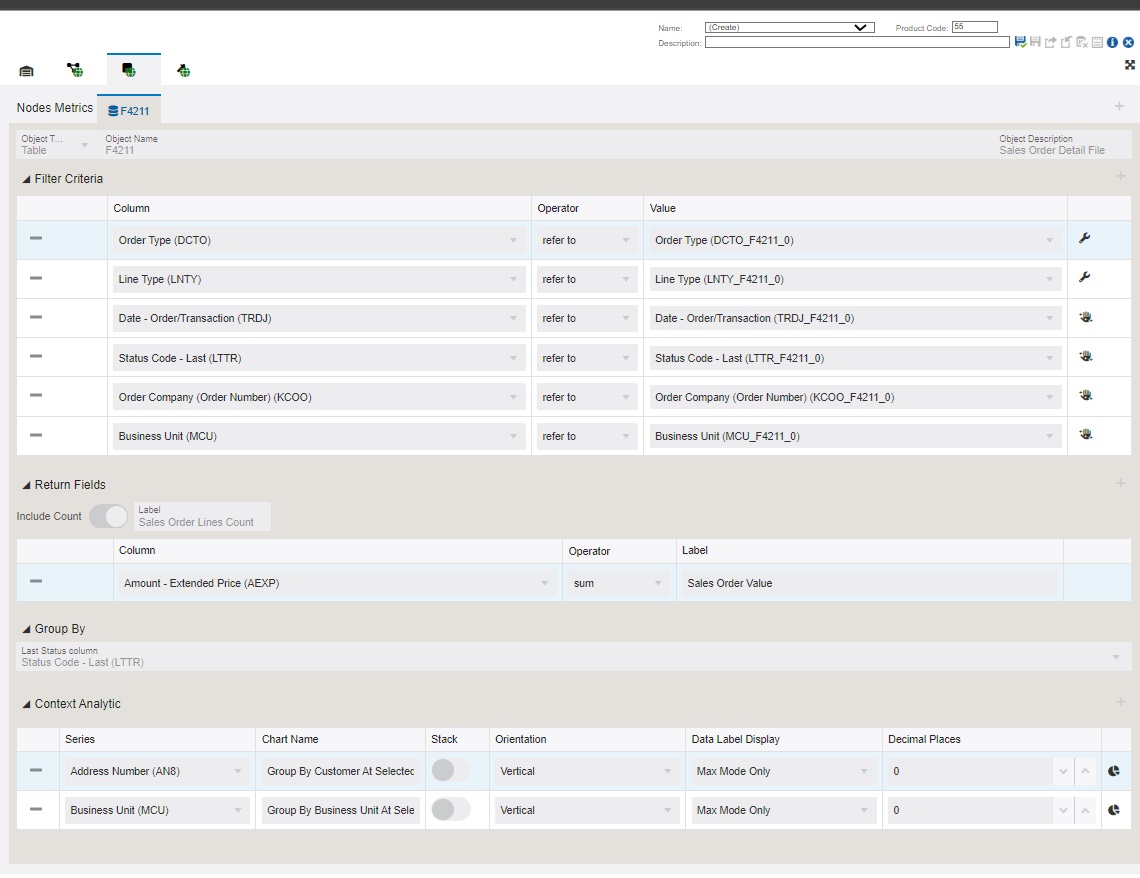

Node Metrics tab displays details such as Filter Criteria, Return Fields, Context Analytics, and so on to analyze or measure a particular node. Click the Node Metrics icon. You can review the settings in read-only mode.

The F4211 - Sales Order Detail File table is used to fetch the following data.

• Object type: Table

• Object Name: F4211

• Object Description: Sales Order Detail File table

• The Filter Criteria displays the list of columns that are considered for filtering and the value each column is referring to. These filter options are displayed when you click the Show Filter Options icon to analyze the enterprise process. See See "Using the Show Filter Options".

• The Return Fields section lists the column that returns the value. In the Order to Cash process model, the sum of the Extended Price is returned as the value.

• The data is grouped by Last Status Code.

Charts

The system uses the data in Context Analytic section to generate charts. For every row in this section, a unique chart is generated. Based on the details in the Context Analytic section, you can view the Group By Customer at Selected Node, and Group By Business Unit at Selected Node.

This table lists and describes the charts that are available on the Node Metrics tab:

Component Title	Description
Group By Customer at Selected Node	This pie chart depicts either the Sales Order Value or Sales Order Lines Count grouped by customer at the selected node depending on the user selected Node Metrics.
Group By Business Unit at Selected Node	This pie chart depicts either the Sales Order Value or Sales Order Lines Count grouped by business unit at the selected node depending on the user selected Node Metrics.
