  2. To Analyze the Warehouse Outbound Picking Process

To Analyze the Warehouse Outbound Picking Process

  1. In the Hierarchy Map, you can click Warehouse Outbound Picking (in green color) to view and analyze the child Warehouse Outbound Picking process. Alternatively, right-click the circular node (In Warehouse (535)-> Warehouse Outbound Picking) and select Drill into Connected Process to navigate to the child process.

    The starting node displays the value selected in the Create Process – Start Status field for the Warehouse Outbound Picking process. The diagram presents nodes representing tasks within the Warehouse Outbound Picking process and links indicating the connections between them.

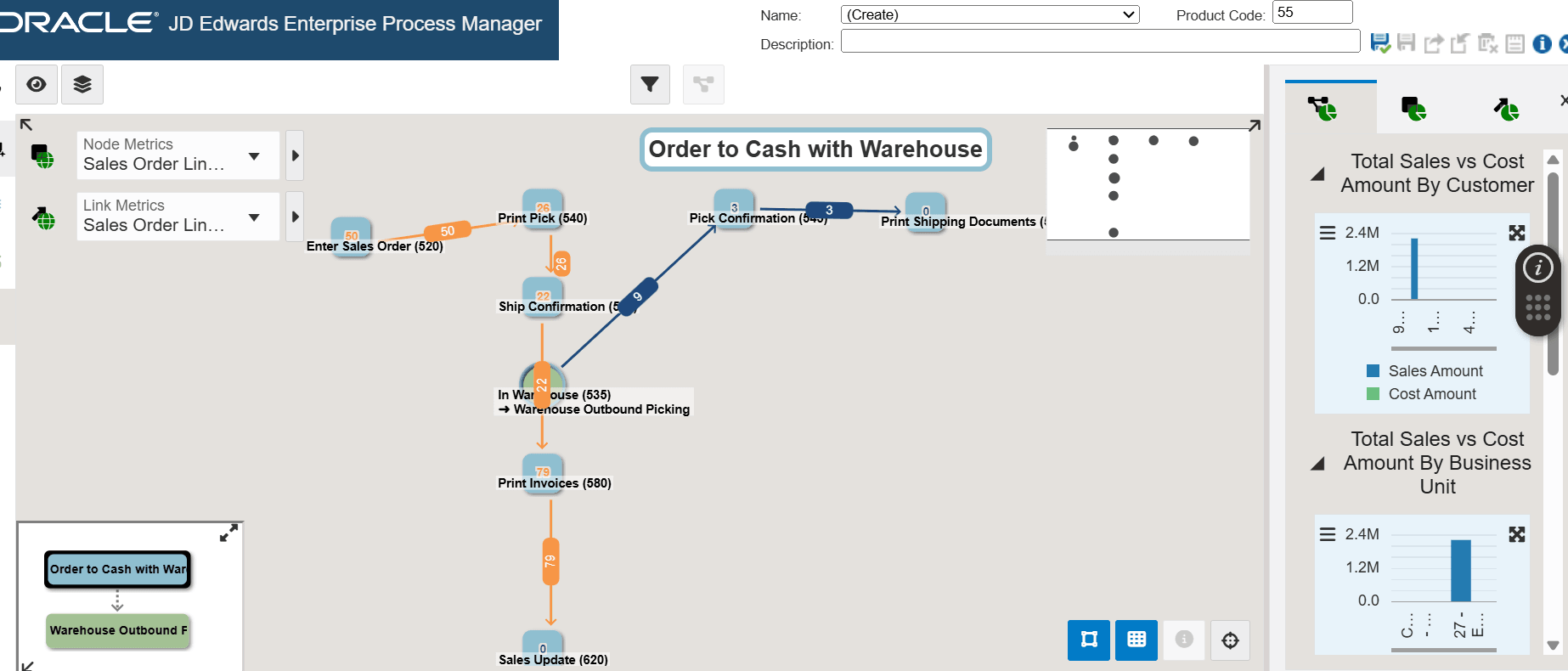

    analyze_outbound

  2. To return to the Order to Cash with Warehouse process, select Order to Cash with Warehouse (in blue color) in the Hierarchy Map. For more information, see Analyzing an Enterprise Process in the JD Edwards EnterpriseOne Tools Enterprise Process Modeler Guide.
