Node Metrics

The Node Metrics tab displays details such as Filter Criteria, Return Fields, Context Analytics, and so on to analyze or measure a particular node.

Click the Nodes Metrics icon. By default, the Total Count tab is displayed. You can review the settings in the read-only mode.

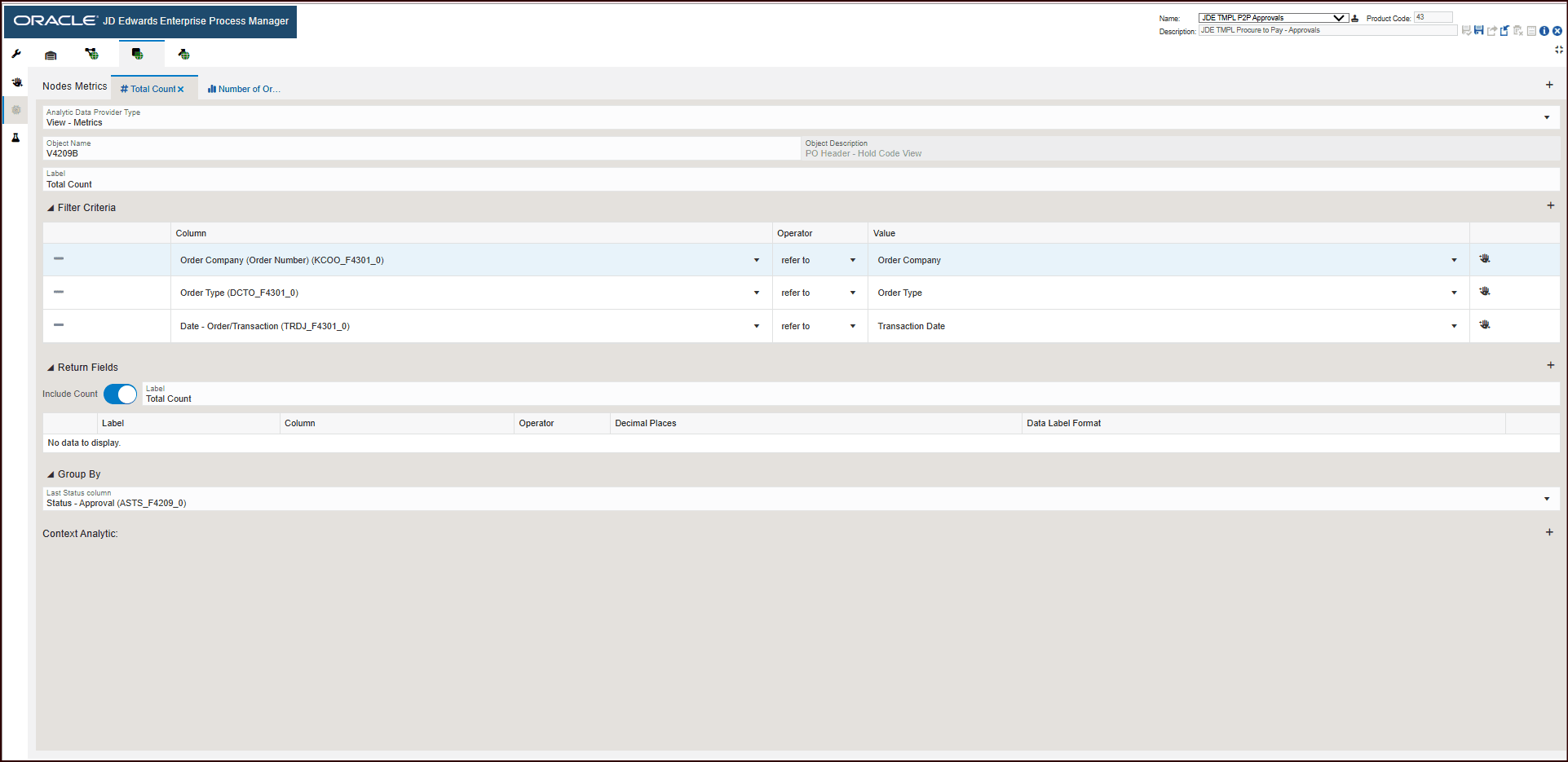

This image describes the Node Metrics.

The Node Metrics for Total Count fetches the following:

  • Object type: View -Metrics
  • Object Name: V4209B
  • Object Description: PO Header - Hold Code View
  • The Filter Criteria displays the list of columns that are considered for filtering and the value each column is referring to. These filter options are displayed when you click the Show Filter Options icon to analyze the enterprise process. For more information, see "Using the Show Filter Options".
  • The Return Fields section lists the columns that return values. In the Approvals process model, the Total Count is returned as value.
  • The data is grouped by the Approval Status Code.

The nodes metric for approvals process an additional metric in view mode. Click the Number of Orders tab. This tab displays details such as Filter Criteria, Return Fields, Context Analytics, and so on to analyze or measure a particular node.

You can review the settings in the read-only mode.

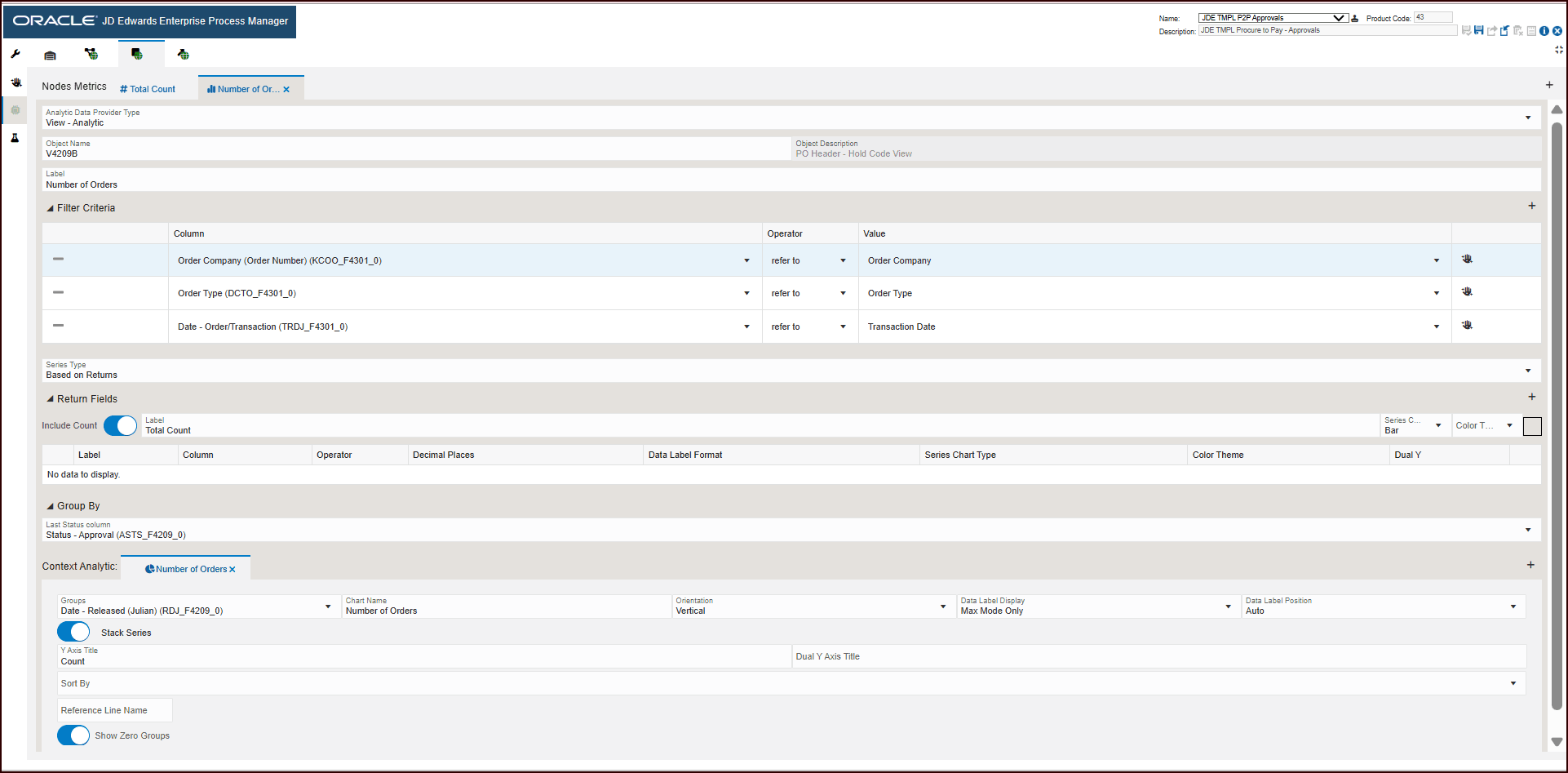

This image describes the Node Metrics.

The Node Metrics for Number of Orders fetches the following:

  • Object type: View - Analytic
  • Object Name: V4209B
  • Object Description: PO Header - Hold Code View
  • The Filter Criteria displays the list of columns that are considered for filtering and the value each column is referring to. These filter options are displayed when you click the Show Filter Options icon to analyze the enterprise process. For more information, see "Using the Show Filter Options".
  • The Series Type selected is Based on Returns. This criteria returns standard aggregated values to display the values on charts in preview mode.
  • The Return Fields section lists the columns that return values. In the Approvals process model, the Total Count is returned as value.
  • The data is grouped by the Approval Status Code.

Charts

The system uses the data in Context Analytic section to generate charts. For every row in this section, a unique chart is generated.

Based on the details in the Context Analytic section, you can view the Number of Orders, chart in the Enterprise Process Modeler.

This table lists and describes the charts that are available on the Node Metrics tab:

Component Title

Description

Number of Orders

This chart shows the total count of purchase order approvals in the node. The grouping is based on Address Number.
