To View the Connected Process

1. You can select the child node in the Hierarchy Map to view the connected process. Alternatively, right-click the Connected Process node – which displays the Generate PO from Requisition to Purchase Order button and select Drill into Connected Process to navigate to the linked process.

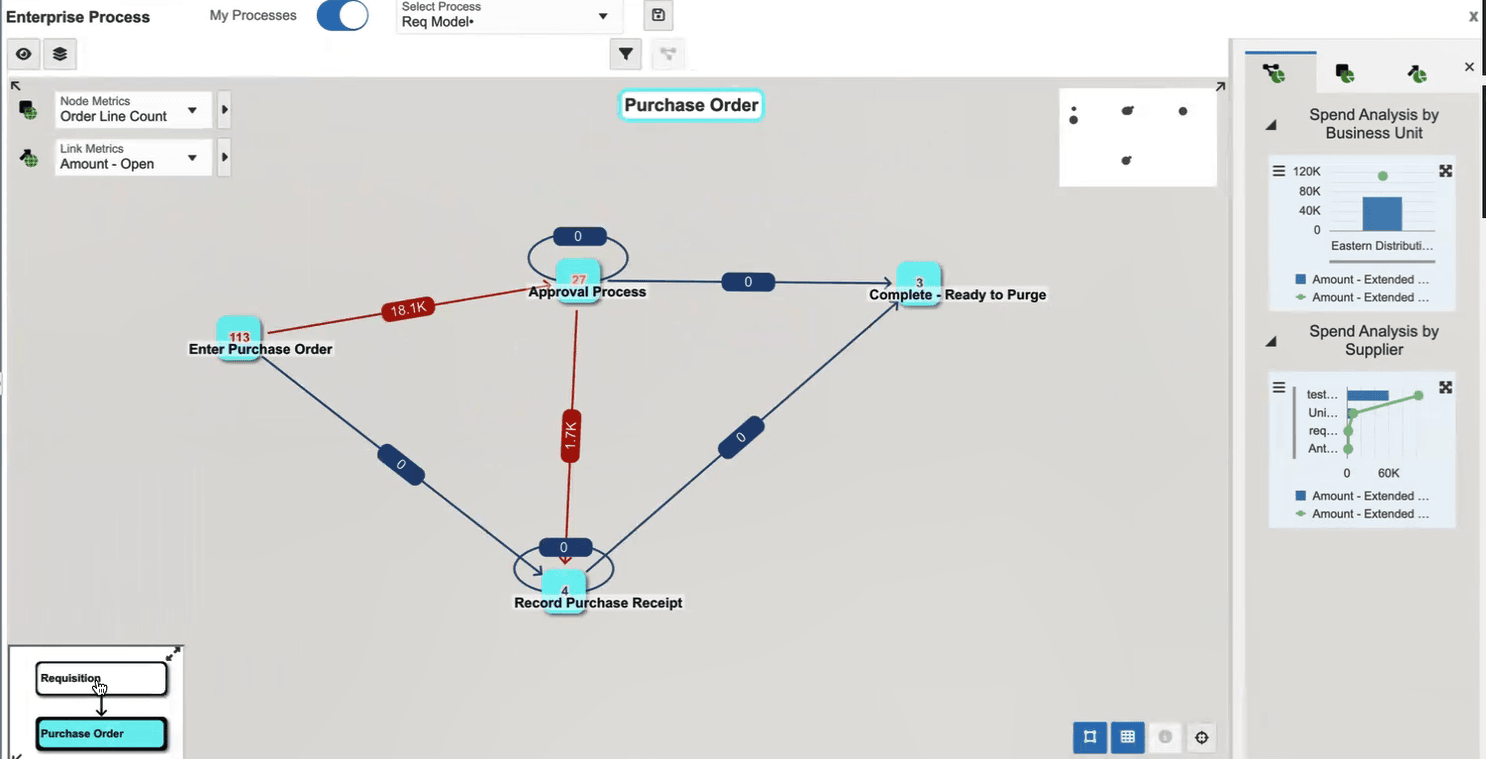

   You can analyze the connected Purchase Order (child) process diagram. The starting node displays the value selected in the Create Process – Start Status field for the purchase order process. The diagram presents nodes representing tasks within the purchase order process and links indicating the connections between them.



   Additionally, the Hierarchy Map at the bottom left corner of the window displays the connected parent and child processes. You can resize the map by dragging and dropping or hide it as needed.

2. To return to the requisition process, select Requisition in the Hierarchy Map.

   For more information, See "Analyzing an Enterprise Process" in JD Edwards EnterpriseOne Tools Enterprise Process Modeler Guide .
