SAD_CREATEAPPL

This service operation enables the online application user to create an admission application in the Campus Solutions system. Using this service may result in one or more applications being created. It can also result in multiple applicant preferences being created within the same application, for example, entry of another program or plan for an existing application is a preference.

Create Application Service Operation Description and Features Details

Description

The Create Application service operation call results in one or more admission applications being initialized. The application center settings on the Application Configuration component control whether multiple applications (or preferences) can be created. For example, if you do not have an application center set up for an applicant who selects an Undergraduate career, Liberal Arts program, and History plan, the service operation throws an error.

The service operation populates the admission application fields based on the settings on the User Defaults and Installation - AD components. At application creation time the operation does not physically save the data to the admissions staging tables. The save process does not occur until a later point in time when the user selects a save or submit option on the online application. Therefore, this operation is more concerned with the initialization of an application, driven by configuration, rather than creating a physical application in the database.

Users

  • An applicant using an online application.

  • An administrator using an online application for creating an application on behalf of an applicant who has or does not have an EMPLID.

Processing

The service operation performs the following steps:

  1. Validate that the user is authenticated (and is not a Guest)

  2. If Administrator mode then:

    • Validate the required input administrator parameters.

    • Validate that the administrator is authorized to access the application center, institution, career, program and plan.

  3. Validate the required input parameters for application creation.

  4. Determine the transaction that must be used to process the Institution/Academic Career combination. Define transactions on the Transaction Setup page.

  5. Begin a new transaction for the request. Assign a new TEMP_ID to the constituent.

  6. Using the supplied input parameters, look up the Application configuration component settings to determine how many application preferences should be created for this request.

  7. Return response though the output parameters.

Output

After processing, the operation creates an admission application with default data and preferences. The user can subsequently update and submit this application through the Save and Submit service operations.

Error Conditions

The following conditions result in a service error:

  • User is not authenticated (for example, if an anonymous Guest tries to sign into the online application, the service throws an error message).

  • Administrative user is not authorized to access the application center, institution, career, program or plan.

  • Required input parameters have not been supplied by the user (see the graphic titled SAD_CREATEAPPL_REQ Message Parameters and the "AAWS and Entity Registry" section).

Input Message: SAD_CREATEAPPL_REQ

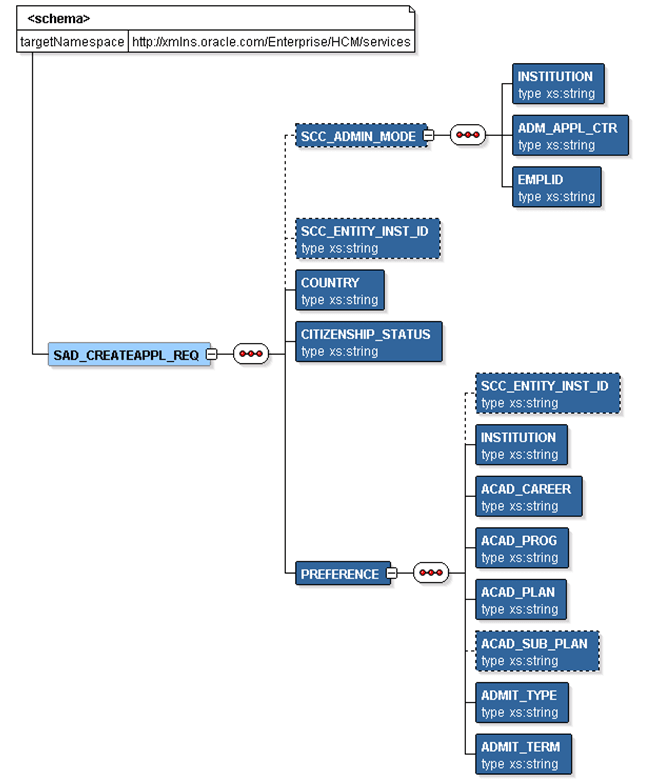

This image shows the input parameters that the SAD_CREATEAPPL service operation receives:

SAD_CREATEAPPL_REQ Message Parameters

Required data that the online application must supply to the service operation in Non-administrator (Applicant) mode:

  • Institution

  • Academic Career

  • Admit Term

  • Academic Program

  • Academic Plan

Required data that the online application must supply to the service operation in Administrator mode:

  • Institution

  • Admission Application Center

  • Academic Career

  • Admit Term

  • Academic Program

  • Academic Plan

  • Country and Citizenship Status (if your application mapping requires them).

The following is an example of the SAD_CREATEAPPL_REQ message that the SAD_CREATEAPPL service operation receives from an online application:

<?xml version="1.0"?>
<SAD_CREATEAPPL_REQ>
  <COUNTRY>AUS</COUNTRY>
  <PREFERENCE>
    <INSTITUTION>PSUNV</INSTITUTION>
    <ACAD_CAREER>UGRD</ACAD_CAREER>
    <ACAD_PROG>AA</ACAD_PROG>
    <ACAD_PLAN>ARTHIST</ACAD_PLAN>
    <ADMIT_TYPE>FYR</ADMIT_TYPE>
    <ADMIT_TERM>0747</ADMIT_TERM>
  </PREFERENCE>
</SAD_CREATEAPPL_REQ>

Output Message: SAD_CREATEAPPL_RESP

When the Integration Broker receives the SAD_CREATEAPPL_REQ message, it responds with the SAD_CREATEAPPL_RESP message.

This image shows the output parameters that the SAD_CREATEAPPL service operation passes to the online application.

SAD_CREATEAPPL_RESP Message Parameters

Note that the SAD_CREATEAPPL_RESP schema includes the Application entity (ADM_APPL_DATA) and Constituent entity XSD schemas.

The following is an example of the SAD_CREATEAPPL_RESP message that the SAD_CREATEAPPL service operation transmits to the online application:

<?xml version="1.0"?>
<SAD_CREATEAPPL_RESP>
  <PREFERENCE>
    <ADM_APPL_DATA>
     <!-- Application data shape -->
    </ADM_APPL_DATA>
    <CONSTITUENT>
     <!-- Constituent data shape -->
    </CONSTITUENT>
  </PREFERENCE>
</SAD_CREATEAPPL_RESP>

Fault Message: SAD_FAULT_RESP

If the service operation encounters an error condition, it responds with the SAD_FAULT_RESP message.

This image shows the SAD_FAULT_RESP message parameters.

SAD_FAULT_RESP Message Parameters

The following is an example of the SAD_FAULT_RESP message that the SAD_CREATEAPPL service operation transmits to the online application:

<?xml version="1.0" encoding="UTF-8"?>
<SOAP-ENV:Envelope xmlns:SOAP-ENC="http://schemas.xmlsoap.org/soap/encoding/" xmlns:SOAP-ENV="http://schemas.xmlsoap.org/soap/envelope/">
  <SOAP-ENV:Body>
    <SOAP-ENV:Fault>
      <faultcode>300</faultcode>
      <faultstring>A Error occurred processing this request</faultstring>
      <detail>
        <MSGS>
          <MSG>
            <ID>14200-556</ID>
            <DESCR> Validation error in preference PSUNV/UGRD/AA/MUSIC/VOIC/FYR/0690</DESCR><PROPS/>
          </MSG>
          <MSG>
            <ID>14200-556</ID>
            <DESCR> Tag ACAD_SUB_PLAN has an invalid value VOIC. Check and try again.</DESCR><PROPS><PROP><SCC_ENTITY_INST_ID>PREFERENCE ROW 1</SCC_ENTITY_INST_ID><PROPNAME>ACAD_SUB_PLAN</PROPNAME></PROP></PROPS>
          </MSG>
        </MSGS>
      </detail>
    </SOAP-ENV:Fault>
  </SOAP-ENV:Body>
</SOAP-ENV:Envelope>
