SAD_GETATTACH

This service operation enables the user to retrieve the byte content of an admissions application attachment from the Campus Solutions system.

Get Attachment Service Operation Description and Features Details

Description

Use this service operation to retrieve an attachment associated with the admission application.

The online application must encode the attachment byte content in Base64 format when a user saves or submits the application data through AAWS. Subsequently, the online application can use SAD_GETATTACH to retrieve the attachment. After retrieval, the online application must decode the attachment. The applicant or administrator can then use the appropriate file type viewer to view the attachment.

The attachment is stored within the Campus Solutions attachment framework in a database table.

You can use the Application Transactions or Maintain Applications components to access the application attachments.

Users

  • An applicant using an online application.

  • An administrator using an online application to retrieve data that he or she previously saved or submitted. The administrator can retrieve an application (and the associated attachments) for an applicant who has or does not have an EMPLID.

Processing

This service operation performs the following steps:

  1. Validate that the user is authenticated (and is not a Guest).

  2. If administrator mode, then:

    1. Validate the required input administrator parameters.

    2. Validate that the administrator is authorized to access the application center.

    3. Use the EMPLID supplied by the administrator for the transaction.

  3. Verify whether the applicant is authorized to retrieve the attachment (for example, verify whether the applicant is the same person who originally created the attachment through AAWS).

  4. If administrator mode, then use the EMPLID input parameter to retrieve the attachment.

  5. If applicant mode, then use the EMPLID input parameter associated with the authenticated User Profile to retrieve the attachment.

  6. To retrieve the attachment:

    1. First, check whether the attachment exists in the staging tables using the SCC_TEMP_ID key.

    2. If the attachment does not exist in the staging tables, check the production tables using the EMPLID key.

  7. Return the attachment, if found.

Output

After completing the processing steps, if the attachment exists, the service operation returns the attachment data to the online application.

Error Conditions

The following conditions result in a service error:

  • User is not authenticated (for example, if an anonymous Guest user tries to sign into the online application, the service operation throws an error message).

  • User is not authorized to retrieve the attachment (for example, the applicant is trying to access an attachment created by another user).

  • Required input parameters have not been supplied by the user (see the graphic titled SAD_GETATTACH_REQ Message Parameters).Administrative user is not authorized to access the attachment due to application center configuration.

Note:

The Online Application may issue multiple calls to the SAD_GETATTACH service operation in order to retrieve multiple Application attachments.

Input Message: SAD_GETATTACH_REQ

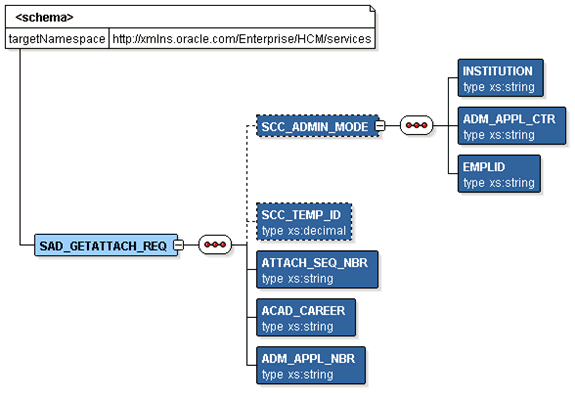

This image shows the input parameters that the SAD_GETATTACH service operation receives from an online application.

SAD_GETATTACH_REQ Message Parameters

Required data that the online application must supply to the service operation in Non-administrator (Applicant) mode:

  • Attachment Sequence Number

  • Academic Career

  • Application Number

Required data that the online application must supply to the service operation in Administrator mode:

  • Institution

  • Admission Application Center

The following is an example of the SAD_GETATTACH_REQ message that the SAD_GETATTACH service operation receives from an online application:

<?xml version="1.0"?>
<SAD_GETATTACH_REQ>
  <ACAD_CAREER>UGRD</ACAD_CAREER>
  <ADM_APPL_NBR>00024501</ADM_APPL_NBR>
  <ATTACH_SEQ_NBR>1</ATTACH_SEQ_NBR>
</SAD_GETATTACH_REQ>

Output Message: SAD_GETATTACH_RESP

When the Integration Broker receives the SAD_GETATTACH_REQ message, it responds with the SAD_GETATTACH_RESP message.

This image shows the output parameter that the SAD_GETATTACH service operation passes to the online application.

SAD_GETATTACH_RESP Message Parameters

The following is an example of the SAD_GETATTACH_RESP message that the SAD_GETATTACH service operation transmits to the online application:

<?xml version="1.0"?>
<SAD_GETATTACH_RESP>
  <ADM_APPL_ATCH class="R">
    <EMPLID>2</EMPLID>
    <ACAD_CAREER>UGRD</ACAD_CAREER>
    <STDNT_CAR_NBR>0</STDNT_CAR_NBR>
    <ADM_APPL_NBR>00024501</ADM_APPL_NBR>
    <ATTACH_SEQ_NBR>1</ATTACH_SEQ_NBR>
    <DESCR254>test file</DESCR254>
    <SCC_ROW_ADD_OPRID/>
    <SCC_ROW_ADD_DTTM/>
    <SCC_ROW_UPD_OPRID/>
    <SCC_ROW_UPD_DTTM/>
    <ATTACHSYSFILENAME>ADM_APPL_ATCH_20090331161239_Who Columns.doc</ATTACHSYSFILENAME>
    <ATTACHUSERFILE>Who Columns.doc</ATTACHUSERFILE>
    <AV_ATCH_TYPE/>
<BASE64FILE>0M8R4KGxGuEAAAAAAAAAAAAAAAAAAAAAPgADAP7/CQAGAAAAAAAAA  </BASE64FILE>
  </ADM_APPL_ATCH>
  <CONSTITUENT>
   <!-- Constituent data shape -->
  </CONSTITUENT>
</SAD_GETATTACH_RESP>

Fault Message: SAD_FAULT_RESP

Refer to the SAD_FAULT_RESP message example in the SAD_CREATEAPPL section.
