SSF_INITIATE_EPAYMENT

This service operation enables the user to record a newly initiated electronic payment in Student Financials and provides access to Campus Solutions’ hosted payment framework. The hosted payment framework provides information necessary to transition the user to a designated third party payment provider’s hosted site to make a payment. The insert into the GL_TXN table, for the general ledger process, will not be done until the Complete ePayment service operation (SSF_COMPLETE_EPAYMENT) is invoked successfully.

This web service operation is adapter-based. AAWS has been delivered with its own custom Payment Application adapter and will perform its own validation according to the admissions application functional requirements.

Note that the Initiate ePayment service operation operates only within the Self Service mode (and cannot be used within the Administrator mode).

Details:


Description:	The Initiate ePayment service operation call will create a new SF Payment in Student Financials in Initiated status, assigning a new SF Payment Reference Number (SF_PMT_REF_NBR) for tracking. This service uses the payment application’s own tracking number as the merchant reference number passed to the third party payment processor. For AAWS, that tracking number is the application number (ADM_APPL_NBR). The application number will be stored in the SF Payment as ADM_APPL_NBR and SSF_EXT_TRANS_REF and the SF Payment Reference number will be stored in the Admissions Tender Staging table. In addition, the Temp ID will be stored in the SF Payment and Log. The service, through the AAWS adapter, will create new Admissions Tender Staging records (if they do not exist) for all tenders associated with the application center used in the creation of the application. The Initiate ePayment service will perform initial validation. For instance, the payment method must be either credit card or electronic check (CC or EC), the amount has to be greater than zero, and the Payment Application must be defined in the system table SSF_ELEC_PMTS. When the AAWS adapter is invoked, it will perform further validation on the transaction. The payment amount and currency must match the previously calculated application fee stored in the Admissions Application Staging record (SAD_APL_DAT_STG). This amount should have been previously calculated in and returned from the submit web service operation. The transaction must have been originated by the owner of the application. The application must be in Saved (SV) status. If the payment is for a credit card tender type, the SF Merchant must be defined in the application center associated with the application. For electronic check transactions, the Electronic Check Merchant ID must be defined in the Application Center. These SF Merchants must be associated with Payment Merchants that are defined as hosted. The tender used must be defined as a valid tender on the Application Fee code associated with the application center.
Users:	An applicant using an online application.
Processing:	This service operation performs the following steps: Validate the parameters passed in to the web service. Create a SF Payment to record the transaction. The SF Payment will be in Initiated status. For AAWS, SF Payment Detail records, which will later be used to record the transaction in the General Ledger, will be based on the Application Fee Item Type setup. Call the AAWS adapter to: Validate the application. Validate the payment parameters. Create Application Tender Staging records. Save the application. Call the hosted payment framework. The hosted payment framework will: Based on the hosted payment adapter associated with the Payment Merchant, perform an initial web service callout to the third party to pass demographic information about the applicant, such as name, address, email and phone. Note that this information may or may not be used, depending on the third party payment processor. In addition, a shared secret may be passed to the third party to authenticate electronic check transactions. For AAWS, this shared secret is the Constituent birth date. The third party will return a temporary token that identifies the transaction to both the third party and Campus Solutions. Using the HTML object definition on the Payment Merchant, create a string that will be used to either http post or redirect to the third party.
Output:	After completing the processing steps, the service operation: Records the transaction in the SF Payment table and Detail records. Creates new Admissions Application Tender Staging records. Optionally, performs a web service callout to the third party payment processor to pass demographic information and receive a token identifying the transaction.
Error Conditions:	The following conditions result in a service error: The payment method is invalid. The payment amount is zero. The Payment Application is invalid. Required input parameters have not been supplied by the user. The transaction does not pass the AAWS adapter validation.

Input Message: SSF_INITIATE_EPAYMENT_REQ

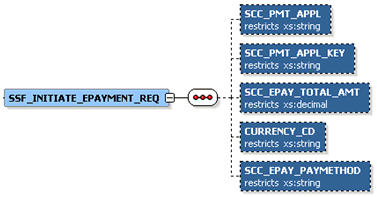

This image shows the input parameters that the SSF_INITIATE_EPAYMENT service operation receives from an online application.

SSF_INITIATE_EPAYMENT_REQ Message Parameters

Required data that the online application must supply to the service operation:

Payment Application
Payment Application Key (Application Number)
Payment Amount
Currency Code
Payment Method (Credit card or electronic check)

The following is an example of the SSF_INITIATE_EPAYMENT_REQ message that the SSF_INITIATE_EPAYMENT service operation receives from an online application:

<?xml version="1.0"?>
<SSF_INITIATE_EPAYMENT_REQ xmlns="http://xmlns.oracle.com/Enterprise/HCM/services">
  <SCC_PMT_APPL>SADAAWS</SCC_PMT_APPL>
  <SCC_PMT_APPL_KEY>00024828</SCC_PMT_APPL_KEY>
  <SCC_EPAY_TOTAL_AMT>20</SCC_EPAY_TOTAL_AMT>
  <CURRENCY_CD>USD</CURRENCY_CD>
  <SCC_EPAY_PAYMETHOD>CC</SCC_EPAY_PAYMETHOD>
</SSF_INITIATE_EPAYMENT_REQ>

Output Message: SSF_INITIATE_EPAYMENT_RESP

When the Integration Broker receives the SSF_INITIATE_EPAYMENT_REQ message, it responds with the SSF_INITIATE_EPAYMENT_RESP message.

This image shows the output parameters that the SSF_INITIATE_EPAYMENT service operation passes to the online application.

SSF_INITIATE_EPAYMENT_RESP Message Parameters

The following is an example of the SSF_INITIATE_EPAYMENT_RESP message that the SSF_INITIATE_EPAYMENT service operation transmits to the online application:

<?xml version="1.0"?>
<SSF_INITIATE_EPAYMENT_RESP xmlns="http://xmlns.oracle.com/Enterprise/HCM/services">
  <SCC_REDIRECT>N</SCC_REDIRECT>
  <SCC_HTML_STRING>
    <![CDATA*<SCRIPT LANGUAGE='JavaScript'>
writeConsole('https://someserver/C30002test_upay/web/index.jsp', '<input type="HIDDEN" name="TICKET_NAME" value="SADAAWS"><input type="HIDDEN" name="UPAY_SITE_ID" value="12"><input type="HIDDEN" name="TICKET" value="ce224625-e55c-4346-b87c-96f784f5ae90">');
function writeConsole(bind1, bind2)
{
var stuff = '<form name="payform" action="'+bind1+
'" method="POST">'+bind2+'<SCRIPT LANGUAGE="JavaScript" onload="submitForm()">'+
'function submitForm(){document.payform.submit()}'+
'</'+'SCRIPT>'+'</'+'form'+'>';
document.body.innerHTML = stuff;
document.payform.submit();
}
</SCRIPT>*]>
  </SCC_HTML_STRING>
  <SCC_HPAY_INTG_ID>QA_CS_AAWS_MODEL1A</SCC_HPAY_INTG_ID>
</SSF_INITIATE_EPAYMENT_RESP>

Fault Message: SSF_TRANS_FAULT_RESP

If the service operation encounters an error condition, it responds with the SSF_TRANS_FAULT_RESP message.

The following is an example of the SSF_TRANS_FAULT_RESP message that the SSF_INITIATE_EPAYMENT service operation transmits to the online application:

<?xml version="1.0"?>
<SOAP-ENV:Envelope xmlns:SOAP-ENC="http://schemas.xmlsoap.org/soap/encoding/" xmlns:SOAP-ENV="http://schemas.xmlsoap.org/soap/envelope/">
  <SOAP-ENV:Body>
    <SOAP-ENV:Fault>
      <faultcode>Client</faultcode>
      <faultstring>An Error occurred processing this request (14098,286)</faultstring>
      <detail>
        <MSGS>
          <MSG>
            <ID>14871-11</ID>
            <DESCR>The Payment Amount must be greater than zero. (14871,11)</DESCR>
          </MSG>
        </MSGS>
      </detail>
    </SOAP-ENV:Fault>
  </SOAP-ENV:Body>
</SOAP-ENV:Envelope>
