Analyzing General Ledger Using PeopleSoft Insights

This topic displays and explains how to analyze General Ledger data using PeopleSoft Insights dashboards.

The PeopleSoft General Ledger delivers five Insights dashboards that help users with several business intelligence analytics.

Pages Used to Analyze General Ledger using PeopleSoft Insights

Use these pages to analyze General Ledger using PeopleSoft Insights dashboards.

Page Name	Definition Name	Usage
GL Operational Insights Dashboard		Analyze the trend of journal volume over time.
Financial Position Trending Dashboard		Analyze the financial position of transactions within the selected time-frame.
Financial Performance Analysis Dashboard		Analyze the financial performance of a business on yearly basis.
My Budget Dashboard		Analyze departmental expense budgets.
Controller's Key Metrics Dashboard		Analyze departmental expense budgets against revenue.

Common Elements in General Ledger Insights

These elements are common to General Ledger Insights.

To set up General Ledger Insights dashboards, see Setting up Insights Dashboards for General Ledger.

Field or Control	Description
Filters	Search for available filters or add additional filters by clicking the Add filter link.
Date Picker	Select required date range for the journal details to be displayed in the dashboard. When using the date picker to determine your date range, the system displays a message below the filters to explain the specific date used. For example, "Journals are filtered by Journal Creation Date."
Business Unit	Select the business unit to filter the dashboard by header business unit.

The Details grid at the bottom of the page displays data in a tabular format, and allows you to drill into to each journal entry transaction. Data can be downloaded as a CSV file. Some visualizations are configured to avoid aggregation errors that can occur in high-volume searches. Every row that meets the current search criteria may not display in the data table.

GL Operational Insights Dashboard

Use the GL Operational Insights dashboard to analyze the trend of journal volume over time.

Navigation:

Select the GL Operational Insights tile.

This example illustrates the fields and controls on the GL Operational Insights Dashboard.

You can filter data based on the header business unit and drill into the displayed data to the journal entry transaction for further analysis. The dashboard focuses on all journal transactions excluding the statistical journal entries that were created within the date range you enter in the time picker or date range fields.

The visualizations that are included in this dashboard are:

• Journals across Date/Time Entered - Provides insight on journal volume trend by journal source across time.

• Journal Count by Status for Top 20 Users - Provides journal count based on journal status for the top 20 users.

• Suspense Journals Count by Journal Source - Provides suspense journal details, and its count by journal source.

• Journal Line Count for Top 20 Departments - Provides journal line count for the top 20 departments.

Each visualization can be viewed separately in full screen.

Financial Position Trending Dashboard

Use the Financial Position Trending dashboard to analyze the financial position of transactions within a selected time frame.

Navigation:

Select the Financial Position Trending tile.

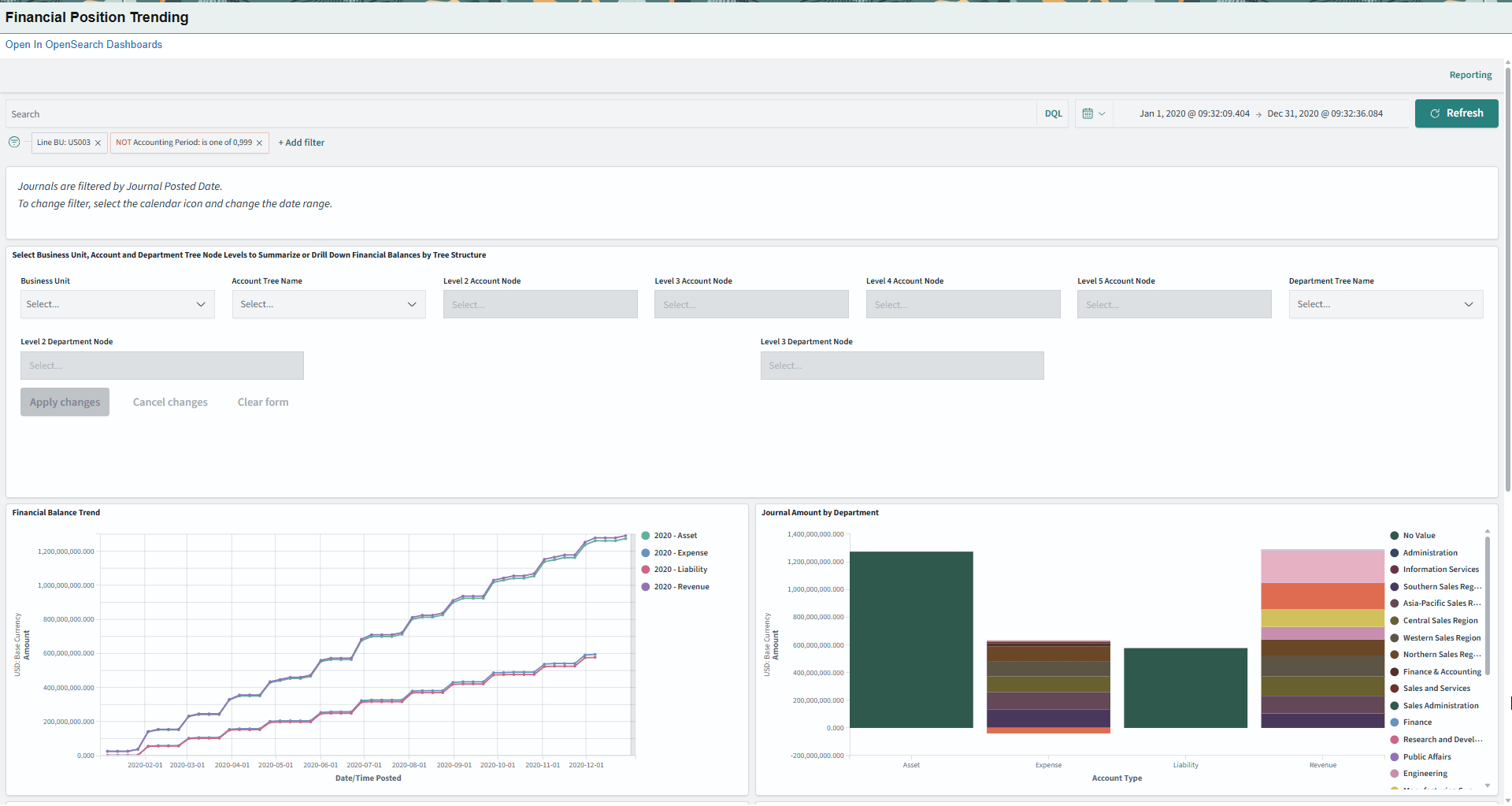

This example illustrates the fields and controls on the Financial Position Trending (1 of 2).

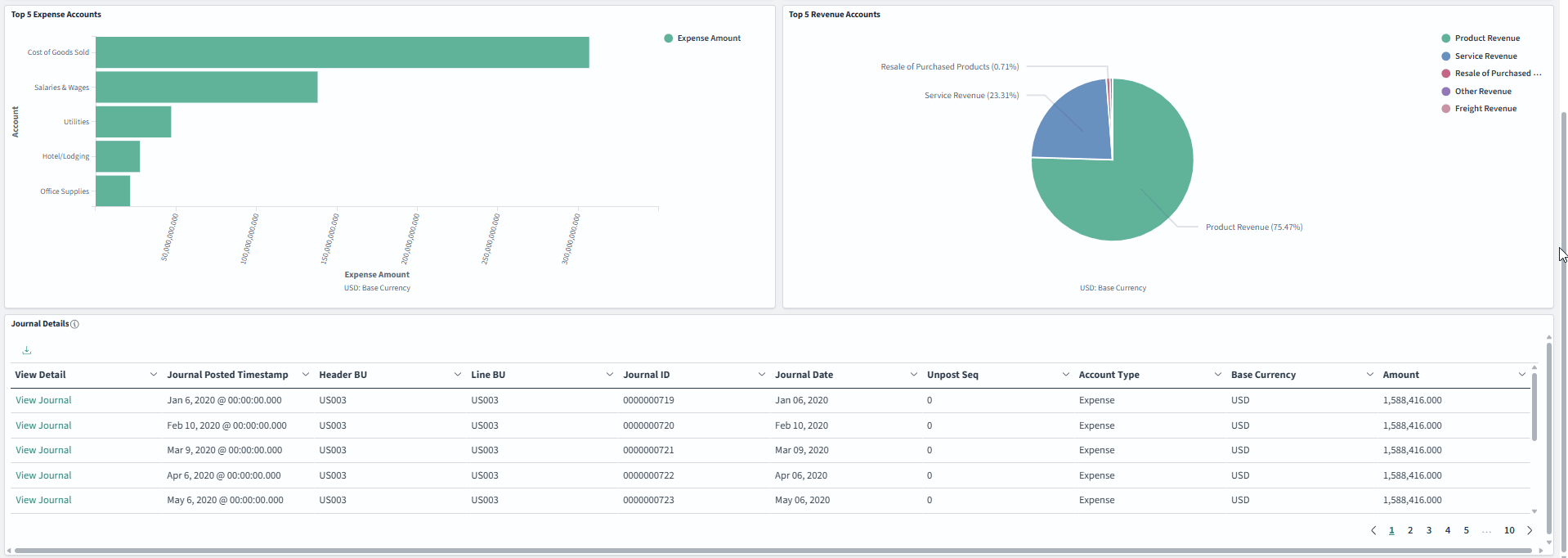

This example illustrates the fields and controls on the Financial Position Trending (2 of 2).

This dashboard provides a good visual understanding of trends and patterns for financial transactions and top performing accounts. Data can be drilled down to 5 levels of the account tree and 3 levels of the department tree You must run the Tree Flattener process (OI_TFLT) and setup the reporting tree using the Insights Reporting Tree Configuration Page, prior to indexing the journals to select ChartField tree structures on the Insights dashboard, as this process is used for the data drill down. See Application Fundamentals: Tree Flattener Request Page for more information.

Data can be viewed on this dashboard by selecting the journal posted date/time. By default, the dashboard selects journals that are posted or unposted for the last 12 months. Use the Date Picker icon to change this to another journal posted timeframe. This dashboard only includes data for actual journals (Journal Generator default ledger group), Posted and Unposted journals, and excludes statistical journal entries. By default, the dashboard excludes closing journals that with an accounting period of 0 and 999.

Field or Control	Description
Filters	Select Business Unit as a filter to render the dashboard based on a single base currency. Select Account Tree Name and Department Tree Name as filters to drill into the transactions based on tree structure.

Following visualizations are part of this dashboard:

• Financial Balance Trend - Provides activity trend for the journals posted over time by Account Type.

• Journal Amount by Department - Provides details about the journals posted by Account Type and Department ChartField.

• Top 5 Expense Accounts - Provides details about the top performing Expense accounts in the selected time range.

• Top 5 Revenue Accounts - Provides details about the top performing Revenue accounts in the selected time range.

• Journal Details - Displays the Journal details in tabular format and allows user to drill down transactions to the Journal Entry page.

Financial Performance Analysis Dashboard

Use the Financial Performance Analysis dashboard to analyze the financial performance of a business on yearly basis.

Navigation:

Select the Financial Performance Analysis tile.

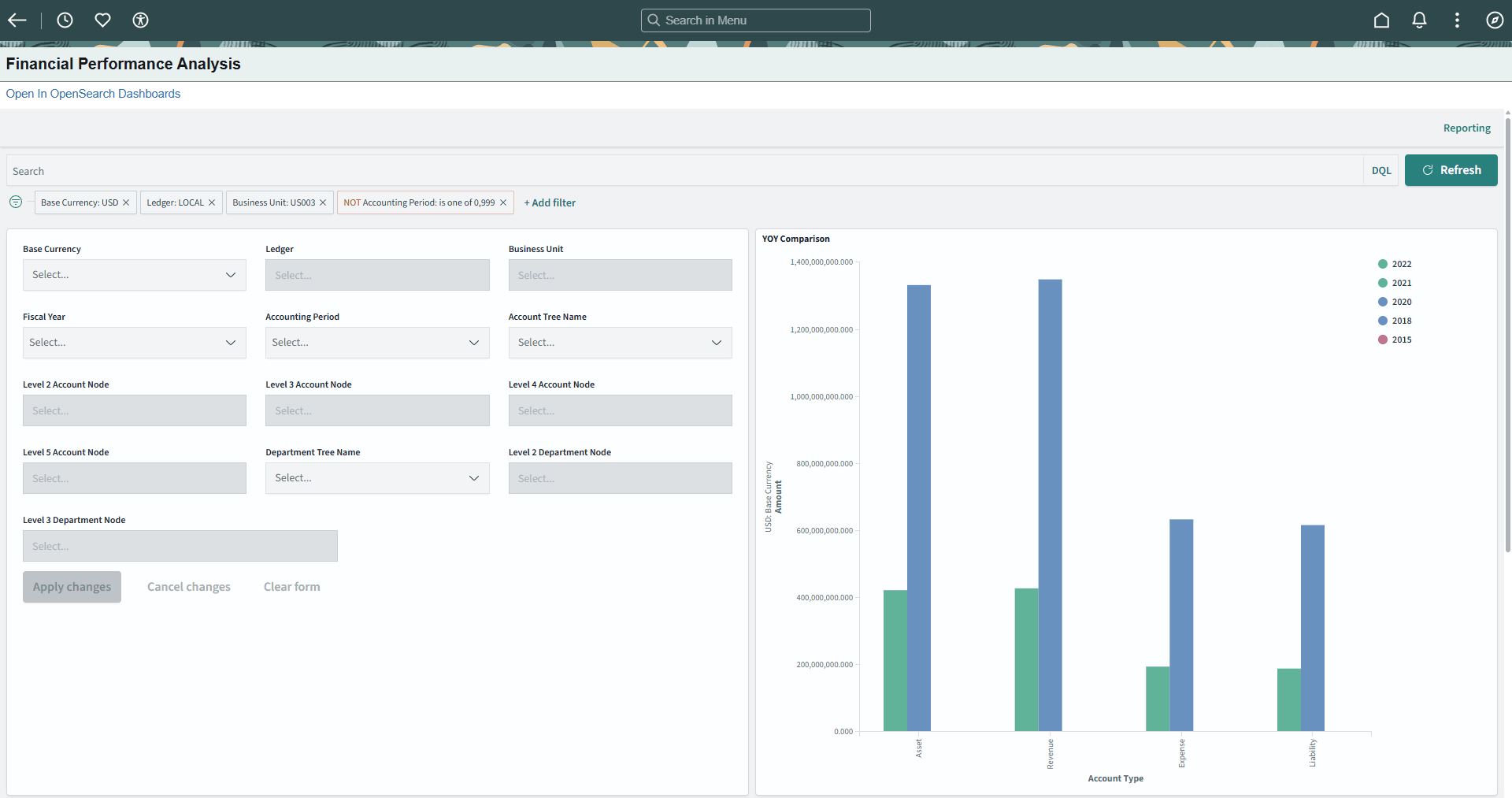

This example illustrates the fields and controls on the Financial Performance Analysis Dashboard (1 of 2).

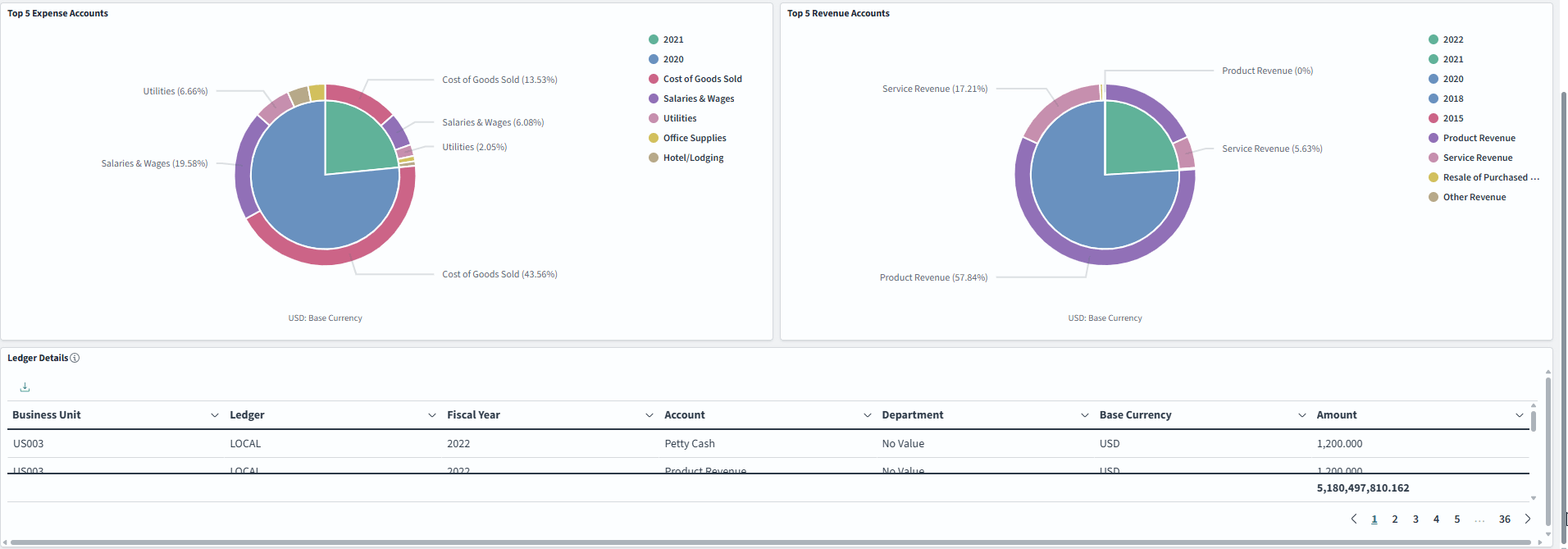

This example illustrates the fields and controls on the Financial Performance Analysis Dashboard (1 of 2).

You can select base currency, ledger, or business unit to compare the financial balances among the different fiscal years selected. You can also select an account and department tree structure for comparison. You can drill into transactions up to 5 levels of account tree and 3 levels of the department tree node for further analysis.

This dashboard does not use a date/time range to filter the data. You can use the controls provided in the dashboard to slice and dice the ledger index. You must run the Tree Flattener process (OI_TFLT) and setup the reporting tree using the Insights Reporting Tree Configuration Page, prior to indexing the ledger to select ChartField Tree Structures on the Insights dashboard, as this process is used to enable the data drill down. See Application Fundamentals: Tree Flattener Request Page for more information. Statistical journal entries are excluded from the index and closing journals are filtered in the dashboard.

Field or Control	Description
Filters	Select Base Currency to render the dashboard for a single currency. Select Account Tree Name and Department Tree Name as filters to drill down the transactions based on tree structure.

Following visualizations are part of this dashboard:

• YOY Comparison - Provides Year Over Year performance comparison for the selected Account Type and Fiscal Year.

• Top 5 Expense Accounts - Provides details about the top performing expense accounts in each fiscal year selected.

• Top 5 Revenue Accounts - Provides details about the top performing revenue accounts in each fiscal year selected.

• Ledger Details - Displays details about the ledger data selected on the dashboard in tabular format.

My Budget Dashboard

Use the My Budget dashboard to analyze departmental expense budgets.

Navigation:

Select the My Budget tile.

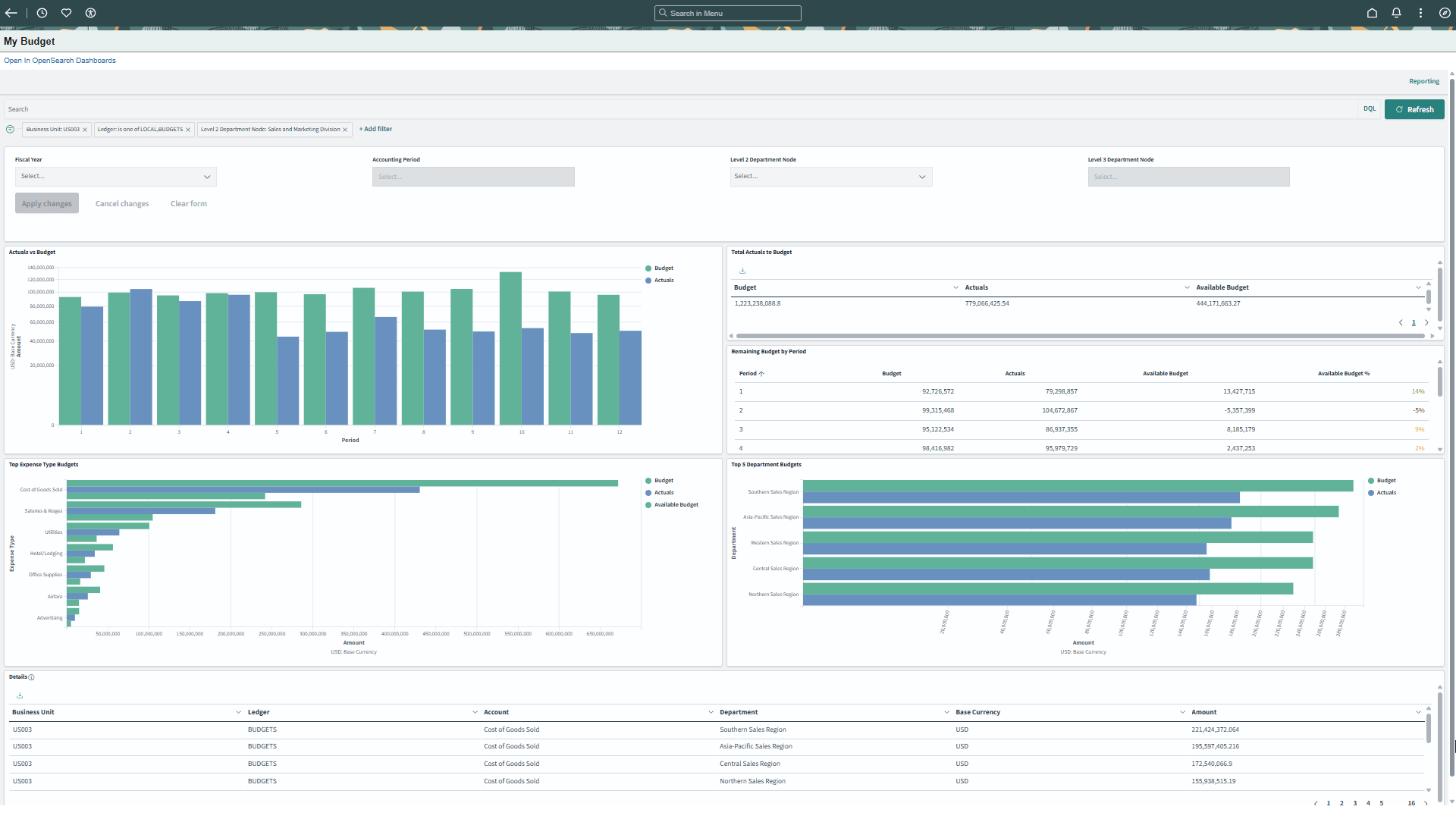

This example illustrates the fields and controls on the My Budget .

The My Budget dashboard focuses on expense budgets for a specific user. The intended user for this dashboard is someone who is responsible for departmental budgets. Use the Insights Preferences Page to create filter defaults for a specific user.

This dashboard does not use a date and time range to filter the data. Use the Application Fundamentals: Tree Flattener Request Page to run the Tree Flattener process and set up reporting tree information using the Insights Reporting Tree Configuration Page.

Budget, actual expense, and available budget are displayed. Use the Fiscal Year and Accounting Period filters to determine a time period.

Controller's Key Metrics Dashboard

Use the Controller's Key Metrics dashboard to analyze departmental expense budgets against revenue.

Navigation:

Select the Controller's Key Metrics tile.

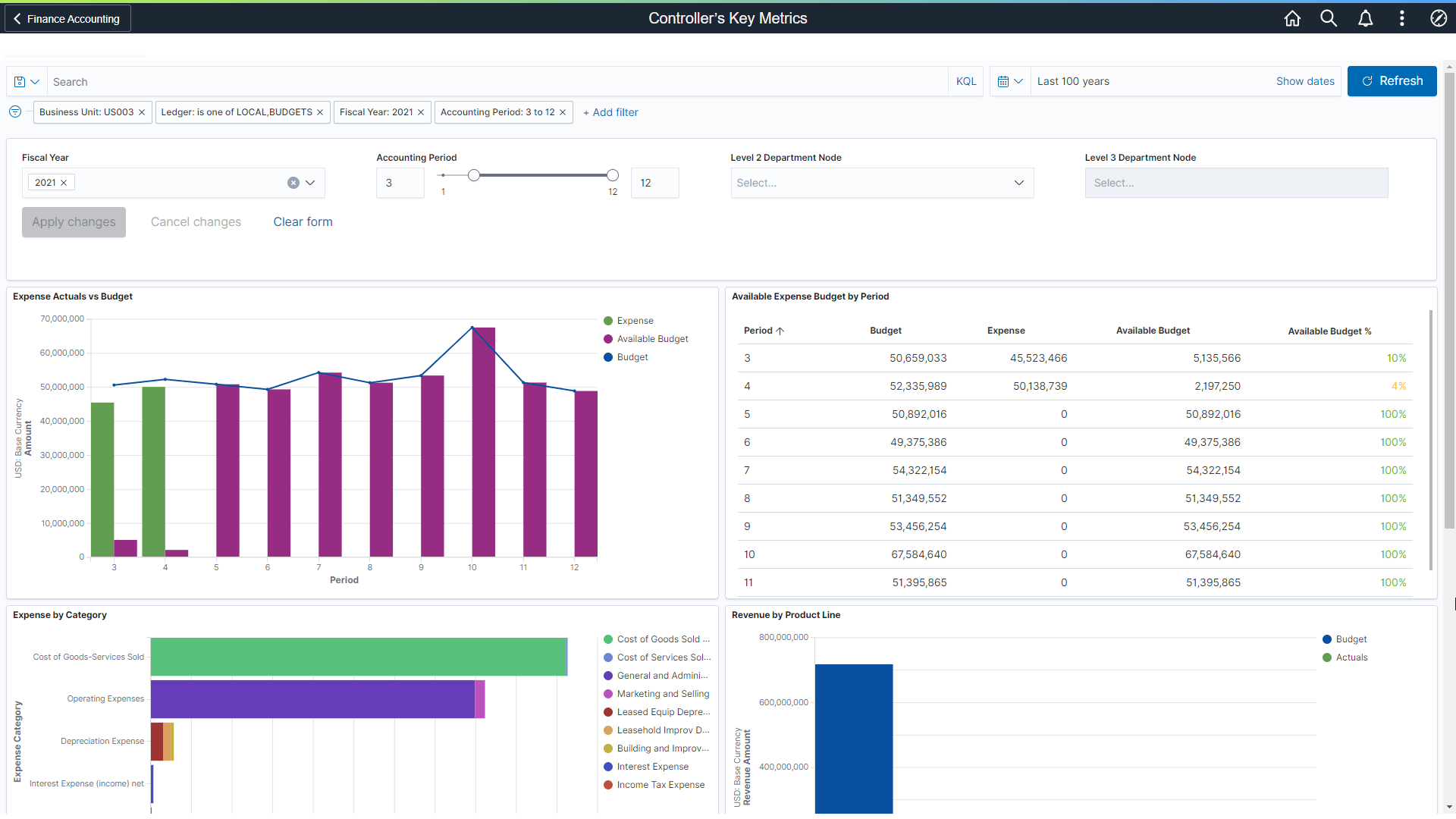

This example illustrates the fields and controls on the Controller's Key Metrics Dashboard (1 of 2).

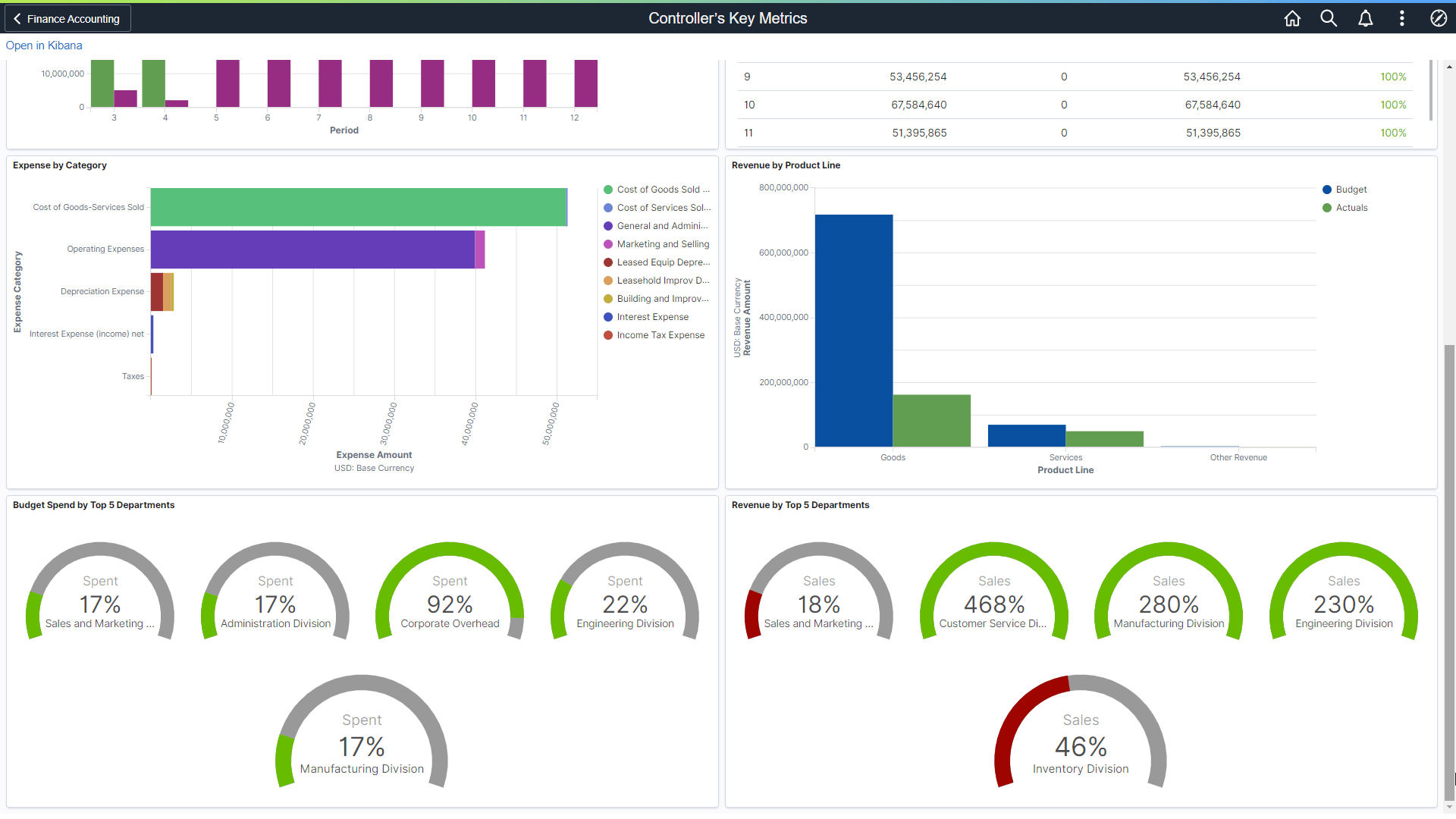

This example illustrates the fields and controls on the Controller's Key Metrics Dashboard (2 of 2).

The Controller's Key Metrics dashboard focuses on expense budgets compared to revenue. The intended user for this dashboard is a high-level financial manager, director, or controller who doesn't need to see the detail. Use the Insights Preferences Page to create filter defaults for a specific user.

This dashboard does not use a date and time range to filter the data. Use the Application Fundamentals: Tree Flattener Request Page to run the Tree Flattener process and set up reporting tree information using the Insights Reporting Tree Configuration Page.

Budget, actual expense, and revenue are displayed. Use the Fiscal Year and Accounting Period filters to determine a time period.

The threshold dials in the Budget Spend by Top 5 Departments and Revenue by Top 5 Departments sections compares revenue to budget. The yellow and red colors are intended to draw your attention to potential or existing issues. The colors of the dials indicate:

• Budget Spend:

  • Green < 95%

  • Yellow >= 95%

  • Red >= 100%

• Revenue

  • Green >= 99%

  • Yellow >= 95%

  • Red < 95%
