Overview of Manufacturing Execution System Transactions

Using PeopleSoft Manufacturing's integration, you can:

• Communicate production orders and production schedules from PeopleSoft to the MES using the Production Order Update EIP.

• Communicate item revision information from PeopleSoft to the MES using the Item Master EIP.

• Send operation and order completion and scrap information from the MES to PeopleSoft using the Completions EIP.

• Send component item usage from the MES to PeopleSoft using the Edit/Issue EIP.

• Analyze production performance in either PeopleSoft or the MES. If you are looking for more detailed operational information, you'll want to use the MES to gather this information.

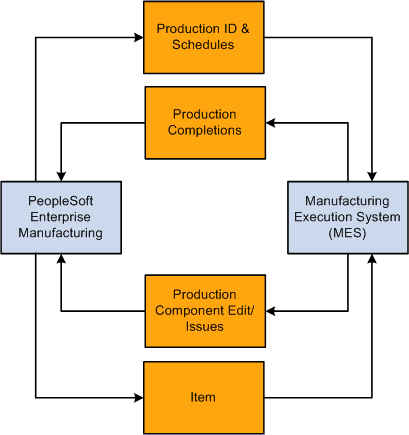

This diagram illustrates the transfer of data between PeopleSoft Manufacturing and any MES, including the transfer of production IDs, production schedules, production completions, production component edits and issues, and item data:

You'll continue to use PeopleSoft Manufacturing for planning, material movement into WIP, validation of completion data, and production costing functions. PeopleSoft is the system of record for setup information, including item masters, bills of material, routings, and creating production orders.
