Extracting DUCS Data Using Application Framework

After you complete the DUCS setup pages, you can extract DUCS information from the payroll tables.

Pages Used to Extract DUCS Data

Page Name	Definition Name	Usage
Define Extraction Data Page	GPFR_AF_EXTR_DEFN	Define an Extraction ID.
Parameters Page	GPFR_AF_EXTR_PRM	Enter a sending reference and the frequency code for the extraction data.
Run Extraction FRA Page	GPFR_AF_EXTR_RUN	Run the DUCS extraction process.

Define Extraction Data Page

Use the Define Extraction Data page (GPFR_AF_EXTR_DEFN) to .

Navigation:

Global Payroll & Absence Mgmt, and then Absence & Payroll Processing, and then Define Calendars, and then Define Extraction Data FRA

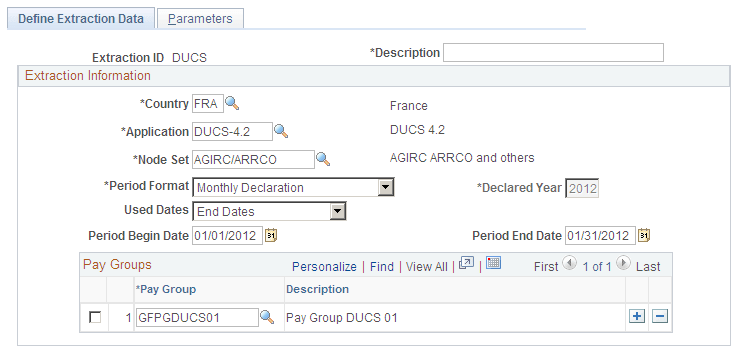

This example illustrates the fields and controls on the Define Extraction Data page. You can find definitions for the fields and controls later on this page.

Field or Control	Description
Period Format	Values are Month, Other, Quarter, Year.
Declared Year	Specify a value in this field only when the Period Format is Year.
Used Dates	These are the processed payroll results whose Payment Dates or Payroll Segment End Dates are within the Declaration Period.
Period Begin Date and Period End Date	Specify the dates of the declaration period.

Pay Groups

You must enter at least one paygroup in this region of the page. If you have a single extraction ID for all of your paygroups, you should list them all in this region.

Parameters Page

Use the Parameters page (GPFR_AF_EXTR_PRM) to enter a sending reference and the frequency code for the extraction data.

Navigation:

Global Payroll & Absence Mgmt, and then Absence & Payroll Processing, and then Define Calendars, and then Define Extraction Data FRA, and then Parameters

This example illustrates the fields and controls on the Parameters page. You can find definitions for the fields and controls later on this page.

Run Extraction FRA Page

Use the Run Extraction FRA page (GPFR_AF_EXTR_RUN) to run the DUCS extraction process.

Navigation:

Global Payroll & Absence Mgmt, and then Social Security / Insurance, and then Run Extraction FRA

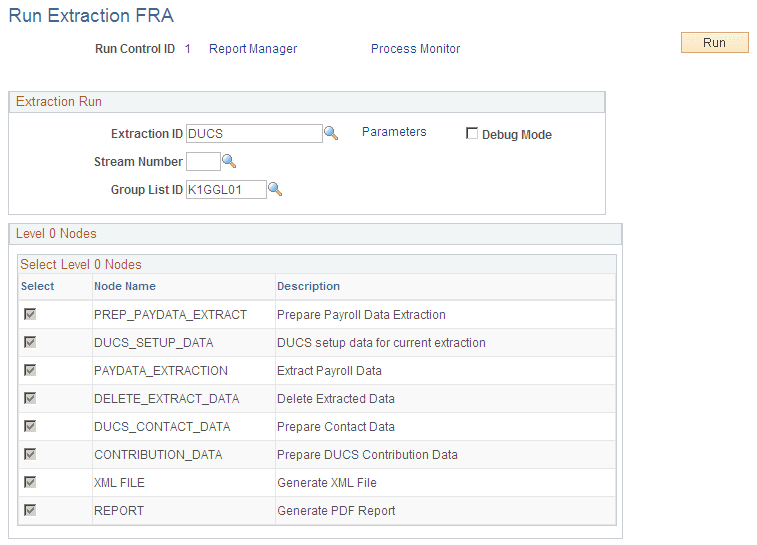

This example illustrates the fields and controls on the Run Extraction FRA page (1 of 2). You can find definitions for the fields and controls later on this page.

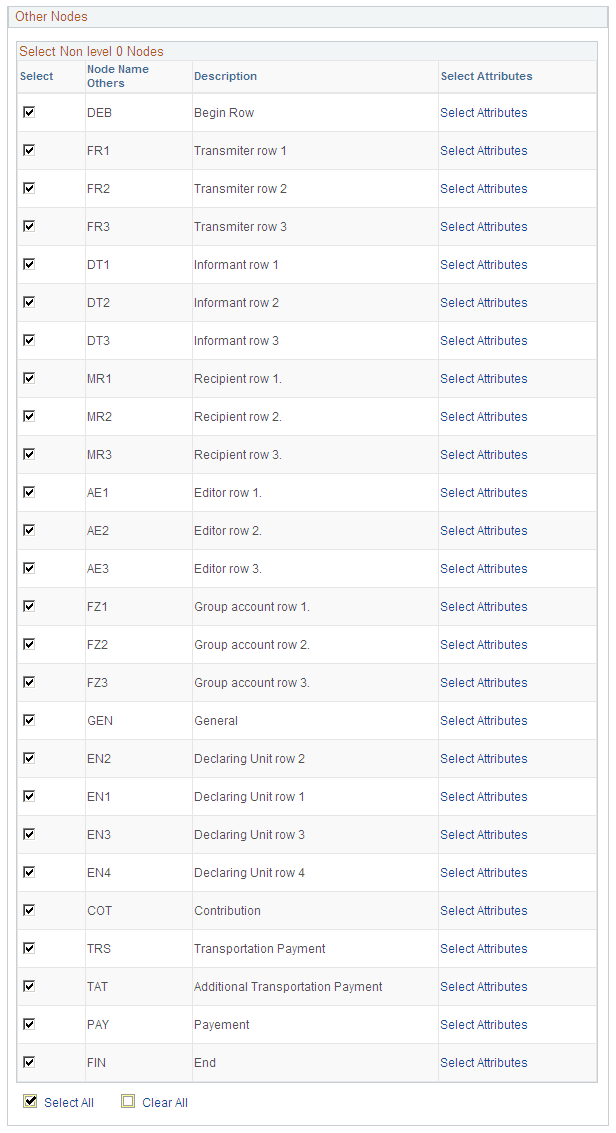

This example illustrates the fields and controls on the Run Extraction FRA page (2 of 2). You can find definitions for the fields and controls later on this page.

When the process has successfully completed, the GPFR_AF_EXTRACT table is populated based on the Extraction ID definition and the Run Control parameters.

Field or Control	Description
Extraction ID	Select an Extraction ID to determine which nodes are displayed.
Debug Mode	Select to generate a log file with the extraction run.
Group List ID	Use this option when you generate test files, or corrective files.
