Before you Begin

This tutorial describes the process to deploy a complete PeopleSoft 9.2 application demo database environment from Oracle Cloud Infrastructure Marketplace on an Oracle Cloud Infrastructure Compute instance. This tutorial takes approximately two hours to complete.

Background

Access a PeopleSoft Update Image from Oracle Cloud Infrastructure Marketplace and use it to deploy a complete PeopleSoft application environment in an Oracle Cloud Infrastructure Compute instance. The PeopleSoft application will be deployed to a single Linux virtual machine (VM) instance using a bootable machine image. Use the deployed PeopleSoft application, which is a non-production, demo environment, for example to examine new features and functionality.

The PeopleSoft application deployment includes the installation of OpenSearch, OpenSearch Dashboards, and Logstash.

This tutorial covers PeopleSoft Update Images that are supported on Oracle Cloud Infrastructure. Note that the PeopleSoft Update Images are made available on independent schedules.

Use this tutorial for these PeopleSoft Update Images:

  • PeopleSoft Customer Relationship Management (CRM)
  • PeopleSoft Campus Solutions (CS)
  • PeopleSoft Enterprise Learning Management (ELM)
  • PeopleSoft Financial and Supply Chain Management (FSCM)
  • PeopleSoft Human Capital Management (HCM)
  • PeopleSoft Interaction Hub (IH)

Note.

You may see subtle differences in the appearance of the Oracle Cloud Infrastructure Compute user interface as compared to the illustrations in this document. For example, the locations of pages, tabs, buttons, text boxes, links and so on may have changed since this document was published. Nevertheless, the concepts presented in this document are still valid and all steps are mandatory. The Oracle Cloud Infrastructure Compute documentation should have current information on using images and creating instances.

Step One: Verify Oracle Cloud Account Infrastructure Account Information

The following list includes the requirements for obtaining and installing a PeopleSoft Update Image on a Compute instance. For information on requirements for using the PeopleSoft environment after installation, see the PeopleSoft documentation on Oracle Help Center.

  • A subscription to Oracle Cloud Infrastructure Compute is mandatory.

    See Get an Oracle Cloud Account.

  • Credentials for your account

    If you don't have the following information about your Oracle Cloud Compute account, contact your Oracle Cloud administrator.
    See Getting Started, Sign In to the Console.

    • User name and password
    • URL for the Compute Console
    • Tenancy OCID
    • User OCID
    • Compartment name
  • Policies for your account

    To obtain the PeopleSoft Update Images from the Oracle Cloud Infrastructure Compute console, your user account must belong to a group with the following policies:

    Allow group <group name> to manage App-catalog-listing in tenancy
    Allow group <group name> to read all-resources in tenancy

    For information on creating policies, see How Policies Work in the Oracle Cloud Infrastructure Documentation.

  • Region

    For ease of use and faster transfers, it is a good idea to use the same Region to upload the image to Object Storage and to import to Compute.

To verify access to Compute:

  1. Sign in to Oracle Cloud Infrastructure Compute using the URL provided by your administrator, for example:

    https://console.us-ashburn-1.oraclecloud.com.

  2. Enter the name of your tenancy if necessary, and enter your user name and password.

  3. Click the navigation menu icon at the top left of the page (OCI menu icon), and select Compute, and then Instances.

    Oracle Cloud Infrastructure Menu, Compute, Instances
    Description of this illustration (verify_access_oci3_menu_instances.png)

  4. On the Compute page, select your compartment from the drop-down list on the left.

    If the Instances area does not display anything, as shown in this example, you may not have the appropriate permission to create instances. Contact your administrator.

    Instances page
    Description of this illustration (verify_access_oci4_instances_page.png)

Step Two: Review Tenancy Service Limits

Before you begin installing the PeopleSoft Update Image, it is a good idea to review the available resources and service limits for your tenancy.

  1. In Oracle Cloud Infrastructure, click the navigation menu icon and select Governance & Administration, and then Limits, Quotas and Usage.

    Select Limits, Quotas and Usage on the Oracle Cloud Infrastructure menu
    Description of this illustration (review_limits01_governance_menu.png)

  2. The page displays your resource limits, usage, and availability for the region. Use the drop-down lists to filter by service, scope, resource and compartments.

    For example, for the Compute service, ensure that the Availability Domain and compartment where you plan to work has enough resources to create your instances.

    Limits, Quotas and Usage for Compute service
    Description of this illustration (review_limits02_compute.png)

See Service Limits in the Oracle Cloud Infrastructure documentation.

Step Three: Plan the Installation

The process to install a PeopleSoft Update Image on a Compute instance includes the following:

  • User IDs and passwords

    When you create the instance, you supply several PeopleSoft user IDs and passwords. The PeopleSoft application image is delivered with default user IDs that are reset by the deployment. See the section Creating the PeopleSoft Application Instance in this tutorial.

  • Port numbers

    The PeopleSoft Update Image is provided with default values for the HTTP, HTTPS, Jolt, and WSL ports. For security reasons Oracle recommends that you do not use the default HTTP or HTTPS port numbers. Before beginning this procedure, decide on your port numbers. If you choose to use non-default values, supply them when creating the instance and configuring the Virtual Cloud Network.

  • Virtual Cloud Network (VCN)
    • Before deploying the PeopleSoft Update Image, the cloud administrator must configure a Virtual Cloud Network (VCN) with subnets and access to necessary ports.
    • Security lists must have rules to allow SSH (port 22) access.
    • Allow access for the HTTP, HTTPS, Jolt, and WSL ports that you select for the PeopleSoft Application.
  • Instance Metadata Service

    The PeopleSoft Update Images support Instance Metadata Service Version 2 (IMDSv2) endpoints.You can specify the IMDS version on the instance details page.

    See Getting Instance Metadata in the Oracle Cloud Infrastructure documentation.

Step Four: Generate an SSH Key Pair

When you create your Compute instance, you must provide a secure shell (SSH) public key that will be used for authentication when you log in to the instance. Generate your SSH key pair and upload the SSH public key to Compute before you start to create your instance.

You will need either an implementation of the ssh-keygen utility (for Linux) or an application such as PuTTY (for Microsoft Windows), installed on a local computer.

Generate an SSH Key Pair on UNIX or UNIX-Like Systems Using ssh-keygen

  1. Run the ssh-keygen command.

    ssh-keygen -b 2048 -t rsa

  2. The command prompts you to enter the path to the file in which you want to save the key. A default path and file name are suggested in parentheses. For example: /home/user_name/.ssh/id_rsa. To accept the default path and file name, press Enter. Otherwise, enter the required path and file name, and then press Enter.

  3. The command prompts you for a passphrase. Enter a passphrase.

    Note that the passphrase isn't displayed when you type it in. Remember the passphrase. If you forget the passphrase, you can't recover it.

  4. When prompted, enter the passphrase again to confirm it.

    The command generates an SSH key pair consisting of a public key and a private key, and saves them in the specified path. The file name of the public key is created automatically by appending .pub to the name of the private key file. For example, if the file name of the SSH private key is id_rsa, then the file name of the public key would be id_rsa.pub.

  5. Make a note of the path where you've saved the SSH key pair.

    When you create instances, you must provide the SSH public key. When you log in to an instance, you must specify the corresponding SSH private key and enter the passphrase when prompted.

Generate an SSH Key Pair on Microsoft Windows

Generate a secure SSH key pair using an application such as PuTTY.

Make a note of the public and private key names and where they are saved. When you create instances, you must specify the SSH public key. When you log in to an instance, you must provide the path to the corresponding SSH private key and enter the passphrase when prompted.

See Creating a Key Pair, Oracle Cloud Infrastructure Documentation.

Step Five: Create a Virtual Cloud Network for the PeopleSoft Demo Environment Instance

For security, Oracle recommends that you use a private subnet to deploy the PeopleSoft Update Image. If you use a private subnet, you cannot access the instance over the internet. There are various methods of accessing an instance in a private subnet, such as with a jump host or web proxy. The Oracle Cloud Infrastructure documentation describes methods for accessing instances on private subnets.

This example uses the Oracle Cloud Infrastructure VCN wizard, which creates a VCN, internet gateway, NAT gateway, regional public subnet, regional private subnet, and security rules. For other options, see Networking in the Oracle Cloud Infrastructure documentation.

  1. In the Oracle Cloud Infrastructure Compute Console, from the navigation menu select Networking and then Virtual Cloud Networks.

    Note:

    Alternatively, you can start the VCN wizard by clicking the tile Set up a network with a wizard on the Oracle Cloud Infrastructure home page. In that case, skip the next two steps.

  2. Click Start VCN Wizard.

  3. Select Create VCN with Internet Connectivity (the default selection).

  4. Click Start VCN Wizard.

    Start VCN Wizard dialog box
    Description of this illustration (create_vcn_wizard_start.png)

  5. On the Create a VCN with internet connectivity page, enter a name for the VCN.

  6. Select the compartment you want to work in from the drop-down list, and then click Next.

    The name in this example is pscm_network, and the compartment is mycmprt.

    Create a VCN with Internet Connectivity page
    Description of this illustration (create_vcn_wizard_intnetconn_page.png)
  7. Review the networking resources, and then click Create.
    Create a VCN with Internet Connectivit page, Review and Create
    Description of this illustration (create_vcn_wizard_review_top.png)
    Bottom portion of Review and Create page
    Description of this illustration (create_vcn_wizard_review_bottom.png)
  8. When the process is complete, click View VCN to go to the Virtual Cloud Network details page.
    Created Virtual Cloud Network
    Description of this illustration (create_vcn_wizard_complete.png)
  9. Update the security lists to allow all necessary ports.
    Virtual Cloud Networks Details page
    Description of this illustration (create_vcn_details_page.png)

Step Six: Obtain the PeopleSoft Update Image

This section describes how to obtain the PeopleSoft Update Image from the Oracle Cloud Infrastructure Marketplace menu selection.

There are other ways to obtain the image. You can create a VM instance and obtain the PeopleSoft Update Image from the Oracle Images List. Alternatively, you can locate the latest PeopleSoft Update Image in Oracle Cloud Marketplace and follow the instructions on the image page.

Choose one of these methods to obtain the update image, and then continue to create the instance for the PeopleSoft demo environment.

  1. On the Oracle Cloud Infrastructure console home page, from the navigation menu select Marketplace and then All Applications.

    Oracle CLoud Infrastructure home page, selecting Menu, Marketplace
    Description of this illustration (obtain_image_menu1_ocihomepage.png)

  2. On the Marketplace page, locate the tile for the PeopleSoft Update Image.

    You can use the filters on the left, or enter "PeopleSoft" in the search box.

  3. In the section beside the image name, accept the default Version, and select your compartment from the drop-down list.

    The page includes details such as the software versions included in the image, and links to documentation.

  4. Read the Oracle terms and restrictions, and select the option agreeing to the terms.
  5. Click Launch Instance.

    The Create Compute Instance page appears with the image you selected.

  6. Continue with the steps in the section Create the PeopleSoft Demo Environment Instance.

Step Seven: Create the PeopleSoft Demo Environment Instance

You specify the passwords for the PeopleSoft application in the Initialization Script area on the Create Compute Instance page. You also have the option to change the default values for ports and users in the same script. This table lists the passwords, users, and ports that you can specify.

Cloud-Init Script Parameter Description Requirements Default Value

connect_pwd*

PeopleSoft Connect ID password

See PeopleTools: System and Server Administration, Setting Application Server Domain Parameters, Startup Options, on the PeopleSoft PeopleTools page on the Oracle Help Center.

Ensure the password is between 6 and 30 characters in length. It must not contain any space, percent sign (%), slash (/), single quotation mark ( '), or double quotation mark (") characters.

None

access_pwd*

PeopleSoft Database Access ID password.

See PeopleTools: Data Management, Administering PeopleSoft Databases on Oracle, Working with Oracle Security Features, on the PeopleSoft PeopleTools page on the Oracle Help Center.

Ensure the password is no more than 8 characters in length. The first character must be a letter, and the remaining 7 characters may be a mixture of letters and numbers.

None

admin_pwd*

Database Administrator password.

The PeopleSoft Update Image is delivered with a default password for SYS and SYSTEM users. This will be reset using the value you supply in the cloud-init script.

See Oracle Database Security Guide, Managing Security for Oracle Database Users, Changing the SYS User Password in Oracle Help Center.

Ensure the password is between 8 and 30 characters in length. It must contain at least one lowercase letter, one uppercase letter, one number, and one special character, either underscore ( _ ), dash (-), or number sign (#).

None

weblogic_admin_pwd*

Oracle WebLogic administrator password. The default Oracle WebLogic server administrator is system.

See PeopleTools: System and Server Administration, Working with Oracle WebLogic, Changing WebLogic User Passwords, on the PeopleSoft PeopleTools page on the Oracle Help Center.

Ensure that the password is between 8 and 30 characters in length with at least one lowercase letter and one uppercase letter. It must also contain one number or one special character (!@#$%^&).

None

webprofile_user_pwd*

PeopleSoft Web Profile password. The default web profile user is PTWEBSERVER.

See PeopleTools: Portal Technology, Configuring the Portal Environment, Configuring Web Profiles, on the PeopleSoft PeopleTools page on the Oracle Help Center.

Ensure the password contains only alphanumeric characters and is between 8 and 30 characters in length.

None

gw_user_pwd*

Integration Gateway password. The default user is administrator.

See PeopleTools: Integration Broker Administration, Managing Integration Gateways, Accessing Gateway Setup Properties, on the PeopleSoft PeopleTools page on the Oracle Help Center.

The password is not validated, but Oracle recommends that passwords include 8 or more characters.

None

domain_conn_pwd*

Application Server Domain connection password

Ensure the password contains only alphanumeric characters and is between 8 and 30 characters in length.

None

opr_pwd*

PeopleSoft user ID password.

See PeopleTools: Security Administration, Administering User Profiles, Working with Passwords, on the PeopleSoft PeopleTools page on the Oracle Help Center.

Ensure the password contains only alphanumeric characters and is no more than 8 characters in length.

None

connect_id

PeopleSoft Connect ID

NA

people

access_id

PeopleSoft Database Access ID

NA

SYSADM

db_listener_port

Oracle database listener port

NA

1521

pia_http_port

PeopleSoft Pure Internet Architecture HTTP port

See the note on ports in Step Three: Plan the Installation.

8000

pia_https_port

PeopleSoft Pure Internet Architecture HTTPS port

See the note on ports in Step Three: Plan the Installation.

9000

jolt_port

Jolt port

See the note on ports in Step Three: Plan the Installation.

9033

wsl_port

WSL port

See the note on ports in Step Three: Plan the Installation.

7000

*Mandatory — You must include all of these parameters when creating the instance.

To create the instance:

  1. Enter a name for the instance. Ensure that the instance name is less than 30 characters.
    Create compute instance, enter name
    Description of this illustration (complete_instance_creation_name.png)
  2. Select an availability domain with sufficient resources.
  3. Select an instance shape.

    Accept the default, or click Change Shape to choose another shape on the Browse All Shapes page. The supported shapes are VM.Standard2.1 (1 OCPU, 15 GB RAM) and VM.Standard2.2 (2 OCPU, 30 GB RAM).

    Create compute instance, select image and shape
    Description of this illustration (complete_instance_creation_image_shape.png)
  4. In the Networking section, select the option Select an existing virtual cloud network.
    Create compute instance, networking
    Description of this illustration (complete_instance_creation_networking.png)

  5. Select the VCN that you created earlier in this tutorial from the Virtual cloud network drop-down list.

  6. Select the option Select existing subnet.

  7. From the Subnet drop-down list, select the public or private subnet you want to use for the PeopleSoft application instance.

  8. If you want the instance to be accessible from the Internet, select the option Assign a public IPv4 address, or select the option Do not assign a public IPv4 address.

  9. In the Add SSH keys area, select the option Upload public key files (.pub), and browse to the location where you saved the public SSH key.

    Create Compute Instance page, middle section
    Description of this illustration (complete_instance_creation_sshkeys.png)
  10. In the Boot Volume area, select Specify a custom boot volume size.

    Enter a minimum size of 300 GB. For update images based on PeopleSoft PeopleTools 8.60.07 and later, the minimum size is 250 GB, as shown in this example. The PeopleTools version is listed on the page when you obtain the update image from the Marketplace.

    Create Compute Instance page, select Custom boot volume size
    Description of this illustration (complete_instance_creation_custsize.png)
  11. Select Show Advanced Options.
    Create Compute Instance page, click Create
    Description of this illustration (complete_instance_creation_initscript.png)
  12. On the Management tab select the option Paste cloud-init script and enter the configuration information using the JSON format in these examples.

    The instance creation requires these passwords.

    {
   "connect_pwd":  "password",
   "access_pwd":  "password",
   "admin_pwd":  "password",
   "weblogic_admin_pwd":  "password",
   "webprofile_user_pwd":  "password",
   "gw_user_pwd":  "password",
   "domain_conn_pwd":  "password",
   "opr_pwd": "password"
 }

  13. If you want to specify additional parameters, include them in the same cloud-init script.

    For example, this script specifies non-default values for the HTTP and HTTPS ports in addition to the mandatory parameters:

    {
   "connect_pwd":  "password",
   "access_pwd":  "password",
   "admin_pwd":  "password",
   "weblogic_admin_pwd":  "password",
   "webprofile_user_pwd":  "password",
   "gw_user_pwd":  "password",
   "domain_conn_pwd":  "password",
   "opr_pwd": "password",
   "pia_http_port":  "9100",
   "pia_https_port":  "9150"
 }

  14. Click Create.

  15. Monitor the instance creation on the Instances page.

    If necessary, select the instance to see the details. When the instance creation is complete, as indicated by status Running, you can sign in to follow the progress.

    If you specified a public subnet, make a note of the Public IP address for the instance in the section Instance Access.

    Instance Details page
    Description of this illustration (complete_instance_creation_runninginst_top.png)
    Instance Details page
    Description of this illustration (complete_instance_creation_runninginst_bottom.png)

Step Eight: Log In to the PeopleSoft Demo Environment Instance

The PeopleSoft demo environment instance can be accessed from a Microsoft Windows machine using an SSH client such as PuTTY, or directly from a Linux machine.

Log In to the PeopleSoft Application Instance VM from a Linux or UNIX System

  1. Enter the following command:

    ssh -i <path_to_private_key_file>/<private_key_name> -o ServerAliveInterval=5 -o ServerAliveCountMax=1 opc@<public_ip_address_of_instance>

  2. If you don't know the public IP address of your instance, you can find it by going to the Compute console and selecting the Instances tab. Select your compartment, and view the instance details page. The Primary VNIC information section includes the Public IP Address.

  3. If you entered a passphrase when creating your SSH key pair, enter the passphrase when prompted.

  4. The first time you connect to your instance, the SSH utility prompts you to confirm the public key. In response to the prompt, enter yes.

Log In to the PeopleSoft Application Instance VM from a Microsoft Windows System

  1. Start PuTTY. The PuTTY Configuration window is displayed, showing the Session panel.

  2. In the Host Name (or IP address) field, enter the public IP address of your instance.

    Note:

    If you don't know the public IP address of your instance, you can find it by going to the Compute console and selecting the Instances tab. Select your compartment, and view the instance details page. The Primary VNIC information section includes the Public IP Address.

  3. In the Connection type field, select SSH if it is not already selected.

    PuTTY Configuration dialog box, Basic options for your PuTTY session
    Description of this illustration (putty_login3.png)

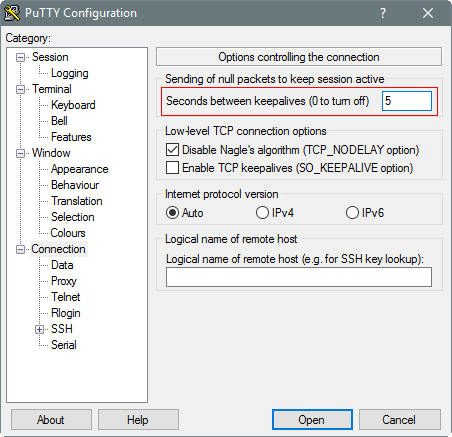

  4. In the Category pane, click Connection. Enter 5 in the Seconds between keepalives (0 to turn off) text box.

    PuTTY Configuation dialog box, Options controlling the connection
    Description of this illustration (putty_login4.png)

  5. In the Category pane, expand SSH, and then click Auth. The Auth panel is displayed.

  6. In the Private key file for authentication field, click Browse and select the private key file that you saved earlier, mykey.ppk in this example.

    PuTTY Configuration dialog box, Options controlling SSH authentication
    Description of this illustration (putty_login6.png)

  7. In the Category tree, click Session.

    The Session panel is displayed.

  8. In the Saved Sessions field, enter a name for this connection configuration, and then click Save.

  9. Click Open to open the connection.

    The PuTTY Configuration window is closed and the PuTTY window is displayed.

  10. Enter the passphrase you had provided for your SSH key pair.

  11. The first time you connect to your instance, the PuTTY Security Alert window is displayed, prompting you to confirm the public key. Click Yes to continue.

Step Nine: Review the PeopleSoft Application Instance Log Files

Monitor the configuration process status by reviewing the log file /home/opc/bootstrap/oci_status.log.

For example, to view the end of the log file, enter this command:

$ tail /home/opc/bootstrap/oci_status.log

The configuration process takes several minutes. When the process completes successfully, the same log file includes the URL to sign in to the PeopleSoft Pure Internet Architecture (PIA) in a browser.

Note:

The term bootstrap is sometimes used to refer to the setup script used to deploy the image.

The PeopleSoft application instance configuration log files are found in these locations:

  • /home/opc/bootstrap/oci_status.log — configuration process log
  • /home/opc/bootstrap/psft_oci_setup.log — image provisioning log
  • /opt/oracle/psft/dpks/setup/psft_dpk_setup.log — Detailed Puppet log for the image installation.

If you want to copy the log files to a Microsoft Windows computer, use a secure copy or secure FTP utility such as those associated with Putty.

For example, to transfer the files using the PSCP utility in PuTTY:

  1. Create a saved session in PuTTY to connect to the PeopleSoft application instance VM.

  2. Make a note of the path to your Putty installation on your laptop (for example, C:\Program Files (x86)\PuTTY).

  3. Make a note of the path on the instance VM with the files you want to copy, and the path on your laptop where you want to save them.

  4. Open a command prompt and make a note of your PATH environment variable.

    To list the environment variables, enter the command set. Copy the contents of PATH to Notepad or elsewhere as a backup.

  5. In the command prompt, append the path to the PuTTY installation to the beginning of your PATH. For example:

    set PATH=C:\Program Files (x86)\PuTTY;%PATH%

    Tip:

    This environment variable setting only lasts until the command window closes.

  6. Use this command to connect to the session with user opc, and copy files from the source instance VM to the target Microsoft Windows computer:

    pscp –l <user> <session name>:<source> <target>

  7. Enter the passphrase for the SSH key at the prompt.

    >pscp -l opc psft-infodev:/home/opc/bootstrap/psft_oci_setup.log C:\user\PeopleSoftImage\target
    Passphrase for key "mykey":
    psft_oci_setup.log        | 1142 kB | 1142.5 kB/s | ETA: 00:00:00 | 100%

Step Ten: Access the PeopleSoft Demo Environment in a Browser

  1. To locate the URL for PeopleSoft Application, review the /home/opc/bootstrap/oci_status.log file created after the successful instance creation.

    The URLs for the PeopleSoft Pure Internet Architecture (PIA) are included at the end of the file. For example:

    OBI installed successfully
    PIA URL: http://psft-instance-infodev.subnet1.pscmnetwork.oraclevcn.com:8000
    PIA SSL URL: https://psft-instance-infodev.subnet1.pscmnetwork.oraclevcn.com:9000

  2. To access the URL over the Internet, the DNS for the instance must be successfully resolved.

    If you do not have a public DNS, edit the etc\hosts file (for example, C:\Windows\System32\drivers\etc\hosts on Microsoft Windows 10) on the machine from which you want to access the PeopleSoft Application URL. To modify the file, add a line with the Public IP address and fully-qualified domain name for the PeopleSoft Application instance, such as:

    198.51.100.41  psft-instance-infodev.subnet1.pscmnetwork.oraclevcn.com

  3. Enter the PeopleSoft Application URL in a browser. You see a window for Weblogic Application Server 14.1.1.0.0.

    Welcome to Weblogic Application page

  4. Click the link Please click here to PeopleSoft logon page to display the PeopleSoft Application sign in window.

    Select the default user ID that corresponds to the PeopleSoft Update Image that you deployed. The PeopleSoft Update Images are delivered with these user IDs:

    • CRM: VP1
    • CS: PS
    • ELM: PS
    • FSCM: VP1
    • HCM: PS
    • IH: VP1

    The password is the opr_pwd you supplied in the cloud-init script in the section Completing the Instance Creation.

    Sign in window for PeopleSoft application
    Description of this illustration (access_instance_browser4_pia.png)

Note:

Oracle strongly recommends that you change the default PeopleSoft Pure Internet Architecture (PIA) user passwords, because the PeopleSoft Application instances are on the public Internet. See PeopleTools: Security Administration, Administering User Profiles, Working with Passwords, on the PeopleSoft PeopleTools page on the Oracle Help Center.

For information on the file structure and default Linux users set up as part of the image deployment, see PeopleSoft Deployment Packages Installation, Using the PeopleSoft Installation, in the Install and Upgrade section on the PeopleSoft PeopleTools page on the Oracle Help Center.

Step Eleven: Verify OpenSearch

PeopleSoft Update Images include OpenSearch, which is an open-source search engine used for the PeopleSoft Search Framework. OpenSearch was installed and initiated as part of the instance creation. The Host Name for the search instance is based on the instance name.

To verify that OpenSearch is installed and running, use these steps:

  1. Sign in to the deployed PeopleSoft environment in a browser.
  2. Click the NavBar icon at the top of the window, and then click Menu.
  3. Select in sequence PeopleTools, Search Framework, Administration, Define Search Instance, and find the default Search Instance.

    These examples show the top and bottom portion of the Search Instance Properties page for the default search instance, PTSF_DEFAULT.

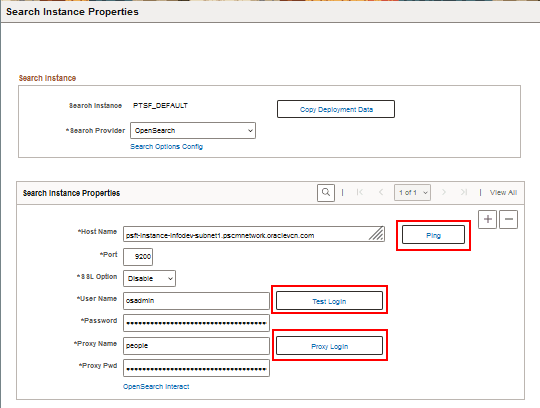

    Search Instance Properties page for OpenSearch, 1 of 2
    Description of this illustration (verify_opensearch_srchinstpage_1of2.png)
    Search Instance Properties page for OpenSearch 2 of 2
    Description of this illustration (verify_opensearch_srchinstpage_2of2.png)

  4. On the Search Instance Properties page, in the Search Instance Properties area, click Ping beside the Host Name field. You see the message "Ping Test Result: Success. opensearch version 2.3.0 (262,613)". Click OK to close the box.

    Ping test result for OpenSearch

  5. Click Test Login beside the User Name field. You see the message "Login Success (262,615)". Click OK to close the box.

    Test login message box with Login Success

  6. Click Proxy Login. You see the message "Proxy login success (262,1319)". Click OK to close the box.

    Proxy login message box showing success

  7. Click Ping beside the Host Name field in the Logstash area. You see the message "Ping Test Result: Success. ok (262, 613)".

    Ping Test Result: Success message box
  8. Click Validate in the Call Back Properties area, beside Confirm Password. You see a page saying "All validations are successful." Select the Show All option for more details.

    Click Return.

    OpenSearch Validation Report
    Description of this illustration (verify_opensearch_validate.png)

  9. Select the link Update Deployed Definitions. You see the message "Updated 79 deployed definitions. Failed to update 0 definitions. Refer to event log for more details (262,623)". Click OK to close the box.

    Note:

    The number of deployed definitions that you see may vary.
  10. The Global Search bar is available at the top of any of the PeopleSoft demo environment pages. Select a search category and enter a search term.
    Verify OpenSearch global search bar
    Description of this illustration (verify_opensearch_globalsearch.png)

The OpenSearch parameters configured by the image deployment include the following default values:

  • Installation directory — /opt/oracle/psft/pt/ES/pt/opensearch-2.3.0

  • OpenSearch administrative user and password — osadmin/Esadmin1

  • OpenSearch proxy user — people/Esadmin2

  • Callback user — PSAPPS

  • Port — 9200

There are several pages in the PeopleSoft environment that you update to configure OpenSearch and Integration Broker. If the verification tests for OpenSearch fail, or if you cannot access the search results over the public Internet, verify that these pages have the correct information. For more information, see these resources:

PeopleTools: Search Technology product documentation on the PeopleSoft PeopleTools page on the Oracle Help Center.

PeopleSoft Search and Insights Home Page, My Oracle Support, Doc ID 2205540.2.

Step Twelve: Verify OpenSearch Dashboards

PeopleSoft Update Images include OpenSearch Dashboards, which was installed and initiated as part of the instance creation. Use OpenSearch Dashboards to visualize data for OpenSearch server monitoring and application index monitoring, and to create dashboards to visualize PeopleSoft application search indexes.

The OpenSearch Dashboards installation directory is /opt/oracle/psft/pt/ES/pt/opensearch-dashboards-2.3.0.

To verify that OpenSearch Dashboards is installed and running:

  1. Sign in to the PeopleSoft environment in a browser.

  2. Select in sequence PeopleTools, Security, User Profiles, User Profiles. Search for your user ID, and then select the Roles tab.

    Verify that the Insights Administrator role is included in the list of roles, and add it if necessary. This role is required to access the OpenSearch Dashboards home page.

  3. Select Reporting Tools and then Insights.

  4. On the Welcome to OpenSearch Dashboards page, select Explore on my own.
    Insights page OpenSearch Dasboards Welcome
    Description of this illustration (verify_opensearchdashboards_welcome.png)

    The OpenSearch Dashboards home page appears.

    Insights page, OpenSearch Dashboards home page
    Description of this illustration (verify_opensearchdashboards_homepage.png)

For information on using OpenSearch Dashboards, see the PeopleTools: Search Technology on PeopleTools on the Oracle Help Center, Online Help and PeopleBooks.

Step Thirteen: Verify Logstash 8.6.0

Logstash 8.6.0 is installed and initiated as part of the instance creation. Logstash is used for the PeopleSoft Health Center, which displays charts and data using OpenSearch. It is also used with external data integration.

The Logstash installation directory is /opt/oracle/psft/pt/ES/pt/logstash-8.6.0.

For information on working with the Logstash installation, see PeopleSoft Deployment Packages Installation for Search Components (PeopleSoft PeopleTools <current release>). Select the PeopleTools release at the top on PeopleTools on the Oracle Help Center and go to the Install and Upgrade section to locate the documentation.

To use Logstash for PeopleSoft Health Center, see PeopleTools: Performance Monitor, "Configuring PeopleSoft Health Center," PeopleTools on the Oracle Help Center.

To use OpenSearch, OpenSearch Dashboards, and Logstash for external data integration, see PeopleTools: Search Technology, "Integrating External Data with PeopleSoft," PeopleTools on the Oracle Help Center.

Step Fourteen: Review PeopleSoft Automated Updates Information

You can configure Update Manager to automatically download PRPs, and apply the PRPs to the installed demo environment. The process also includes defining and creating change packages, and applying the source-only steps.

For information on using the PeopleSoft Automated Updates process, see PeopleTools: Change Assistant and Update Manager, Understanding PeopleSoft Automated Updates, PeopleTools on the Oracle Help Center.

Learn More
