Viewing Outbound Synchronous Statistics

Results for searching for outbound synchronous statistics appear in under the Search Criteria section of the Outbound Synchronous page.

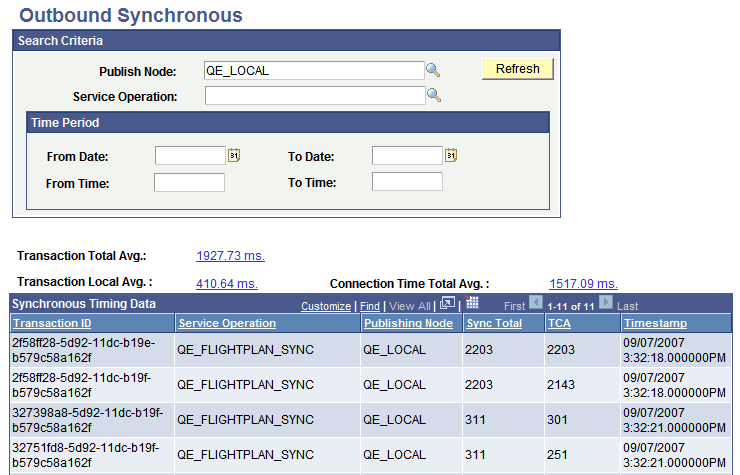

The following example shows sample search results for outbound synchronous statistics.

Initial search results for outbound synchronous messaging system performance statistics display in the Synchronous Timing Data grid under the Search Criteria dialog box.

The data in grid provides high-level information about the transactions. The fields that appear in this grid are described elsewhere in this section.

See Common Elements Used to View Messaging System Performance Statistics.

In addition, three links appear on the page:

Field or Control	Description
Transaction Total Avg.(Transaction Total Average)	The value that appears on the link label is the average total transaction processing time for the selected transactions. The total includes processing on local and remote servers, as well as the total connection time to remote servers. Click the link to open the Averages and Analysis page. Use this page to view the application server, gateway and remote server statistics that comprise the total transaction processing time average.
Transaction Local Avg.(Transaction Local Average)	The value that appears on the link label is the average total processing time on the local server for the selected transactions. Click the link to open the Averages and Analysis page. Use this page to view the application server statistics that comprise the total average local transaction processing time average.
Connection Time Total Avg.(Connection Time Total Average)	The value that appears on the link label is the average total connection time between remote servers and local servers for the selected transactions. Click the link to open the Averages and Analysis page. Use this page to view the integration gateway and remote server statistics that comprise the connection time total average.

Viewing Average Transaction Processing Time Statistics — Local and Remote Servers

From the outbound synchronous search results page, click the Transaction Total Avg. link.

This example illustrates the fields and controls on the Averages and Analysis page. You can find definitions for the fields and controls later on this page.

Field or Control	Description
Application Server	The value that appears on the Application Server link label is the average processing time on the application server for the selected transactions. Click the link to open the Local Server Averages page. Use the Local Server Averages page to view the statistics that comprise the application server processing average. They can include: PeopleCode Avg. (PeopleCode Average). OnRoute PeopleCode processing. Transform Avg. (Transformation Average). Transformation processing. Overhead Avg. (Overhead Average). Overhead processing.
Gateway	The value that appears on the Gateway link label is the average processing time on the integration gateway for the selected transactions. Click the link to open the Gateway Averages page. Use the Gateway Averages page to view the statistics that comprise the gateway processing average. They can include: Gateway Request Avg. (Gateway Request Average). Processing of the request on the integration gateway. Gateway Response Avg. (Gateway Response Average). Processing of the response on the integration gateway.
Remote Server	The value that appears on the Remote Server link label is the average processing time of the transactions on the remote system. The link appears only when the remote server is a PeopleSoft system. PeopleSoft systems send application server performance statistics with response messages. Click the link to open the Remote System Averages page. Use the Remote System Averages page to view the statistics that comprise the average remote server processing time. The statistics displayed on this page can include: OnRequest Avg. (OnRequest Average). Processing of OnRequest PeopleCode on the remote system. App. Server Receive Avg. (Application Server Receive Average). Processing time for the request on the remote system, as well as generating a response. Overhead Avg. (Overhead Average). Overhead processing.

Viewing Average Transaction Processing Time Statistics — Local Server Only

From the outbound synchronous search results page, click the Transaction Local Avg. link.

This example illustrates the fields and controls on the Averages and Analysis page. You can find definitions for the fields and controls later on this page.

This example shows the average transaction processing time for outbound synchronous transactions.

Field or Control

Description

Application Server

The value that appears on the application server link label is the average processing time on the application server for the selected transactions. Click the link to open the Local Server Averages page. Use this page to view the statistics that comprise the application server processing average. They can include: PeopleCode Avg. (PeopleCode Average). OnRoute PeopleCode processing. Transform Avg. (Transformation Average). Transformation processing. Overhead Avg. (Overhead Average). Overhead processing.

Viewing Average Transaction Connection Time Statistics

From the outbound synchronous search results page, click the Connection Time Total Avg. link.

This example illustrates the fields and controls on the Averages and Analysis page. You can find definitions for the fields and controls later on this page.

This example shows the average transaction connection time for synchronous outbound transactions.

The following table lists the links that display on the page. It also lists the names of the pages that open when you click a link and describes the data that may display. The actual data that displays depends on the makeup of the transactions.

Field or Control	Description
Gateway	The value that appears on the link label is the average processing time on the integration gateway for the selected transactions. Click the link to open the Gateway Averages page. Use the page to view the statistics that comprise the average integration gateway processing time. They can include: Gateway Request Avg. (Gateway Request Average). Processing of the request on the integration gateway. Gateway Response Avg. (Gateway Response Average). Processing of the response on the integration gateway.
Remote Server	The value that appears on the link label is the average processing time on the remote server for the selected transactions. The link appears only when the remote server is a PeopleSoft system. PeopleSoft systems send back application server performance statistics with response messages. Click the link to open the Remote System Averages page. Use the page to view the statistics that comprise the average remote server processing time. Data appears on this page for transactions where the remote server is a PeopleSoft system. The statistics displayed on this page can include: OnRequest Avg. (OnRequest Average). Processing of OnRequest PeopleCode on the remote system. App. Server Receive Avg. (Application Server Receive Average). Processing time for the request on the remote system, as well as generating a response. Overhead Avg. (Overhead Average). Overhead processing.
Connection Overhead	The value that appears on the link label includes miscellaneous connection processing times while sending the request from the integration gateway on the local system to the remote system, as well as connection time when the remote system returns a response to the local system.
