Using the Deployment Configuration Page

Use the Deployment Configuration pages (IB_INTDEPLOY) to select services for routing deployment configuration and to define routing parameters.

To access the Deployment and Configuration pages select PeopleTools, Integration Broker, Service Utilities, Deployment Configuration.

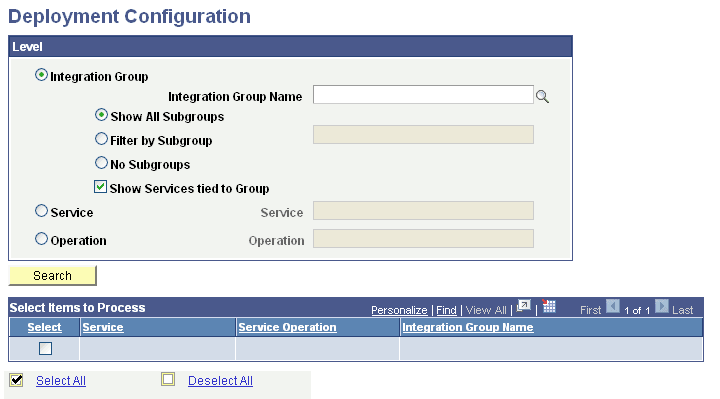

This example illustrates the fields and controls on the Deployment Configuration page. You can find definitions for the fields and controls later on this page.

The following fields and controls appear on the page:

Field or Control	Description
Integration Group	Select the radio button to search for service operations by integration group. Use one of the following integration group filters: Show All Subgroups. (Default.) Select the radio button to display all integration subgroups associated with integration groups in the system. Filter by Subgroup. Select the radio button to search for a specific integration subgroup and enter its name in the field. No Subgroups. Select the radio button to omit integration subgroups from your search. Show Services Tied to Group. Check the box to include the services tied to an integration group in the search results. By default this option is selected. Show Services Tied to Group. (Default.) Check the box to include the services tied to an integration group in the search results.
Integration Group Name	If searching by integration group, enter the integration group name to search, or click the Lookup button to search for one.
Service	Select the radio button to search for service operations by service. When you select this option a Lookup button appears next to the Service field.
Service Operation	Select the radio button to search for service operations by service operation. When you select this option a Lookup button appears next to the Operation field. Click the Lookup button to search for a service operation to introspect and deploy or enter the name directly in the field.
Search	Click the button to search the database for service operations based on the search criteria entered.
Select Items to Process (grid)	This grid displays the search results and contains the following fields and controls: Select. Select the box to configure routing definitions for the service, service operation or integration group. Service. Name of service. Service Operation. Name of service operation. Integration Group Name. Name of integration group.
Select All	Select the box to select configure routing definitions for all items in the Select Items to Process grid.
Deselect All	Select the box to clear all selections in the Select Items to Process grid.
Continue	Click the button to define routing parameters for selected items in the Select Items to Process grid.
