Viewing OpenAPI Documents for REST Services

Click the View OpenAPI link to display the OpenAPI Repository page (IB_SERVICEDEFN_SEC) and access any generated OpenAPI documents for the service.

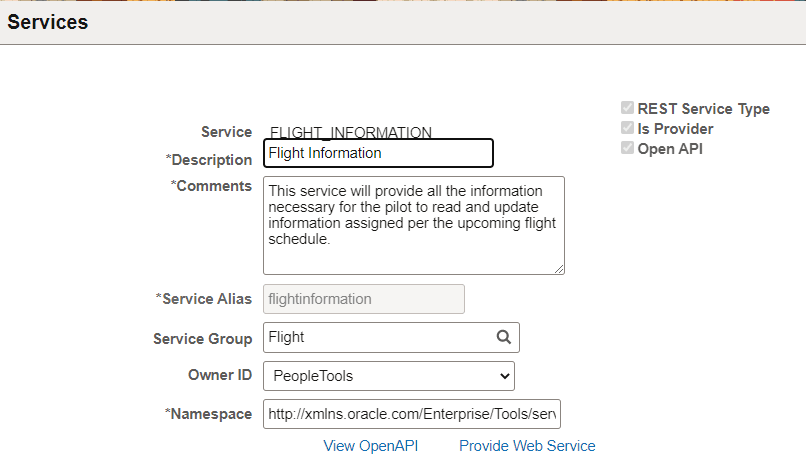

This example illustrates an OpenAPI REST Service definition.

To view the OpenAPI:

1. Access the service definition (PeopleTools, and then Integration Broker, and then Integration Setup, and then Service Definitions).

2. Click the View OpenAPI link.

   The WSDL Repository page appears.

3. Click the View OpenAPI link.

   The document appears in the OpenAPI Viewer page.

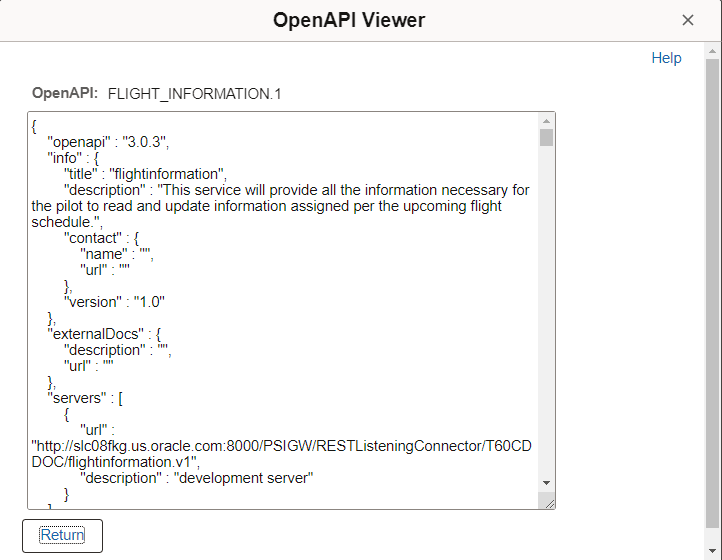

   This example illustrates the OpenAPI Viewer page. The example shows the generated OpenAPI for FLIGHT_INFORMATION service.



4. Click the Return button to return to the WSDL Repository page.

5. Click the Return button again to return to the Services page.
