Viewing the REST Resource Definition and Default Service Operation Version for Open API Rest Service Operation

The REST Resource definition section for an Open API REST Service Operation requires Root Resources. For each Root Resource, it is necessary to define the details for each index.

The REST Resource Definition section for an Open API REST displays the REST base URL, as well as the resources defined for the service operation, and the name of the document template associated with the service operation. A link is also provided to View the Document Template message.

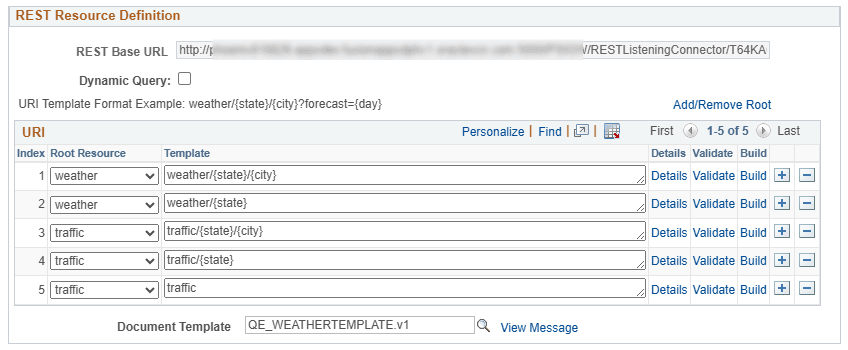

This example illustrates the REST Resource Definition Section for an Open API Rest Service.

Field or Control	Description
Dynamic Query	Select to enable dynamic query mode for a REST provider service. When you select this check box, all existing URI Templates are removed and replaced with a single dynamic query URI template; one for each defined Root Resource in case of a Rest Service.
Add/Remove Root	The Add/Remove Root link opens the Add/Remove Root Resources page. See Adding and Removing Root Resources.
Details	The Details link opens the URI Template Details page which contains the message.version for Request, Response and Fault messages See Entering Details for the URI Template.
Validate	The Validate link opens the Validate URI page. See Validating URI Templates
Build	The Build link open the URI Template Builder page. See Building the URI Template.

See Managing REST Resource Definitions for Open API REST Service and Defining REST Base URLs.

The Default Service Operation Version section contains the current active and routing status. You can regenerate routings, by select the appropriate check box and saving the page.

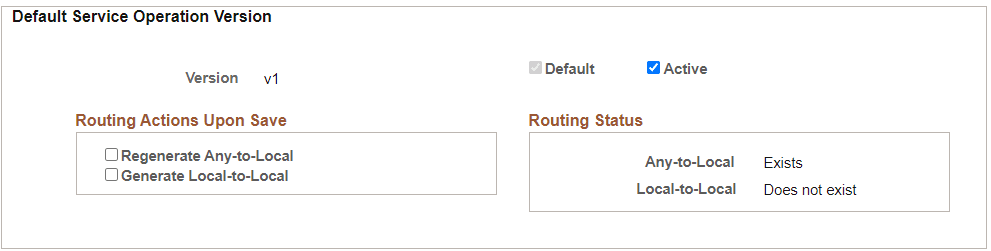

This example illustrates the Default Service Operation Version section for an Open API REST Service Operation
