PrintJobRqstRpt method: ProcessRequest class

Syntax

PrintJobRqstRpt(ProcessInstance, ItemInstance [, PrintJobTree] [, PrintDistList] [, PrintNotifyList] [, PrintSystemMessage] [, PrintApplicationMessage] [, PrintParamList])

Description

Use the PrintJobRqstRpt method to generate an HTML report file displaying the current status of a specific process, job, or jobset.

Parameters

Parameter Description

ProcessInstance

Specify the ProcessInstance number assigned to the process, job, or jobset

ItemInstance

Specify either to display all items in a job or jobset, or just a specific item.

  • To display all items, specify 0.

  • To display a specific item, specify the ProcessInstance number assigned to that item.

    For a process, set this parameter to 0.

PrintJobTree

Specify whether to have the job tree displayed in the HTML report. This parameter takes a string value:

  • "1" to display the tree.

  • "0" to not display the tree.

    Default value is "1".

PrintDistList

Specify whether you want the list of Users and Roles who will be the recipient of a report generated for a job item displayed in the HTML report. This parameter takes a string value:

  • "1" to display the list.

  • "0" to not display the list.

    Default value is "0".

PrintSystemMessage

Specify whether you want to have the message specified from the Process Definition or Job Definition page displayed in the HTML report. This parameter takes a string value:

  • "1" to display the system message.

  • "0" to not display the system message.

    Default value is "0".

PrintApplicationMessage

Specify whether you want the application messages displayed in the HTML report. These are the application messages that can be viewed from the Message Log subpage of the Process Monitor Detail page. This parameter takes a string value:

  • "1" to display application messages.

  • "0" to not display application messages.

    Default value is "0".

PrintParamList

Specify whether you want the parameter list for a job item displayed in the HTML report. This parameter takes a string value:

  • "1" to display the parameter list.

  • "0" to display the parameter list.

    Default value is "0".

Returns

An HTML report as a string.

Example

The following PeopleCode program:

Local ProcessRequest &JobRQST;
Local string &sHTML;
Local string &sPRINT_JOBTREE;
Local string &sPRINT_DISTLIST;
Local string &sPRINT_SYSMESSAGE;
Local string &sPRINT_APPLMESSAGE;
Local string &sPRINT_PARAMLIST;

&sPRINT_JOBTREE = "0";
&sPRINT_DISTLIST = "1";
&sPRINT_SYSMESSAGE = "1";
&sPRINT_APPLMESSAGE = "1";
&sPRINT_PARAMLIST = "1";
&JobRQST = CreateProcessRequest();
&sHTML = &JobRQST.PrintJobRqstRpt(PMN_PRCSLIST.PRCSINSTANCE, 0, &sPRINT_JOBTREE,⇒
 &sPRINT_DISTLIST, &sPRINT_SYSMESSAGE, &sPRINT_APPLMESSAGE, &sPRINT_PARAMLIST);

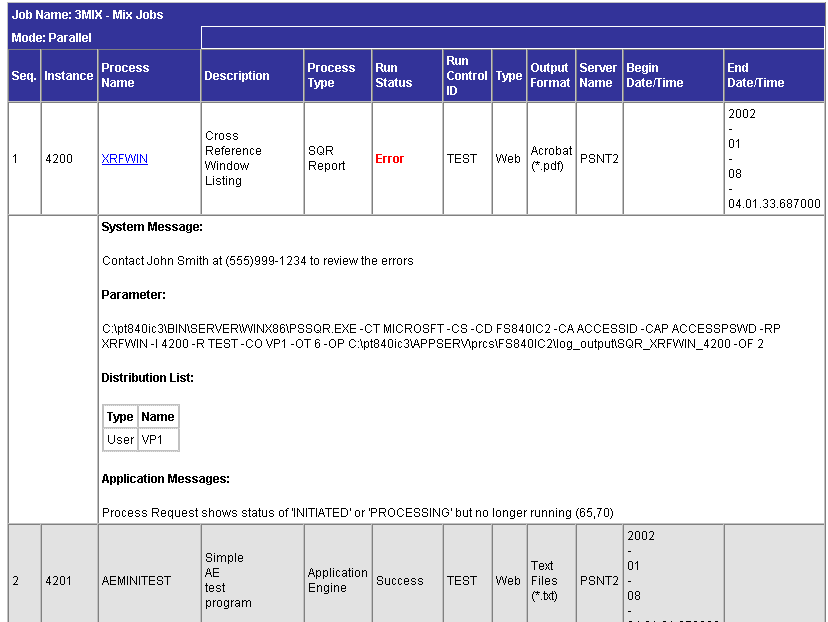

The following screen image is an example of a HTML report created after executing the above mentioned PeopleCode program:

Example HTML report
