Configuring Thresholds for a Dual Y-Axis

This option is available when the chart contains a dual Y-axis. You can set thresholds for a dual Y-axis from the Threshold Personalization dialog box in Pivot Grid Viewer.

Note:

The behavior of the Dual Y axis feature applies to both classic and fluid views.

To access the Threshold Personalization dialog box:

1. In the Pivot Grid Viewer, select the Options Menu.

2. Select the Threshold Options menu option to display the Threshold Personalization dialog box.

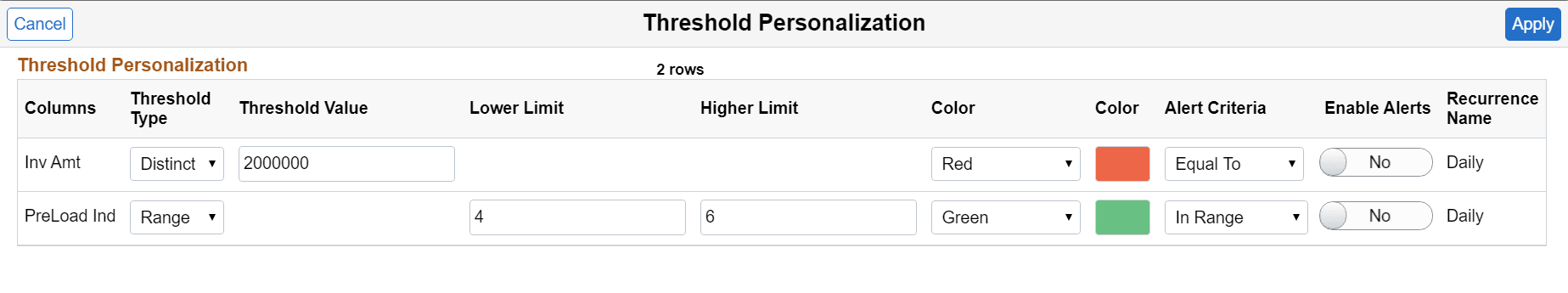

This example illustrates the fields and controls on the Threshold Personalization dialog box.
