Defining Header Images

Access the Header Image page. (Select PeopleTools, and then Portal, and then Pagelet Wizard, and then Define Pagelet Headers, and then Define Header, and then Specify Image.)

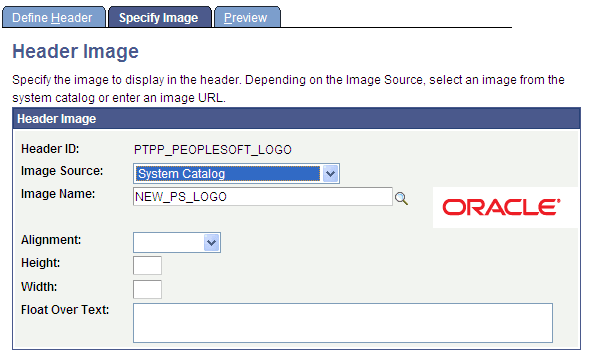

This example illustrates the fields and controls on the Define Headers - Specify Image page. You can find definitions for the fields and controls later on this page.

Header Image

Field or Control	Description
Image Source	Select the image source. Options are: System Catalog: Select to specify an image from the PeopleTools system image catalog. External Source: Select to specify an image from a source external to the PeopleTools system image catalog.
Image Name	If you select the System Catalog image source, click the Search button to access a list of existing images.
Image URL	If you select the External Source image source, enter a URL for the desired image file. All image types are supported. Ensure that the location of the image provides reliable access.
Alignment	Select the alignment of the image. Options are: Left: Select to align the image with the left margin of the pagelet. Right: Select to align the image with the right margin of the pagelet.
Height	Enter the image height in pixels if the image needs to be resized. If you enter an image height, the system adjusts the image width to fit the image height.
Width	Enter the image width in pixels if the image needs to be resized. If you enter an image width, the system adjusts the image height to fit the image width.
Float Over Text	Enter text that you want to appear when the user moves the cursor over the image.
