Interwindow Communication Process Flow

Interwindow communication interactions occur according to this simplified process flow:

  1. The triggering event occurs (click or change).

  2. The interwindow communication message is published.

  3. Each object (pagelet or page) determines whether it is subscribed to the message.

  4. Subscriber objects only read the message.

  5. Subscriber objects only act according to the subscription definition.

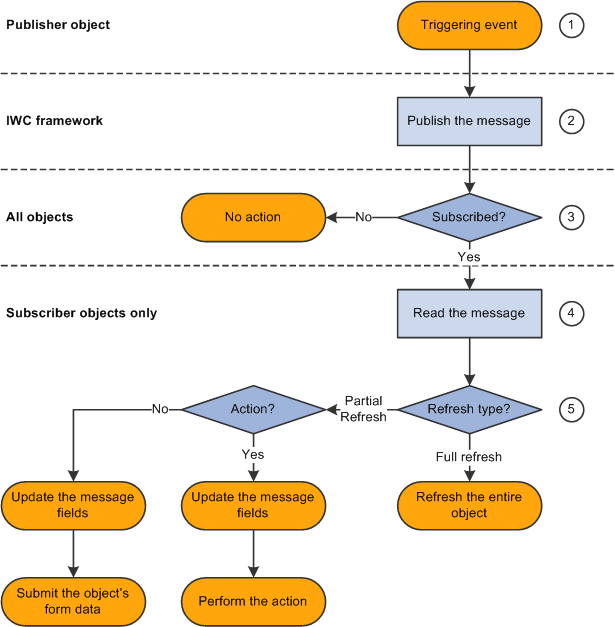

The following diagram presents the flow of these actions and events, which comprise the publish and subscribe process of interwindow communication:

Interwindow communication process flow

The following table presents the process flow in more detail:

Actor Step Description

Publisher object

1. Triggering event occurs.

User clicks a button or link or changes the value of a field that is configured for publication.

Interwindow communication framework

2. Publish the message.

A simple string formatted message is sent to the top window in the browser session—for example, that would be the homepage or dashboard window.

All objects

3. Determine whether subscribed.

All objects determine whether they are subscribed to the event.

Subscriber objects only

4. Read the message.

All objects in the window that are subscribed to the event read the message.

Subscriber objects only

5. Act according to the subscription definition.

Objects in the window that are subscribed to the event do one of the following:

  • If a full refresh is set, refresh the entire object (with URL parameters if specified). Any message data is essentially lost.

  • If a partial refresh is set:

    • If an event action is defined, refresh only the field(s) specified in the subscribing message definition with the published message data and then perform that action.

    • Otherwise, refresh only the field(s) specified in the subscribing message definition with the published message data and then submit the form data.

      Important: Submitting the form data forces a trip to the application server regardless of whether the field or component is in deferred processing mode.

Note:

Interwindow processes occur after any application server interactions invoked by the user's action. For example, a publication event could be defined for clicking a link, which merely retrieves data from the database, or it could be defined for clicking a Save button, which invokes component save processing to save updated data to the database. Interwindow communication fires after the server interaction returns to the browser.
