Use a Parameter as a Dashboard Filter Control

When working on a workbook in Visualize or Present mode, you can use a parameter as a dashboard filter control to select and change the dimension and measure column values for a canvas' visualizations.

These tutorials provide use cases explaining how to use a parameter in the dashboard filter control:

Tutorial icon Tutorial

Tutorial icon Tutorial

Note:

Adding a parameter as a filter control functions as a column selector. Adding a parameter as a filter control doesn't filter data.
Using a parameter as a dashboard filter control doesn't provide the same features as a standard filter. For example, it doesn't provide the Top Bottom N, exclude, nulls, and limit values functionalities.
  1. On the Home page, hover over a workbook, click Actions (Actions menu ellipsis icon), then select Open.
  2. In the Data Panel click Visualizations.
  3. Scroll to the Dashboard Controls section and drag and drop Dashboard Filters on the canvas.
  4. In the Data Panel click Parameters.
  5. Drag and drop a parameter to Filter Controls in the Dashboard Filter visualization's grammar panel.

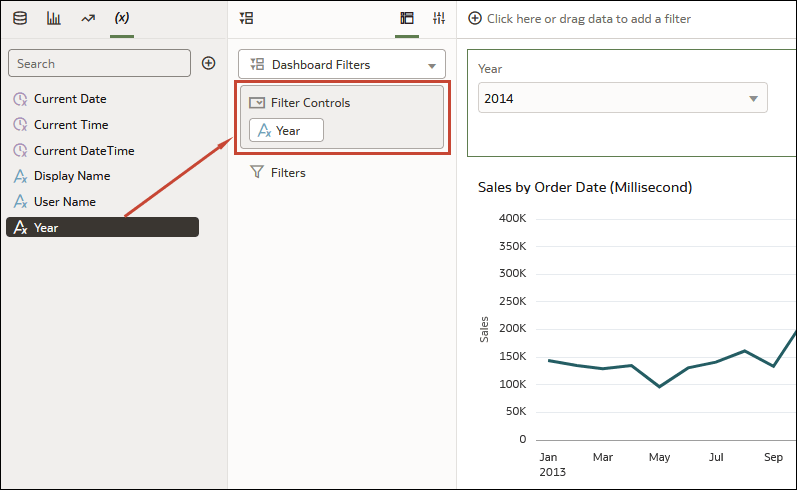

    Parameter on dashboard filter control

  6. Click Save to save the workbook.
